ALL MANUFACTURERS

SMART LINE MODULE

SINAMICS S120 SMART LINE MODULE
INPUT: 3AC 380-480V, 50/60HZ
OUTPUT: 600VDC, 17A, 10KW
FRAME SIZE: BOOKSIZE INTERNAL
AIR COOLING
INCL. CONTROL VOLTAGE
ADAPTER MODULES PAINTED

Rectifier interfaces Module

Rectifier interfaces Module
PER2 for infeed/regenerative
feedback Supply units
with Designs H and K
380-480 V 3 AC, 50/60 Hz

proximity sensor

From the vibro-meter® product line
Conforms to API 670 recommendations
1, 5 and 10 m systems
Temperature-compensated design

Circuit Breaker Relay Module

 LS-5 Series relays
Power supply:12/24 Vdc
Rated (Vrated):69/120 Vac
Max. value (Vmax):86/150 Vac
Input range:12/24 Vdc (8 to 40 Vdc)
Intrinsic consumption:max.~ 5 W.

POWERFLEX CONTROL BOARD

POWERFLEX CONTROL BOARD
9 PIN CONNECTOR
Voltage Class: 240V AC Input
Drive Model: PowerFlex 700S

ANALOG I/O MODULE

SIMATIC S7-1200

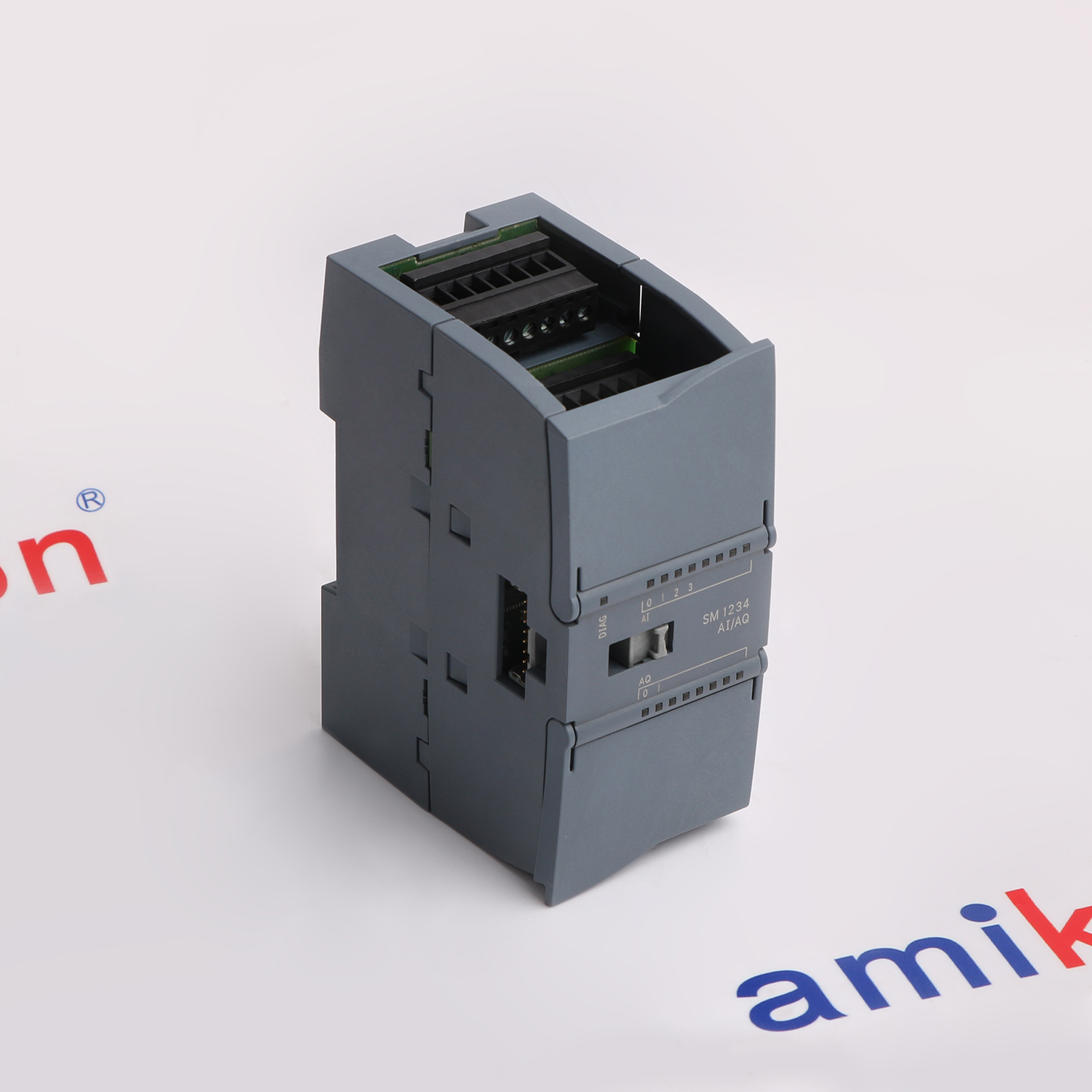

ANALOG I/O SM 1234
4 AI/ 2 AO, +/-10V
14 BIT RESOLUTION
OR 0-20 MA
13 BITRESOLUTION

Digital I/O MODULE

SIMATIC S7-1200
Digital I/O SM 1223
16 DI/16 DO, 16 DI 24 V DC
Sink/Source, 16 DO
transistor 0.5 A

Robicon Cell control board

Memory:512 KB SRAM
ADC Channels:8x 16-bit
Cell Status Output:Relay contacts
Supply Voltage: 24 VDC (±10%) via backplane
Consumption: 18W (typical)
PWM Frequency:0–2.5 kHz
Voltage Accuracy:±0.5% FS (DC link)
Fault Response:<5 µs

PLC BOARD

CPU:32-bit RISC processor
Clock Speed:100–200 MHz
Operating Voltage:24V DC (18–32V DC)
Isolation :1500V AC (I/O-to-logic)
Temp Range:-40°C to +85°C
Humidity:5–95% non-condensing

I/O Power Supply Chassis

19 inch x 1U chassis for up to 3 Power Packs.
Chassis Type:Main Chassis
Input Voltage:120V AC
Output Power:Distributes +5V DC

Power Distribution Module

Input Voltage:120V AC
Power Rating:120W
Motor Speed:3600 RPM
Airflow Capacity:20 CFM
Noise Level:35 dB

Trusted TMR Controller Chassis

CHASSIS TRUSTED CONTROLLER
Architecture:3-channel TMR
Safety Certification:SIL 3 (IEC 61508/61511)
Slots:12 slots
Backplane Bandwidth:100 Mbps dual-redundant TMR bus
Input: 24V DC (18–32V range)
Redundancy: N+1 hot-swap PSUs
Per PSU: 250W @ 24V DC

spring-operated brake

Fail-safe spring applied-brake
Adjustable service brake and holding brake
Standard modular system with many options
9 sizes from 1.5 Nm to 720 Nm
Reducible brake module (Type E)
TÜV-Nord safety certificate
UL-certified

Power Monitor Board

Input Voltage/Current: ±1% accuracy.
Temperature/Humidity: Via external sensors
Fan Speed Control: PWM-based regulation.
Power Consumption:≤5 W
Operating Temp.:-5°C to +55°C (23°F to 131°F)
Relative Humidity:5%–95% (non-condensing)

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit
Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit
Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

Thyristor Unit

Gate Commutated Turn-off (GCT) Thyristor Unit
Allen-Bradley SMC™-3 Soft Starters
Rated Voltage: 110-120V AC
Rated Current: Typically 17 Amps
Power Rating: 110-120V AC

LOGIC MODULE

LOGIC MODULE
PANELVIEW PLUS
FOR USE WITH PANELVIEW PLUS 700-1500
SINGLE APPLICATION
VIEWPOINT COMPATIBLE
64 MB FLASH / 64 MB RAM
24 VDC

Inverter control Module

Inverter control Module
IGD7 for devices 500-690V 3 AC
50/60 Hz and 675-930V DC, 452A

Control Interface Board

MICROMASTER 440 PX
replacement Control Interface Board
for 380-480 V 3AC
50/60 Hz
310 A AC Drive

COMMUNICATIONS MODULE

SIMOVERT MASTERDRIVES
COMMUNICATIONS MODULE
CB1 FOR STANDARDIZED
PROTOCOL PROFIBUS DP

CONNECTOR BOARD

CONNECTOR BOARD
PAINTED C98043-A7125-L100
Voltage Rating:≤ 60 V DC (signal level)
Current Capacity:2 A per bus line

Power Interface Module

Power Interface incl.
erminals C98043-A7106-L1
Electronic short-circuit protection (auto-reset)
Fuse monitoring (LED per channel)
Overvoltage clamp (40V max)
X1/X2: 24V DC Input (2x 4-pin terminal)
X10–X60: Output channels
X200/X201: Relay contacts

SINUMERIK 840D/DE CNC-HARDWARE

SINUMERIK 840D/DE CNC hardware
NCU 571.5B, 900 MHz 128 MB
without system
software memory: NC 3 MB, PLC 128 KB
PROFIBUS DP prepared

Signal Conditioning Module

Normalizing module
ABO For devices
3 AC 380-460V
and 510-620V DC
260 A
