3300 XL 8 mm Probe

M10 x 1 threads(2)
90 9.0 meters (29.5 feet)
02 Miniature ClickLoc coaxialconnector
00 Not required

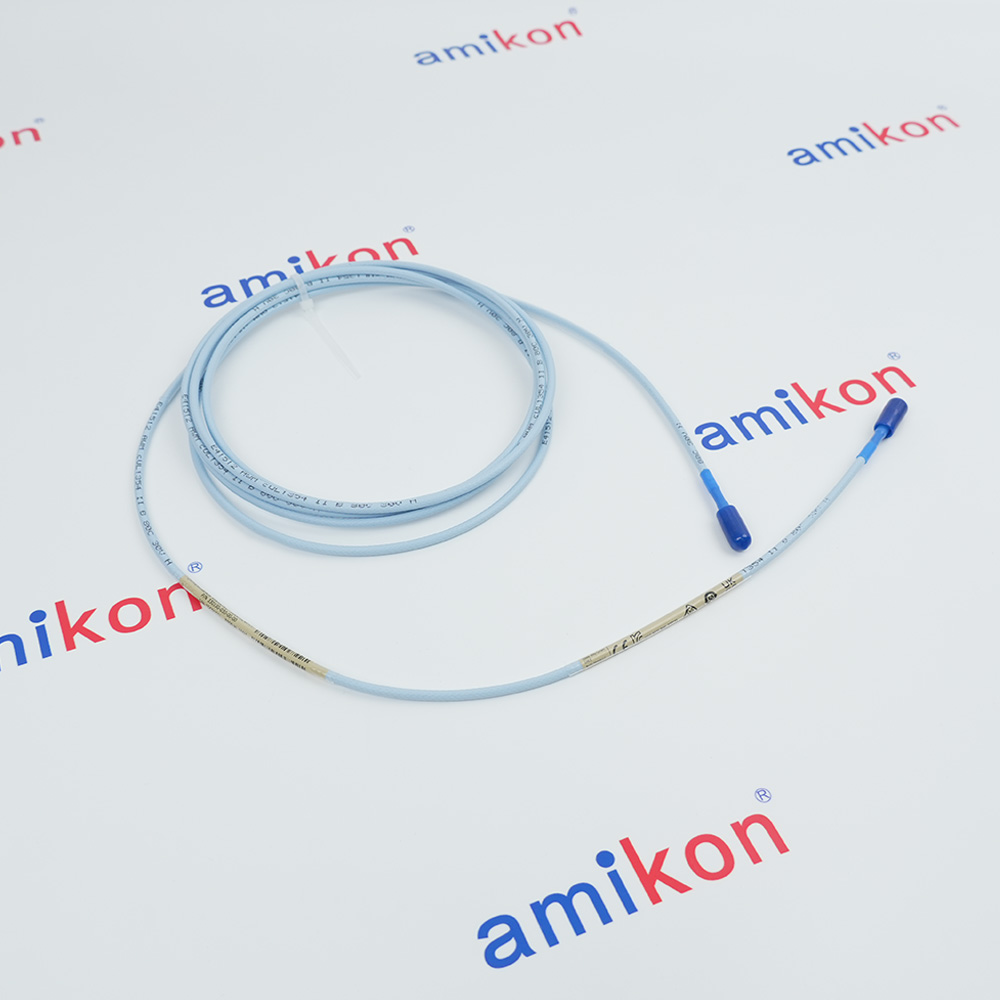

Interconnect Cable

Transducer, 8mm Proximity Probe
22810 : 8mm diameter
Case : Standard M10 x 1
Stainless steel lead armor

Standard Interconnect Cable

Shielded 0.382 mm
2 (22AWG) cable
moistureresistant female connector atthe transducer
end and ringlugs at the monitor end
Temperature range -29 to121°C (-20 to 250°F)

3300 XL 8 mm Probe

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 170 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 150 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probe

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 140 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 90 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

330101-00-10-05-02-05

330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 1.0 in
05 0.5 meter (1.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

Vibration Transmitter

04 0-4 mils pp (0-100 μm pp)
50 5.0 meters (16.4 feet)
01 35 mm DIN rail clips
990 Vibration Transmitter

3300 NSv Proximity Probes

330905 3300 NSv Probe
M10X1 thread,without armor
Minimum unthreaded length:20 mm
Minimum length: 100 mm
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable

3300 XL 8 mm Proximity Probes

330102 3300 XL 8 mm Probe
3/8-24 UNFthread, with armor
Minimum unthreaded length: 0.0 in
Minimum case length: 4.0 in
10 1.0 meter (3.3 feet)
11Miniature coaxial ClickLocconnector
with connectorprotector, FluidLoc cable
00 Not required

DC Power Supplies

Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply
Inputvoltage 20 to 30 Vdc
Highvoltage DC 2.5 A (maximum)

System Rack

01 19-inch Rack (14 module slots)
02 Rack Mount Option, Full-Size Rack
(mounts to19-inch EIA Rack)
01 CSA/NRTL/C (Class 1, Division 2)
00 None
01 CE
The 3500/05 mini-rack is not available
in theBulkhead Mount option.

Ethernet/RS232 Modbus I/O Module

Accepts from 1 to 16 signals
Input impedance: Greater than 1 MΩ
Power consumption: 3 watts
Front panel LEDs: OK, TX/RX, Bypass
Type E, J, K, T thermocouples
100 Ω 3-wire and 4-wire platinum RTD

System Display

Local or Remote Visual Indication
of 3500 Machinery Protection System
(4) Display Mounting Types
Up to (2) Displays per 3500 Rack
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Ethernet: 100Base-FX Fiber-Optic

Rack Interface Module

Power Consumption:4.75 watts, typical
Standard:RS232 serial communications
Data Rate:38.4 k baud
Normally closed contacts:Arc suppressors are provided
Maximum Current:<1 mA dc, Dry Contact to Common

PROXIMITOR MONITOR MODULE

PROXIMITOR MONITOR MODULE
7.7 WATT
4 CHANNEL
INTERNAL BARRIERS
INTERNAL TERMINATIONS
ATEX / IECEX / CSA

VGA Display Monitor

System Event List
Alarm Event List
All module and channel data
3300 style rack view (API-670)
Current alarm data (quick view)
Nine custom display options

Proximitor I/O Module with Internal Terminations

(4) Channel Monitor
Internal terminations
Dual-level alarms (Alert/Danger)
Dynamic and static measurement
Various "Static Value" Parameters
Accepts Input from Proximity Transducers
Proximitor I/O Module with Internal Terminations

Vibration Transmitter

7 0 7.0 metres (23.0 feet)
0 2 Bulkhead screws
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.

Vibration Transmitter

7 0 7.0 metres (23.0 feet)
0 1 35 mm DIN rail clips
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical

Vibration Transmitter

5 0 5.0 metres (16.4 feet)
0 2 Bulkhead screws
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.

Vibration Transmitter

5 0 5.0 metres (16.4 feet)
0 2 Bulkhead screws
0 0 Not required
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.

Vibration Transmitter

06 0.6-0-0.6 mm
50 5.0 meters (16.4 feet)
01 35 mm DIN-rail clips
05CSA Division 2, ATEX Zone 0
ATEXZone 2 and includes
ABSmaritime approval

Vibration Transmitter

5 0 5.0 metres (16.4 feet)
0 1 35 mm DIN rail clips
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
