3300 XL 8 mm Proximity Probes

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

I/O Module

135489-04
I/O Module With
Internal Barriers
And Internal Terminations

Thrust Transmitter

06 0.6-0-0.6 mm
50 5.0 meters (16.4 feet)
01 35 mm DIN-rail clips
00 Not required

3300 NSv Proximity Probes

330905:3300 NSv Probe
M10X1 thread,without armor
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cable
00 Not required

AI 8 CH 4-20mA HART CARDSERIES 2

Local Bus Power:12 VDC at 150 mA
Bussed Field Power:24 VDC at 300 mA
Field Circuit: 24 VDC at 30 mA/Ch.
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing

Eddy Current Sensor

2 V/mm ≤ ±1.5% max
Approx. 5.5 mm
Nominal < 0.3%
±4.0 mm
2,500 m/s
-35 to 175°C
200°C
-0.3%/100°K Zero Point

Seismoprobe VelocityTransducers

Seismoprobe VelocityTransducers
01 0 ±2.5, 4.5 Hz (270 cpm)
01 Top Mount (no cable)
10 Circular; M10X1 stud
00 No Approvals

I/O Module

INTERNAL BARRIER
I/O MODULE
3500 SERIES
4 PROX/ACCEL CHANNELS
W/ INTERNAL TERMINATIONS

3300 XL 8 mm Probe

3300 XL 8 mm Probe, M10 x 1 thread
without armor
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm

3300 XL 8 mm Proximity

3300 XL 8 mm Probe
M10 x 1 thread,without armor
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

Vibration Transmitter

0 4 0-4 mils pp (0-100 μm pp)
5 0 5.0 metres (16.4 feet)
0 1 35 mm DIN rail clips
0 0 Not required
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.

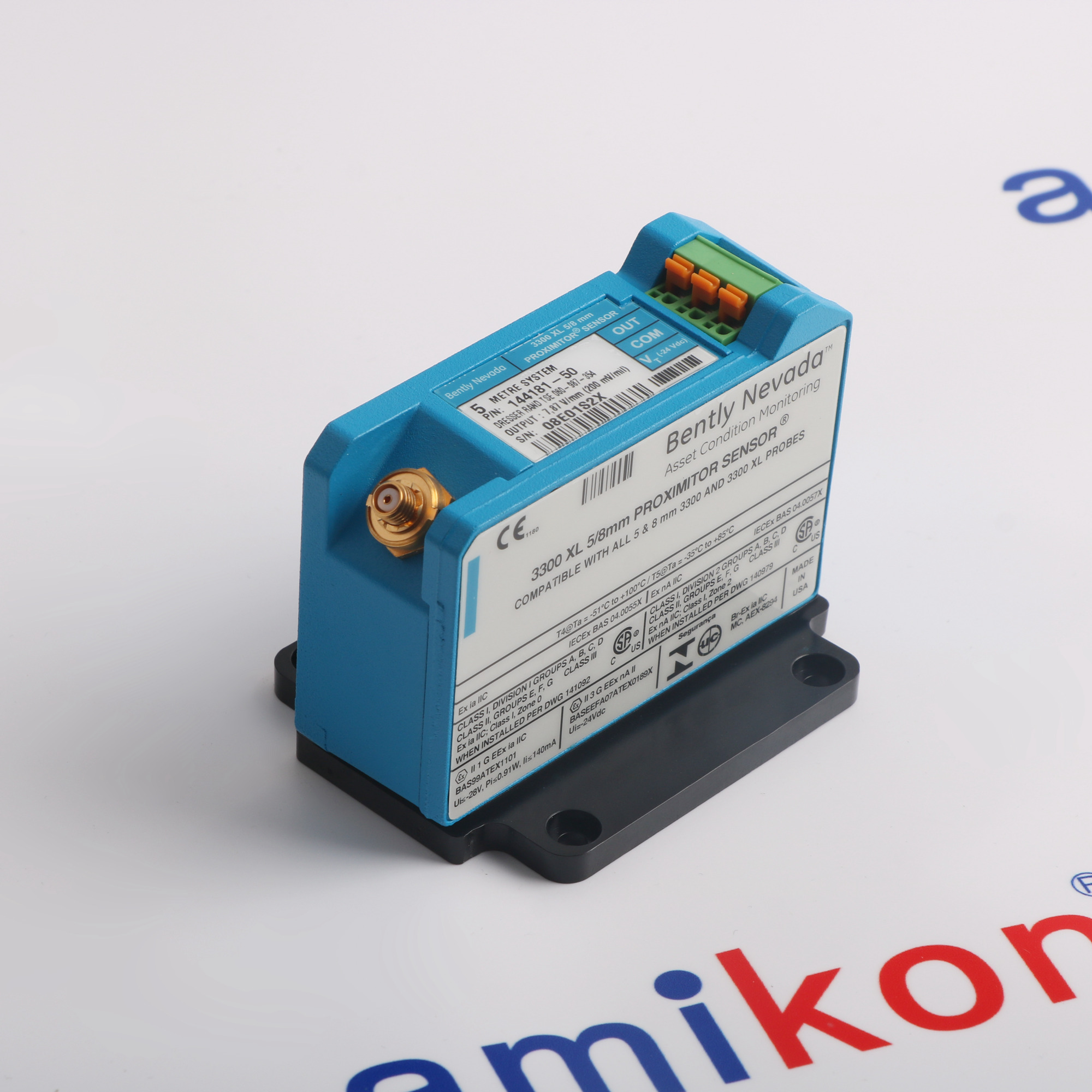

3300 XL NSv Proximitor Sensor

71 = 7.0 metres (23.0 feet) system length, DIN mount
CN =  Approvals country specific
(CN Approvals Option Quick Reference Guide and
Field Notification Letter are in the download section)
Operating Temperature: -35°C to +85°C (-31°F to +185°F)
Storage Temperature: -51°C to +105°C (-60°F to +221°F)
Proximitor Sensor Material: A380 aluminum
Proximitor Sensor Input : Accepts one non-contacting 3300 RAM or 3300 NSv Proximity Probe and Extension Cable.
Power : Requires -17.5 Vdc to -26 Vdc
without barriers at 12 mA
maximum consumption, -23 Vdc to -26 Vdc
voltage than -23.5 Vdc
