- 3300 XL 8mm Proximity Transducer
- 330173-00-04-20-12-05
In Stock
Ships by Wednesday, July 1
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330173-00-04-20-12-05
-
Product Model330173-00-04-20-12-05
-
Product Parameters3300 5mm Probe, M8 x 1 thread,without armor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size125.3x1.5x1.3cm
-
ManufacturerBently Nevada
-
Weight0.04 kg
-
Unthreaded Length Option0.0mm
-
Overall Case Length Option40mm
-
Total Length Option2.0 metres (6.6 feet)
-
Connector OptionMiniature coaxial ClickLocconnector, FluidLoc cable
-
Agency Approval OptionMultiple Approvals
-
Output Resistance50 W
-
Recommended Gap Setting1.27 mm (50 mils)
Description

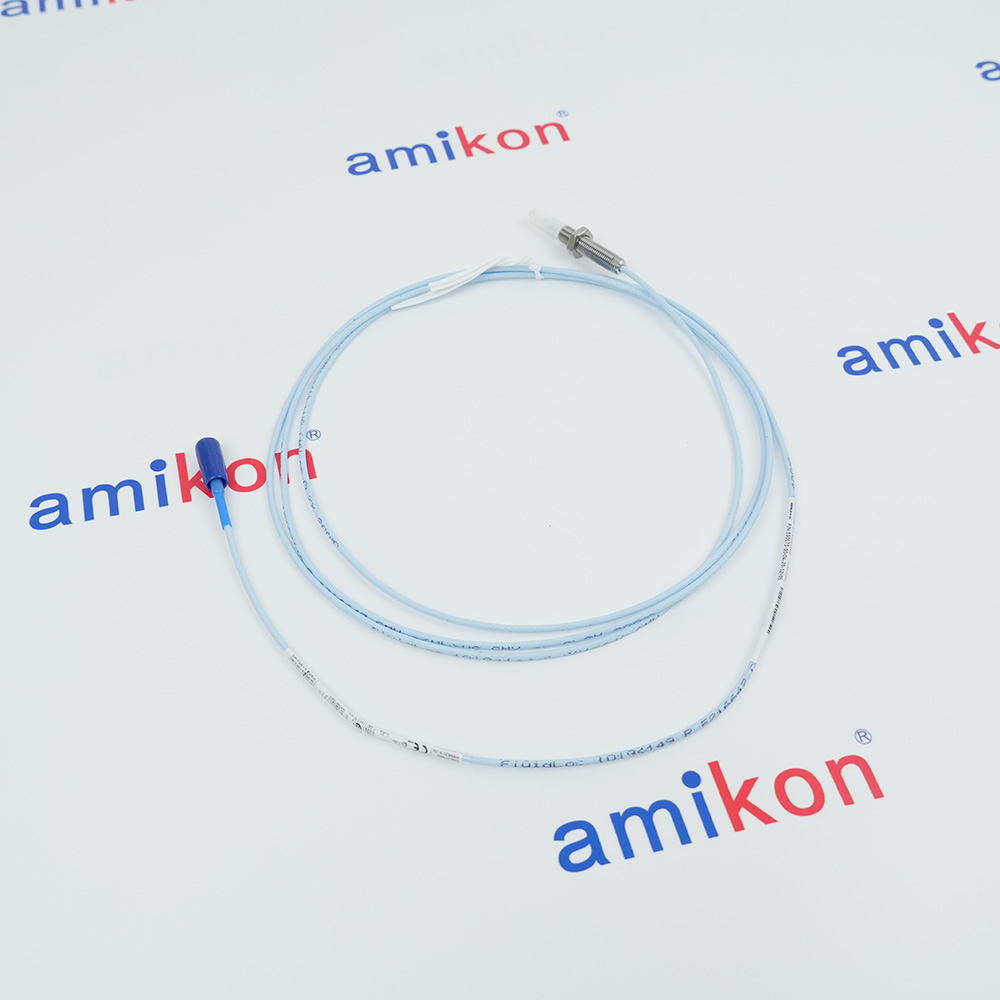

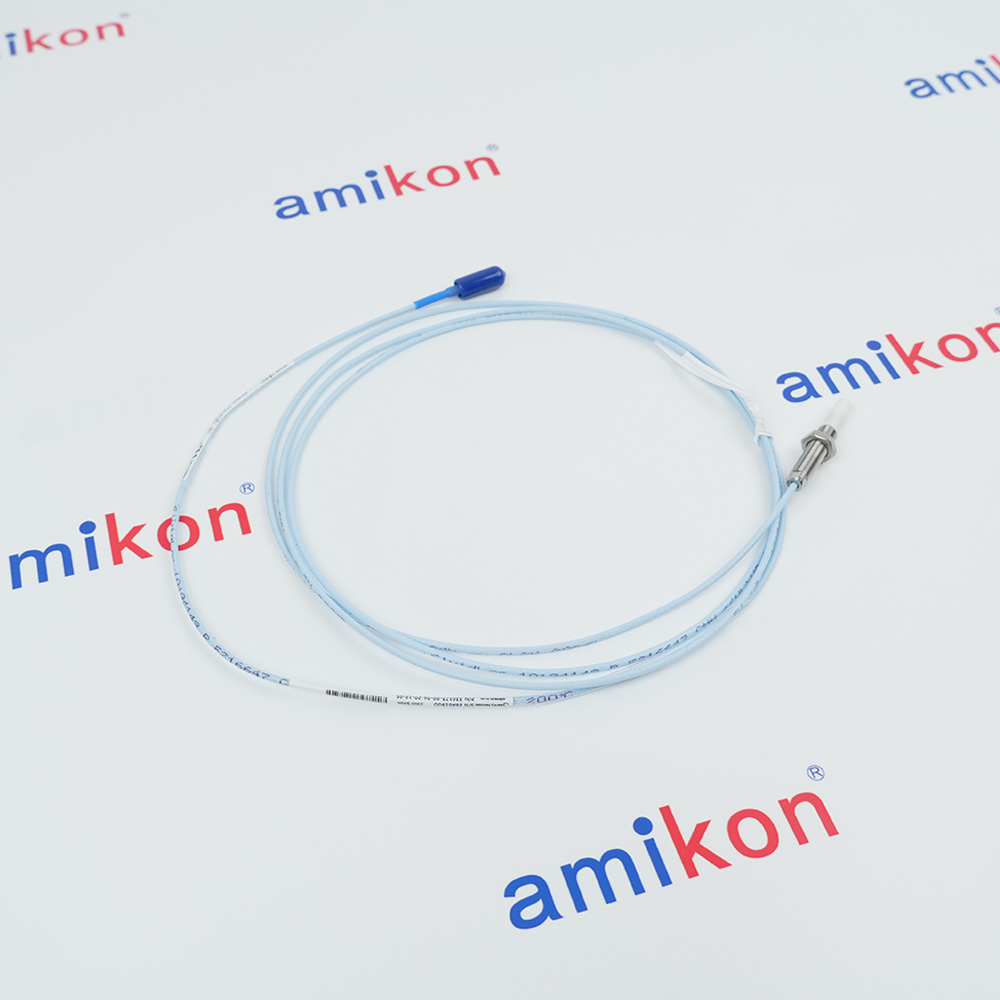

The Bently Nevada 330173-00-04-20-12-05 is a 3300 5mm Proximity Probe with M8 x 1 thread and without armor, as an integral component of the 3300 5mm Proximity Transducer System. The 330173 is designed for use in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications.
The Bently Nevada 330173-00-04-20-12-05 features an M8 x 1 metric thread configuration, providing a compact mounting solution for applications where physical constraints preclude the use of larger 8mm probes. The 330173 uses smaller physical packaging while providing the same linear range as a 3300XL 8mm probe, making the 330173 ideal for mounting between thrust bearing pads or other constrained spaces.
The Bently Nevada 330173-00-04-20-12-05 is supplied without armor, featuring a 75Ω cable with a maximum outside diameter of 2.8mm (0.11in). The 330173 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body, enhancing durability and reliability in demanding industrial environments.
The Bently Nevada 330173-00-04-20-12-05 features an M8 x 1 metric thread configuration, providing a compact mounting solution for applications where physical constraints preclude the use of larger 8mm probes. The 330173 uses smaller physical packaging while providing the same linear range as a 3300XL 8mm probe, making the 330173 ideal for mounting between thrust bearing pads or other constrained spaces.
The Bently Nevada 330173-00-04-20-12-05 is supplied without armor, featuring a 75Ω cable with a maximum outside diameter of 2.8mm (0.11in). The 330173 incorporates a patented TipLoc molding method that provides a more robust bond between the probe tip and the probe body, enhancing durability and reliability in demanding industrial environments.
Alternative Names
330173 00 04 20 12 05
330173-00-04-20-12-O5
330173-00-04-20-I2-05
330173-00-04-2O-12-05
330173-00-O4-20-12-05
330173-0O-04-20-12-05
330I73-00-04-20-12-05
33O173-00-04-20-12-05
330173-00-04-20-12-00
330173-00-04-20-12-CN
330173-00-04-20-12-BR
330173-00-04-20-12-RU
Information
Overview
Manuals
Application Notes
Product Applications
Insertion Guidelines
Features:
- M8 x 1 Metric Thread Configuration
- Without Armor Cable Construction
- Patented TipLoc Molding Method
- Same Linear Range as 3300XL 8mm Probe
- FluidLoc Cable Option Available
The probe operates from a –17.5 Vdc to –26 Vdc power supply with a maximum current consumption of 12 mA. The recommended supply voltage is –24 Vdc. The system incremental scale factor is 7.87 V/mm (200 mV/mil) with a linear range of 0.25 mm to 2.3 mm (10 to 90 mils). The recommended gap setting is 1.27 mm (50 mils) from an AISI 4140 steel target. Frequency response is 0 Hz to 10 kHz (+0, –3 dB).
The 330173-00-04-20-12-05 Bently Nevada 5mm Probe, M8 x 1 thread,without armor may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330173-00-04-20-12-05 5mm Probe, M8 x 1 thread,without armor Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 5mm probe uses smaller physical packaging than the 3300 XL 8mm probe but provides the same linear range. It does not reduce sideview clearances or tip-to-tip spacing requirements compared to an XL 8mm probe. The 5mm probe is used when physical (not electrical) constraints preclude the use of an 8mm probe, such as mounting between thrust bearing pads or other constrained spaces.
The probe is designed to seal differential pressure between the probe tip and case using a fluorocarbon O-ring. Exposing the probe to temperatures below –34 °C may cause premature failure of the pressure seal. The probe withstands tensile forces of 222 N (50 lbf) at critical connection points. The minimum cable bend radius is 25.4 mm (1.0 in).
- Centrifugal/Axial Compressors: Monitors shaft vibration and thrust to prevent rotor-stator contact
- Pipeline Pumps: Tracks shaft stability on heavy-duty pumps moving crude or refined products
- Gas Turbines: Monitors rotor dynamics under extreme thermal conditions and high speeds
- Mixers/Agitators: Measures deflection of long, top-heavy shafts under severe loads
- Fans/Blowers: Monitors unbalance from chemical buildup or blade erosion
- Specialty Pumps: Prevents seal failures by tracking radial shaft runout continuously
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Thread & Torque: Do not overtighten the probe. Typical mounting requires an M8x1 locknut to secure its position.
Target Material: The probe must be aimed at a conductive, non-magnetic target, preferably AISI 4140 steel, to maintain factory calibration accuracy.
Gap Distance: The recommended gap setting for this sensor is typically 1.27 mm (50 mils). You should gap the probe to the center of its linear range.
Gap Voltage: Connect a digital multimeter to the monitor to read the gap voltage. A correct installation will read between -9 VDC and -11 VDC
Technical notes
The Bently Nevada 330173-00-04-20-12-05 is part of a transducer system that consists of a 3300 5mm probe, a 3300XL extension cable (refer to 141194-01), and a 3300XL Proximitor Sensor. When combined with these components, the 330173 provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling measurement of both static (position) and dynamic (vibration) data.
FAQs
-
What is 330173-00-04-20-12-05 ?
+The Bently Nevada 330173-00-04-20-12-05 is a 5mm proximity probe designed for the 3300 Transducer System. -
What is the measuring range of this probe?
+The linear measuring range of the 3300 5mm probe is typically between 0.25 mm and 2.3 mm (10 mils to 90 mils), providing highly accurate gap measurements. -
What is the nominal sensitivity?
+The probe's sensitivity is typically -200 mV/mil or -7.87 V/mm. This means the output voltage shifts directly with the physical distance between the probe tip and the target surface.. -
What is the operating temperature range?
+The 330173 probe is designed to function reliably in harsh industrial environments, operating typically between -49 °F and +350 °F (-45 °C to +177 °C).
