- 3300 XL NSV Proximity Transducer
- 330880-28-15-063-00-02
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330880-28-15-063-00-02
-
Product Model330880-28-15-063-00-02
-
Product ParametersPPROXPAC XL Proximity Transducer,English
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size36.5x9x9.3cm
-
ManufacturerBently Nevada
-
Weight1.35 kg
-
Probe and Approvals Option3300 XL 8 mm probe with MultipleApprovals
-
Standoff Adapter Option1.5 in (38 mm)
-
Probe Penetration Option6.3 in (160.02 mm)
-
Fittings OptionNo fittings; two plugs and twowashers
-
Mounting Thread Option3/4-14 NPT
-
Outputresistance50 Ω
Description
2 8 3300 XL 8 mm probe with MultipleApprovals
1 5 1.5 in (38 mm)
0 63 6.3 in (160.02 mm)
0 0 No fittings; two plugs and twowashers
0 2 3/4-14 NPT
1 5 1.5 in (38 mm)
0 63 6.3 in (160.02 mm)
0 0 No fittings; two plugs and twowashers
0 2 3/4-14 NPT
Information
Overview
Manuals
Technical notes
Product Applications
Key Operating Instructions
Features:
- Ideal for Compression Systems, Speed Measurements, and Fluid-Film Bearing Machines
- External Probe Access & Adjustment
- Integrated Self-Contained Design
- PROXPAC XL Proximity Transducer Assembly
The design of the PROXPAC XL Proximity Transducer Assemblyis similar to our 31000/32000 Proximity Probe HousingAssemblies. The assembly offers the same advantages andfeatures as the 31000 and 32000 housings for accessing andexternally adjusting proximity probes. However, the housingcover of the PROXPAC XL Assembly also contains its own 3300XL Proximitor sensor. This design makes the PROXPAC XLAssembly a completely self-contained proximity probesystem, and eliminates the need for an extension cablebetween the probe and its associated Proximitor sensor. Italso eliminates the need for a separate Proximitor housing, asthe field wiring connects directly between the monitors andPROXPAC XL Assemblies.
The 330880-28-15-063-00-02 Bently Nevada PPROXPAC XL Proximity Transducer,English may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330880-28-15-063-00-02 PPROXPAC XL Proximity Transducer,English Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The PROXPAC XL housing is made of Polyphenylene Sulfide(PPS), which is an advanced, molded thermoplastic. Thismaterial replaces the steel and aluminum in previoushousings offered in the Bently Nevada product line. It alsoincorporates glass and conductive fibers in the PPS tostrengthen the housing and more effectively dissipateelectrostatic charges. The PROXPAC XL housing is rated forType 4X and for IP66 environments and provides extraprotection in severe environments.
- Oil & Gas Refineries and Petrochemical Plants:Monitors compressors/pumps & fluid-film bearings to prevent failures
- Power Generation Facilities:Axial/radial vibration monitoring for turbines in coal/hydro/combined-cycle
- Pulp and Paper Mills:Monitors large rolls & pulp refiners for consistent rotation
- Mining and Metal Processing:Heavy equipment monitoring (ball mills, crushers, fans) in dusty environments
- Water and Wastewater Treatment Plants:Monitors critical pumps & blowers for municipal projects
- Fertilizer and Chemical Production:Ensures rotating machinery reliability in high-stakes processing
- Manufacturing Plants:Monitors cooling tower fans, agitators & mixers (balance-of-plant)
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gapping & Voltage: For proper operation, the probe must be "gapped" to its linear range. A typical gap voltage for the 3300 XL series is approximately -9 V to -11 V DC when centered.
Mounting: The unit is designed for a 3/4-14 NPT mounting hole. Ensure the probe tip is correctly positioned relative to the shaft surface based on the 63 mm penetration depth.
Electrical Power: Requires a supply of -17.5 Vdc to -26 Vdc. For maximum linear range, use a supply between -23 Vdc and -26 Vdc.
Wiring: Wiring connects directly from the monitoring system to the internal Proximitor sensor terminals within the PROXPAC housing, which provides IP66/Type 4X protection.
FAQs
-
What is the primary application for this device?
+It is used for measuring vibration, thrust position, or speed on rotating machinery, particularly in sectors like oil and gas, power generation, and mining. The PROXPAC housing provides extra protection against mechanical damage and environmental contaminants. -
What is the recommended gap voltage setting for 330880-28-15-063-00-02?
+For the 3300 XL series probes included in this component, the standard gap voltage should be set between -9 V and -11 V DC when the probe shaft is at the center of its linear range -
What is the PROXPAC XL?
+It is a self-contained transducer system that combines a proximity probe, housing, and an integrated 3300 XL Proximitor Sensor. It eliminates the need for separate extension cables and external junction boxes by allowing field wiring to connect directly to the assembly. -
What are the power requirements for device 330880-28-15-063-00-02?
+This device typically requires a power supply of -17.5 Vdc to -26 Vdc (without fencing) or -23 Vdc to -26 Vdc (with fencing), with a maximum power consumption of 12 mA. -
What is the Incremental Scale Factor (ISF) of 330880-28-15-063-00-02?
+Its ISF is 7.87 V/mm (200 mV/mil) ±5%.
Trusted by 5,000+ plants worldwide | Backed by our vast inventory of top-tier control parts, drives and servo motors, fast shipments are dispatched to cover your urgent needs. ABOUT US >>
Disclaimer: Amikon Limited sells new and surplus products and develops channels for purchasing such products. Amikon Limited is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Amikon Limited is not an authorized distributor of this product, the Original Manufacturer's warranty does not apply. Amikon Limited is not an authorized distributor, dealer, or representative of the products displayed on this website. All product names, trademarks, brands, and logos used on this website are the property of their respective owners. The description, explanation, or sale of products with these names, trademarks, brands, and logos is for identification purposes only and is not intended to indicate any association with or authorization from any rights holder.
Product
You May Also Like
-
-
-
-
-

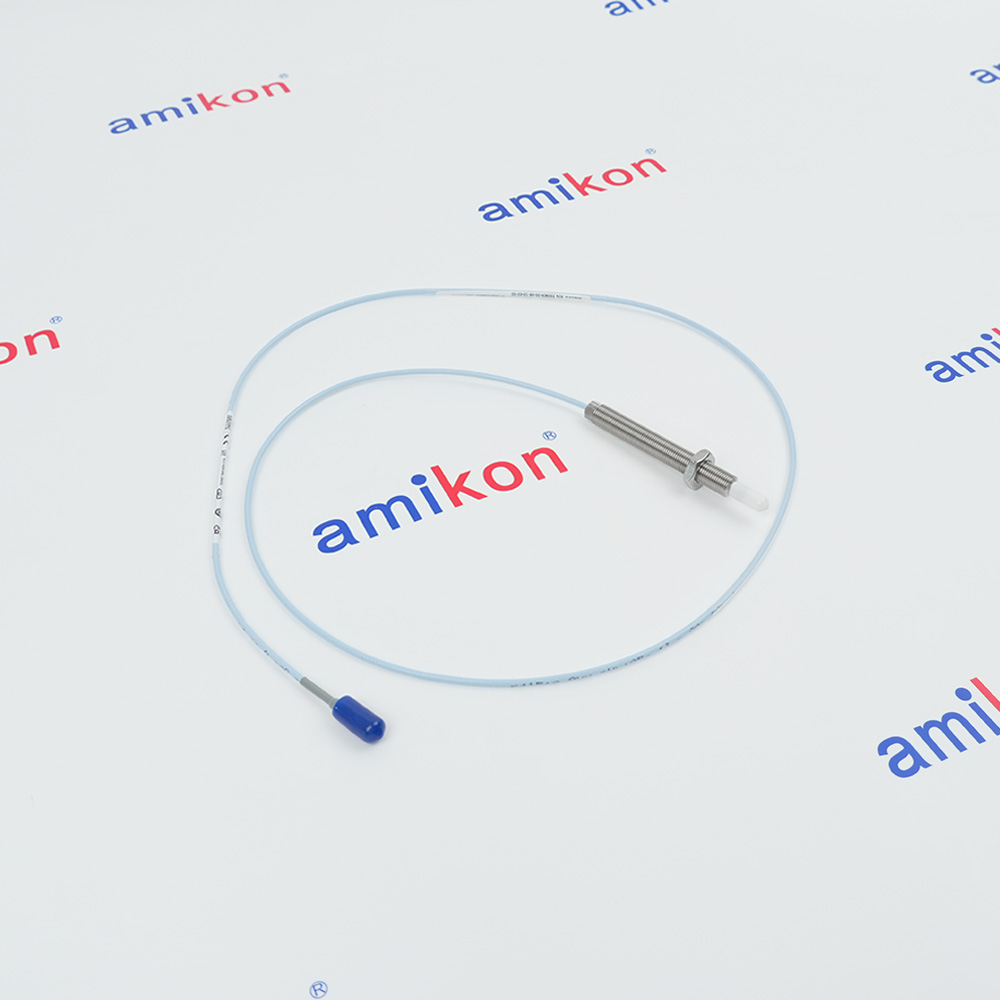

330905-00-08-10-02-003300 NSv Probe, M10X1 thread,without armorManufacturer: Bently NevadaView Details -
-
-
-
