- 3300 XL Proximity Transducer

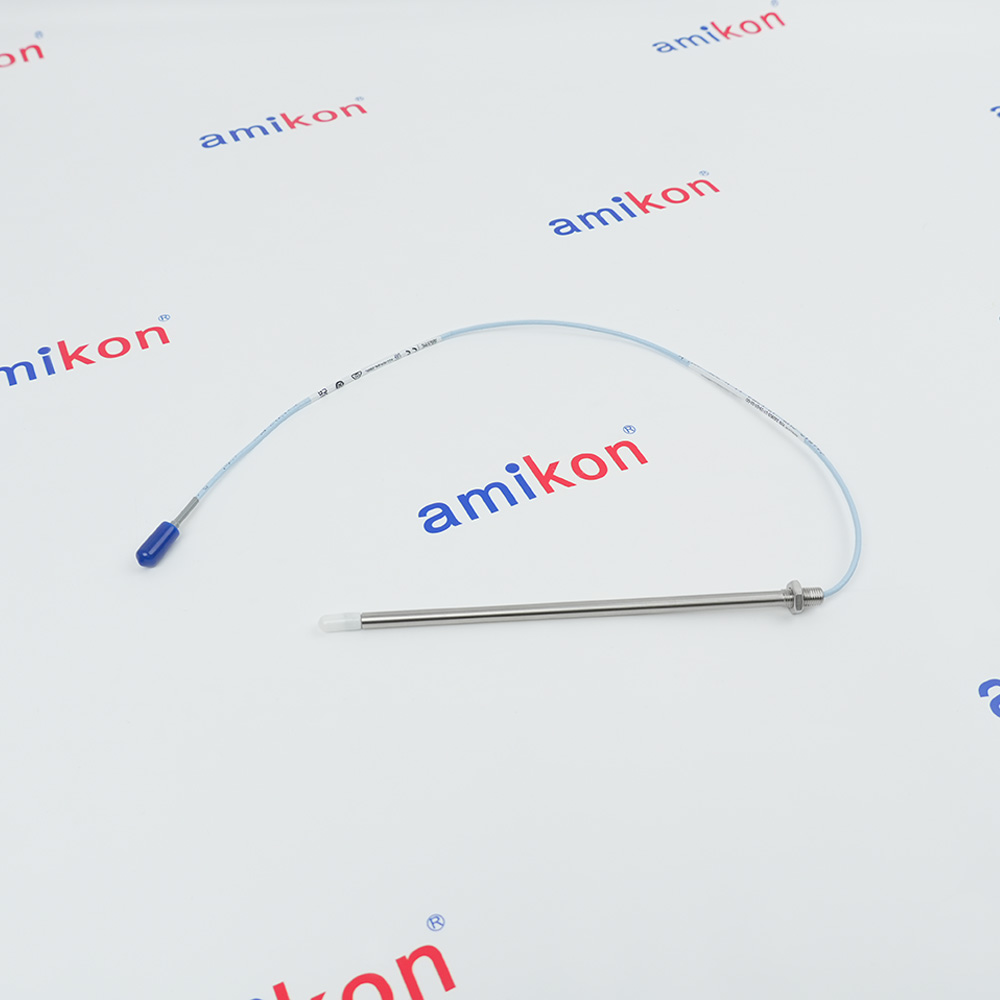

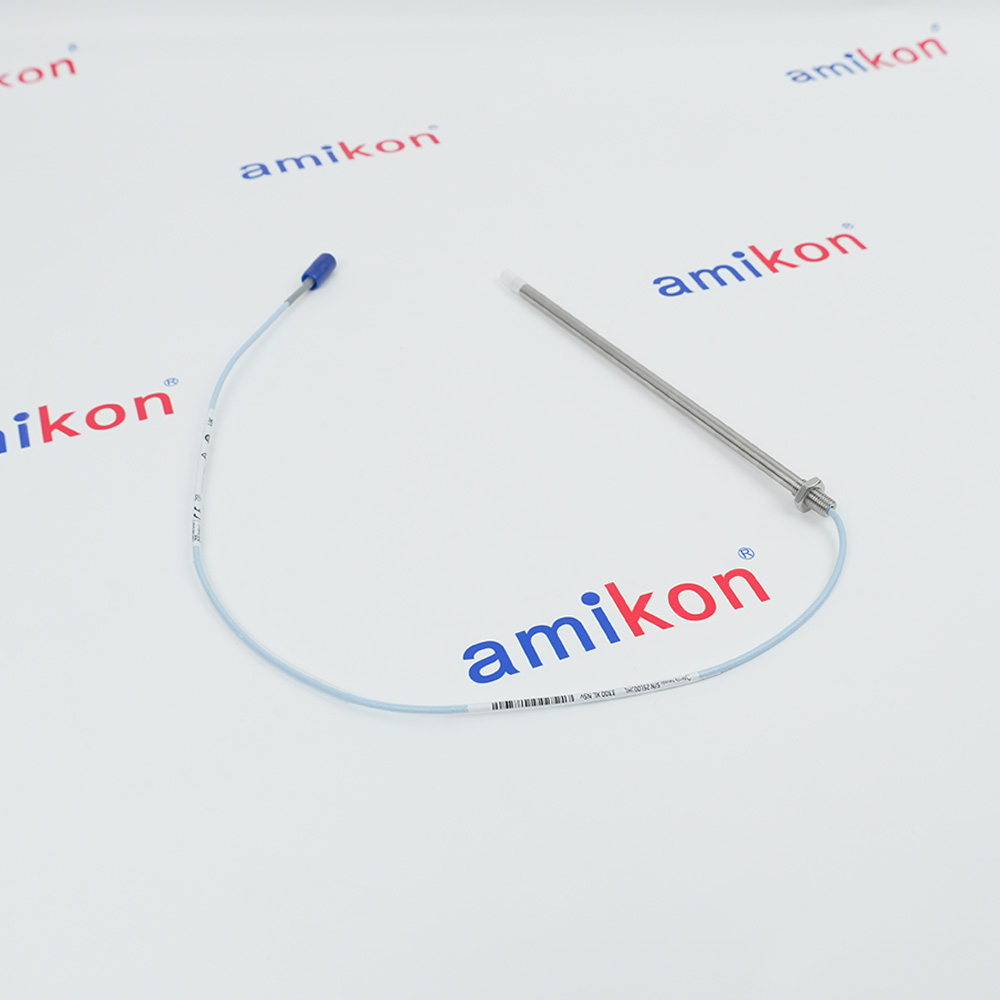

- 330903-17-19-05-02-00
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330903-17-19-05-02-00
-
Product Model330903-17-19-05-02-00
-
Product Parameters3300 NSv Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.4x1.2x71.5cm
-
ManufacturerBently Nevada
-
Weight0.5 kg
-
Unthreaded Length Option170 mm
-
Overall Case Length Option190 mm
-
Total Length Option0.5 meter (20 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionNot required
Description
330903 3300 NSv Probe
M8X1 thread,without armor
Minimum unthreaded length:170 mm
Minimum length: 190 mm
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
00 Not required
M8X1 thread,without armor
Minimum unthreaded length:170 mm
Minimum length: 190 mm
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
00 Not required
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Mounting & Gapping
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced side-view and small target characteristics give it a shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. With The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
The 330903-17-19-05-02-00 Bently Nevada 3300 NSv Proximity Probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330903-17-19-05-02-00 3300 NSv Proximity Probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 330903-17-19-05-02-00 is a 3300 NSv Proximity Probe for high-precision vibration and position monitoring, particularly in applications with small shafts or limited space, such as centrifugal compressors. This specific probe is a 3300 NSv model with an M8 x 1 thread, manufactured to provide reliable data on rotating machinery, with specialized sealing to prevent leakages. The probe is designed to work with 3300 NSv extension cables and Proximitor sensors, with backward compatibility with 3300 RAM proximity systems.
- Centrifugal Air Compressors: High-speed rotating equipment where space for sensors is limited
- Refrigeration Compressors: Specialized industrial cooling units
- Process Gas Compressors: Systems handling various industrial gases; the probe's chemical resistance makes it ideal for these environments
- Turbo Expanders: High-speed turbines used in gas processing
- Electric Motors & Generators: Specifically those with tight internal clearances or small fluid-film bearings
- Pumps & Fans: Centrifugal or positive displacement pumps where mounting between bearing pads is required
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Gap Setting: The recommended physical gap is 1.0 mm (40 mils).
Voltage Verification: Use a multimeter to verify the gap. The target DC gap voltage for a 3300 NSv system is typically between -8 VDC and -12 VDC.
Torque Specifications: For the 1/4-28 threaded case (Model 330903), use the following torque:
Recommended: 5.1 N•m (45 in•lb).
Maximum: 7.3 N•m (65 in•lb).
Clearance: Ensure a minimum side clearance (counterbore diameter) of 13 mm (0.5 in) to avoid signal distortion.
FAQs
-
What is 330903-17-19-05-02-00?
+Based on the Bently Nevada 3300 NSv (Near-field Sensing) Proximity Probe series, the 330903-17-19-05-02-00 is a specialized, high-precision transducer typically used for small-shaft vibration and position measurement. -
What are the main applications of this probe?
+It is specifically designed for monitoring rotating machinery in space-constrained environments, such as small hydrodynamic bearing housings, including turbines, compressors, and pumps. -
What is the Linear Range?
+The 3300 NSv series typically has a linear range of 1.5 mm (60 mils). -
What is the standard output?
+The system generally provides an Average Scale Factor (ASF) of 7.87 V/mm (200 mV/mil).
