Product Information
Product Describe

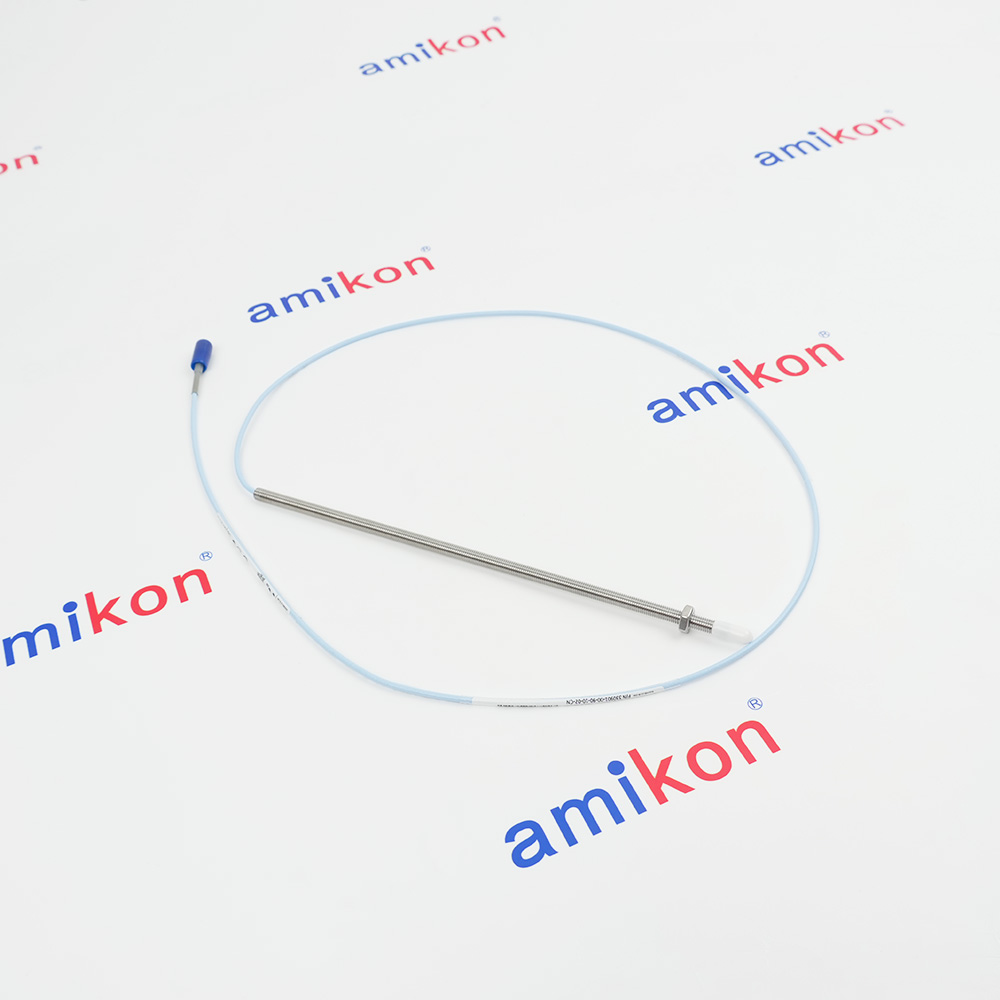

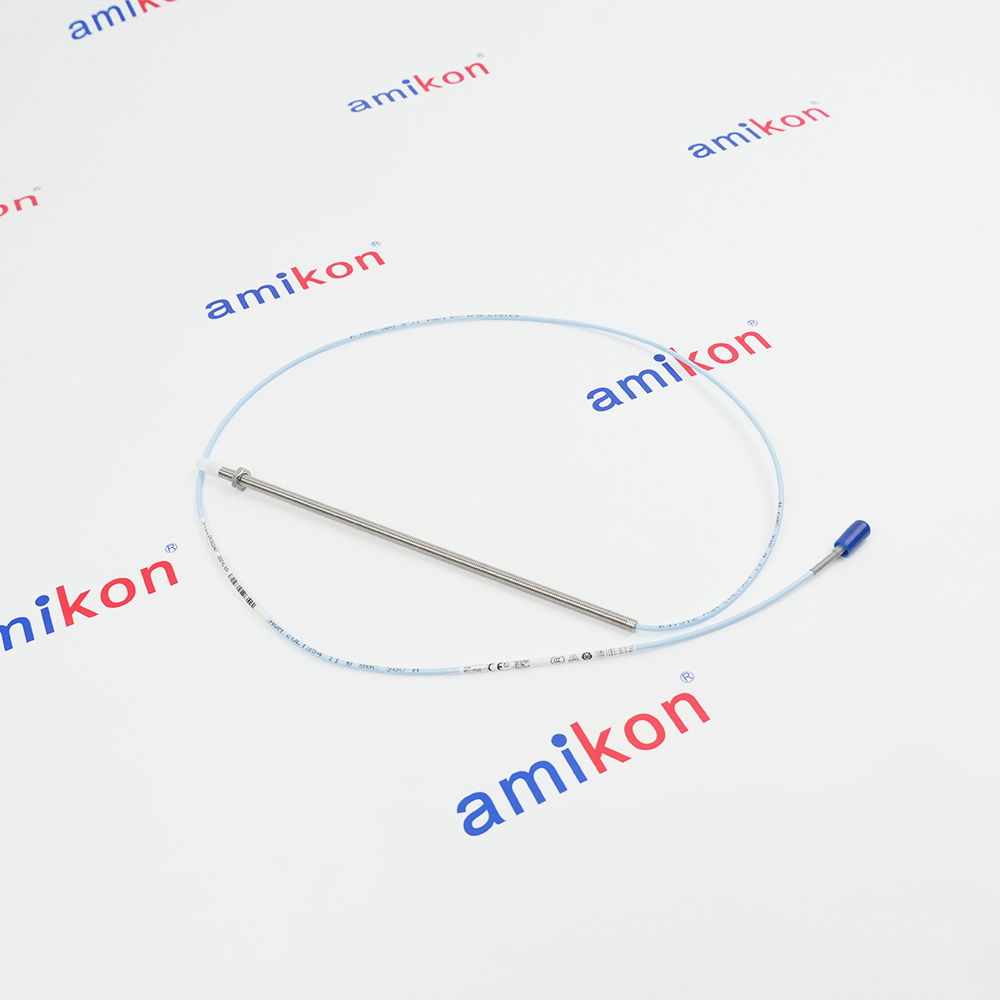

330901 3300 NSv Probe
1/4-28 UNF thread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 9.0 in
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cable
CN Multiple Approvals
1/4-28 UNF thread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 9.0 in
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector
standard cable
CN Multiple Approvals
Technical specifications for 330901-00-90-10-02-CN
-
Product Model330901-00-90-10-02-CN
-
Product Parameters3300 NSv Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.1x1x120cm
-
ManufacturerBently Nevada
-
Weight0.05 kg
-
Unthreaded Length Option0.0 in
-
Overall Case Length Option9.0 in
-
Total Length Option1.0 meter (39 in)
-
Connector and Cable-Type OptionMiniature coaxial ClickLoc connector standard cable
-
Agency Approval OptionMultiple Approvals
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 330901-00-90-10-02-CN?+Bently Nevada 3300 NSv Proximity Probes (like the 330901-00-90-10-02) are advanced, chemically resistant sensors using eddy current principles for machine vibration monitoring, featuring ClickLoc™ connectors for secure connections and offering interchangeable components (probes, cables, sensors).
-
Is this product brand new?+Yes, Bently Nevada 330901-00-90-10-02-CN is brand new, original, unused, and factory sealed
-
What industries use the 3300 NSv series?+These probes are commonly utilized in oil and gas, petrochemicals, power generation, and mining to monitor rotating equipment like turbines and compressors.
-
What is the+NSv stands for Non-Standard vibration. These probes are engineered for smaller machinery or tight spaces where standard 8mm (3300 XL) probes cannot fit.
-
Is this probe compatible with older 3300 systems?+The 3300 NSv is designed to be compatible with 3300 NSv proximitors, ensuring high-precision output.
Get a quick price fo 330901-00-90-10-02-CN
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring & Connectivity
Features:
- For use in Tight Installation Requirements
- Replaces 3300 RAM Transducer Systems and 3000-Series or 7000-Series 190 Transducer System
- Average Scale Factor of 7.87 V/mm (200 mV/mil)
The 330901-00-90-10-02-CN Bently Nevada 3300 XL NSv Proximitor Probes may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330901-00-90-10-02-CN 3300 XL NSv Proximitor Probes Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
• Radial vibration and radial position measurements
• Axial (thrust) position measurements
• Tachometer and zero speed measurements
• Phase reference (Keyphasor) signals.
- Small Shaft Vibration Monitoring:Ideal for shafts <51 mm to avoid interference/gapping issues
- Radial Vibration and Position:Measures side-to-side shaft movement for wear/imbalance detection.
- Axial (Thrust) Position:Monitors longitudinal movement on flat targets ≥15 mm to prevent collisions
- Speed and Phase Reference:Tachometer/Keyphasor for speed & zero-speed detection
- Restricted Space Installations:Designed for counter bore, side-view or rear-view restrictions
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connectors: The probe uses ClickLoc connectors. When connecting to an extension cable, tighten them by hand only; do not use pliers.
Field Wiring: Use three-conductor shielded triad cable (16 to 24 AWG). The maximum distance between the Proximitor sensor and the monitor is 305 meters (1,000 feet).
Grounding: Proper earthing is required, especially for the "CN" version used in hazardous areas to prevent electrostatic buildup.
