Product Information
Product Describe

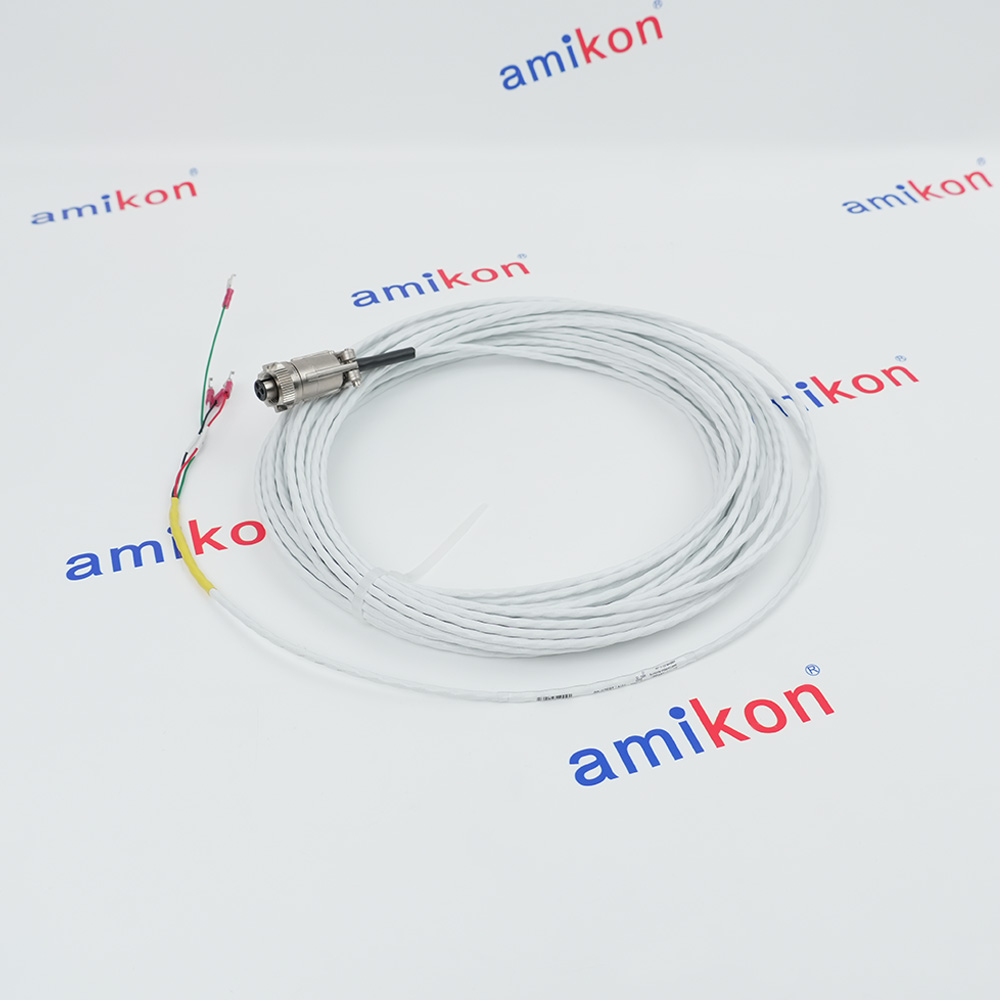

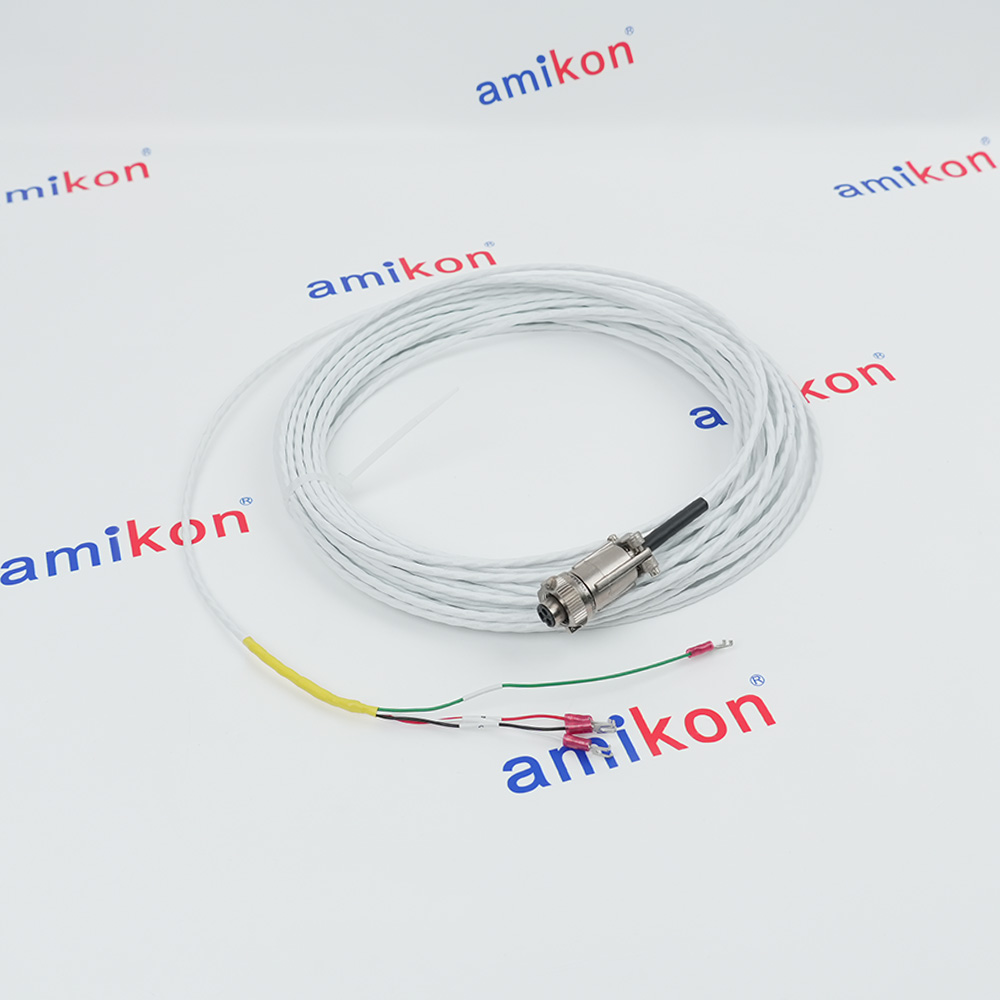

3-conductor shielded 22 AWG(0.5 mm2) cable
with 3-socketplug at one end
terminal lugs atthe other end
Minimum lengthof 2.0 ft (0.6 m)
maximumlength of 99 ft (30 m)
with 3-socketplug at one end
terminal lugs atthe other end
Minimum lengthof 2.0 ft (0.6 m)
maximumlength of 99 ft (30 m)
Technical specifications for 16925-66
-
Product Model16925-66
-
Product ParametersInterconnect Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size23x23x3cm
-
ManufacturerBently Nevada
-
Weight0.25 kg
-
Length66 Feet (20.12 meters)
-
Conductors3-conductor
-
Conductor Gauge22 AWG (0.5 mm²)
-
Characteristic impedance50 Ω @ 1 MHz
-
Conductor resistance≤ 58 Ω/km
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the purpose of the 16925-66 cable?+This cable is used to transmit signals between Bently Nevada accelerometers (such as 330400, 330425) and monitoring systems like the 3300, 3500, or 2201 series.
-
Is the 16925-66 armored?+No, the 16925 series are non-armored interconnect cables.
-
What is the operating range and environment for this cable?+It is designed for harsh industrial environments, particularly for critical machinery applications like gear mesh monitoring
-
What is the difference between 16925 and 16710 series cables?+The 16925 series represents non-armored cables, whereas the 16710 series typically denotes armored cabling for higher protection.
Get a quick price fo 16925-66
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring and Connector Termination
Features:
- Advanced EMI/RFI Shielding
- Durable Insulation and Jacket
- Optimized for Accelerometers
- Robust 22 AWG Gauge
The 16925-66 Bently Nevada Interconnect Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 16925-66 Interconnect Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The mechanical construction of the cable is tailored for the rigors of heavy industrial applications, such as those found in power plants, refineries, and offshore platforms. Its 22 AWG tinned copper conductors are highly resistant to oxidation and mechanical fatigue, which is essential for permanent installations in areas with high vibration or fluctuating temperatures. By maintaining tight electrical specifications over its entire length, the cable ensures that the phase and amplitude accuracy of the acceleration data are preserved, enabling the monitoring system to perform precise trend analysis and provide early warning of machinery faults like bearing failure or gear mesh issues. This cable is an indispensable link in ensuring the overall reliability and SIL-compliance of a Bently Nevada machinery protection solution.
- Turbines: Steam, gas, and hydro turbines in power generation plant
- Generators: Monitoring rotor and casing vibration to prevent catastrophic electrical or mechanical failure
- Centrifugal Compressors: Critical in oil and gas refineries for high-speed gas compression
- Pumps & Fans: Large industrial centrifugal pumps and cooling tower fans in water treatment or manufacturing
- Oil & Gas: Offshore production platforms, petrochemical refineries, and fertilizer plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Sensor End: Align the 3-socket plug with the pins on the accelerometer . Hand-tighten the coupling nut to ensure a secure, moisture-resistant seal.
Monitor End: Connect the three 22 AWG conductors to the appropriate terminals on the 3500 series monitor module or termination block.
Protection: Before pulling the cable through conduit, wrap the terminal lugs with tape to prevent them from snagging or rubbing against sharp edges.
