- 330780-X1-00 MOD:148367-58
In Stock
Ships by Thursday, September 3
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 330780-X1-00 MOD:148367-58
-
Product Model330780-X1-00 MOD:148367-58
-
Spare Model330780-X1-00
-
Product Parameters11 mm Proximitor Sensor
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size8.8 × 3.5 × 7 cm
-
ManufacturerBently Nevada
-
Weight0.44 lbs (0.2 kg)
-
System Length Option5.0 m or 9.0 m (wildcard X)
-
Mounting OptionDIN mount (option 1)
-
Agency Approval OptionNot required (option 00)
-
Compatible System3300 XL 11 mm probe and extension cable
-
Scale Factor3.94 V/mm (100 mV/mil)
-
Frequency Range0 to 8 kHz
-
Power Supply-17.5 to -26 Vdc without barriers
-
Maximum Current12 mA
-
Output Resistance50 ohm
-
Standard Target MaterialAISI 4140 steel
Description

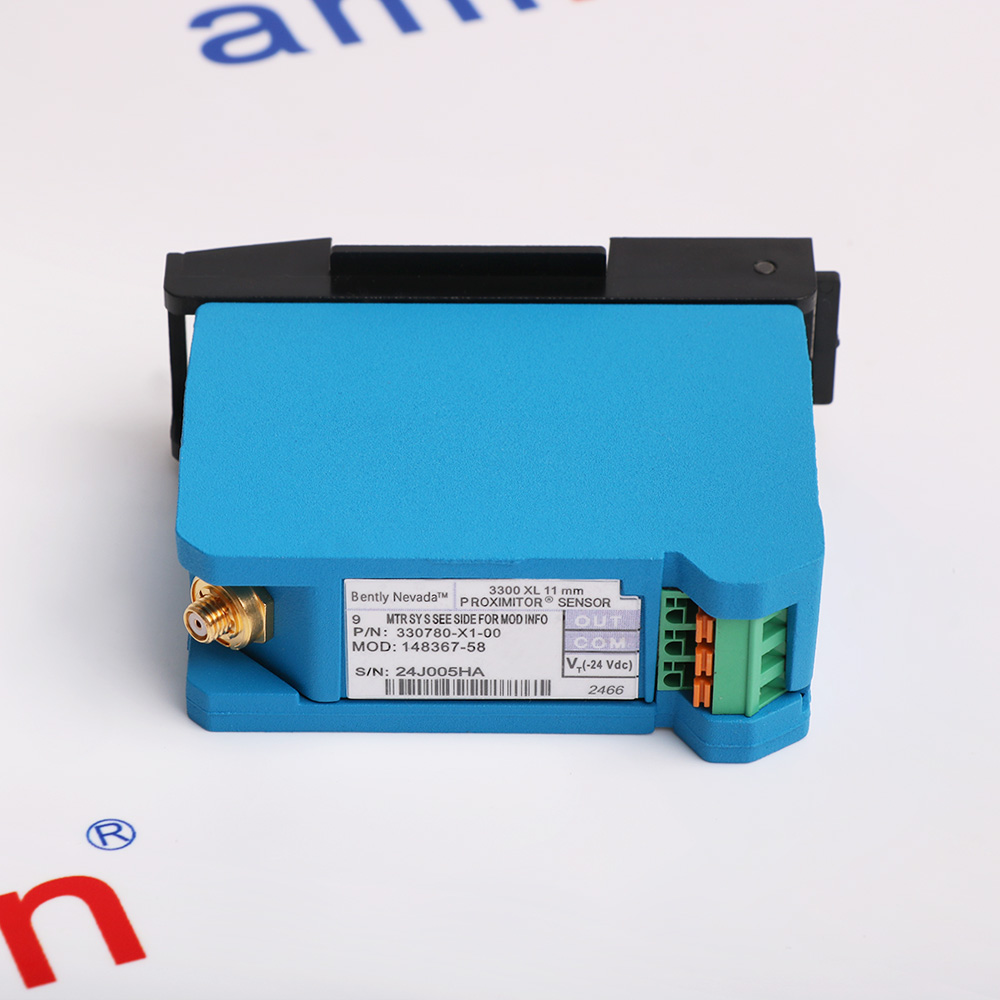

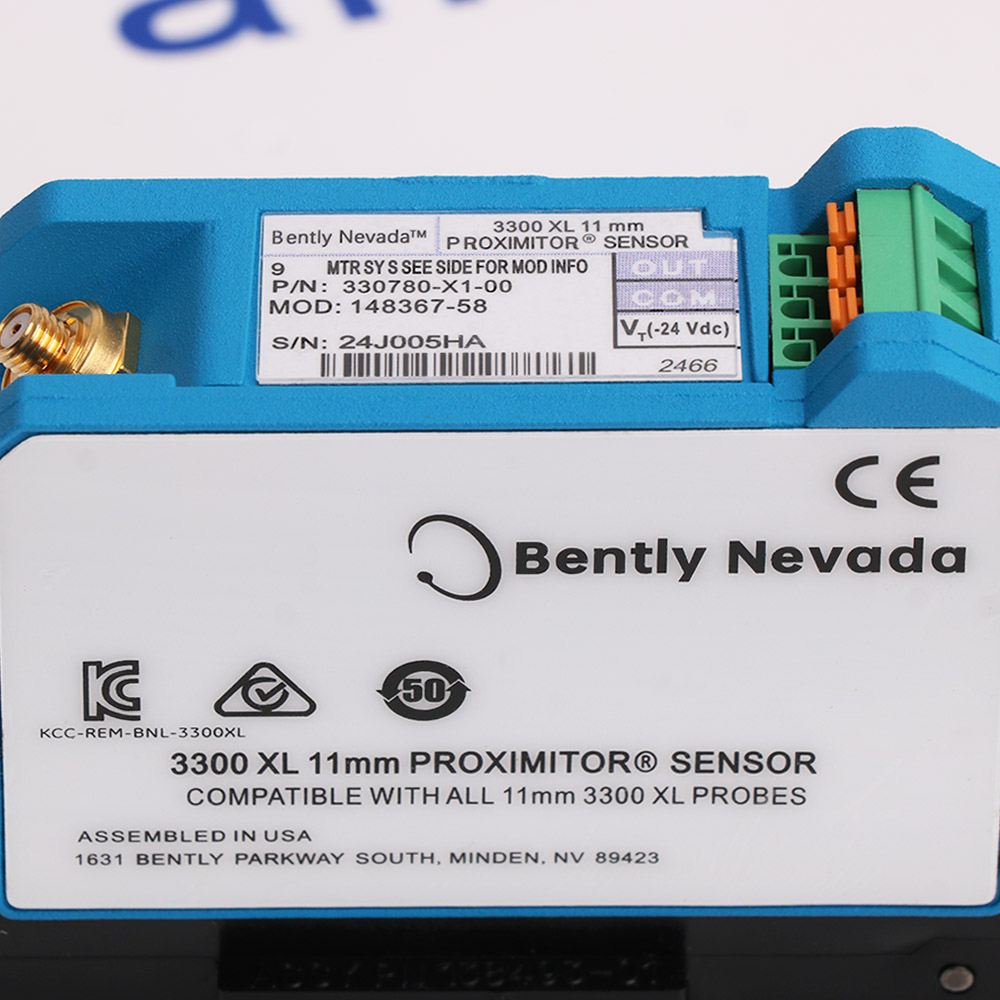

Bently Nevada 330780-X1-00 MOD:148367-58 is a DIN-mount 3300 XL 11 mm Proximitor Sensor for non-contacting displacement and vibration measurement. In this order structure, X1 preserves the manufacturer wildcard for a 5.0 m or 9.0 m total system length, option 1 identifies DIN mounting, and option 00 identifies no agency approval requirement.
Verify the complete model, selected system length, 3300 XL 11 mm probe, matching extension cable, power supply, target material and monitor configuration before installation. Do not combine this sensor with 3300 XL 8 mm or legacy 7200-series transducer components.
Verify the complete model, selected system length, 3300 XL 11 mm probe, matching extension cable, power supply, target material and monitor configuration before installation. Do not combine this sensor with 3300 XL 8 mm or legacy 7200-series transducer components.
Information
Overview
Manuals
Product Applications
Compatibility
Lifecycle & Replacement
Features:
- DIN-mount 3300 XL 11 mm Proximitor Sensor
- X1 wildcard for 5.0 m or 9.0 m total system length
- DIN mounting identified by option 1
- No agency approval requirement identified by option 00
- 3.94 V/mm scale factor across 0 to 8 kHz
The sensor is used with a compatible 3300 XL 11 mm probe and extension cable. Verify the X1 total system length, DIN mounting, power supply, target material, monitor input and complete order code before commissioning.
330780-X1-00 MOD:148367-58 Bently Nevada: Verify the X1 system-length selection, option 1 DIN mounting, option 00 approval status and complete 3300 XL 11 mm transducer system before installation or replacement.
Bently Nevada 330780-X1-00 MOD:148367-58 3300 XL 11 mm Proximitor Sensor Manuals, Datasheets, Official Documents, Links
Important Notice: Official documents are provided through manufacturer links. Accessories, manuals, cables, calibration data, software, certificates, and other items are not included with this equipment unless listed in the stock item description.
- Axial thrust-position measurement
- Steam-turbine ramp differential-expansion measurement
- Reciprocating-compressor rod-position or rod-drop measurement
- Tachometer and zero-speed measurement
- Keyphasor phase-reference measurement
Use 330780-X1-00 MOD:148367-58 only with a complete compatible 3300 XL 11 mm proximity-transducer system.
Match the X1 total system length to 5.0 m or 9.0 m.
Confirm option 1 DIN mounting and option 00 agency-approval status.
Verify the connected 3300 XL 11 mm probe and matching extension cable.
Check power supply, target material, monitor input, field wiring and grounding.
Do not combine 3300 XL 8 mm, 11 mm or legacy 7200-series components without controlled manufacturer verification.
Match the X1 total system length to 5.0 m or 9.0 m.
Confirm option 1 DIN mounting and option 00 agency-approval status.
Verify the connected 3300 XL 11 mm probe and matching extension cable.
Check power supply, target material, monitor input, field wiring and grounding.
Do not combine 3300 XL 8 mm, 11 mm or legacy 7200-series components without controlled manufacturer verification.
Confirm the complete 330780-X1-00 MOD:148367-58 order structure before replacement because X1 must be resolved to the installed system length.
Record the probe part number, extension-cable part number, mounting style and monitor-channel configuration.
Inspect the DIN rail, terminals, connectors, field wiring and grounding.
Preserve the calibrated 3300 XL 11 mm total system length and target-material setup.
Verify current Bently Nevada documentation and any site approval requirements.
Contact Amikon with 330780-X1-00 MOD:148367-58 for availability and replacement support.
Record the probe part number, extension-cable part number, mounting style and monitor-channel configuration.
Inspect the DIN rail, terminals, connectors, field wiring and grounding.
Preserve the calibrated 3300 XL 11 mm total system length and target-material setup.
Verify current Bently Nevada documentation and any site approval requirements.
Contact Amikon with 330780-X1-00 MOD:148367-58 for availability and replacement support.
Alternative Names
330780-X1-00 MOD:148367-58
3300 XL 11 mm DIN-Mount Proximitor Sensor
Bently Nevada 330780 X1 00 Sensor
Technical notes
Use only with a complete 3300 XL 11 mm proximity transducer system. Confirm the X1 system-length option, DIN mounting, probe and extension-cable compatibility before commissioning.
FAQs
-
How should X1 be interpreted before ordering?
+X1 is the manufacturer wildcard for total system length. Confirm whether the installed 3300 XL 11 mm system is 5.0 m or 9.0 m before the order is released. -
Can this sensor be paired with a 3300 XL 8 mm probe?
+No. Use it only with the documented 3300 XL 11 mm probe and matching extension cable; mixing 8 mm, 11 mm or legacy 7200-series components invalidates the system configuration. -
Which mounting arrangement does option 1 identify?
+Option 1 identifies the DIN-mount Proximitor Sensor configuration. Verify available rail space, grounding and terminal access in the cabinet. -
Why must the total system length be confirmed during replacement?
+The probe and extension cable form a calibrated total electrical length with the Proximitor Sensor. A 5.0 m and a 9.0 m system are not interchangeable without matching components. -
What power checks should an engineer complete before energizing it?
+Confirm a -17.5 to -26 Vdc supply without barriers, maximum current demand of 12 mA, correct polarity and the monitor input termination. -
Which commissioning value should be recorded for the monitoring channel?
+Record the nominal scale factor of 3.94 V/mm (100 mV/mil), the installed gap voltage, channel zero and alarm setup after the complete system is commissioned. -
Does option 00 include an agency approval?
+No. Option 00 means agency approval is not required. If the installation needs a hazardous-area or other approval, the complete order code must be rechecked before purchase. -
What should MRO personnel compare with the removed unit?
+Compare the full model string, X1 system length, DIN mounting, approval code, probe series, extension-cable part number, connector condition and cabinet wiring.
