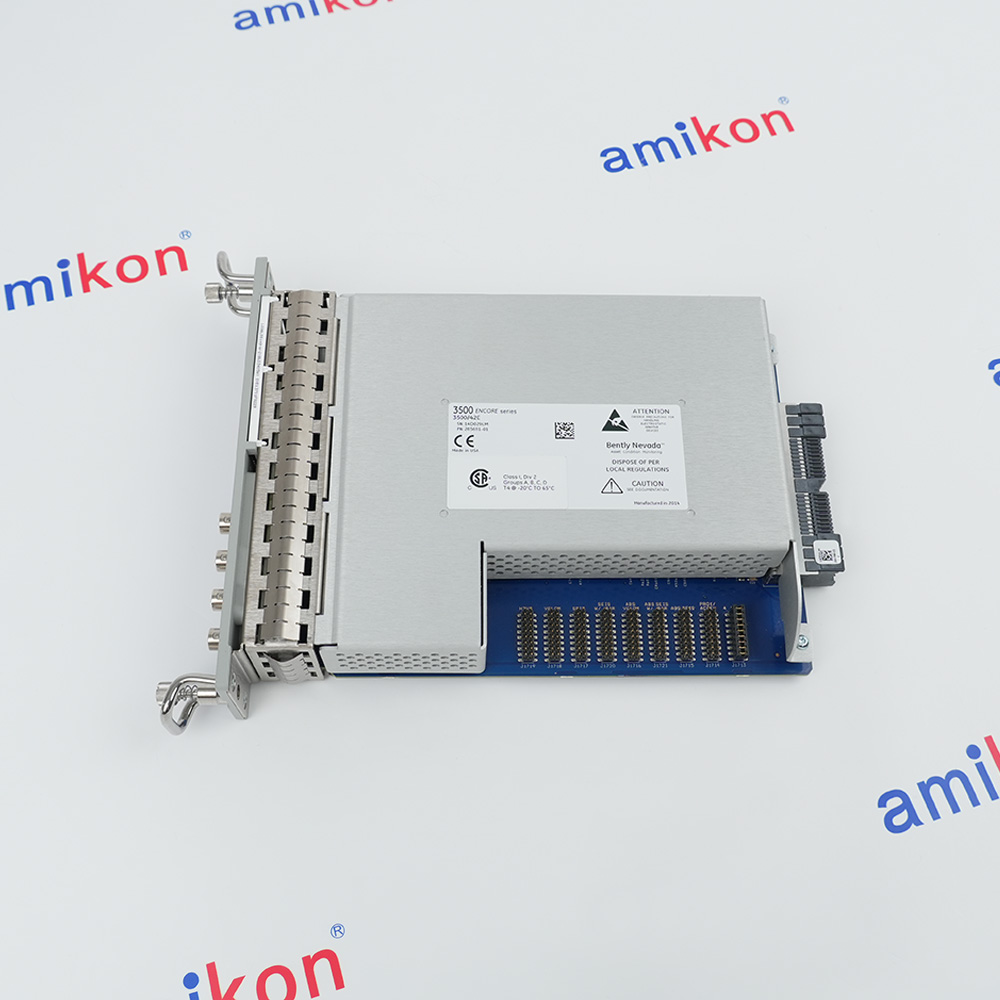

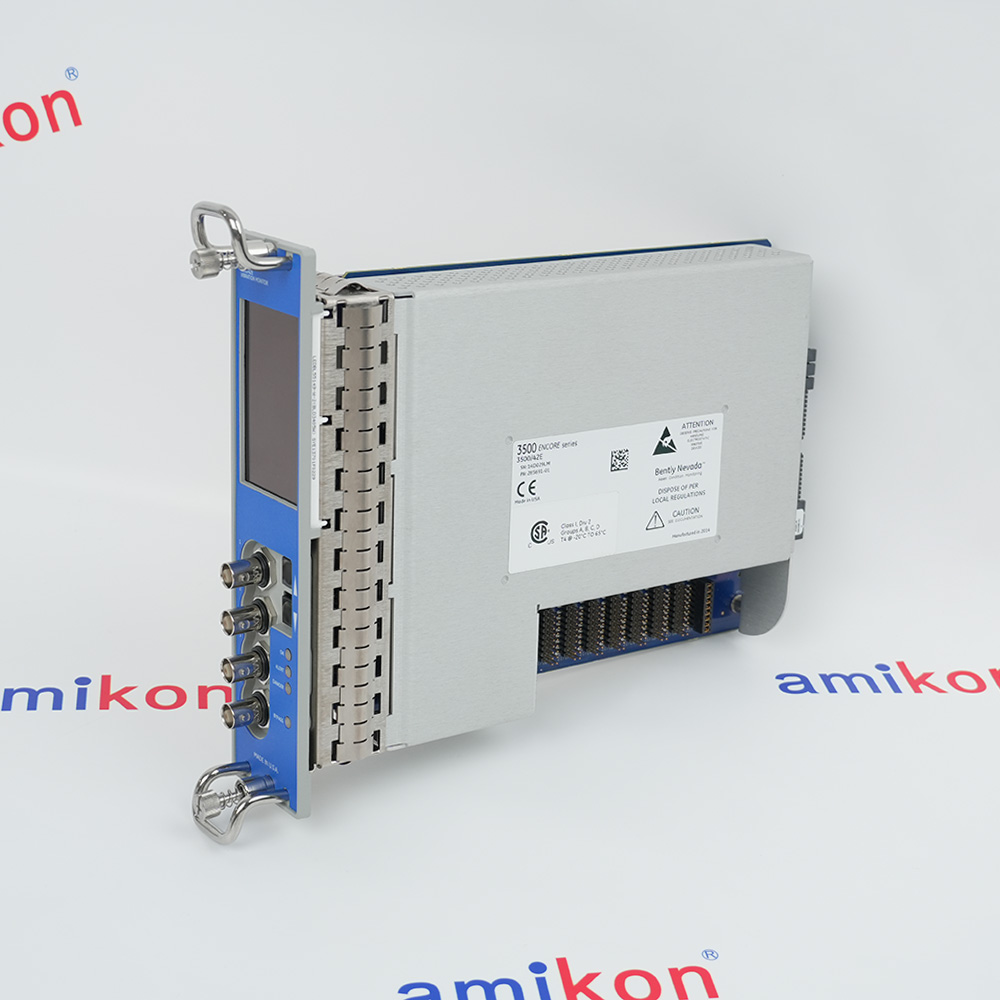

3500/42E 285691-01
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
350042E
Enhanced Vibration Monitor Module
3500 ENCORE SERIES
FOUR CHANNELS
4-20 MA OUTPUTS
LED STATUS INDICATORS
Enhanced Vibration Monitor Module
3500 ENCORE SERIES
FOUR CHANNELS
4-20 MA OUTPUTS
LED STATUS INDICATORS
Technical specifications for 3500/42E 285691-01
-
Product Model3500/42E 285691-01
-
Product ParametersEnhanced Vibration Monitor Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size22.2x5x26.5cm
-
ManufacturerBently Nevada
-
Weight0.6 kg
-
Input Impedance10 kΩ
-
Dynamic Range> 80 dB
-
Frequency Response0.1 Hz to 10 kHz
-
Analog Output4–20 mA per channel
-
Power Consumption3.5 Watts
-
Operating Voltage24 V DC / 120 V AC
-
Operating Temperature-20°C to +65°C (-4°F to +150°F)
-
Storage Temperature-40°C to +85°C (-40°F to +185°F)
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the 3500/42E (285691-01)?+The Bently Nevada 3500/42E (285691-01) is a Enhanced Vibration Monitor Module, often used in 3500 systems, providing continuous real-time vibration and position monitoring for rotating machinery.
-
What is the difference between 3500/42E and 3500/42?+The 3500/42E is an enhanced version offering better diagnostics for machinery protection.
-
What is the function of the 285691-01 module?+It processes signals from proximity or seismic transducers to monitor parameters like radial vibration, thrust position, and shaft vibration.
-
Can the 3500/42E be used in standard 3500 racks?+Yes, the 3500/42E is fully compatible with the Bently Nevada 3500 Series racks
Get a quick price fo 3500/42E 285691-01
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- (4) Channel Monitor
- Accepts Input from Proximity and Seismic Transducers
- Machinery Protection
- Provides Essential Machine Information
The 3500/42E 285691-01 Bently Nevada Enhanced Vibration Monitor Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 3500/42E 285691-01 Enhanced Vibration Monitor Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 3500/42E (Part Number 285691-01) is an Enhanced Vibration Monitor Module for the 3500 Machinery Protection System. It is a 4-channel module that accepts inputs from proximity and seismic transducers to monitor vibration and position on rotating machinery.Accepts Proximitor (proximity probes), Seismic (velocity transducers/accelerometers).
- Turbines:Steam/gas/hydro/aero: radial vibration & thrust
- Compressors:Axial displacement & vibration for centrifugal/recip/axial/screw
- Pumps:Horizontal/vertical centrifugal & reciprocating pumps
- Motors & Generators:Bearing condition & shaft vibration for large motors/generators
- Ancillary Equipment:Fans, blowers, agitators, turbo-expanders & gearboxes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The 3500/42E ("Enhanced") is an updated version of the standard 3500/42M, offering improved diagnostics and upgraded internal components. Both modules function similarly to process inputs from proximity, seismic, and accelerometer transducers to drive alarms, but the "E" model is designed for more complex monitoring needs.
Core Functionality: Both accept 1 to 4 channels of input from proximity and seismic sensors, suitable for radial vibration, thrust position, and acceleration.
Enhanced Diagnostics: The 3500/42E (e.g., 285691-01) provides upgraded internal components, offering better diagnostic capabilities for more complex applications.
Interchangeability: They are generally used in the same 3500 rack slots, but the "E" model is likely to have different part numbers reflecting updated hardware (e.g., 285691-01 vs 3500/42M 143694-01).
