PRODUCT DESCRIPTION
Configurable field terminations for fire, gas and valve circuits

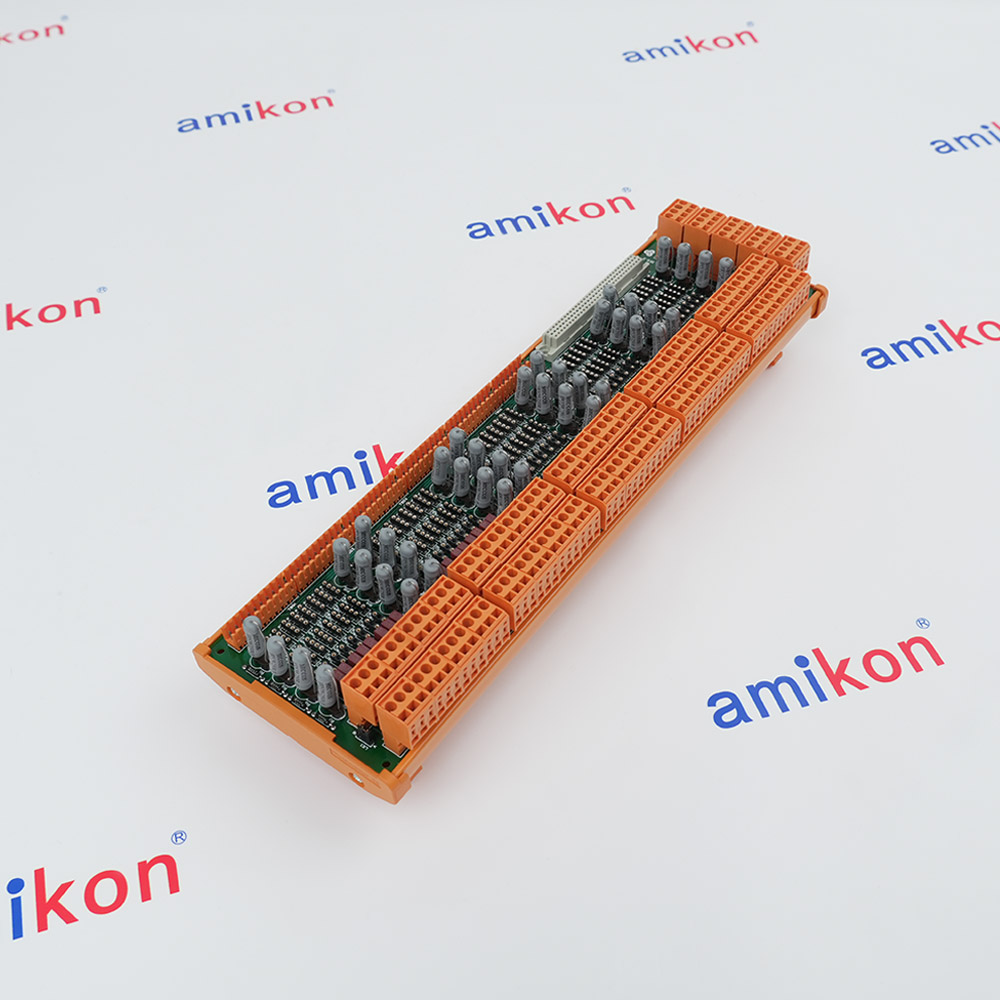

ICS Triplex T8842 is a versatile field termination assembly linking field devices to the Trusted zone interface module. Its forty configurable channels accommodate analogue inputs, digital inputs and digital outputs, including circuits associated with fire and gas detection and suppression.
The assembly also interfaces with the Trusted valve monitor module, pairing valve commands with position feedback. Channels are arranged in five power groups, and their fuses, resistors and links must match the selected circuit. DIN rail mounting supports horizontal or vertical installation.
The assembly also interfaces with the Trusted valve monitor module, pairing valve commands with position feedback. Channels are arranged in five power groups, and their fuses, resistors and links must match the selected circuit. DIN rail mounting supports horizontal or vertical installation.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8842 Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · OIL & GAS
Petroleum Refining Facilities and Gas Processing Plant Areas
Oil refineries and storage terminals handling flammable petroleum products.Gas processing facilities with compressors and condensate separation equipment. -
02 · POWER GENERATION
Power Generation Facilities and Station Fuel Handling Areas
Gas turbine generation plants with fuel storage and handling.Power station auxiliary buildings containing boilers and combustion equipment. -
03 · CHEMICAL PROCESSING
Chemical Manufacturing Plants and Petrochemical Production Service Areas
Chemical manufacturing plants with reaction vessels and solvent storage.Petrochemical production units handling process gases and volatile feedstocks.
Technical specifications for T8842
-
Product ModelT8842
-
Spare ModelPP45563 T8842
-
Product ParametersTrusted versatile termination assembly
-
In stock1 unit
-
ManufacturerICS Triplex
-
Channel capacity40 channels, individually configured as inputs or outputs
-
Power-group arrangement5 groups of 8 channels; dual field feeds per group
-
Field supply voltage18-28 Vdc
-
Signal input range0-20 mA; use the appropriate channel configuration
-
Maximum field-supply current2.52 A per power group; distinct from the digital-output path
-
Recommended field operating current220 mA per channel, as specified for field supply
-
Field-supply power consumption9 W maximum
-
Configuration fuse typesPlug-in TE5: 50 mA, 315 mA or 2 A according to circuit function
-
Field connections40 three-way terminal blocks for two-wire or three-wire field devices
-
Analogue measurement resistor250 ohm, 0.25 W, 0.1% precision resistor per channel
-

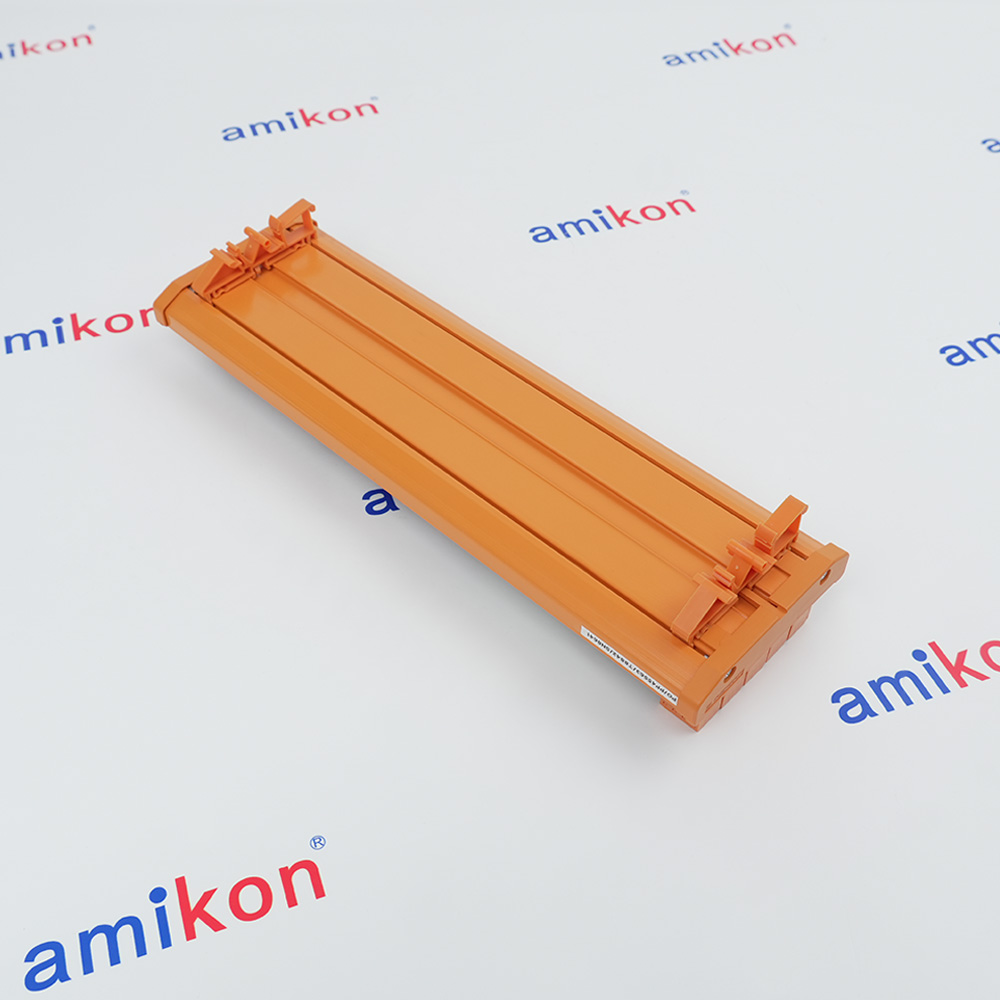

Mounting arrangementTS32 or TS35 DIN rail; horizontal or vertical
-
Operating temperature0 to +60 degrees C
-
Storage and humidity-25 to +70 degrees C; 10-95% RH, noncondensing
-
Equipment dimensions110 x 360 x 68 mm (H x W x D), including rail and connectors
-
Equipment mass950 g; not packaged or shipping gross weight
View all additional
Alternative Names
T8842 Trusted versatile termination assembly
ICS Triplex T8842 40-channel versatile field termination
T8842 Trusted configurable VFTA for field circuits
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8842 to the documented Trusted configuration
T8842 terminates field circuits for the T8448 zone interface and T8449 valve monitor arrangements. Select each channel configuration for the actual input or output device. Dual field feeds, protective fuses, resistors and cable selection are separate checks; the board is not a standalone controller.
Match the zone or valve module, approved cable and field device configuration. Verify 18-28 Vdc feeds and the limits for the selected power path.
Use TS32 or TS35 rail and check the documented temperature and humidity limits.
Features:
- 40 individually configurable field channels
- Five groups of eight channels
- Selectable fuse and resistor configurations
The ICS Triplex T8842 trusted versatile termination assembly requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T8842 identity and compare its hardware revision with the installed item. Match the full T8842 identity, board revision, module type, cable and every channel link arrangement. A shared 40-channel form does not establish replacement compatibility. Preserve the approved field power and fire-loop reset design.
Match the zone or valve module, approved cable and field device configuration. Use TS32 or TS35 rail and check the documented temperature and humidity limits.
Use the controlled manufacturer procedure and the approved maintenance plan. Fuse values and link positions depend on the channel function. A 2 A part may provide protection or serve as a low-resistance link; do not assign the same arrangement to every channel.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T8842 trusted versatile termination assembly requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8842 trusted versatile termination assembly must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8537101190
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8842
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the main purpose of T8842?
It provides configurable field terminations for the Trusted zone interface and valve monitor modules. It handles the physical field connections and selected conditioning circuits; it is not a standalone processor or an independently configured I/O module. -
Do all forty channels use identical fuses?
No. The manufacturer assigns 50 mA, 315 mA and 2 A TE5 components to different protection or linking roles. The required positions depend on analogue input, digital input, digital output or fire-loop configuration. -
Is field power unnecessary when every channel is an input?
No. The installation instructions require field power even in an all-input configuration. The cable arrangement determines whether that power connects at the chassis cable end or at the termination assembly. -
How are latching fire detectors reset?
The documented arrangement uses the first channel of a group as a controlled supply for the other seven channels. Check the complete circuit, including its 2 A switched-group limit, 96 mA loop limit at 24 V and at least 50 mA load on the supply channel. -
Can the field-supply rating be replaced by the output rating?
No. The specification lists 2.52 A maximum field-supply current per group, while the digital-output section separately describes an 8 A output-group limit. These describe different paths and configurations, not interchangeable supply ratings. -
Which mounting arrangements are documented?
The assembly can mount horizontally or vertically on TS32 or TS35 DIN rail. Use the approved cabinet drawing and maintain the access, environmental conditions and field wiring requirements for the installed equipment. -
Are the displayed dimensions and weight shipping values?
No. The 110 x 360 x 68 mm outline includes mounting rail and connectors, and 950 g is the specified equipment mass. Actual packaging dimensions and gross shipment weight require a separate check. -
Can the existing SmartSlot links be copied without checking?
No. The manual says SmartSlot operation is no longer performed on the VFTA. Check its section 4.9 and the applicable cable instructions; do not carry unused links or old channel settings into a replacement automatically.
