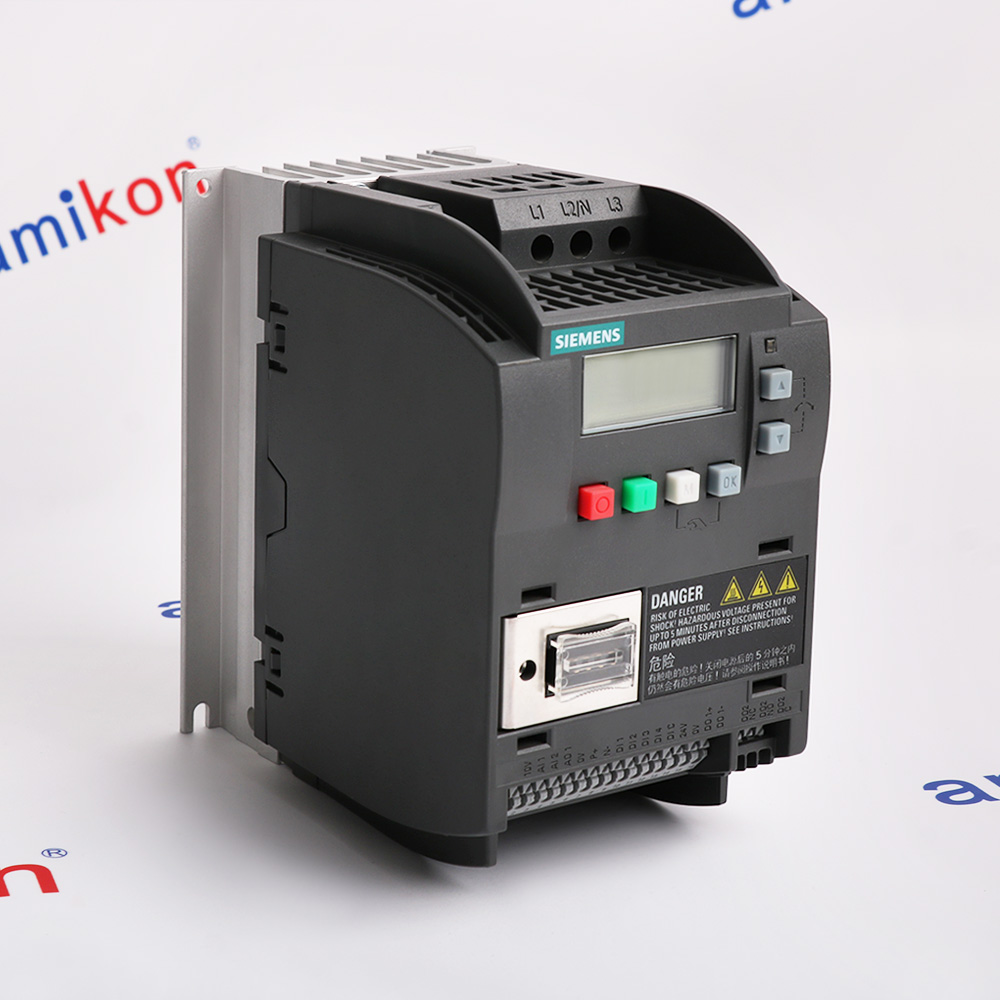

Siemens SINAMICS

Inverter Drive

SINAMICS V20
380-480 V 3AC -15%/+10% 47-6
Rated power 0.75 kW with 150% overload for 60 sec
unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO
Fieldbus: USS/Modbus
RTU with built-in BOP Degree of protectionIP20/UL
open Size: Size A 90x150x146

SINGLE MOTOR MODULE

SINAMICS S120
SINGLE MOTOR MODULES
INPUT: 600 V DC
OUTPUT: 3-PH 400 V,
210 A FRAME SIZE: CHASSIS
INTERNAL AIR COOLING SUPPORT
OF THE EXTENDED SAFETY
INTEGRATED FUNCTIONS
INCL. DRIVE-CLIQ CABLE

REPLACEMENT POWER BLOCK

REPLACEMENT POWER BLOCK
SINAMICS
3 PHASE
380-480 VAC
50/60 HZ
745 AMP
DRIVE/POWER MODULE RECTIFIER
U PHASE PAINTED MODULES
NICKEL-PLATED BUSBARS

POWER BLOCK

POWER BLOCK
DRIVE CONTROL INVERTER BOARD
IGD2/R4
480V/490A

SINGLE MOTOR MODULE

MOTOR MODULE
SINAMICS S120
600 VDC INPUT
3 PHASE
400 VAC OUTPUT
85 AMP
BOOKSIZE
INTERNAL AIR COOLING

Power Module

SINAMICS G120 Power Module
PM 250 with integrated Class A
filter capable of energy recovery
380-480 V 3 AC +10/-10% 47-63 Hz
Power high overload: 7.5kW at 200% 3s
150% 57s, 100% 240 s
Ambient temperature 0 to +50 °C
Power low overload: 11kW at 150% 3s
110% 57s, 100% 240 s
Ambient temperature 0 to +40 °C
FSC Degree of protection
IP20 without Control Unit and BOP

POWER SUPPLY MODULE

MODULAR POWER SUPPLY
8 AMP
24 VDC +/-20%
150 WATT
SPARE PART
Voltage: 24 VDC
Single-phase AC: 100–240 VAC

Single Motor Module

SINAMICS S120
Single motor module
input: 600 V DC output: 400 V 3 AC, 18 A
design: booksize D type internal air cooling
optimized pulse patterns and support of
the extended Safety Integrated functions
incl. DRIVE-CLiQ cable

Active Line Module

TB30 Terminal Board

SINAMICS / SIMOTION
TERMINAL BOARD
TB30 FOR
CONTROL UNIT CU320-X
SIMOTION D4X5-X

Power Module

Power Module

AOP30 Operator Panel

5.7-inch color TFT LCD
320 x 240 pixels
Input Voltage:24 V DC ±15%
Power Consumption:≤15 W (typical)
Operating Temperature:0°C to +50°C
Storage Temperature:-40°C to +70°C
Humidity:≤95% RH (non-condensing)

SINAMICS PM240-2 IP20-FSF-A-400V-75kW

Power Module

CONVERTER DCM DC 4Q 3P AC 400V 174A

Double Motor Module

SINAMICS S120
Double Motor Module
input: 600 V DC
output: 400 V 3 AC, 9 A/9 A
type of construction: booksize internal
air cooling optimized pulse patterns
and support of the extended Safety
Integrated functions
incl. DRIVE-CLiQ cable

Inverter Drive

CONTROL UNIT

SINAMICS CONTROL UNIT
CU320-2 PN
WITHOUT COMPACT FLASH CARD

Double Motor Module

Smart Line Module

Single Motor Module

Power Module

SINAMICS G120C PN 2,2KW UNFIL

Inverter Drive
