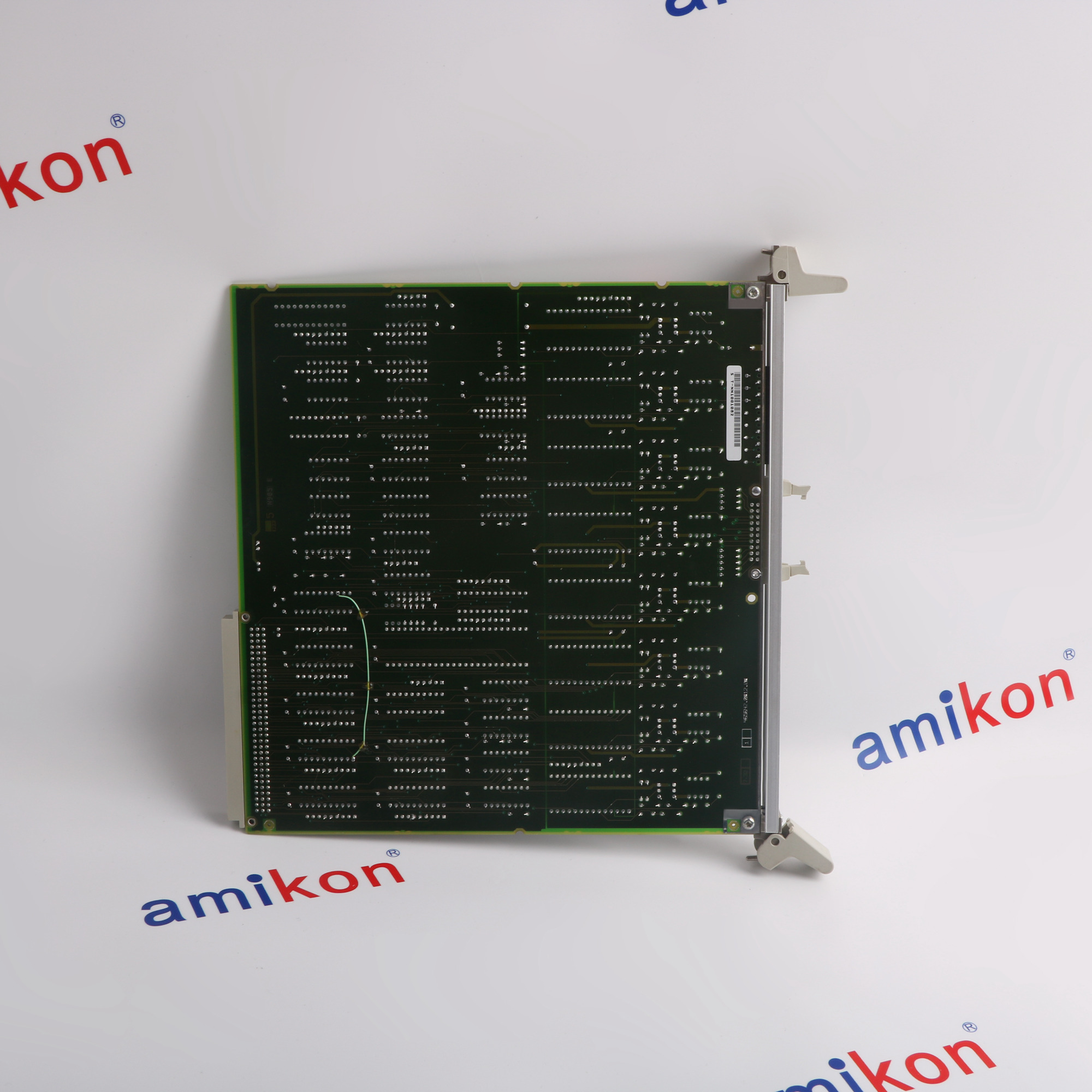

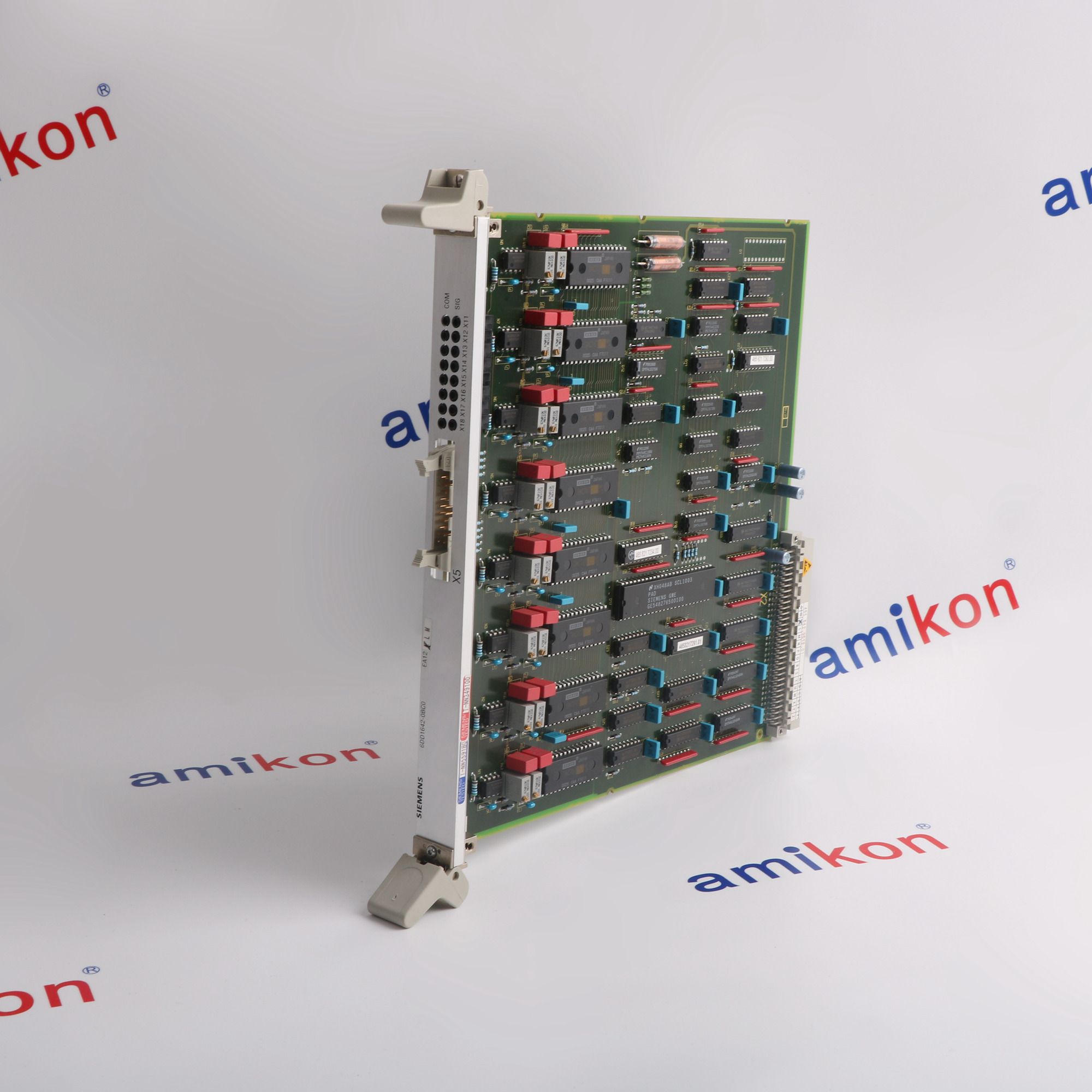

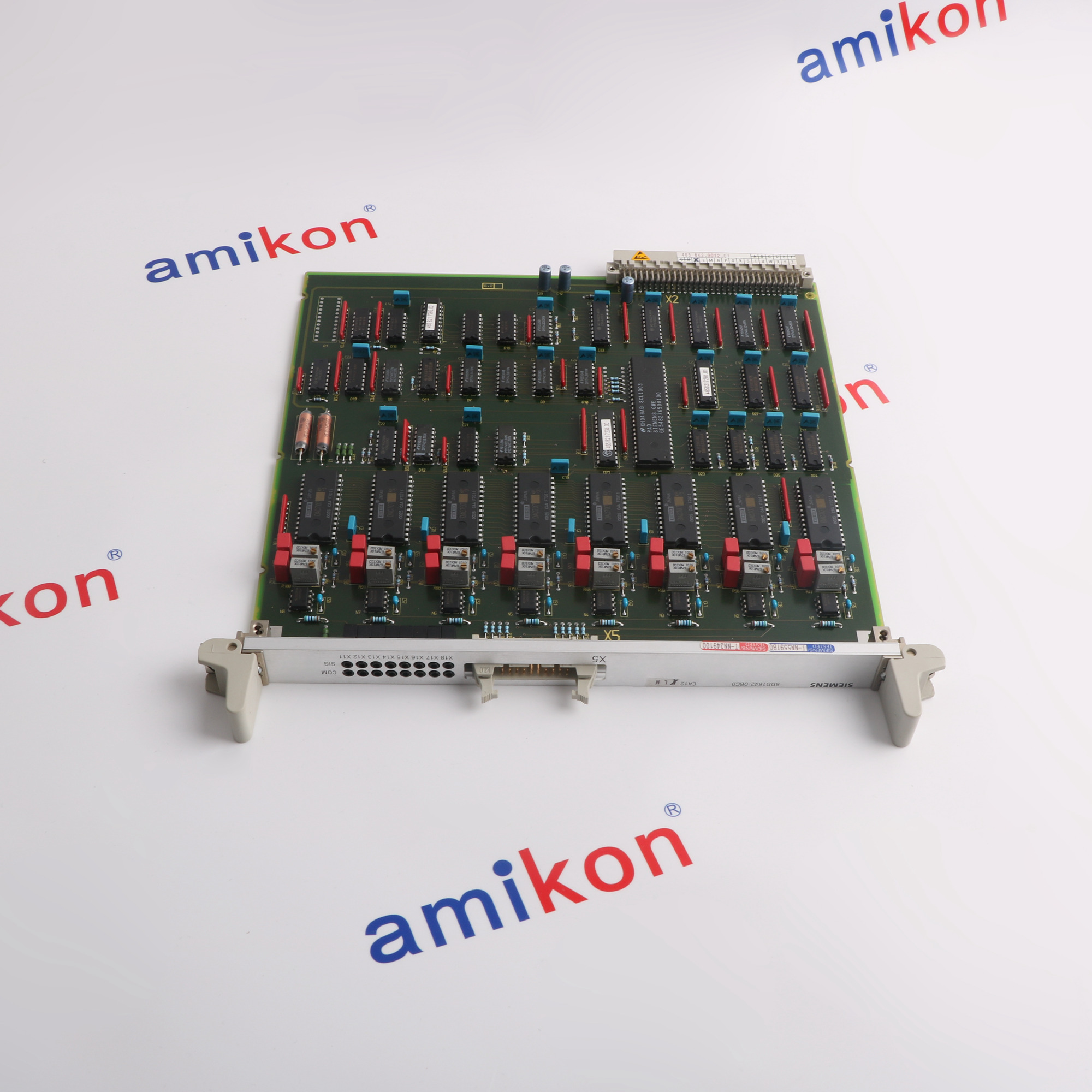

Technical specifications for 6DD1642-0BC0
-
Product Model6DD1642-0BC0
-
Product ParametersANALOG OUTPUT MODULE
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2x26.1x26.1cm
-
ManufacturerSiemens
-
Weight0.38 kg
-
No.8
-
Output voltage, min.- 10 V
-
Output voltage, max+ 10 V
-
Output current+/- 10 mA max
-
Resolution13 bits + sign (corresponds to 1 mV)
-
Accuracy14 bits
-
Short-circuit protection to groundWith 56 Ohm resistor
-
Short-circuit duration120 s
-
Total loadAll outputs simultaneously, each 10 mA
Description
6DD16420BC0
ANALOG OUTPUT MODULE
SIMADYN D
EA12
8 ANALOG OUTPUTS
ANALOG OUTPUT MODULE
SIMADYN D
EA12
8 ANALOG OUTPUTS
Information
Overview
Manuals
Technical notes
Product Applications
Adjustment,temperature
Features:
- 8 analog outputs
- 20-pin connector for the analog outputs
- 8 test socket pairs (2.3 mm) on the front panel to connect measuringequipment (for start-up)
- L bus connection
- Input/output modules
The signal outputs are routed to the 20-way ribbon cable connector X5. In addition to the 8 signals there is one ground terminal for each and, in addition, two ground and two shield pins.The signals can also be tapped at the double test sockets (dia. = 2.3 mm, one socket each for signal and ground) e.g. on system startup.
The outputs can be loaded with up to 10 mA and are proof against short circuit up to a period of 120 sec.Caution: the total signal load at connector X5 and the associated double test socket must not exceed 10 mA.The output format for the individual channels can be configured. This is done by specifying a multiplication factor in powers of 2 (extra for each channel).The 50-pin ribbon cable connector X6 can be ignored, if at all available on the frontplate.
The 6DD1642-0BC0 SIEMENS Analog Output Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6DD1642-0BC0 Analog Output Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
An analog output (signal at the connector and interface module and at thetest socket) can be loaded up to 10 mA and is short-circuit proof for 2 min.The manufacturer adjusts the outputs as far as offset and gain areconcerned for an ambient temperature of approximately 20° C:This adjustment is made using 2 potentiometers for each output, which arenot sealed so that they can be re-adjusted in operation (e. g. due to differentambient temperatures).The temperature dependency is max. approx. +/-240 µV at a temperaturechange of +/-1° C.
- Steel and Metal Rolling Mills:Sub-ms coordination for thickness/tension in rolling mill drives
- Paper and Printing Plants:Synchronizes rollers in paper mills & MAN Lithoman presses
- Power Plants and Energy Distribution:Manages HVDC excitation for stable energy flow
- Chemical and Processing Facilities:Monitors high-speed pressure/temp fluctuations in chemical plants
- Automotive and Manufacturing:Multi-axis Cartesian & robotic sync for production lines
- Water Treatment Facilities:Cascades high-capacity pumps for even utilization & flow
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The manufacturer adjusts the outputs as far as offset and gain areconcerned for an ambient temperature of approximately 20° C:This adjustment is made using 2 potentiometers for each output, which arenot sealed so that they can be re-adjusted in operation (e. g. due to differentambient temperatures).The temperature dependency is max. approx. +/-240 µV at a temperaturechange of +/-1° C.
FAQs
-
What is the 6DD1642-0BC0?
+The Siemens 6DD1642-0BC0 is a SIMADYN D EA12 analog output module. It is a 20-pin module providing 8 analog outputs, typically used for SIMATIC S7-400 or SIMADYN D systems -
How many outputs does the 6DD1600-0AK0 have?
+This module has 8 analog outputs. -
What kind of connections are on the front panel?
+It includes a 20-pin connector for standard analog outputs and 8 test socket pairs (2.3 mm) to allow for measuring equipment connection during start-up or maintenance. -
Can the outputs be adjusted?
+Yes. Each output has 2 potentiometers (not sealed) for adjusting offset and gain. These allow for re-adjustment during operation if ambient temperatures change significantly from the factory-calibrated 20°C. -
What are the load and safety limits?
+Each analog output can be loaded up to 10 mA and is short-circuit proof for up to 2 minutes.
