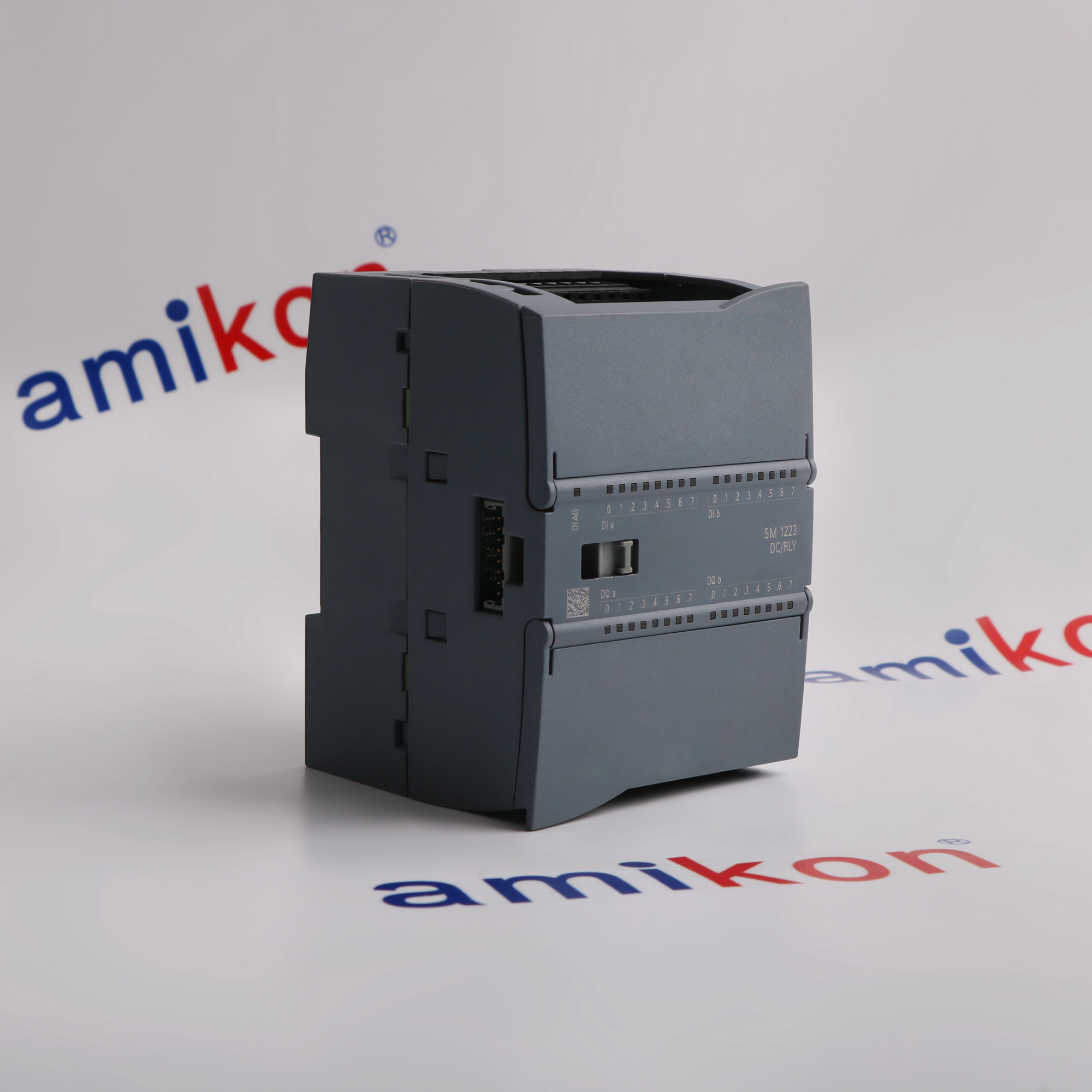

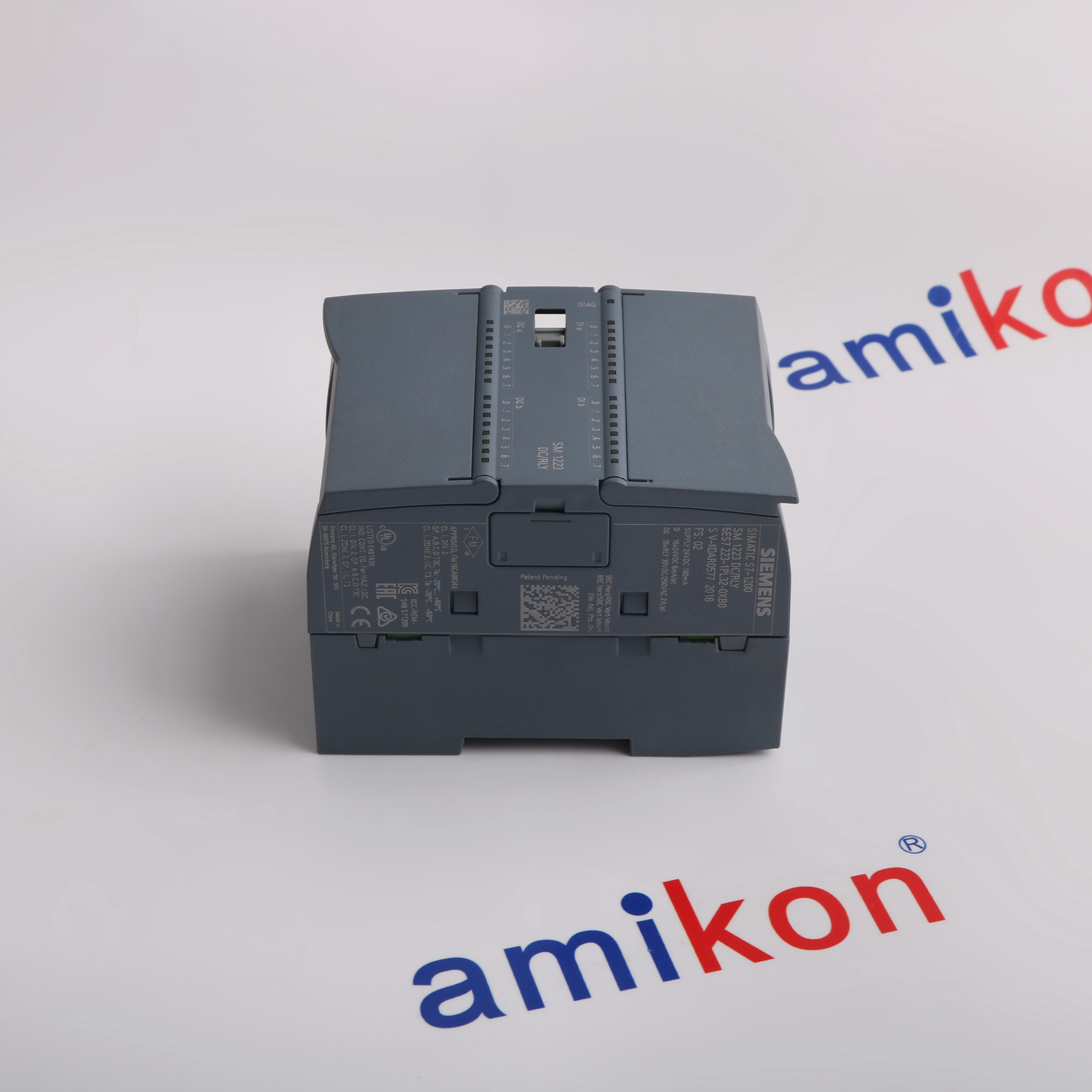

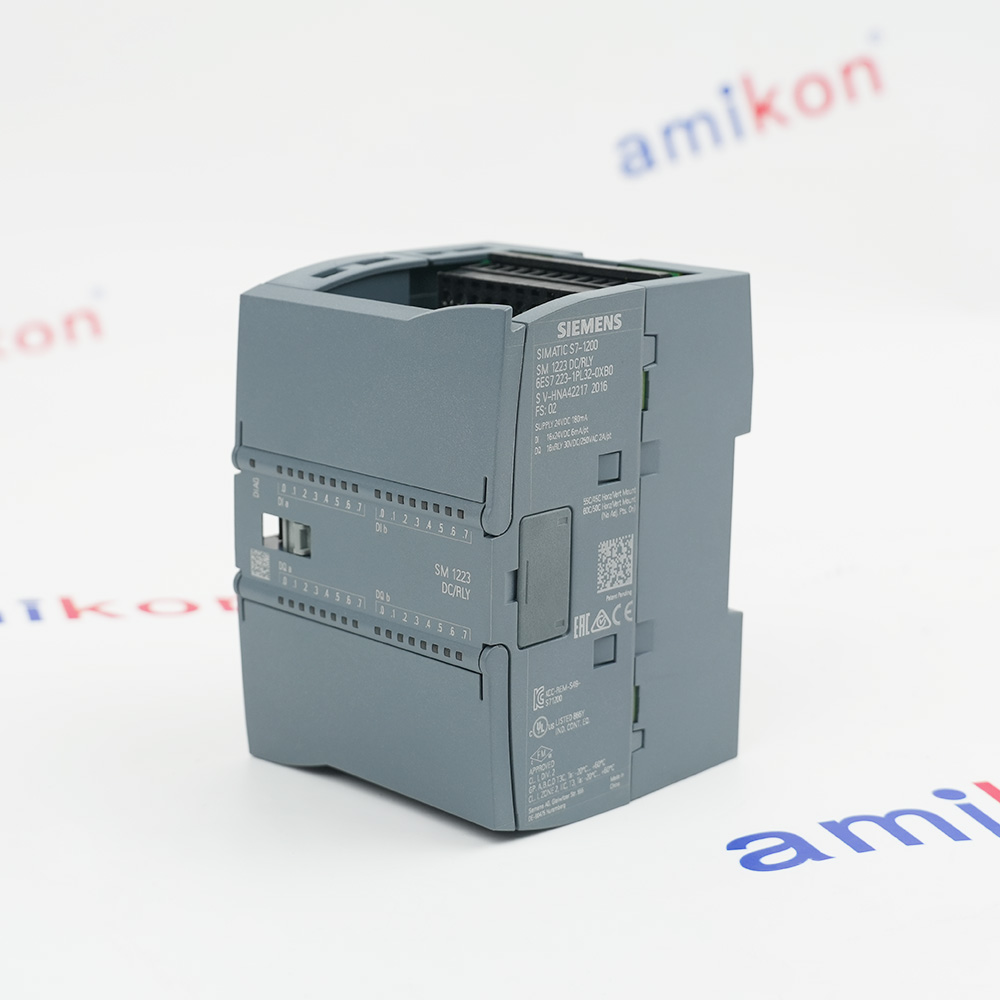

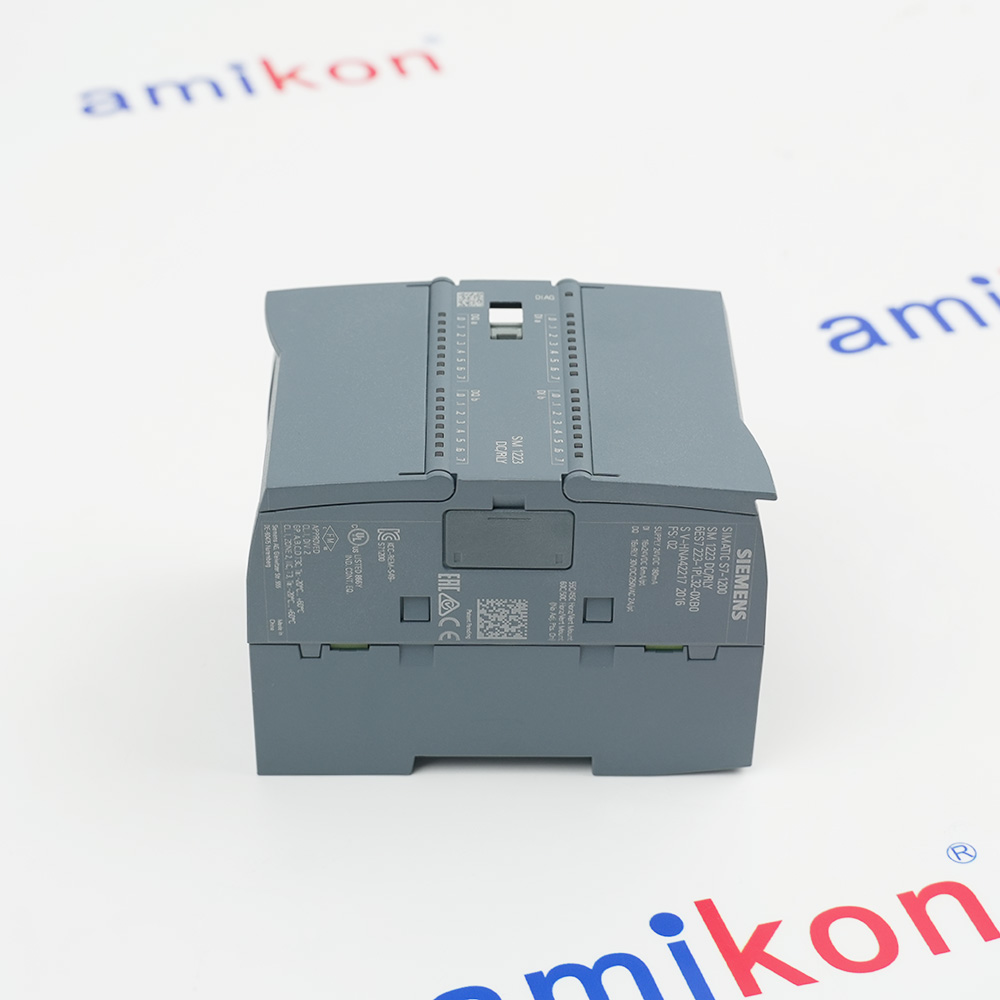

· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7223-1PL32-0XB0
-
Product Model6ES7223-1PL32-0XB0
-
Product ParametersSM 1223 Digital I/O Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size7x10x7.5cm
-
ManufacturerSiemens
-
Weight0.3 kg
-
Product type designationSM 1223, DI 16x24 V DC, DQ 16x relay
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
from backplane bus 5 V DC, max180 mA
Description
SIMATIC S7-1200
Digital I/O SM 1223
16 DI/16 DO, 16 DI 24 V DC
Sink/Source,16 DO, relay 2 A
Digital I/O SM 1223
16 DI/16 DO, 16 DI 24 V DC
Sink/Source,16 DO, relay 2 A
Information
Overview
Manuals
Technical notes
Product Applications
Installation & Wiring Notes
Diagnostic Monitoring
Features:
- SIMATIC S7-1200
- SM 1223, DI 16x24 V DC, DQ 16x relay
- Digital I/O SM 1223
The 6ES7223-1PL32-0XB0 Siemens Digital I/O Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemen 6ES7223-1PL32-0XB0 Digital I/O Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7223-1PL32-0XB0 is a SIMATIC S7-1200 SM 1223 digital input/output signal module featuring 16 digital inputs (24V DC) and 16 relay outputs (2A). It is designed to expand the I/O capacity of S7-1200 CPUs (except CPU 1211C) and supports both sink and source input configurations
- HVAC: Controls the starters of fans, the contactors of water pumps, and the switching of lighting circuits
- Water treatment and environmental protection systems: Circulation control of dosing pumps and mixers, and output of alarm signals
- New energy applications: Simple auxiliary control logic in photovoltaic and wind power generation systems
- Packaging and printing machinery: Controls the solenoid valves and contactors on sealing machines and labeling machines
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Sink/Source Flexibility: For sinking inputs, connect the negative terminal ("-") to "M". For sourcing inputs, connect the positive terminal ("+") to "M".
Terminal Blocks: This model (V3.2 and later) uses specific 11-pin tin-plated removable terminal blocks. The standard spare part kit is 6ES7292-1AL30-0XA0, while a keyed version is available as 6ES7292-1AL40-0XA0.
Cable Length: Supports up to 500m for shielded cables and 300m for unshielded cables
LED Indicators: Dedicated LEDs for individual I/O status and a global error indicator for quick hardware fault identification.
Monitoring: Supports diagnostic alarms and supply voltage monitoring through the TIA Portal software to detect power loss or anomalies
FAQs
-
What is 6ES7223-1PL32-0XB0?
+The Siemens 6ES7223-1PL32-0XB0 is a SM 1223 digital input/output module for the S7-1200 PLC, featuring 16 digital inputs (24V DC, sink/source) and 16 relay outputs (2A). -
What is the 6ES7223-1PL32-0XB0 environmental rating?
+The module is IP20 rated, designed for clean, dry, and temperature-stable environments -
What is the function of the 6ES7223-1PL32-0XB0?
+It is a signal module (SM) for the SIMATIC S7-1200, providing 16 digital inputs and 16 relay outputs for controlling industrial processes. -
What type of outputs does this 6ES7223-1PL32-0XB0 have?
+It has 16 relay outputs, which are suitable for switching higher voltage or current loads up to 2A. -
What are the 6ES7223-1PL32-0XB0 input voltage requirements?
+The inputs operate on 24 V DC.
