- 6ES7314-6EH04-0AB0

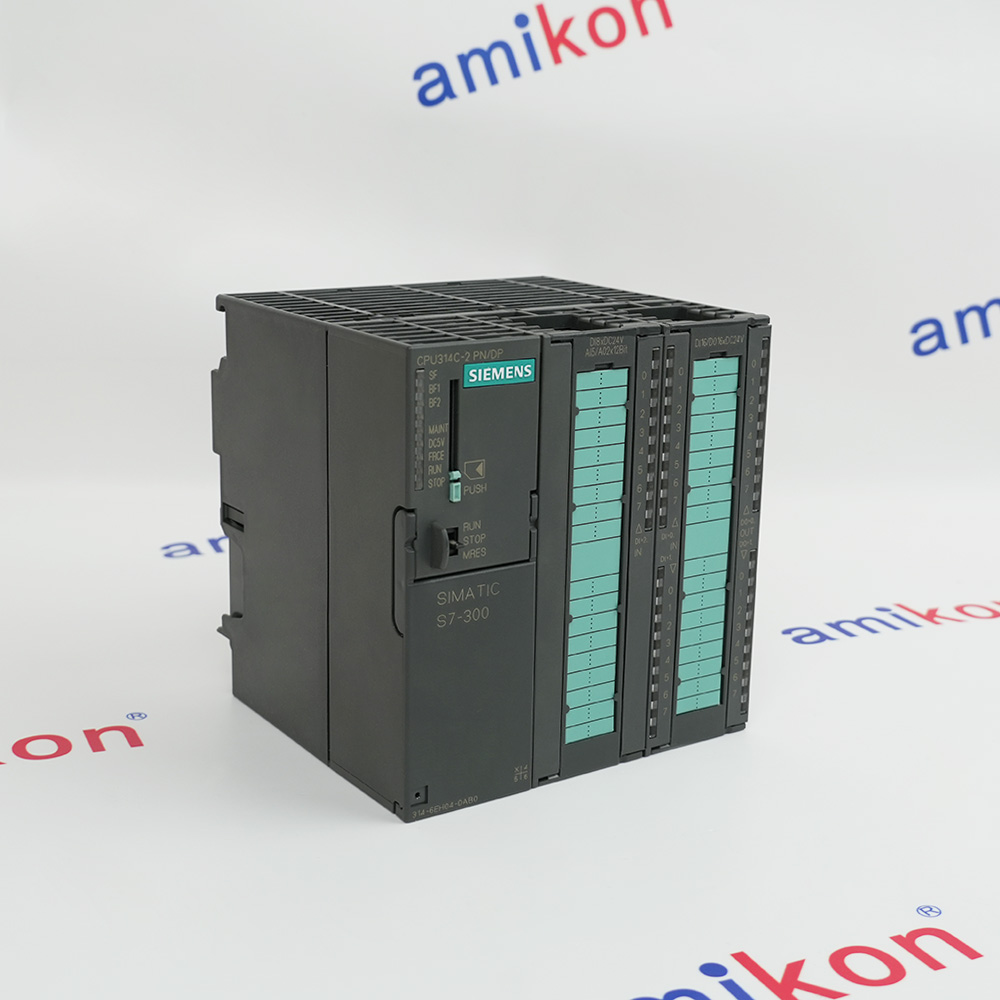

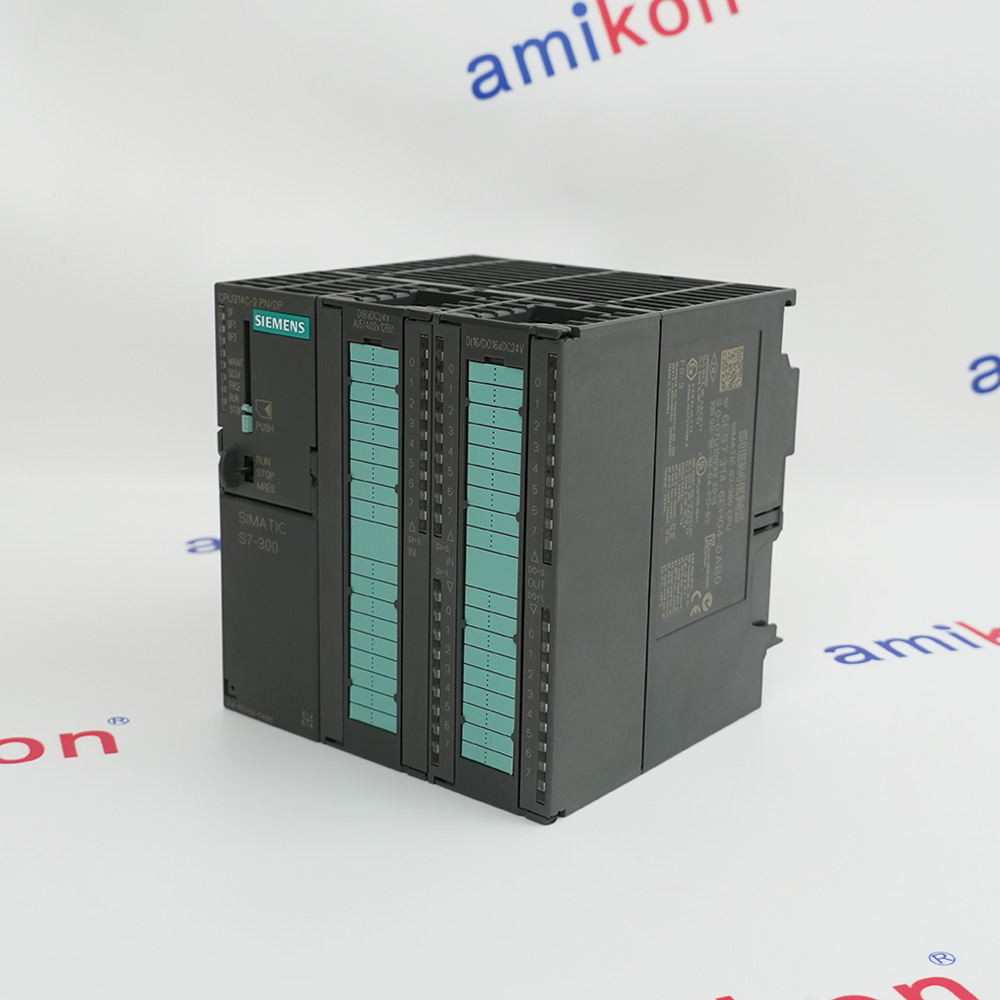

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7314-6EH04-0AB0
-
Product Model6ES7314-6EH04-0AB0
-
Product ParametersCPU 314C-2PN/DP Compact CPU
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size12x12.2x12.5cm
-
ManufacturerSiemens
-
Weight0.7 kg
-
Supply voltage24 V DC
-
Mains/voltage failure stored energy time5 ms
-
Repeat rate, min.1 s
-
Rated value (DC)24 V
-
Current consumption (rated value)850 mA
-
Current consumption (in no-load operation), typ.190 mA
-
Inschakelstroom / typisch5 A
-
Spanningen en stromenI²t 0,7 A²·s
-
from supply voltage L+, max.850 mA
Description
CPU MODULE
SIMATIC S7-300
W/ 192 KB WORK MEMORY
24 DI/16 DO
4 HIGH-SPEED COUNTERS (60 KHZ)
1ST INTERFACE MPI/DP 12 MBIT/S
2ND INTERFACE ETHERNET PROFINET WITH 2-PORT SWITCH
24 VDC POWER SUPPLY
SIMATIC S7-300
W/ 192 KB WORK MEMORY
24 DI/16 DO
4 HIGH-SPEED COUNTERS (60 KHZ)
1ST INTERFACE MPI/DP 12 MBIT/S
2ND INTERFACE ETHERNET PROFINET WITH 2-PORT SWITCH
24 VDC POWER SUPPLY
Information
Overview
Manuals
Technical notes
Product Applications
Wiring & Electrical Setup
Features:
- SIMATIC S7-300
- CPU 314C-2PN/DP COMPACT CPU
- WITH 192 KBYTEWORKING MEMORY
- 24 DI/16 DO, 4AI, 2AO, 1 PT100
- 4 FAST COUNTERS (60 KHZ)
The 6ES7314-6EH04-0AB0 Siemens SIMATIC S7-300 CPU may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7314-6EH04-0AB0 SIMATIC S7-300 CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7314-6EH04-0AB0 is a SIMATIC S7-300 CPU 314C-2 PN/DP compact CPU, to provide high-performance control with integrated I/O and versatile communication interfaces. It features 192 KB of working memory, 24 digital inputs, 16 digital outputs, and analog I/O, suitable for complex industrial automation tasks. 24 DI (24V DC), 16 DO (24V DC), 4 AI (current/voltage), 2 AO (current/voltage), 1 Pt100/Resistance input.
- Automotive Manufacturing:Monitors/regulates complex production lines & robotics
- Packaging Machinery:High-speed packing & sorting with fast processing/integrated I/O
- Textile & Special Machinery:Precise high-I/O control for specialized equipment
- Chemical & Electronics:High-speed comm & distributed I/O for process automation
- Machine Tool Manufacture:Logic & feedback for automated milling/drilling/turning
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect 24V DC to the 2-pin power supply connector located at the top left of the CPU. The permissible range is 19.2V to 28.8V DC.
Integrated I/O: The CPU uses 40-pole front connectors for its 24 digital inputs and 16 digital outputs.
Strip wires to 6 mm and use wire end ferrules if using flexible conductors.
Tighten terminals to a torque between 0.4 Nm and 0.8 Nm.
Memory Card: An MMC (Micro Memory Card) is mandatory for operation; without it, the CPU will not run as it has no integrated load memory.
FAQs
-
What is Siemens 6ES7314-6EH04-0AB0?+Siemens 6ES7314-6EH04-0AB0 is a SIMATIC S7-300 CPU module used for data processing and logic control in industrial automation systems.
-
What is the power failure buffer time of Siemens 6ES7314-6EH04-0AB0?+Siemens 6ES7314-6EH04-0AB0 has a stored energy time of approximately 5 ms during power failure.
-
How many digital outputs does Siemens 6ES7314-6EH04-0AB0 have?+Siemens 6ES7314-6EH04-0AB0 provides 16 digital outputs.
-
What is the isolation rating of Siemens 6ES7314-6EH04-0AB0?+Siemens 6ES7314-6EH04-0AB0 is tested with 600 V DC isolation for electrical safety.
-
What is the transmission rate of Siemens 6ES7314-6EH04-0AB0?+Siemens 6ES7314-6EH04-0AB0 supports a maximum transmission rate of 12 Mbit/s.
