- 6AV6640-0BA11-0AX0
In Stock
Ships by Sunday, August 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6AV6640-0BA11-0AX0
-
Product Model6AV6640-0BA11-0AX0
-
Spare ModelOP73 MICRO
-
Product ParametersOP73 MICRO Operator Panel for S7-200
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15.3x8.3x3.5cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
Design of displaySTN
-
Screen diagonal3 inSize 3
-
Display type STNSchwarz/Weiss
-
Color typeBlack/white
-
Horizontal image resolution160
-
Vertical image resolution48
-
Control elements Membranekeyboard
-
Operating optionsKeys
-
Supply voltage24 V DC
-
Function keys, programmable4 function keys
-
Usable memory for user data128 KB usable memory for user data
Description
The SIEMENS 6AV6640-0BA11-0AX0 SIMATIC Operator Panel OP 73micro is a compact operator interface specifically designed for use with SIMATIC S7-200 programmable logic controllers. The 6AV6640-0BA11-0AX0 features a 3-inch STN (Super Twisted Nematic) black/white LCD display with graphics capability, offering a resolution of 160 x 48 pixels across a compact screen diagonal. The 6AV6640-0BA11-0AX0 display is backlit with an MTBF (Mean Time Between Failures) of approximately 100,000 hours at 25°C, ensuring reliable long-term operation in industrial environments.
For operator input, the 6AV6640-0BA11-0AX0 is equipped with a durable membrane keyboard that includes 4 programmable function keys. The 6AV6640-0BA11-0AX0 supports multi-key operation, numeric and alphabetical input, hexadecimal keyboard entry, and key repeat functionality. The 6AV6640-0BA11-0AX0 does not feature a touchscreen, relying instead on its robust membrane keys for reliable operation in demanding industrial conditions.
The 6AV6640-0BA11-0AX0 is powered by an ARM processor and includes 128 KB of usable Flash memory for user data storage. The 6AV6640-0BA11-0AX0 operates on a 24V DC supply voltage with a rated current consumption of 0.1 A and an inrush current A²s of 0.5 A²·s. The 6AV6640-0BA11-0AX0 features a software clock with no battery backup for time-related functionality.
For operator input, the 6AV6640-0BA11-0AX0 is equipped with a durable membrane keyboard that includes 4 programmable function keys. The 6AV6640-0BA11-0AX0 supports multi-key operation, numeric and alphabetical input, hexadecimal keyboard entry, and key repeat functionality. The 6AV6640-0BA11-0AX0 does not feature a touchscreen, relying instead on its robust membrane keys for reliable operation in demanding industrial conditions.
The 6AV6640-0BA11-0AX0 is powered by an ARM processor and includes 128 KB of usable Flash memory for user data storage. The 6AV6640-0BA11-0AX0 operates on a 24V DC supply voltage with a rated current consumption of 0.1 A and an inrush current A²s of 0.5 A²·s. The 6AV6640-0BA11-0AX0 features a software clock with no battery backup for time-related functionality.
Information
Overview
Manuals
Application Notes
Product Applications
Electrical & Communication Connection
Features:
- 3-inch STN Backlit LCD Display with Graphics Capability
- Membrane Keyboard with 4 Programmable Function Keys
- ARM Processor with 128 KB Flash User Memory
- RS485 Interface for S7-200 Communication
The OP 73micro is intended for small and medium-sized automation applications where a compact operator interface is required. Its graphical display, programmable function keys, and industrial enclosure make it suitable for installation in machinery, manufacturing equipment, and process control panels
The 6AV6640-0BA11-0AX0 Siemens SIMATIC OPERATOR PANEL may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6AV6640-0BA11-0AX0 SIMATIC OPERATOR PANEL Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 6AV6640-0BA11-0AX0 is powered by an ARM processor and includes 128 KB of usable Flash memory for user data storage. The 6AV6640-0BA11-0AX0 operates on a 24V DC supply voltage with a rated current consumption of 0.1 A and an inrush current A²s of 0.5 A²·s. The 6AV6640-0BA11-0AX0 features a software clock with no battery backup for time-related functionality.
The panel communicates directly with SIMATIC S7-200 PLCs through its serial interface and supports graphical process displays, message handling, alarm indication, and operator input. Its compact enclosure, IP65-rated front protection, and low power consumption make it suitable for a wide range of industrial automation applications, including packaging machinery, conveyor systems, production equipment, and OEM machine panels.
- Automobile Construction: Controls/monitors small robotic cells and assembly fixtures
- Food & Beverage: Manages localized processing lines, packaging machines, and conveyor controls
- Environmental/Chemical: Provides on-site feedback for pump stations, filtration, and valve control
- PMining/Conveyor: Allows local start/stop and diagnostic viewing for operators
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.

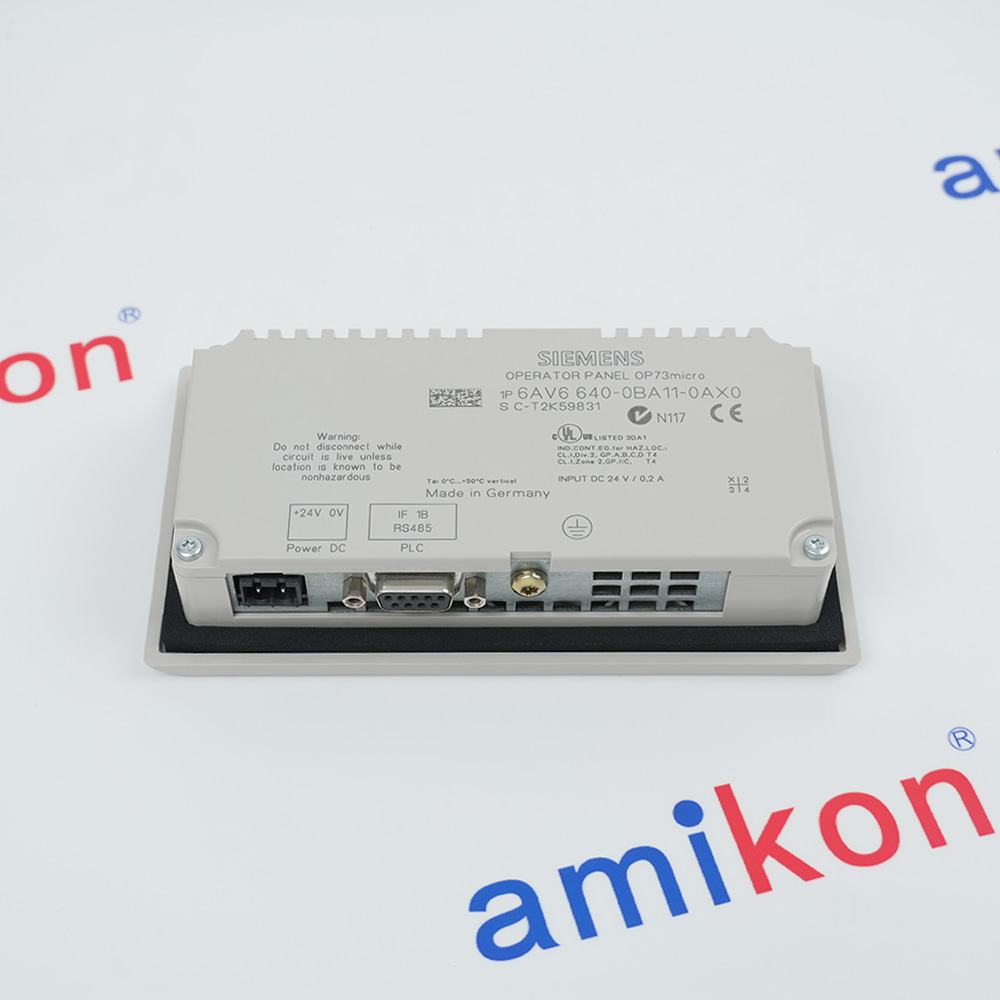

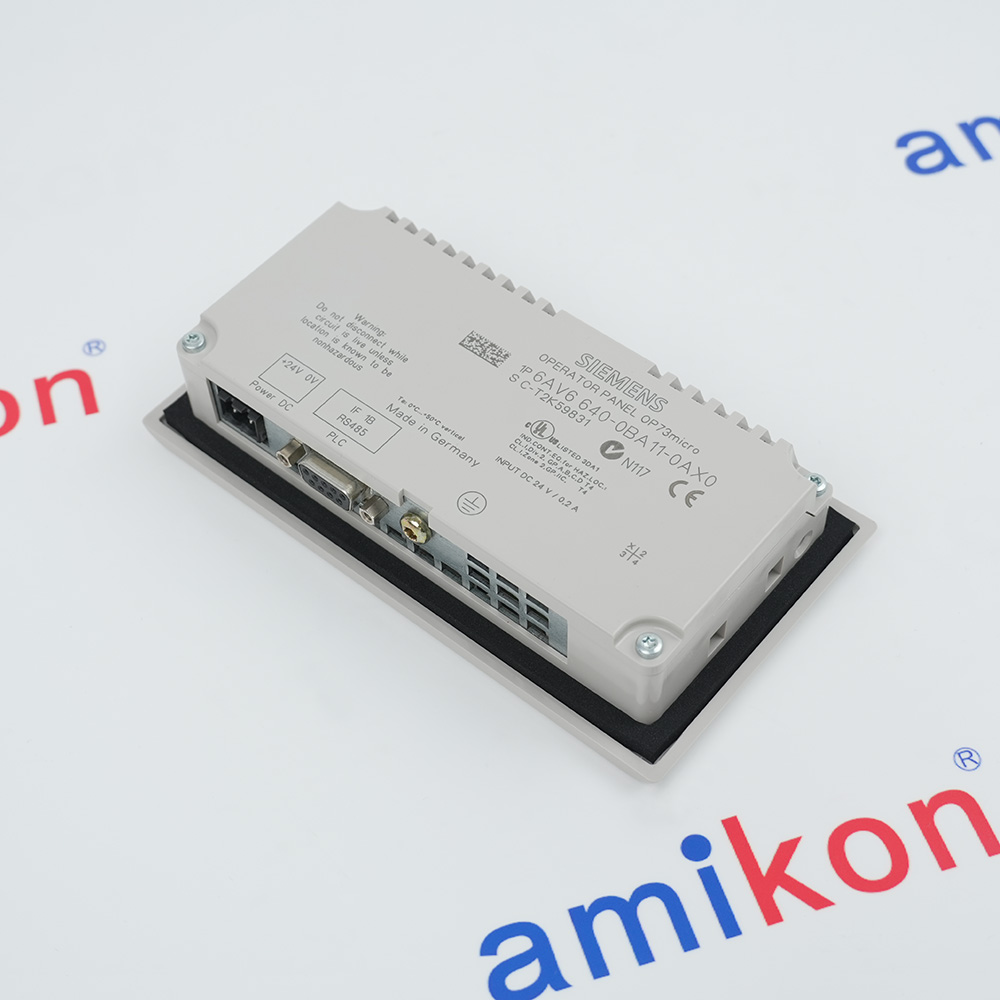

Communication Port: There is an RS-485 interface located at the back of the OP 73micro.
Cable Requirements: Use a standard Siemens PROFIBUS/RS-485 cable fitted with a 9-pin sub-D connector to link the HMI to the S7-200.
Protocol & Baud Rate: The device communicates solely using the PPI (Point-to-Point Interface) protocol at baud rates of 9.6 kbps or 19.2 kbps.
Power Supply: Connect a regulated 24V DC power supply to the dedicated power terminals on the rear of the unit. Ensure the supply is properly grounded to mitigate electrical noise.
Alternative Names
6AV6640-0BA11-0AXO
6AV6640-0BA11-OAX0
6AV6640-0BA1I-0AX0
6AV6640-0BAI1-0AX0
6AV6640-OBA11-0AX0
6AV664O-0BA11-0AX0
6AV66A0-0BA11-0AX0
6AV6640 0BA11 0AX0
6AV6640 0BA11 0AXO
6AV6640 0BA11 OAX0
6AV6640 0BAII 0AX0
6AV6640 OBA11 0AX0
6AV664O 0BA11 0AX0
Technical notes
The 6AV6640-0BA11-0AX0 features IP65 front protection and NEMA 4X certification when properly installed, with IP20 rear protection. The 6AV6640-0BA11-0AX0 holds multiple marine and industrial certifications including CE, GL, ABS, BV, DNV, LRS, UL, CSA, cULus, and C-TICK. The 6AV6640-0BA11-0AX0 operates within a storage/transport temperature range of -20°C to +60°C and supports a maximum relative humidity of 90%.
FAQs
-
What software is required to configure this HMI?
+You must use WinCC flexible 2004 Micro (or higher) with the appropriate Hardware Support Package (HSP). It cannot be programmed using newer software like TIA Portal, which dropped support for older panels -
Can I connect this to a different PLC other than the S7-200?
+No, the -
What is the screen resolution?
+The resolution is 160 x 48 pixels. It supports up to 2 colors (black and white). -
What interface does it use?
+It has 1 x RS485 interface. It uses the MPI/PPI protocol to connect directly to an S7-200 PLC controller at a maximum transmission rate of 187.5 Kbit/s
