Technical specifications for 6DP1232-8BA
-
Product Model6DP1232-8BA
-
Spare ModelFUM 232
-
Product ParametersFUM 232 Analog Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size2x26.3x26.3cm
-
ManufacturerSiemens
-
Weight0.4 kg
-
Current Input0/4-20mA
-
Voltage Input0-10V
-
Channel-to-channel1500V AC
-
Accuracy±0.1% of full scale (FSR)
-
Supply Voltage24V DC
-
Operating Temperature-20°C to +60°C
-
Storage Temperature-40°C to +85°C
-
Humidity5% to 95% (non-condensing)
Description

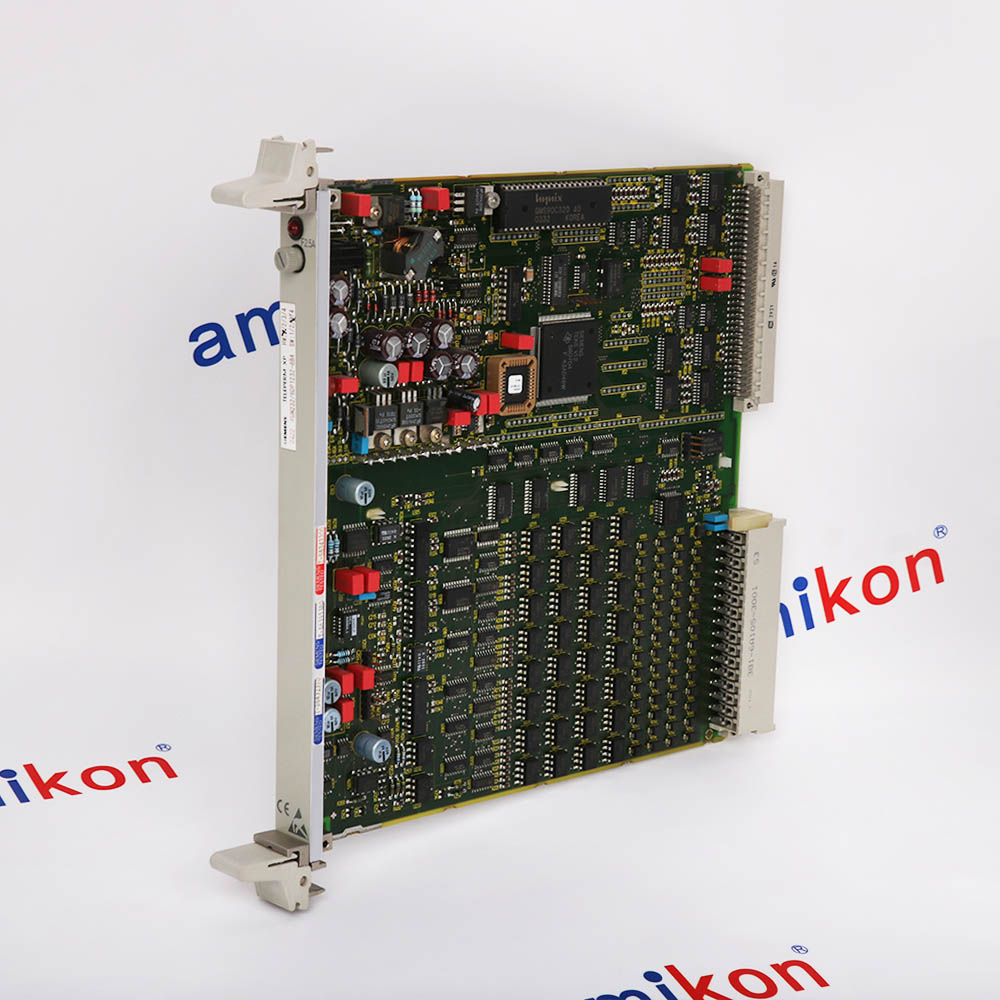

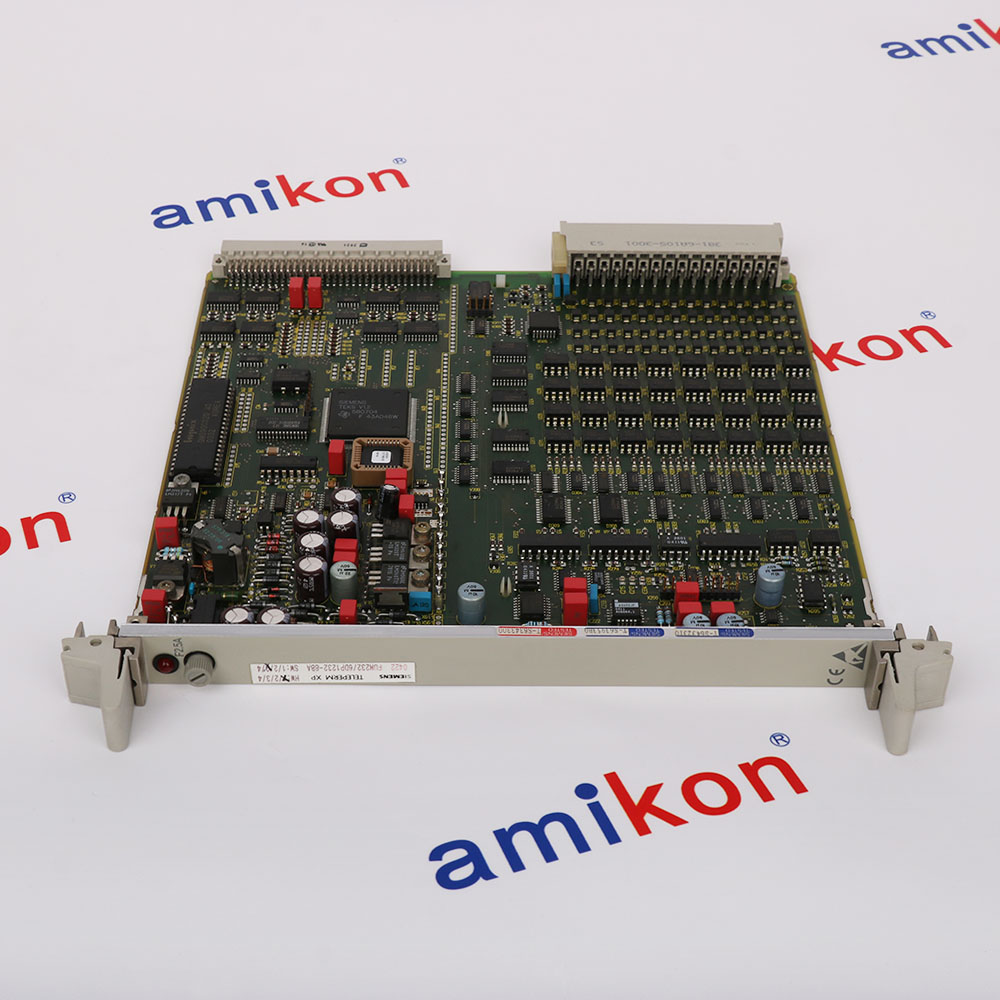

The Siemens 6DP1232-8BA is an analog transmitter signal conditioning module from the Teleperm XP distributed control system family. The FUM 232 module is designed for precise temperature measurement and signal conditioning, supporting both PT100 resistance thermometers and thermocouples in industrial process control applications.
The module accommodates up to 14 PT100 resistance thermometers with four-wire connections, providing high-accuracy temperature measurement with compensation for lead wire resistance. Alternatively, the module supports up to 28 thermocouple inputs. The reference junction temperature can be configured as either fixed or variable, allowing precise adaptation to specific process requirements and ambient conditions.
The module accommodates up to 14 PT100 resistance thermometers with four-wire connections, providing high-accuracy temperature measurement with compensation for lead wire resistance. Alternatively, the module supports up to 28 thermocouple inputs. The reference junction temperature can be configured as either fixed or variable, allowing precise adaptation to specific process requirements and ambient conditions.
Alternative Names
6DPI232-8BA
6OP1232-8BA
6DP1232 8BA
6DP12328BA
6DPI232-8BA
Information
Overview
Manuals
Application Notes
Product Applications
Physical Insertion & Extraction
Features:
- Supports 14 four-wire Pt100 RTD inputs
- Supports 28 thermocouple inputs
- Continuous transmitter supply supervision
- Measurement range overshoot and undershoot monitoring
The module provides signal conditioning for up to 14 PT100 resistance thermometers via four-wire connections, eliminating lead wire resistance errors and ensuring high measurement accuracy. Alternatively, it supports up to 28 thermocouple inputs with configurable reference junction compensation — either fixed reference temperature or variable reference junction temperature tracking.
The 6DP1232-8BA SIEMENS FUM 232 Analog Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6DP1232-8BA FUM 232 Analog Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Differential temperature measurement is supported, allowing direct calculation of temperature differences between two measurement points. The module is explicitly designed for redundant use, enabling dual-channel or dual-module configurations to ensure continuous operation in critical process control applications.
The 6DP1232-8BA mounts in standard TELEPERM XP subracks (EU 901 or EU 902) and communicates with the TELEPERM XP automation processor (AP) via the internal system bus. It is classified as obsolete in the Siemens product lifecycle and has been superseded by the 6DP1232-8AA variant. The module is applicable in power generation, chemical processing, oil and gas, water treatment, and other process industries requiring reliable temperature monitoring and control within distributed control system architectures.
- Oil/Gas/Petrochemical: Controls offshore platforms, pipelines, and refineries to prevent hazardous failures and costly restarts
- Water/Wastewater: Manages pumping stations and treatment networks requiring unsupervised continuous execution
- Chemical Processes: Automates reactors and processing lines with no data loss and continuous critical monitoring
- Infrastructure: Manages fault-tolerant tunnel lighting and traffic management systems
- Power Generation: Controls boilers and auxiliary equipment to prevent costly unscheduled blackouts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power: Ensure the TELEPERM XP system is properly powered off, or follow your facility's strict hot-swapping/redundancy protocols if the module is deployed as part of a redundant pair.
Insertion: Align the module card carefully with the corresponding rack guides. Push gently but firmly until the rear connector seats into the backplane. Secure any top and bottom locking levers or mounting screws.
Extraction: Release the front locking clips/screws and pull evenly to disconnect the module from the backplane to prevent pin damage.
Technical notes
The module is suitable for redundant use, enabling dual or triple modular redundant configurations for safety-critical and high-availability process control systems. Redundancy ensures continued operation and minimal downtime in critical production lines.
The 6DP1232-8BA interfaces to the Teleperm XP system via PROFIBUS DP, enabling seamless integration into the distributed control architecture. The module is also compatible with SPPA-T3000 (Siemens Power Plant Automation) systems for power generation applications.
FAQs
-
What is 6DP1232-8BA?
+The Siemens 6DP1232-8BA (FUM 232) is an analog transmitter signal conditioning module used in Teleperm XP process control systems. -
What is the primary function of this module?
+It acts as an interface between field devices (sensors) and the Teleperm XP control system. It converts real-world sensor data into digital signals. -
What systems are compatible with the 6DP1232-8BA?
+It is specifically engineered for integration into Siemens TELEPERM XP systems. -
What fault diagnostics does the module provide?
+It monitors for transmitter supply limits, measurement range overshoot and undershoot, and wire breaks.
