ABB Advant OCS and Advant-800xA

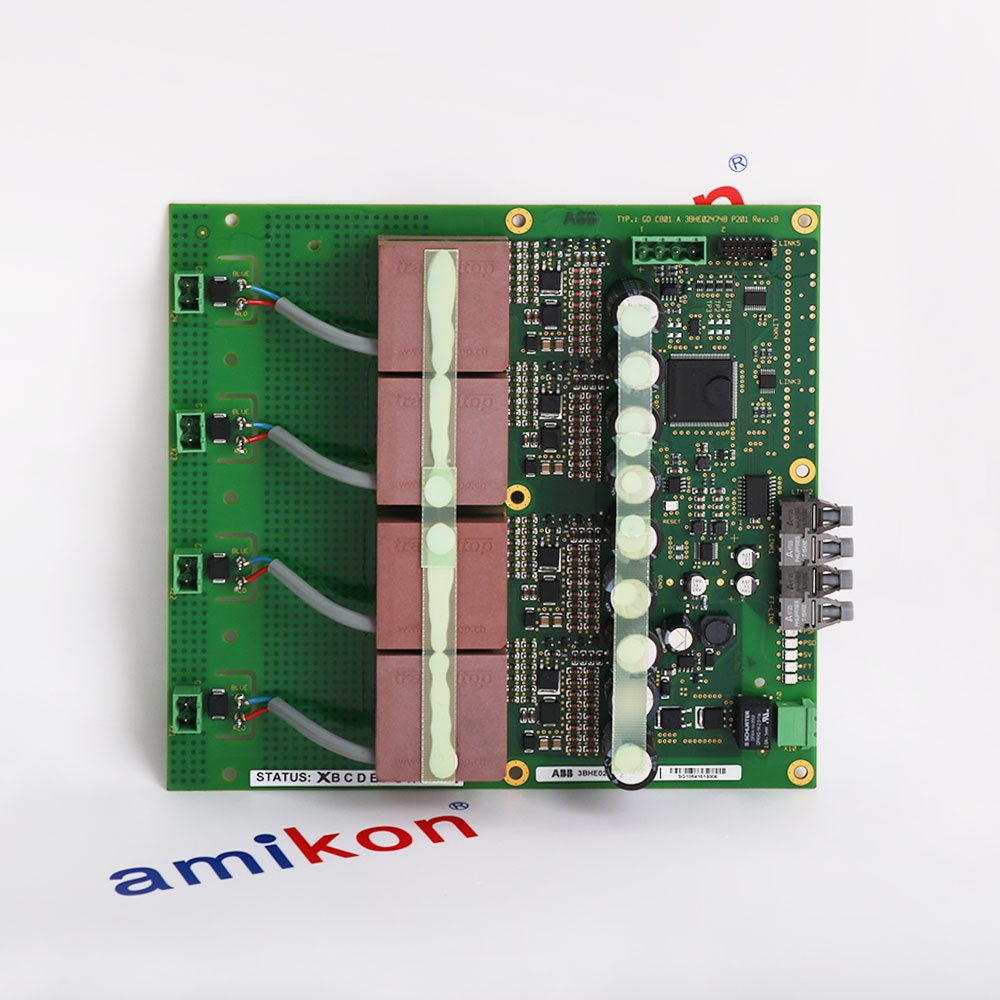

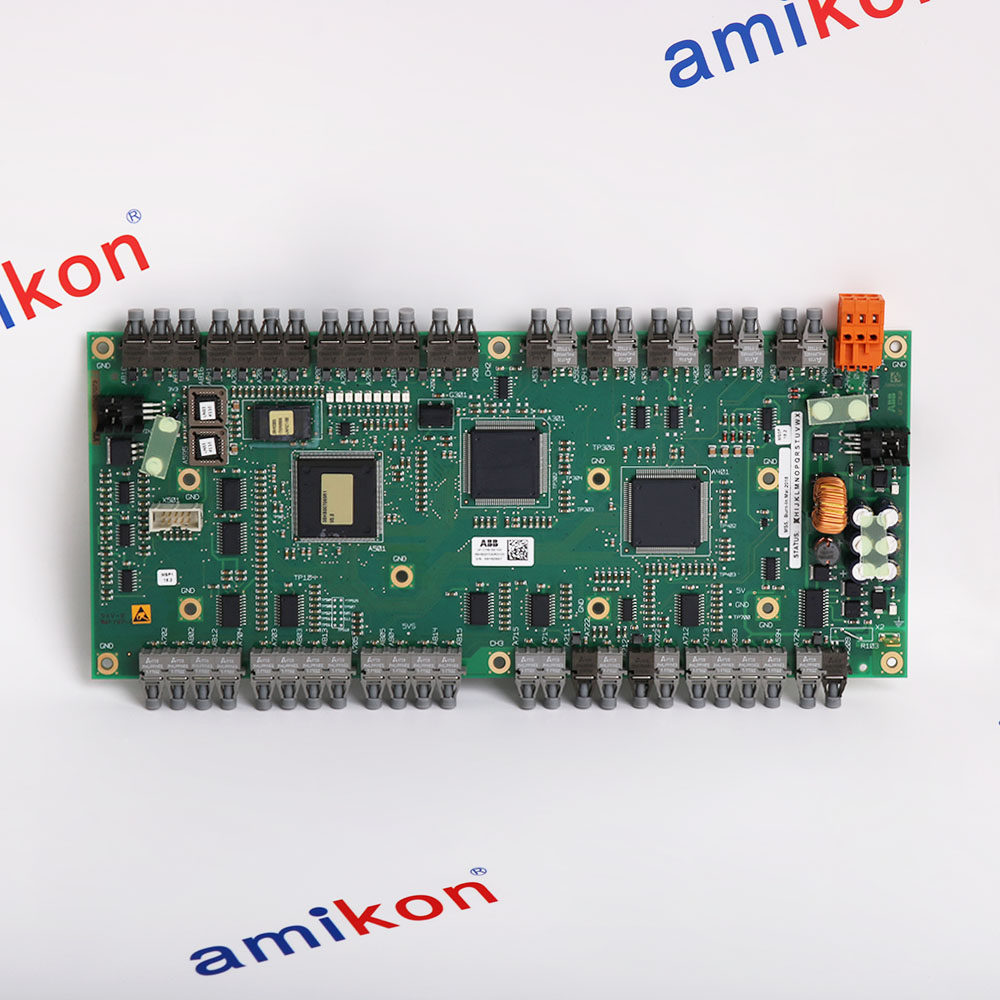

Drive board

Input Voltage: 24 VDC (±10%)
Analog Inputs: 0–10 VDC or 4–20 mA
Operating Temperature: -25°C to +55°C (-13°F to +131°F).
Humidity: Up to 95% non-condensing.
Vibration Resistance: 5–150 Hz

Display Unit

Power Supply:24V DC
Power Consumption:5W max
Isolation:1.5kV AC
Screen Type:TFT LCD with LED backlight
Resolution:320 × 240 pixels (QVGA)
Color Depth:65k colors

I/O Interface Card

Power Supply:24V DC (±10%)
Surge Protection 4kV
Input Channels:24V DC
Isolation:1.5kV channel-to-channel
Output Channels:4-20mA
Update Rate:10ms per channel
Backplane Interface:800xA CI867 bus
Protocol Support:Modbus RTU/TCP

Governor drive board

Supply Voltage: 24VDC ±10%
Power Consumption: 15W typical
Isolation: 1500VAC I/O to logic
Speed Range:0-12,000 RPM
Resolution:0.01% of rated speed
Analog Inputs:16-bit, ±10V, 4-20mA
Analog Outputs: 12-bit, ±10V
Digital I/O: 16x opto-isolated (24VDC)
Servo Outputs: 4x (PWM, ±50mA)

Central Processing Unit

Supply Voltage: 24VDC (19.2-30V)
Power Consumption: 12W typical
Isolation: 1500VAC
Program Memory 16MB (user logic)
Process I/O Capacity Up to 250,000 I/O points
Communication Links 16 simultaneous
Task Execution 32 parallel tasks
Dual-Core Processor: 1.2 GHz Power Architecture
Memory: 512MB DDR3 RAM + 1GB Flash

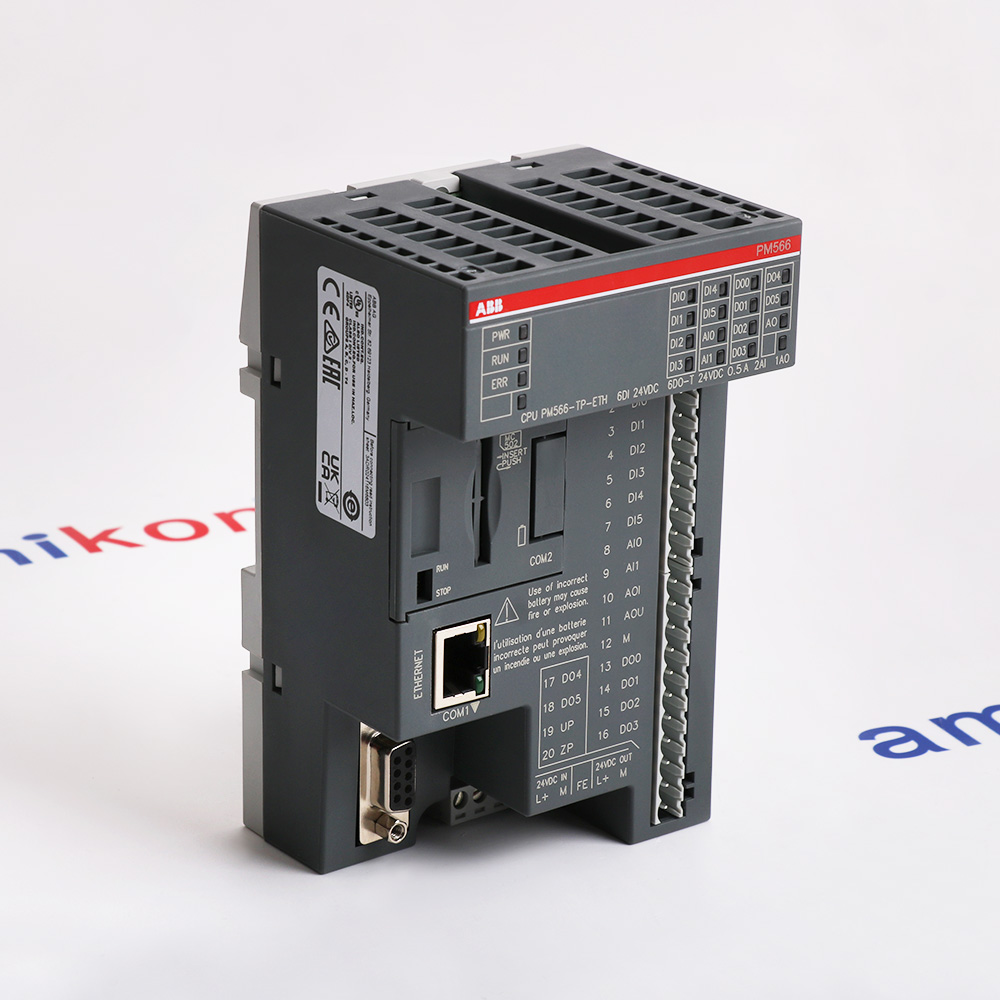

Prog.Logic Controller

Memory Size:142 kB
Memory Type User Data:RAM
Controller Processing Time:0.00008 ms
Number of Digital Inputs:8
Number of Digital Outputs:6
Number of Digital Configurable I/Os:0
Input Voltage Type:DC
Rated Voltage (Ur):24 V DC
Supply Voltage:20.4 … 28.8 V DC

Standard Signal Condition Board

Number of Channels:8
Input Types Supported:4-20mA, 0-10V
Input Impedance:250Ω (current)
Maximum Input:24mA
Common Mode Rejection:>100dB @ 50/60Hz
Accuracy:±0.1% of span
Output Types:4-20mA (active/passive), 0-10V
Load Capacity:600Ω (current), 5mA (voltage)
Resolution:16-bit (0.0015% of span)
Update Rate:10ms per channel

Data Rate:Up to 10 Mbps
Signal Type:RS-485
Max Cable Length:100m
Termination:120Ω resistor
Cable Length:2m
Jacket Material:PUR (oil-/UV-resistant)
Bending Radius:≥5× cable diameter

Excitation central processing unit

Processor Type:Dual PowerPC-based
Clock Speed:400 MHz (each core)
RAM:256 MB
Flash Memory:128 MB
Control Cycle Time:<1 ms
Analog Inputs:16 channels (0-10V, 4-20mA)
Digital Inputs:32 channels (24V DC)
Digital Outputs:24 channels (relay contacts)
Communication Ports 4 (Ethernet, RS-485, etc.)
Power Supply:24V DC (±10%)
Power Consumption:25W (typical)
Isolation Voltage:2000V AC

EtherNet Adapter module

Power Supply:24V DC (±10%)
Power Consumption:5W (typical)
Isolation :1500V AC
Ethernet Ports:2x RJ45
PROFIBUS Port:9-pin D-sub
Ethernet Speed:10/100 Mbps
Data Throughput: Up to 1440 bytes per cycle
Update Time:<10ms (typical)
Number of Connections:Up to 32 simultaneous
Routing Delay:<1ms

Profibus Interface Sub Module

Protocol Support:PROFIBUS DP-V1
Data Rate:9.6kbps - 12Mbps
Max Stations:125 devices per channel
Process Data:244 bytes
Diagnostic Data:96 bytes per device
Power Supply:5V DC via backplane (±5%)
Power Consumption:2.5W (typical)
Isolation:1500V AC (field-to-logic)
ESD Protection:±8kV

IGBT module trigger protection board

Control Voltage: 15 V DC
Protection Voltage: 12 V D
Operating Temperature Range: -20°C to +55°C.
Storage Temperature Range: -40°C to +70°C.
Humidity: 5% to 95% RH

Controller Module

CPU: 32-bit RISC processor
Clock Speed: 100-200 MHz
RAM: 32-64 MB
Flash Memory: 16-32 MB
Voltage: 24V DC
Power Consumption: 8-15W
Isolation: 1500V AC (input-to-output)

Touchscreen panels

State-of-the-art graphics
Robust and reliable
Truly open platform
Display type:Touch
Display size 15.4"
Brightness:450 cd/m²
Display resolution, ratio:1280 x 800 (16:10)
Processor:ARM9 (1 GHz)
Main memory:1 GB

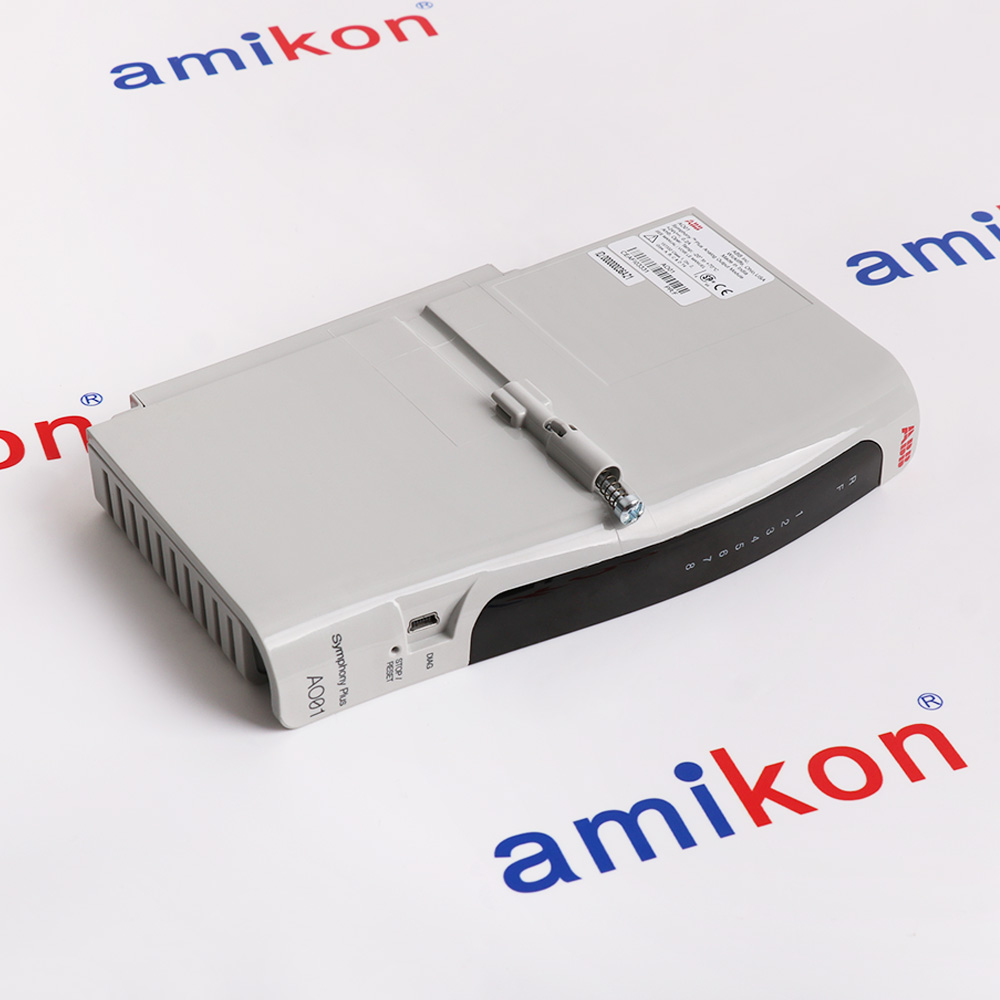

Symphony Plus Controller

Processor:Dual-core ARM Cortex
Memory:2GB RAM
I/O Capacity:Supports up to 512 I/O points
Power Supply:24V DC
Power Consumption:≤15W (typical)
Ethernet: 2× 10/100/1000 Mbps
Fieldbus: PROFIBUS DP, Modbus TCP/RTU

Digital Input Module

Input Channels: 16 or 32 channels
Isolation: 500V
Input Voltage Range: 24V DC
Input Current: Typically 3-5mA
On-State Voltage: 15-30V DC
Off-State Voltage: 0-5V DC
Response Time: <1ms (typical)
Input Impedance: ~3kΩ (typical)

Submodule Carrier

Supply Voltage: 24V DC (±10%)
Power Consumption: 2W
Backplane Current: 1A maximum per slot
Isolation: 500V AC
System Connection: S800 bus to main controller
Field Connection: Screw terminals for I/O wiring
Bus Speed: 1.5Mbps

PEC80 Converter Signal Int

Input Voltage Range: 24V DC
Operating Voltage: 15–30V DC
Current Consumption: 50–200 mA
Isolation Voltage: ≥500V
Analog inputs: ±10V, 4–20mA
Digital inputs :TTL/relay contact

Control Module

Operating Voltage: 24V DC (±10%)
Power Consumption: 5–10W
Isolation: 1500V AC
CPU: 32-bit RISC-based processor
Clock Speed: 100–200 MHz
Memory Flash:16–32 MB
Digital I/O: 24V DC

Circuit Board

Supply Voltage: 24V DC (±10%)
Power Consumption: 15W (typical)
Operating Current: 0.5-1A
Isolation Voltage: 2000V AC
Main Processor: 32-bit DSP or microcontroller
Clock Speed: 100-200MHz

Communications I/O Module

Supply Voltage: 24V DC (±10%)
Power Consumption: 3.5W (typical)
Primary Protocol: Profibus DP
Data Rate: 9.6kbps to 12Mbps
Connector Type: 9-pin D-sub
Isolation: 1500V AC
Digital Inputs: 8 channels

Communications I/O module

Supply Voltage:24V DC (±10%)
Power Consumption:4W (typical)
Inrush Current:<15A (20ms)
Backplane Current:500mA max
Output Isolation:3000V AC
Data Rates:9.6 kbps – 12 Mbps
Connector:9-pin D-sub (RS-485)
Address Range:0–126
Isolation:1500V AC

Exciter Control Module

Supply Voltage: 110/220V AC ±10%
Power Consumption: ≤15W
Generator current: 0-5A AC (CT input)
Field voltage: ±200V DC
Field current: ±5V DC
Response Time: <20ms for 95% step response

Communication Module

Communication Interface:RS-232, RS-485
Data Transfer Speed:Up to 115,200 bps
Power Supply:24V DC
Mounting Type:DIN rail mounted
Operating Temperature:-20°C to 60°C (-4°F to 140°F)
Storage Temperature:-40°C to 85°C (-40°F to 185°F)
Humidity Tolerance:5% to 95% non-condensing

07KT98 Advant Controller 31 Basic Unit

Microprocessor-based protection
Three-phase trip-free mechanism
Front-connected auxiliary contacts
Integrated earth fault protection
Remote control and monitoring capabilities
High-performance AC800F platform
Supports a wide range of I/O modules
Supports a variety of programming languages
Suitable for a wide range of industrial applications
Compact and modular design
