ALL MANUFACTURERS

Circuit Board

Power Supply: Typically 24 V DC
Input Voltage Range: typically 0-10V DC
Operating Temperature Range:
Typically -20°C to 70°C (-4°F to 158°F)
Storage Temperature Range:
Typically -40°C to 85°C (-40°F to 185°F)
Humidity:  5% to 95%, non-condensing

F-series Extension Adapter

Voltage: 24V DC (±10%)
Consumption: 2.5W typical
Isolation: 1.5kV AC
PROFIBUS DP (up to 12Mbps)
Modbus RTU (RS485)
CANopen (optional)

Frequency Converter

Frequency (f):47.5 ... 63 Hz
Frame Size:R3
Input Voltage (Uin):380 … 480 V
Mounting Type:Wall-mounted_NO UNIT$
Output Current, Normal Use (In):45 A
Output Current, Heavy-Duty Use (IHD):38 A
Output Power, Normal Use (Pn):22 kW
Output Power, Heavy-Duty Use (PHD):18.5 kW

991 Thrust Transmitter

991 Thrust Transmitter
25 25-0-25 mils
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
01 35 mm DIN-rail clips

Manual Motor Starter

Setting Range:28 ... 40 A
Rated Operational Current:40 A
Rated Insulation Voltage:690 V
Electrical Durability:25000 cycle
Ampere Rating UL/CSA:40 A
Rated Operational Power AC-3 (Pe) :hree Phase 18.5 kW
Maximum Operating Voltage UL/CSA Main Circuit:600 V AC

Interface board

Voltage: 24V DC
Consumption: 3.5W typical
Isolation: 1.5kV AC
PROFIBUS DP (up to 12Mbps)
Modbus RTU (RS485)
Node Capacity: Up to 124 devices
IEC 60870-5-101/104

Drive Control Uni

Power Supply:24V DC (±10%)
Power Consumption:5W (typical)
Isolation:1.5kV AC
Data Transfer Rate:Up to 12Mbps
Fieldbus Protocols:PROFIBUS DP
DRIVE-CLiQ:For direct drive connection

Drive Control Unit

Processor: 32-bit dual-core ARM Cortex
Clock Speed: 800MHz
Memory: 512MB Flash
Power Supply:24V DC (±15%)
Power Consumption:8W (typical)
Isolation Voltage:2.5kV AC
I/O Capacity:16 DI/8 DO

3300 XL 8 mm Proximity Probes

330102  3300 XL 8 mm Probe
3/8-24 UNFthread, with armor
Minimum unthreaded length: 0.0 in
Minimum case length: 2.5 in
50 5.0 meters (16.4 feet）
11Miniature coaxial ClickLocconnector
with connectorprotector, FluidLoc cable
00 Not required

LOGIC SUPPLY

BLC382TCPUC1SLX800
LOGIC SUPPLY
24VDC
2 AMPS

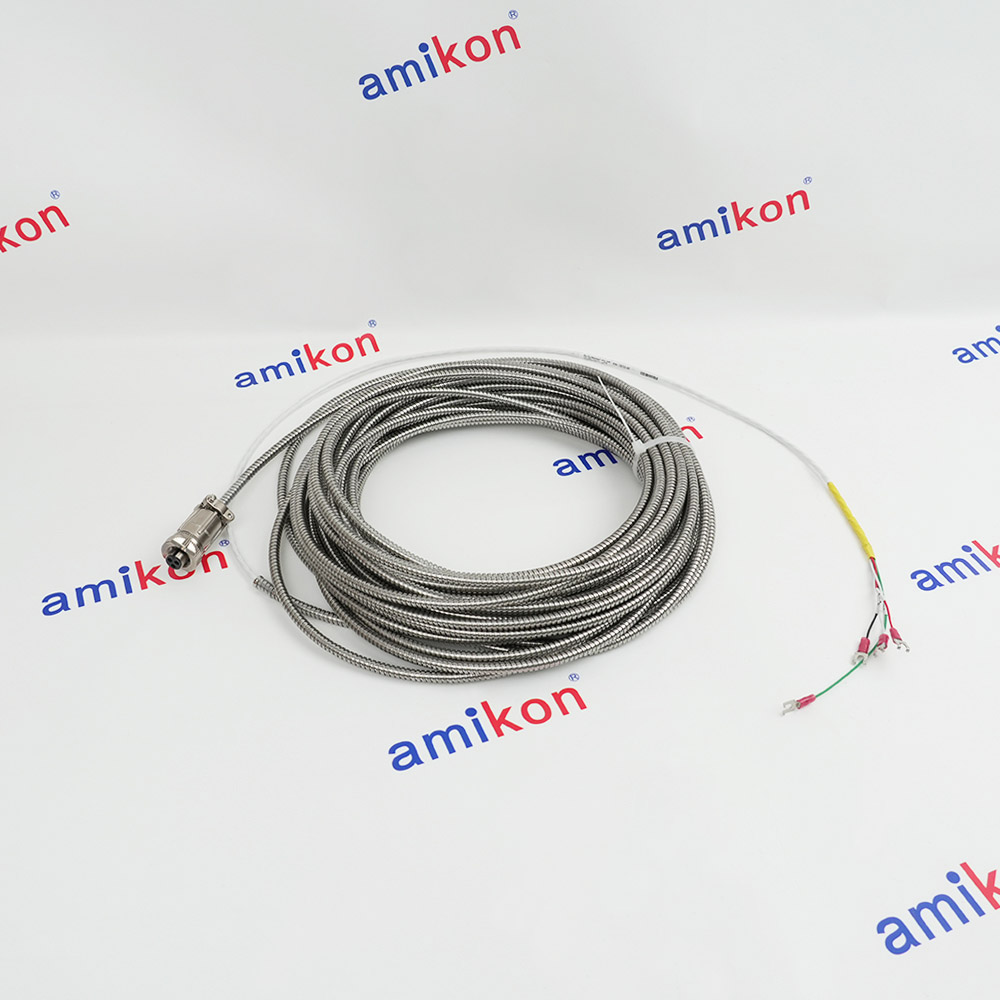

Interconnect Cable

3-conductor shielded
22 AWG(0.5 mm2) cable
with 3-socketplug at one end
terminal lugs atthe other end
Minimum lengthof 2.0 ft (0.6 m)
maximumlength of 99 ft (30 mm)

Digital I/O Card

Series Mark V
Part Number DS200TCDAG1B
Functional Description Digital I/O Board
Functional Acronym TCDA
PCB Coating Normal Coating

Controller Circuit Board

Input Voltage: 24V DC (±10%)
Power Consumption: 15W typical
Isolation: 4kV AC
Processor: 32-bit PowerPC @ 400MHz
Memory:64MB SDRAM

Control I/O Module

Digital Inputs:24V DC
Analog Inputs:0-10V/4-20mA
Input Isolation:2.5kV AC
Backplane Bus:Proprietary high-speed bus
Protocol Support:Modbus RTU, PROFIBUS DP
