ALL MANUFACTURERS

Variable speed drive

variable speed drive
Easy Altivar 610
45kW, 60hp
380 to 460V, IP20

Variable speed drive

variable speed drive
ATV71 - 75kW-100HP
480V - EMC filter-graphic terminal

ATV600 variable speed drive

variable speed drive
Altivar Process ATV600
ATV630, 220kW, 350hp
380 to 480V, IP00

UNMANAGED IE SWITCH

SCALANCE XB108-2 UNMANAGED IE SWITCH
8X 10/100 MBIT/S PORTS
2X 100 MBIT/S MULTIMODE BFOC
FOR SETTING UP SMALL STAR AND LINE TOPOLOGIES
LED DIAGNOSTICS
IP20
REDUNDANT POWER SUPPLY 24 V AC/DC
MANUAL AVAILABLE AS A DOWNLOAD

LINE REACTOR

LINE REACTOR
CHOCK
6SE SERIES
MICRMASTER 4
SINAMICS
2 HP RATED
1.5 KW
THREE-PHASE
380-480 VAC SUPPLY
47-63 HZ
IP20 ENCLOSURE

Control board

Control board
PC BOARD
WITH MULTIPORT

SMART REGULATED POWER SUPPLY

SIMATIC PM207/1AC/24VDC/5A
SIMATIC S7-200 smart
Regulated power supply
input: 100-240 V AC
output: 24V/5 A DC

Voltage transformer

ABL6TS25U
voltage transformer
230..400 V
1 x 230 V
250 VA

POWER SUPPLY

POWER SUPPLY
PACDRIVE
10/16 AMP
220-240 VAC
48-62 HZ

OPERATOR INTERFACE

OPERATOR INTERFACE
SIMATIC HMI TP1500
TOUCH PANEL
15 INCH TFT DISPLAY
256 COLOURS
PROFINET INTERFACE

variable speed drive

VARIABLE SPEED DRIVE
3-PH
75KW
480V
CONTROL / DRIVE TYPE:VARIABLE SPEED DRIVE
COMPATIBLE MOTOR TYPE:SYNCHRONOUS / ASYNCHRONOUS MOTORS
POWER RATING:75KW
NO. OF PHASES:THREE PHASE
OUTPUT CURRENT MAX:145A
IP RATING:IP21 ROHS COMPLIANT: YES

variable speed drive

ATV610U07N4
ATV610
STANDARD “U” VERSION
~7?A RATING
460?V
“N4” PACKAGE

T/M VALUE OPERATOR PANEL

SINUMERIK 802D SL VERSION
T/M VALUE OPERATOR PANEL
CNC WITH NC-
PLC-
HMI PART AND DRIVE CONTROL
FOR SINAMICS AXES/SPINDLES (3/1)
INCL:. LOG BOOK AND TOOLBOX

CPU CONTROLER

CPU CONTROLER
SIMATIC S7-400
CPU 416-3
WORK MEMORY 3.2 MB
(1.6 MB CODE1.6 MB DATA)
1ST INTERFACE MPI/DP 12 MBIT/S
2ND INTERFACE PROFIBUS DP
3RD INTERFACE FOR IFM

CENTRAL PROCESSING UNIT

CPU
SIMATIC S7-400
417-4 CENTRAL PROCESSING UNIT
WORK MEMORY 30 MB / 15 MB CODE-15 MB DATA
1ST INTERFACE MPI 12 MBIT/S
2ND INTERFACE PROFIBUS DP
3RD/4TH INTERFACE PLUG-IN IFM MODULE

Soft Starter Control board

PC BOARD
Soft Starter Control board
ON-BOARD TRANSFORMERS
MOUNTABLE
2X 6-PIN CONNECTORS
2X 8-PIN CONNECTORS
3X 4-PIN CONNECTORS

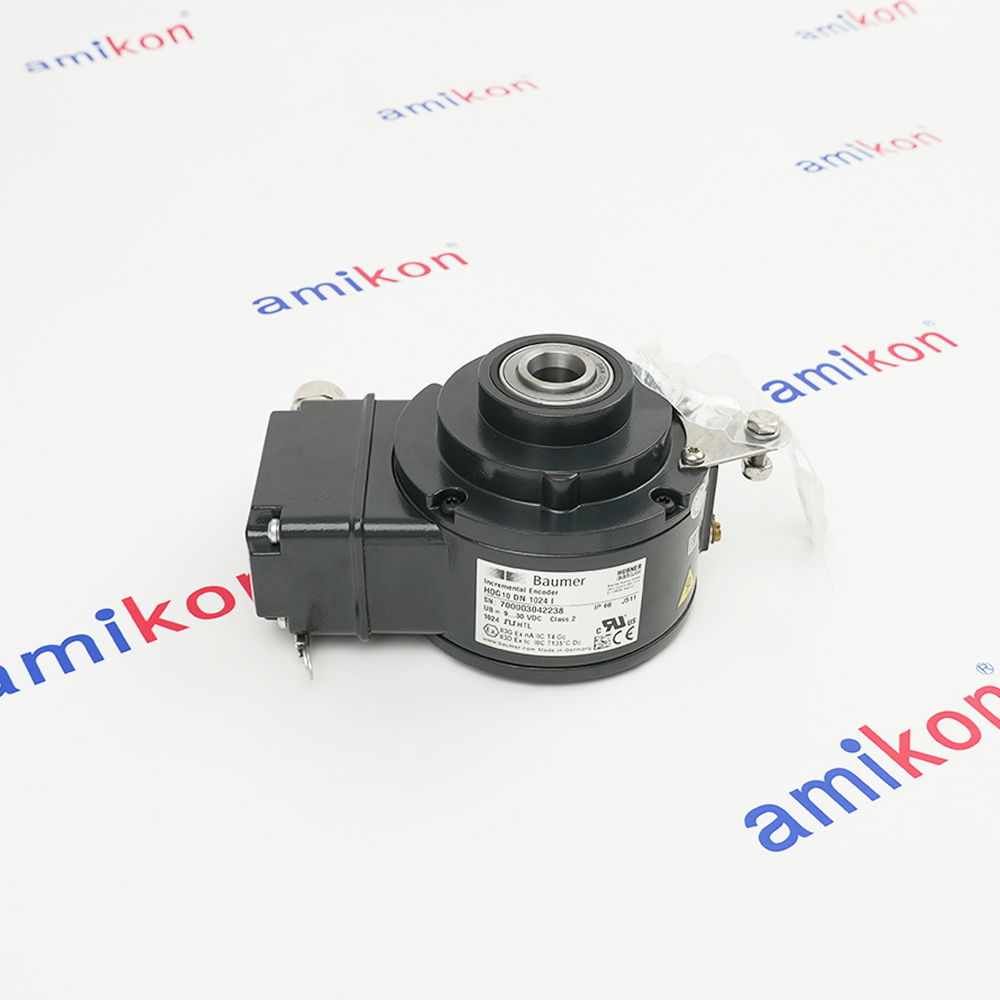

ENCODER

ENCODER
ROTARY PULSE
INCREMENTAL
IN 1024 (TTL)
WITH COUPLING SOCKET

INTEGRATED AXIS MODULE

INTEGRATED AXIS MODULE
KINETIX 6000
360 / 480 VAC
6 KW / 9 AMP CONVERTER
3.9 KW / 8.6 AMP INVERTER
WITH SAFE TORQUE-OFF FEATURE.

INTEGRATED AXIS MODULE

INTEGRATED AXIS MODULE
KINETIX 6000
360 / 480 VAC
28 KW / 42 AMP CONVERTER
13.5 KW / 30 AMP INVERTER
WITH SAFE TORQUE-OFF FEATURE
DIRECT REPLACEMENT FOR 2094-BC04-M03
REPLACED BY 2198-D057-ERS3

I/A Series Baseplate

BASEPLATE
I/A SERIES
MODULAR
8 SLOT
DIN RAIL MOUNT

COMMUNICATIONS PROCESSOR

COMMUNICATIONS PROCESSOR
SIMATIC NET
CP 243-2
FOR CONNECTION OF
SIMATIC S7-22X TO AS-INTERFACE
WITH MASTERPROFILE M0E/M1E

AC Frequency Inverter

SINAMICS V20
380-480 V 3 AC -15/+10%
47-63Hz rated power 18.5 kW
with 150% overload for 60 sec
small output overload: 22 kW with 110%
overload for 60 sec.
Integrated filter C3 I/O: 4 DI, 2 DO,2 AI, 1 AQ
fieldbus: USS/MODBUS RTU
with built-in BOP protection: IP20/ UL open

LOGO Power Supply

LOGO!POWER 24 V / 2.5 A
stabilized power supply
input: 100-240 V AC
output:24 V DC/ 2.5 A

CPU 414-3 Centralprocessing unit

SIMATIC S7-400
CPU 414-3 Centralprocessing unit
with: work memory 2.8 MB, (1.4 MB code, 1.4 MB data)
1stinterface MPI/DP 12 Mbit/s
2nd interface PROFIBUS DP
3rd interfaceplug-in IFM module

CPU551 64-bit processor module

SIMATIC TDC
CPU551 64-bit processor module
with digital inputs
