ALL MANUFACTURERS

3300 XL 8 mm Proximity Probes

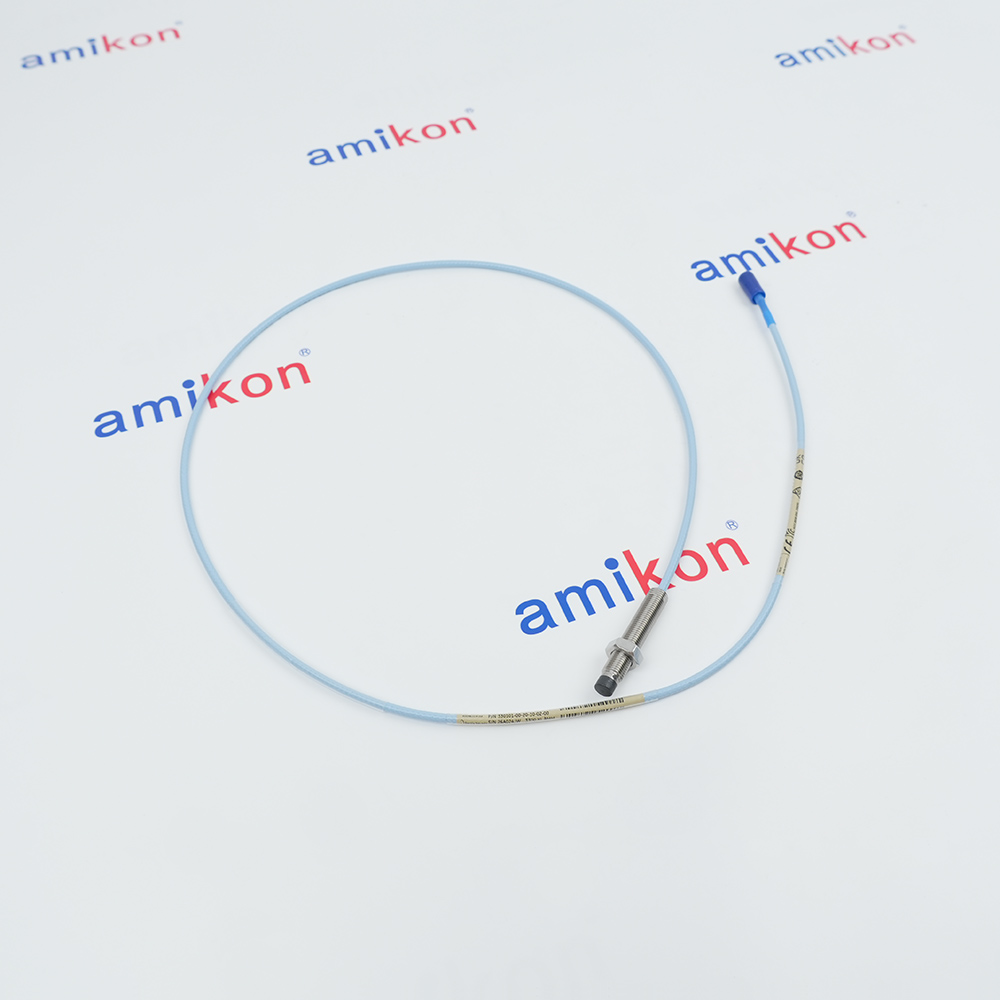

330101 3300 XL 8 mm Probe,
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 5.0 in.
20 2.0 meters (6.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable

3300 XL Proximitor Sensor

3300 XL Proximitor Sensor
11 1.0 meter (3.3 feet) system length
51 5.0 meters (16.4 feet) system length
91 9.0 meters (29.5 feet) system length
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330103  3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 120 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable

3300 XL 25 mm Extension Cable

3300 XL 25 mm Extension Cable
0 8 0 8.0 metres (26.2 feet)
2 4 High Temperature FluidLoccable

3300 XL 8 mm Proximity Probes

330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 80 mm
05 0.5 meter (1.6 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 NSv Proximity Probes

330910 3300 NSv Probe
M10X1 thread, witharmor
Minimum unthreaded length:60 mm
Maximum length: 250 mm
05 0.5 meter (20 in)
11Miniature coaxial ClickLoc connector
with connector protector, FluidLoccable
00 Not required

3300 NSv Proximity Probes

330910 3300 NSv Probe
M10X1 thread, witharmor
Minimum unthreaded length:30 mm
Maximum length: 200 mm
05 0.5 meter (20 in)
11Miniature coaxial ClickLoc connector
with connector protector, FluidLoccable
00 Not required

990 Vibration Transmitter

04 0-4 mils pp (0-100 μm pp)
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
01 35 mm DIN rail clips
01 CSA Division 2

990 Vibration Transmitter

10 0-10 mils pp (0-250 μm pp)
50 5.0 meters (16.4 feet)
70 7.0 meters (23.0 feet)
01 35 mm DIN rail clips

3300 NSv Proximity Probes

330905  3300 NSv Probe
M10X1 thread,without armor
Minimum unthreaded length:0 mm
Minimum length: 70 mm
10 1.0 meter (39 in)
12 Miniature coaxial ClickLoc connector
FluidLoc cable

3300 NSv Proximity Probes

330905  3300 NSv Probe
M10X1 thread,without armor
Minimum unthreaded length:50 mm
Minimum length: 100 mm
10 1.0 meter (39 in)
12 Miniature coaxial ClickLoc connector
FluidLoc cable

3300 NSv Proximity Probes

330905  3300 NSv Probe
M10X1 thread,without armor
Minimum unthreaded length:00 mm
Minimum length: 130 mm
10 1.0 meter (39 in)
12 Miniature coaxial ClickLoc connector
FluidLoc cable

3300 XL Proximitor Sensor

3300 XL Proximitor Sensor
11 1.0 meter (3.3 feet) system length
51 5.0 meters (16.4 feet) system length
91 9.0 meters (29.5 feet) system length
05 CSA, ATEX, IECEx  Approvals

3300 XL Proximitor Sensor

Sensitivity: 7.87 V/mm (200 mV/mil) ±5%
Output Signal: -2V to -18V DC
Frequency Response: 0 to 10 kHz (±1dB)
Linearity: ±1% of full scale
Power Supply: -18V to -24V DC
Probe Length: Varies by application

Interconnect Cable

Impedance: Probable 50 Ohms
Voltage Rating: ≤30 V DC
Operating Temperature: -40°C to +85°C
Shielding: Dual-layer (foil + braided shield) for robust EMI/RFI protection
Bend Radius: ≥10x cable diameter

Velomitor Piezo-velocity Sensor

02 M8 x 1
Sensitivity3.94mV/mm/s (100 mV/in/s)±5%.
Velocity Range 1270 mm/s (50 in/s) peak
AmplitudeLinearity±2% to 152 mm/s (6 in/s)peak
MountedResonantFrequencyGreater than 12 kHz.

3300 XL 8 mm Proximity Probes

330104  3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 50 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable

Vibration Monitor

Monitor with 4-20 maOutputs
02 Multiple Explosive Atmosphere Certifications
Frequency response:10 Hz to 3000 Hz ±5%

3300 XL 8 mm Proximity Probes

330104  3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 60 mm
90 9.0 meters (29.5 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
