Allen-Bradley

ANALOG I/O MODULE

COMPACT COMBINATION
ANALOG I/O MODULE
COMPACTLOGIX
2 HIGH SPEED SINGLE ENDED OUTPUTS
VOLTAGE: 0 TO 10VDC
CURRENT: 0 TO 20 MA

CompactLogix 4 Pt A/I C and V Iso Module

1769IF4I
I/O MODULE
COMPACTLOGIX
4 CHANNEL
VOLTAGE/CURRENT ANALOG INPUT
INDIVIDUALLY ISOLATED
14 BIT RESOLUTION
24 VDC
0-20 MA

CompactLogix High-Speed Counter Module

1769HSC
INPUT MODULE
COMPACTLOGIX
HIGH SPEED COUNTER
2 QUADRATURE (ABZ) DIFFERENTIAL INPUTS AT 1 MHZ
2-30 VDC
16 TOTAL OUTPUTS (4 PHYSICAL AND 12 VIRTUAL)
1 A PER POINT @5-30 VDC
Tariff Code: 8538909100
Country of Origin: Singapore

CompactLogix Power supply

Product family:CompactLogix PAC
Module Description:Power Supply
Input Voltage range:16.8-31.2VDC
Extended Hold-up Interval:8-12 ms @ 1.25 W
Output to Front Panel:18…27.60VDC
Mounting:DIN Rail / Panel mounting
Operating Temperature:0 to 60 C (32 to 140 F)
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration: 5g @ 10 to 500 Hz

MicroLogix 1200 Analog output module

ANALOG OUTPUT MODULE
MICROLOGIX 1200
4 CHANNEL
SINGLE-ENDED
24 VDC INPUT
0-10 VDC / (0)4-20 MA OUTPUT

MicroLogix 32 Point D/O Module

MicroLogix 16 Point D/O Module

MicroLogix 8 Point Digital Output Module

MicroLogix 1200 24 Point Controller

MicroLogix 4 Point Input Module

MicroLogix 32 Point Digital Input Module

MicroLogix 16 Point Digital Input Module

Product Family:MicroLogix
Compatible Controllers:MicroLogix 1100
Outputs:10 to 30 Volts DC
Inputs:(16) Sinking and Sourcing Inputs
Product Type:Discrete Input Module
Commons:2
Series:A and B
Input Power:24 Volts DC
Operating Voltage Range:10…30V DC; 10…26.4V DC
Signal Delay:8.0 ms
Off-State voltage, max:5V DC
Off-State current, max:1.5 mA
On-State voltage, min:10V DC

MicroLogix 14 Point Digital Comb Module

1762IQ8OW6
I/O MODULE
8 POINT DC IN
6 POINT RELAY OUT
24 VDC

MicroLogix 8 Point Digital Input Module

MicroLogix 4 Point Analog Input Module

Series:MicroLogix 1200
Product Type:Analog Input Module
Analog Normal Operating Voltage:-10.5 to 10 Volts DC
Product Family:MicroLogix
Inputs:4 Differential (Bipolar)
Voltage signal normal ranges: -10.5 … +10.5V dc
Current signal normal ranges: 4 … 20 mA
Current signal full range: -21 … +21 m
No. of Inputs:Four (4) Differential (Bipolar)
Resolution:15 bit
Repeatability:±0.12%

MicroLogix 4 Point Analog Comb Module

ControlLogix 10 m RM Fiber Optic Cable

ControlLogix Redundant P S Adaptor

ControlLogix 24V DC Power Supply

1756PB72
POWER SUPPLY
CONTROLLOGIX
STANDARD
18 - 32 VOLT DC INPUT
DC OUTPUT
2.8 AMP
75 WATT
CHASSIS MOUNT
AKA: 96426473

ControlLogix 4 MB Memory Controller

PROCESSOR MODULE
CONTROLLOGIX
LOGIX5562
32 TASKS
100 PROGRAMS PER TASK
RS-232
MAX 250 CONTROLLER CONNECTIONS
4 MB USER MEMORY
478 KB I/O MEMORY

Logix L7SP SIL 3 PLe Safety Partner

Power Dissipation:2.5 W
Series:GuardLogix
Part Number/Catalog No.:1756-L7SP
Module Width:Two (2) Slot
Backplane Current, 5.1VDC:5 mA
Backplane Current, 24VDC:800 mA
Thermal Dissipation:8.5 BTU/hr
Current Draw (1.2 Volts DC):5 milliamps
Current Draw (5.1 Volts):801 milliamps
Thermal Dissipation:8.5 BTU per hour

ControlLogix 8 Point RTD/Thermocouple In

Inputs:8 Isolated Channels
Isolation Voltage:250 Volts Continuous
Module Scan Time:1 ms
Backplane Current at 24 Volts:2 milliamps
Data Format:IEEE 32-bit floating point
Backplane Current (5Volts):250 mA
Backplane Current (24 Volts):150 mA
Power Dissipation (Max):4.6 W

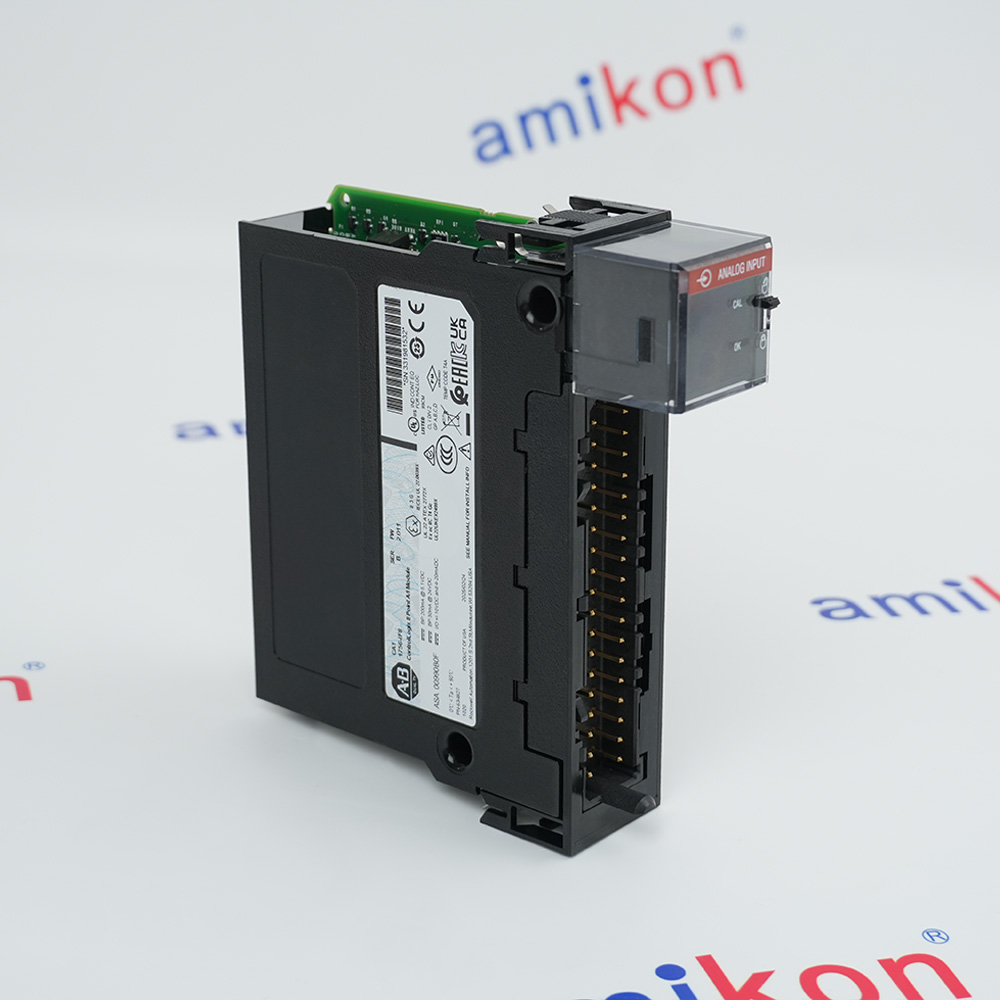

ControlLogix 8 Point A/I Module

1756IF8
I/O MODULE
CONTROLLOGIX
ANALOG INPUT
8 CHANNEL
24 VDC
Country of Origin: United States

ControlLogix Discrete input module

Power Dissipation (Max):6.1 W @ 60 °C (140 °F)
Operating Voltage Range:74-132 VAC
Input Voltage:120 VAC Volts AC
Module Type:Digital DC Input Module
Series:ControlLogix
No. of Inputs:Thirty-Two (32) Inputs
Module Keying:Electronic
Inputs:32
Input Delay Time:Programmable 9 or 18 milliseconds
Minimum Operating Current:5 milliamperes at 74 Volts AC
Maximum Operating Current:10 milliamperes at 132 Volts AC

ControlLogix Input Module

Series:ControlLogix
Inputs:16 Individually Isolated
Module Type:Digital AC Input Module
No. of Inputs:Sixteen (16) Individually Isolated
Input Voltage:120 Volts AC
Operating Voltage Range:79-132 Volts AC
Module Keying:Electronic
