- 3300 XL NSV Proximity Transducer
- 330173-00-02-20-02-05
Warranty Policy
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
Return Notice
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
How to order?
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Parts Availability
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.

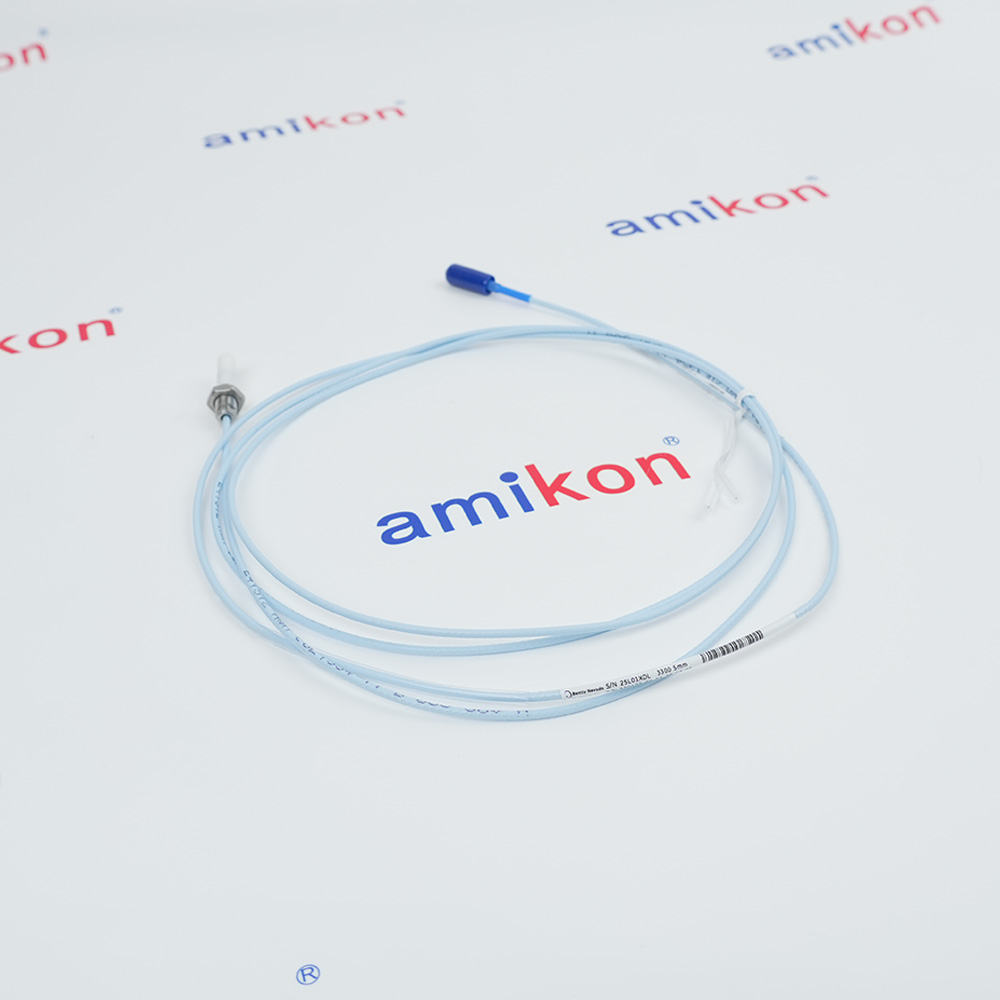

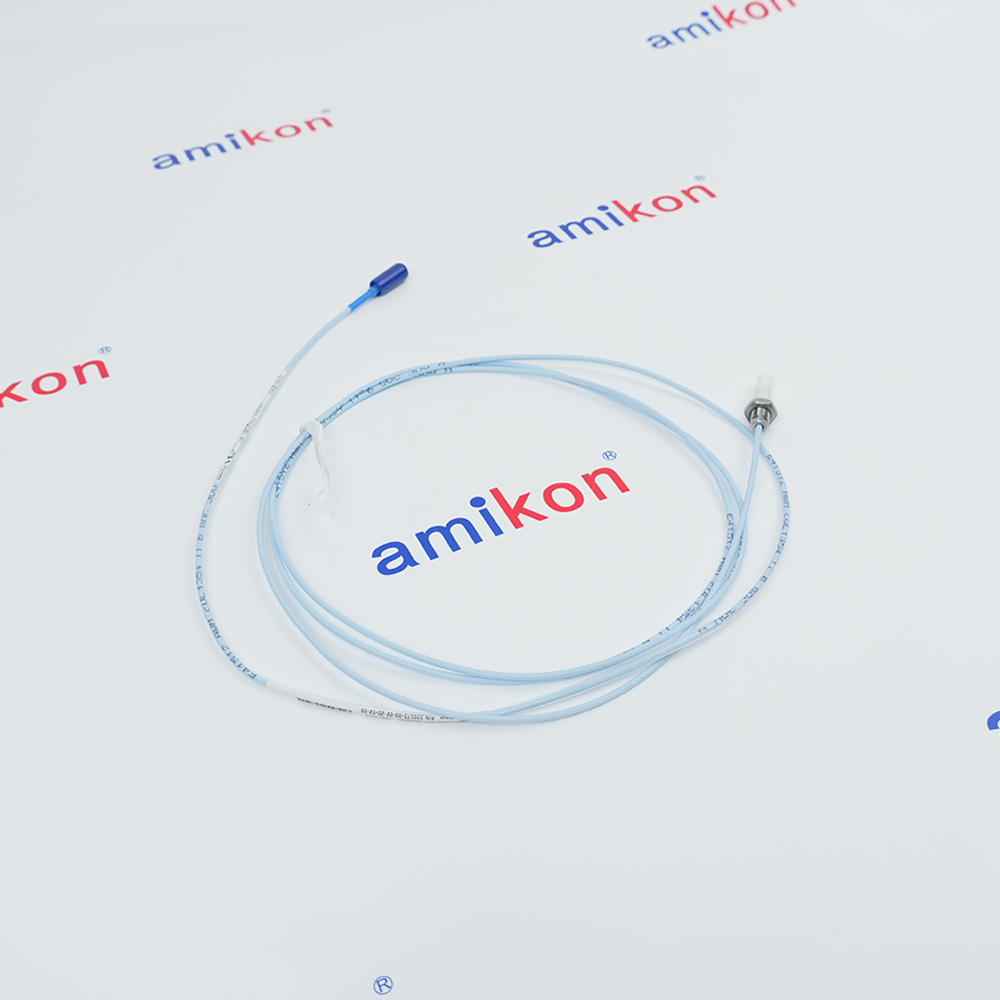

Technical specifications for 330173-00-02-20-02-05
-
Product Model330173-00-02-20-02-05
-
Product Parameters3300 5mm Proximity Probes
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size1.2x1x68cm
-
ManufacturerBently Nevada
-
Weight0.02 kg
-
Unthreaded Length Option0.0mm
-
Overall Case Length Option20mm
-
Total Length Option2.0 metres (6.6 feet)
-
Connector OptionMiniature coaxial ClickLocconnector standard cable
-
Agency Approval OptionMultiple Approvals
Description
330173 3300 5mm Probe
M8 x 1 thread,without armor
Minimum unthreaded length: 0 0 = 0.0mm
Minimum unthreaded length: 0 2 = 20mm
2 0 2.0 metres (6.6 feet)
0 2 Miniature coaxial ClickLocconnector
standard cable
0 5 Multiple Approvals
M8 x 1 thread,without armor
Minimum unthreaded length: 0 0 = 0.0mm
Minimum unthreaded length: 0 2 = 20mm
2 0 2.0 metres (6.6 feet)
0 2 Miniature coaxial ClickLocconnector
standard cable
0 5 Multiple Approvals
Information
Overview
Manuals
Technical notes
Product Applications
Setting the Operational Gap
Features:
- High-Precision Measurement
- Dual Measurement Capability
- M8 x 1 Thread, No Sheath
- Enhanced Probe Durability
- Full Component Interchangeability
The 3300 5mm system is orderable with Fluidloc cable options forpreventing oil and other liquids from leaking out of themachine through the cable’s interior.
When combined with a 3300 XL Proximitor Sensor and XLextension cable, the system provides an output voltage thatis directly proportional to the distance between the probe tipand the observed conductive surface. The system canmeasure both static (position) and dynamic (vibration) data.Its primary use is in vibration and position measurementapplications on fluid-film bearing machines, as well asKeyphasor measurement and speed measurementapplications
The 330173-00-02-20-02-05 Bently Nevada 3300 5 mm proximity probe may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330173-00-02-20-02-05 3300 5 mm proximity probe Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A 5 mm probe uses smaller physicalpackaging and provides the samelinear range as a 3300 XL 8 mm probe(ref 141194-01). The 5 mm probe doesnot, however, reduce the sideviewclearances or tip-to-tip spacingrequirements as compared to an XL 8mm probe. Use the 5 mm probe whenphysical (not electrical) constraintspreclude the use of an 8 mm probe,such as mounting between thrustbearing pads or other constrainedspaces. When your application requiresnarrow sideview probes, use the 3300 XLNSv probe and extension cable with the3300 XL NSv Proximitor Sensor (refer toSpecifications and Ordering Informationp/n 147385-01).
- Centrifugal Air Compressors:Radial vibration & axial position in tight housings
- Refrigeration & Process Gas Compressors:Petrochemical/LNG with small shafts or restricted mounting
- Gas & Steam Turbines:Power generation & industrial mechanical drive applications
- Industrial Pumps:Shaft position monitoring for high-speed oil/gas/water pumps
- Reciprocating Machinery:Monitors crankcase components & internal moving parts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mechanical Setpoint: Set the physical gap between the probe tip and the shaft to 1.27 mm (50 mils).
Voltage Verification: Use a multimeter to check the DC voltage at the Proximitor sensor's output.
Goal: Approximately -9.0 Vdc represents the midpoint (50 mils) of the linear range.
Linear Range: The system operates linearly from 0.25 mm to 2.3 mm (10 to 90 mils), corresponding to roughly -1 to -17 Vdc.
FAQs
-
What is this 330173-00-02-20-02-05?+The Bently Nevada 330173-00-02-20-02-05 is a 3300 5mm Proximity Probe designed for measuring static and dynamic vibration on rotating machinery.
-
What is the working principle of the 330173-00-02-20-02-05?+It operates on the eddy current principle. A radio frequency (RF) signal is sent to a coil in the probe tip, creating an electromagnetic field. When a conductive surface (like a machine shaft) moves into this field, it creates eddy currents that change the signal's amplitude, allowing for precise measurement of vibration and position.
-
Can it be used in harsh environments?+Yes. The probe tip is made of high-strength Polyphenylene sulfide (PPS), and the case is AISI 304 stainless steel for corrosion resistance. It is designed for 100% condensing humidity but is not intended for full submersion.
-
Is 330173-00-02-20-02-05 compatible with other systems?+It is part of the 3300 5mm system and must be used with a 3300 XL Proximitor Sensor and a matching 3300 XL extension cable for accurate displacement data.
-
What are the power requirements?+It typically operates with a supply voltage of -17.5 Vdc to -26 Vdc, with a recommended supply of -24 Vdc.
