Honeywell DCS

ANALOG OUTPUT MODULE

8CPAON01
OUTPUT ANALOG MODULE
24 VDC
480 MA
TA = 60 C MAX

Digital Input Module

Galvanic isolation
Open wire detection
Optional redundancy
Direct / Reverse Input Indication
Supplies Non-incendive field power
Internal or external field power selection
Extensive internal diagnostics for data integrity

Digital Input Module

Normal (20ms PV scan)
Low Latency (5ms PV scan)
Extensive internal diagnostics for data integrity
Open Wire Detection (in Normal mode only)
Optional redundancy
Internal or external field power selection
On board excitation power (no need formarshalling power)
Supplies Non-incendive field power
Direct / Reverse Input Indication

High Level Analog Input Module

INPUT MODULE
ANALOG
10 VDC
4-20 MA
16-INPUT
16 CHANNELS
MODULE PUBLISH RATE 250 M

OUTPUT MODULE

OUTPUT MODULE
DC
32 POINT
10-31.2 VDC
0.5 AMP
INRUSH 1 AMP

I/O Link Interface card

I/O Link Interface Card
51309276-150
High Performance Process Manager (HPMM)
Serves as an interface for I/O modules
facilitating communication between process control
devices and the HPMM system

REDUNDANCY MODULE

51309288375
REDUNDANCY MODULE
PWA
0.75-1 AMP / 7-90 MA
3.3-24 VDC

Digital Output Module

Extensive internal diagnostics to ensure data integrity
Optional redundancy
Electronic Overcurrent protection
Configurable Safe-state (FAILOPT)
Latched, pulsed or pulse-width
modulated output(per channel)

I/O MODULE

51304584100
I/O MODULE
EPDGP BOARD
TDC 3000
FOR THE EPDG AND EPDG2 PERIPHERAL INTERFACE

LOCAL CONTROL NETWORK I/O CARD

LOCAL CONTROL NETWORK I/O CARD
CLCN-A/B
LCN NODE ADDRESS SETTING
LNC A / LCN B CABLE CONNECTIONS
SLIDE SWITCH ADDRESSING
CE CERT

LCN I/O board

51305072700
LCN I/O board
TDC 3000
PC CARD MODULE I/O

Analog Input Module

Extensive self-diagnostics
Optional redundancy
Open Wire Detection
Supplies non-incendive field power
field power
Fast loop scan
Open-wire Bad PV Detection

High Level Analog Input Module

Extensive self-diagnostics
Optional redundancy
Supplies non-incendive field power
Non-Incendive Power
Fast loop scan

Control Processor Module

TCPRR021
REDUNDANCY MODULE
90 MA
24 VDC
TO SUPPORT C200 REDUNDANCY
2 CHASSIS SLOTS USED
(51309288-275)

PROCESS MANAGER COMM CONTROLLER

51403988150
PROCESS MANAGER COMM CONTROLLER
HIGH PERFORMANCE

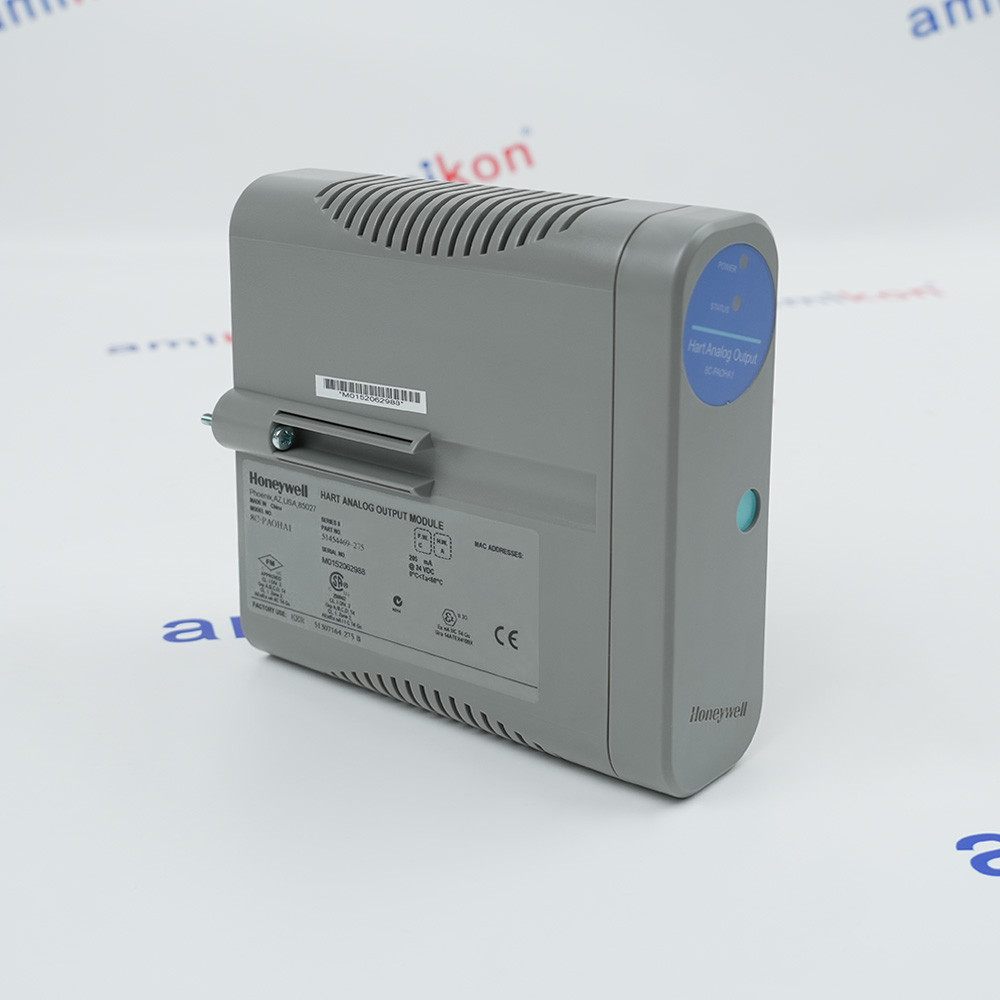

Analog Output Module

Output Type: 4-20mA (current loop)
Channels: 8 isolated outputs
Resolution: 16-bit
Voltage: 24V DC ±10%
Current Consumption: 120mA max
4-20mA: Load resistance ≤750Ω
Accuracy: ±0.1% of full scale

I/O Link Cable

51304465500
I/O Link Cable
Drive DC Power Cable

Ethernet Module

BRIDGE MODULE
FTE
007-.020 AMP
1.2-24 VDC
(51309512-175)

UCN PM Power Supply

Isolated Output: 4–20 mA (HART-enabled)
Load Capacity: ≤600 Ω
Accuracy: ±0.05% of span (typical)
Input Impedance: ≤250 Ω
Channel-to-Channel: 300V AC
Humidity: 5–95% non-condensing

Battery Extension Module

BATTERY EXTENSION MODULE
5.1-24 VDC
36-112 MA
30 VDC 100 MA OUTPUT
FOR USE WITH PKS C200 SYSTEM
(51309241-175)

Power Supply Module

POWER SUPPLY MODULE
30 AMP
24 VDC
100 WATT

Digital Output Module

Extensive internal diagnostics to ensure dataintegrity
Optional redundancy
Electronic Overcurrent protection
Configurable Safe-state (FAILOPT)
Latched, pulsed or pulse-width modulated output

Digital Output 24V Module

CCPDOB01
DISCONTINUED BY MANUFACTURER
OUTPUT MODULE
DIGITAL
80 MA
24 VDC

Analog Input Module

Input Type Current (2-wire or self-powered transmitters)
Input Channels 16 Channels (16 Single Ended)
Common Mode Rejection Ratio, dc to 60 Hz 70 dB
A/D Converter Resolution 16 bits
Input Range 4-20 mA (through 200 Ω)
Normal Mode Rejection Ratio, at 60 Hz 20 dB
Normal Mode Filter Response Single-pole RC, -3 dB @ 6.0 Hz
Maximum Normal Mode Input ± 30 Volts

HPM power supply module

POWER SUPPLY
HPM
AC INPUT
AC/DC OUTPUT
100 TO 240 VAC
48 VDC BATTERIES
6 VAC LINE FREQUENCY
