Product Information
Product Describe
OUTPUT MODULE
8 POINT
DIGITAL
24 VDC
AADVANCE SAFETY
8 POINT
DIGITAL
24 VDC
AADVANCE SAFETY

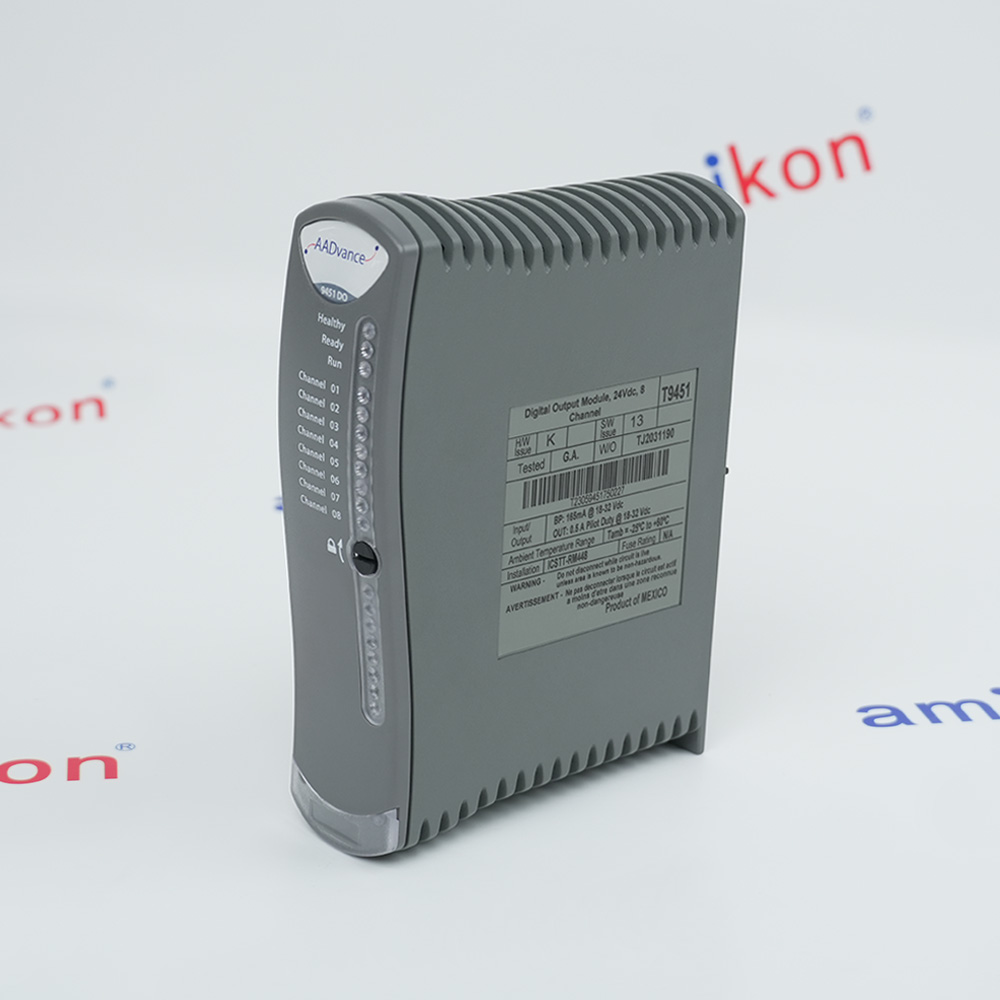

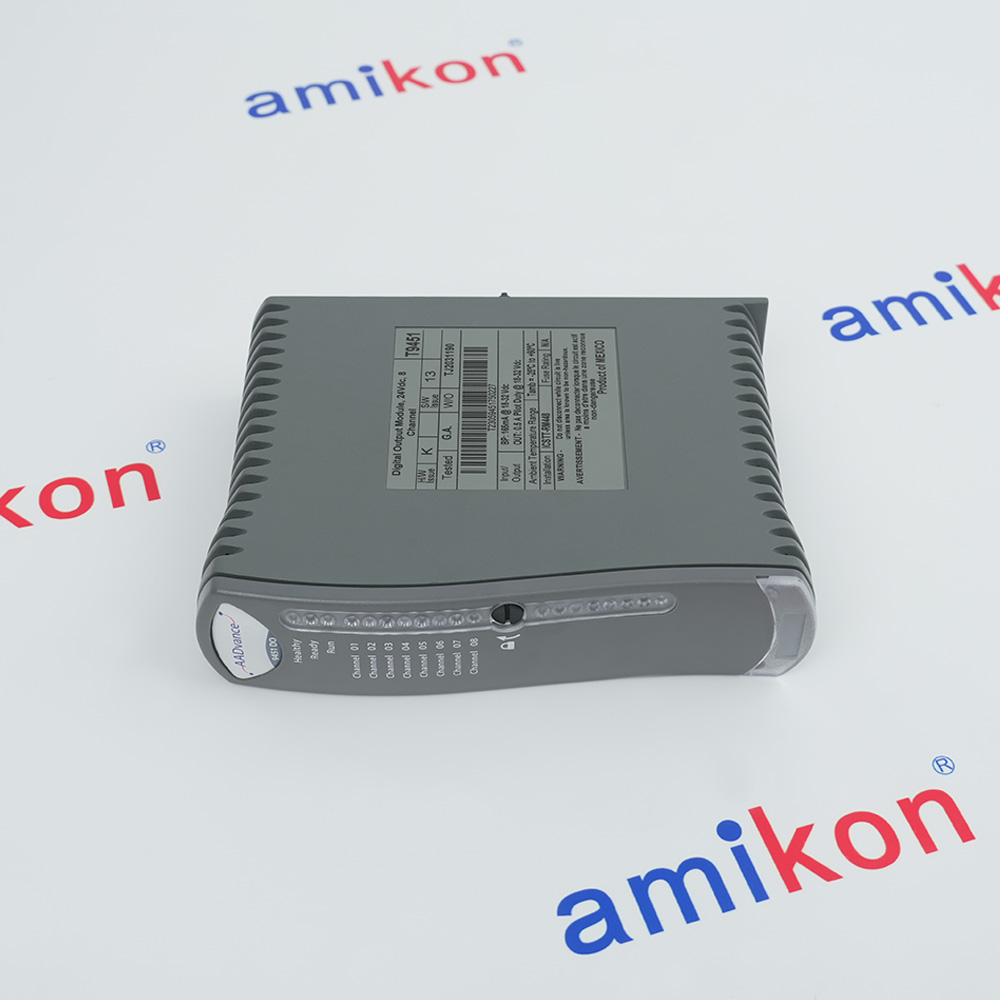

Technical specifications for T9451
-
Product ModelT9451
-
Product ParametersOUTPUT MODULE
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x12.3x16.2cm
-
ManufacturerICS Triplex
-
Weight0.36 kg
-
Safety integrity levelIEC 61508 SIL 3
-
Safety level degradation1oo1D, 1oo2D
-
Self-test interval<30 minutes
-
Voltage Redundant+24 Vdc nominal;18 Vdc to 32 Vdc
-
Module supply power dissipation3.0 W (10.2 BTU/hr.)
-
Maximum voltage without damage–1 V to +60 Vdc
-
Operating field supply voltage18 Vdc to 32 Vdc
-
Maximum Field Voltage Slew Rate150 V/s
-
Output current1 A continuous for each channel
-
Maximum voltage drop1 Vdc
-
Maximum De-energised Output Voltage Slew Rate12 V/ms
-
Maximum Energised Output Current Slew Rate0.9 A/ms
-
Output off resistance (effective leakage)50 KΩ
-
Voltage monitoring accuracy± 0.5 V
-
Current monitoring accuracy± 10 mA
-
Surge2 A for up to 50 ms
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the ICS Triplex T9451?+The T9451 is an 8-channel, 24VDC Digital Output Simplex Module, designed for use within the AADvance safety system. It is used for industrial control, particularly for medium-to-high risk safety-instrumented systems (SIS).
-
What is the main function of the T9451?+Its primary function is to receive signals from the controller and provide digital output signals to field devices. It supports both safe and non-safe applications.
-
Is it SIL certified?+Yes, the T9451 is certified to SIL 3 per IEC 61508/61511.
-
How many output channels does the T9451 have?+The module features 8 isolated digital output channels.
Get a quick price fo T9451
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Wiring Guidelines
Features:
- Triple Modular Redundant (TMR) Architecture
- High-Current Output Capability
- Comprehensive Line Monitoring
- Sequence of Events (SOE) Recording
The output module isolates the processor module from the output channelcontrol and data management circuits, thus protecting the processor modulefrom possible faults in the output control circuits and field connections. Anoutput channel protection activates when the channel load exceeds a safe limit.And, a reverse voltage protection circuit in each output channel verifies thatexternally applied voltages do not supply current flow into the module outputs.
The T9451 ICS TRIPLEX Digital output module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
ICS TRIPLEX T9451 Digital output module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module has self-checking functionality. Short circuit and open circuit linemonitoring is supplied on all outputs . Internal diagnostics do ongoingfunctionality checks ensuring that the output channel command data iscorrectly transferred to the output. The processor module initiates a testsequence on each output channel, checking for 'stuck-on' and 'stuck-off'conditions on the output switch pairs. Front panel LEDs give module, channeland field connection status indications. These status indications can also beconnected to application variables and viewed at the Workbench.When a controller uses a pair of digital output modules in a dualconfiguration, the two fail-safe output switches on each channel are combinedin a parallel arrangement so that they automatically form a fault-tolerantoutput configuration.
- Turbomachinery & Compressors:Turbine speed & safety shutdown for industrial turbines/compressors
- Burner & Boiler Systems:Safety logic solver for BMS: fuel valves & ignition sequences
- Emergency Shutdown (ESD) Systems:Emergency isolation valves closing during hazardous events
- Fire & Gas (F&G) Systems:Operates sirens, beacons & suppression release.
- Nuclear Power Safety Equipment:TMR & high reliability for nuclear safety control
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Down: Always remove field-side power before connecting or disconnecting wiring to avoid electrical arcs, especially in hazardous environments.
Wire Stripping: Strip the insulation from field wires (typically 18-22 AWG) before inserting them into the terminal block.
Grounding: Ensure the shield wire is connected to a dedicated earth ground point at one end only to prevent ground loops.
