Invensys

I/A Series Baseplate

BASEPLATE
I/A SERIES
MODULAR
8 SLOT
DIN RAIL MOUNT

Digital Output Baseplate

I/O Baseplate
I/O Interconnect Assembly
Slot Cover
Terminal Cover
Muber of Chanels: 24
Output Current: 2A
Output Voltage: 24VE
CA per channel
Power Consumption:20w

Digital Input Module

Points:4, commoned-return, DC-coupled
Output current range:
4–20 mA output, controlled
0–22 mA over-range
0 mA output capability (step function <2 mA)
Type:TMR
Resolution:12 bits
Diagnostic:Forced-switch diagnostic (FSD)
Over-range protection:36 V DC, continuous

Digital Input Module

Points:32, commoned
Nominal input voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum input voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Input delay:<10 ms, On to Off or Off to On
ADC scan time:<1 ms for all 32 points

Digital Output Module

Points:16, commoned
Nominal output voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum output voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Leakage to load (Off-state):<1 mA
On-state voltage drop:<1 V DC @ 1.5 A
Loop-back scan time:<1 ms for all 16 points

ANALOG INPUT MODULE

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points

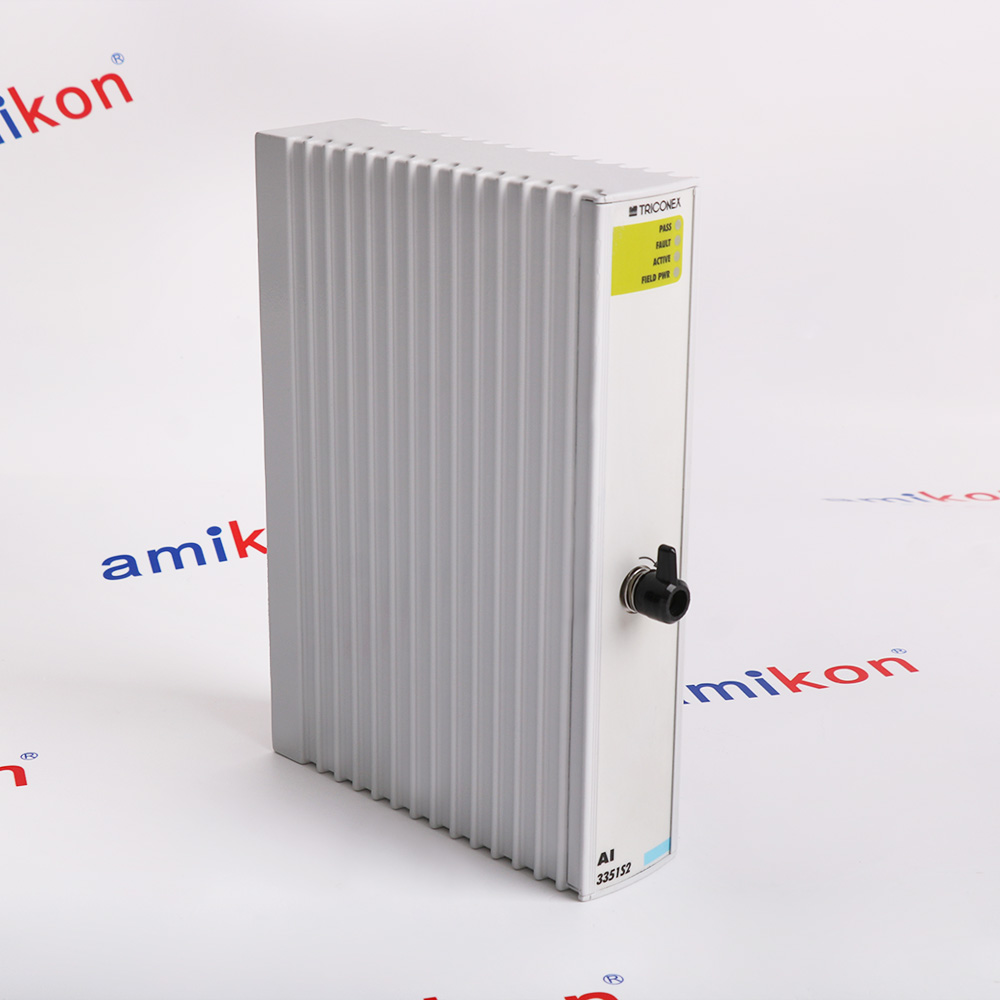

Analog Input Module

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum reverse field voltage:– 0.6 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)

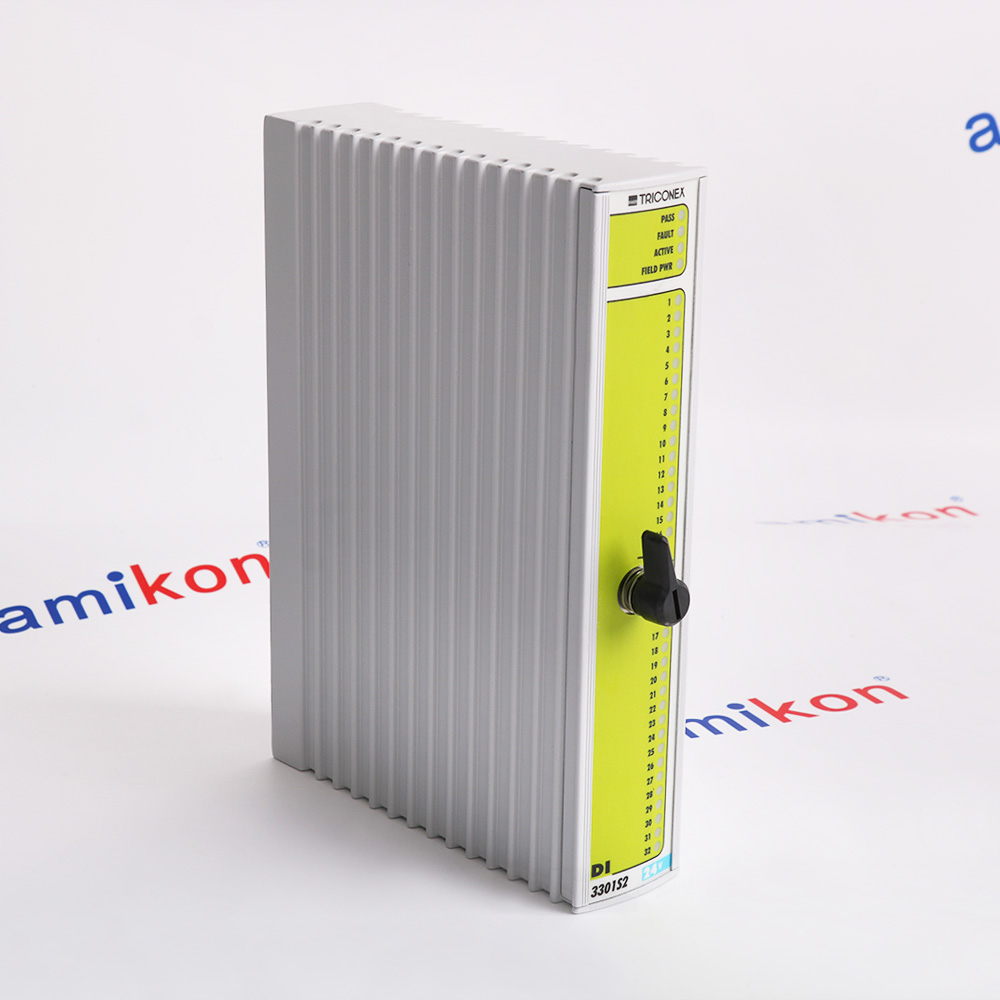

Digital Input Module

Points:32, commoned
Nominal input voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum input voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Input delay:<10 ms, On to Off or Off to On
ADC scan time:<1 ms for all 32 points

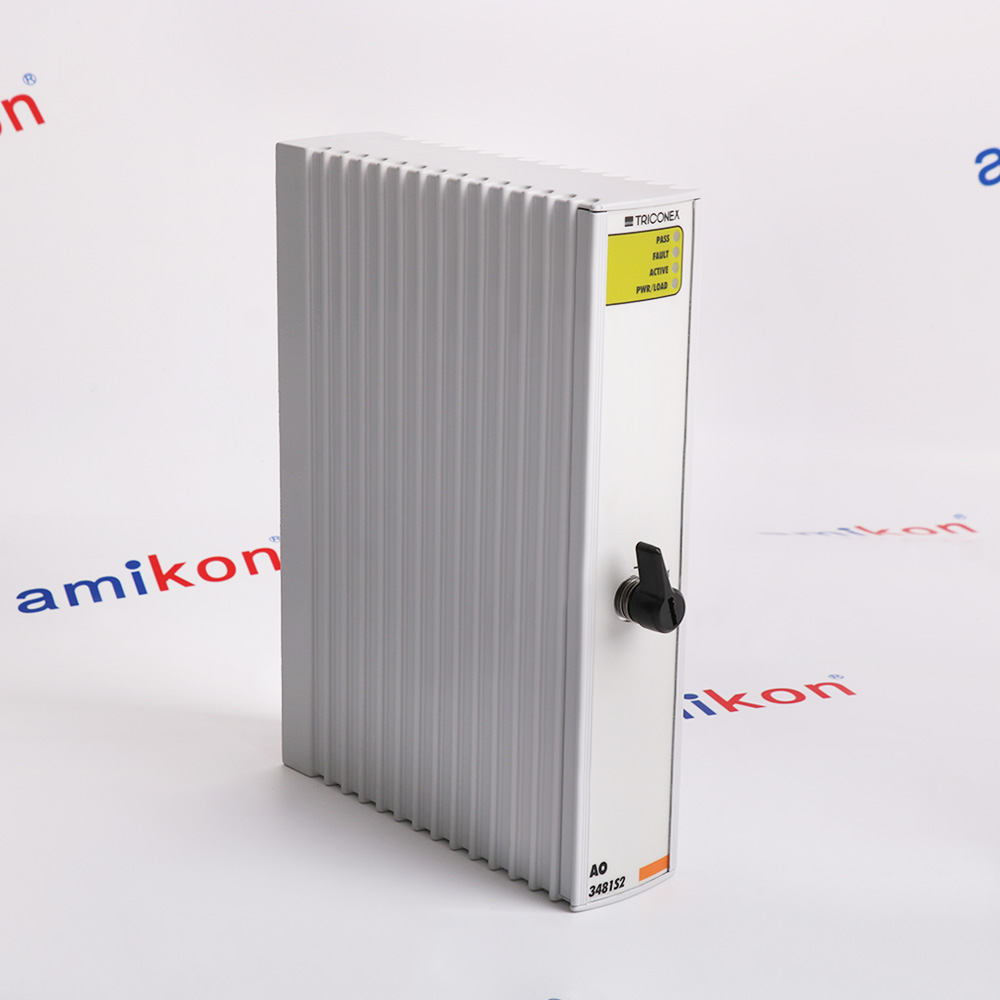

Analog Output Module

Type:TMR
Resolution:12 bits
Diagnostic:Forced-switch diagnostic (FSD)
Points:4, commoned-return
Output current range:4–20 mA output, controlled
External loop power:32 V DC, maximum24 V DC, nominal

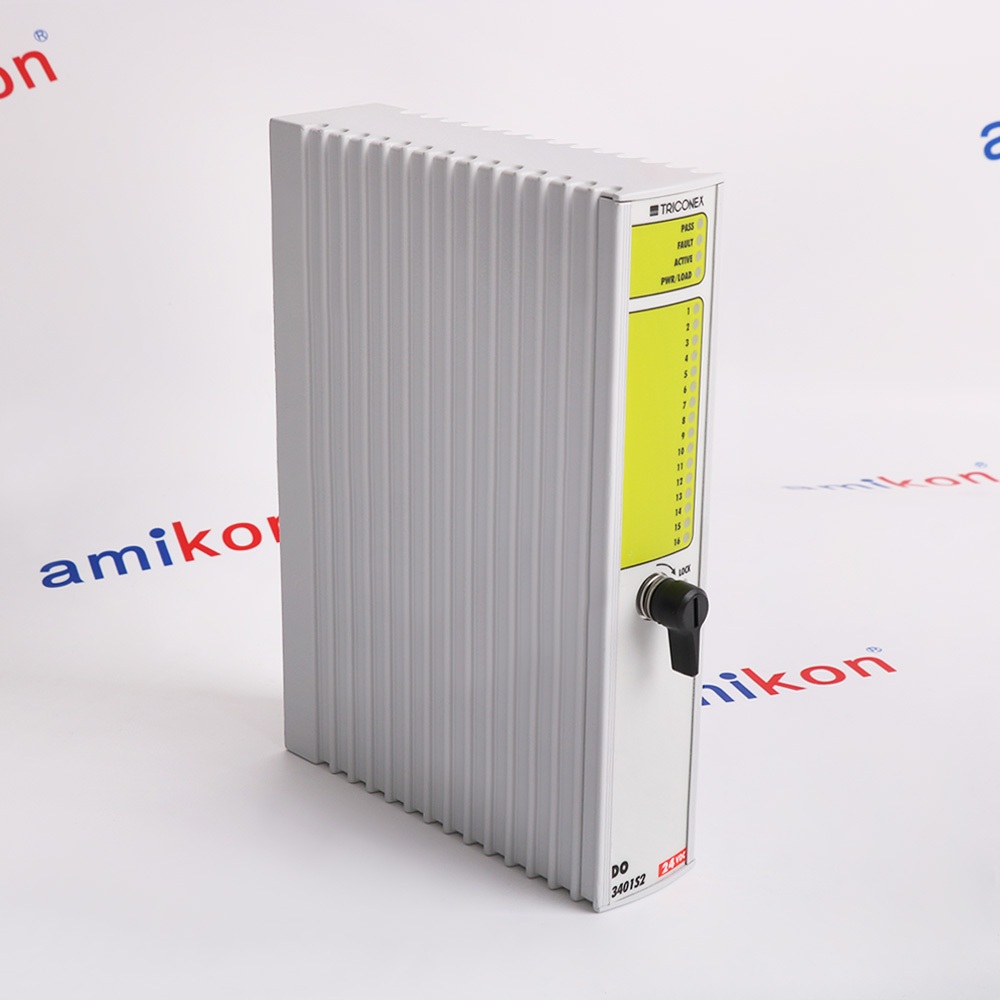

Digital Output Module

Points:16, commoned
Nominal output voltage:24 VDC
Specified operational voltage range:15 to 30 VDC
Absolute maximum output voltage:33 VDC
Absolute maximum reverse input voltage:– 0.6 VDC
Leakage to load (Off state):<1 mA
Diagnostic glitch duration <2 ms, maximum:500 Ps, typical
On state voltage drop:<1.0 VDC @ 1.5 A

BASEPLATE

BASEPLATE
ANALOG I/0 MODULE
W/HEAT SINK
Supports 8/16-channel analog I/O modules

USB annunciator/numeric keyboard

Power Requirements 5 VDC, ± 5% a
USB Annunciator Keyboard: 300 mA (max)
Output Impedance: 1200 Ohms Nominal
Nominal Level: 0.437 to 0.133
Peak to Peak Amplitude, Vpp: 0.872
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -40 to +70°C (-40 to 158°F)
Humidity range, storageand operating:
20% to 80%, non-condensing

DNBT Dual Nodebus Module

Series: Foxboro I/A Series
Power Supply: Typically 24V DC
Operating Temperature:  0°C and 60°C
Storage Temperature:  -20°C and 70°C
Humidity: 5% and 95%  (non-condensing)

NODE BUS INTERFACE MODULE

Highly Intuitive Design Environment
Graphical Configuration
Live Updating Loop Drawings
One-Spot Engineering Environment
Common Database Integrating System,
Control, Display and Field Device
Configuration in One Tool

POWER CABLE

24 VDC
POWER CABLE
28" - LAMBDA
P/N - P0916GX

TERMINAL CABLE

TERMINAL CABLE
CABLE ASSEMBLY
FBM2XX
TYPE 4
3M LENGTH

Term Cable

FBM 2xx
TYPE 1
TERM CABLE
3 METERS
P/N - P0916DC

Communication Module

Input Voltage: Usually 24 VDC.
Operating Temperature: -20°C to 60°C.
Storage Temperature: -40°C to 85°C.
Humidity: 10% to 95% RH, non-condensing.
Ingress Protection (IP): Typically IP20

Termination assembly

32 channel
voltage monitor132 V AC or 150 V DC
maximumLogic Zero - 0 to 20 V AC; 0to 20 V DC
Logic One - 80 to 132 V AC;75 to 150 V DC
Input Current for Logic One;2.6 mA
maximumChannel isolation provided by
termination assembly

TERMINATION ASSEMBLY

VOLTAGE MONITOR TERMINATION ASSEMBLY
SCREW TERMINAL
EXTERNAL SWITCH
CABLE TYPE 4
FBM 241 125V
VMON, +5A
RELAY OUT
P/N - P0916AS

Control Module

Nominal Voltage 24 VDC
Type Control Module
Output Signals  32, commoned
Voltage Range 16-32 VDC
Maximum Voltage 36 VDC
Voltage Drop < 2.8 VDC @ 1.7A, typical
Power Module Load < 13 watts

Bus Connector

I/A Series
Bus Connector
Distributed Control Systems

4 Channel I/O Module

Channel Isolated 4 input
4 channel isolated output
Field bus base
0-20mA
Control system (DCS)

Dido Panel Module

Dido Panel
7400143-530
Rev A/ A1
Model: 9853-6xx
Volt: 4-20 Ma
8-320 Ma
3000400-530
Rev A
Typ/type: Umk-se 11,25-1
Weight : 150 Gm

CONTACT/DC INPUT MODULE

CM400YH
CONTACT/DC INPUT MODULE
FBM07
CONTACT DC INPUT
