Invensys

Fiber Optic Fieldbus Extender

I/A Series
FCM2F 10KM
24 V dc +5%, -10%
Fiber Optic Fieldbus Extender

Communication Module

Communication Protocol:Modbus TCP/IP, DeviceNet
Data Rate:Up to 1 Mbps
Power Consumption:L ess than 4W
Operating Temperature:-40C to +70°C
Mounting Type:Panel Mount

COMMUNICATION MODULE

Input Voltage: 24 V DC
Range: 18–32 V DC
Power Consumption: Typically ≤ 10 W
Isolation Voltage: 1500 V AC
Serial Ports: RS-232/RS-485 (configurable).
Ethernet: 10/100 Mbps RJ45 (TCP/IP)
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -50°C to +85°C (-58°F to +185°F)

Digital input module

Input Type:24V DC
Number of Channels:16 channels per module
Input Voltage Range:ON State: 15–35V DC
OFF State: 0–5V DC
Input Current: Typical: 3–7 mA
Update Rate: ≤ 10 ms
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)

4 Channel Relay Output Module

Channel-to-Channel: 1500 VAC
Field-to-System: Reinforced isolation :2500 VAC
Per Channel: 1–2 W
Total: ≤ 8 W
Operating Temperature: -40°C to +70°C (industrial-grade)
Storage Temperature: -50°C to +85°C
Humidity: 0–95% (non-condensing)

Pulse Input Module

8 pulse input channels
Voltage Range: 5–30 V DC
Standard: 0–10 kHz
Frequency Measurement: ±0.01% of reading
Channel-to-Channel Isolation: ≥ 1500 V AC/DC
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Storage Temperature:
-40°C to +85°C (-40°F to +185°F)
Humidity:
0–95% non-condensing

Pulse Input Baseplate

Frequency/Rate: Up to 10 kHz
Voltage Range: 5–30 V DC
Counting Resolution: 24-bit
Frequency Accuracy: ±0.01%
Channel-to-channel isolation: ≥ 1500 V AC/DC
Field-side Power: 24 V DC
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Storage Temperature:
-40°C to +85°C (-40°F to +185°F)

Communication module

Serial ports : 4
Network ports : 2
Port isolation : 500 VDC
Copper Ethernet ports : 10/100 Mbps
(Model 4353 supports only 100 Mbps)
Fiber Ethernet ports : 100 Mbps
Serial ports : up to 115.2 Kbps per port

I/O ALARM MODULE

I/O ALARM MODULE
TRISEN TURBOSENTRY
16 DIGITAL OUTPUTS
OPERATING VOLTAGE: 24V DC
OPERATING TEMPERATURE RANGE: -40C TO 70C
DIMENSIONS: 12.5 X 4.5 X 5.5 INCHES

Remote Expansion Chassis

Power Supply:18 to 32 VDC
Operating Temperature: -20°C to +70°C (-4°F to +158°F)
Humidity: 5% to 95%, non-condensing
Output Channels: 16 or 32
Output Voltage: 32 VDC
Certifications: IEC 61508 SIL3

Communication Module

Tricon
TCM SERIES
2 X NET LINK PORTS
4 X 9 PIN SERIAL PORTS
1 X 9 PIN DEBUG PORT

MAIN PROCESSOR MODULE

MAIN PROCESSOR MODULE
ENHANCED EMP II
24 VDC
LED INDICATORS

TRICON MAIN CHASSIS

81008
TRICON MAIN CHASSIS VERSION-8

BASEPLATE HORIZONTAL

P0914XA
BASEPLATE HORIZONTAL
200SERIES
DINRAIL
MT FIELDBUS

CABLE ASSEMBLY 10FEET

4000098516
CABLE ASSEMBLY 10FEET

I/O cable

Part Number: 4000094-316
Type: I/O Cable
Compatibility: Compatible with TRICONEX safety systems, typically used with I/O modules and other system components for data transmission.
High-quality insulation for protection against environmental factors.
Designed to withstand high temperatures, vibration, and harsh industrial environments.
Reliable performance for continuous monitoring and control in critical processes.

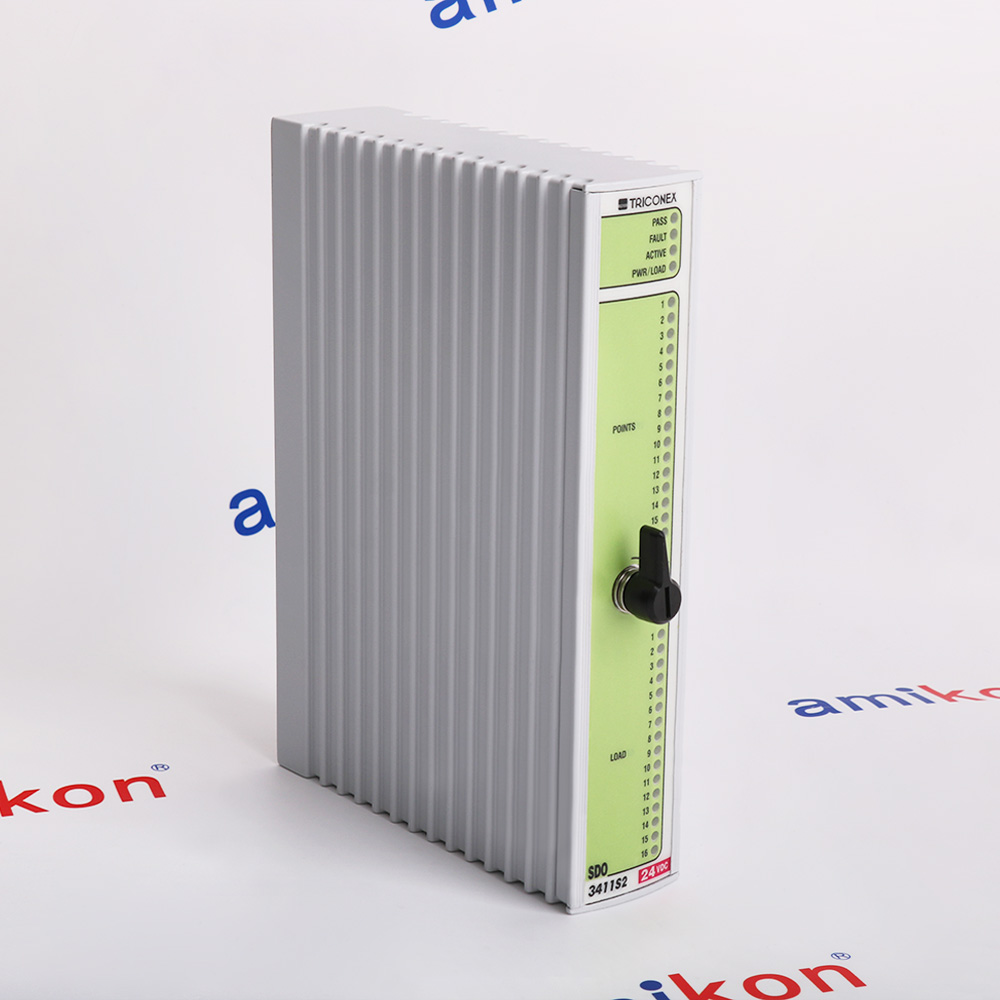

Digital Output Module

Operating Voltage:380V AC
Input Frequency:50/60Hz
Processing Speed:120 MIPS
Memory Capacity:1MB RAM, 16MB Flash
Communication Interfaces:Ethernet, DeviceNet, FF

Channel Isolated 16-input 24vdc

Manufacturer: Foxboro
Model: P0914XB0C SF0627B894
Type: Channel Isolated 16-input Module
Input Type: Digital Inputs
Input Voltage: 24 VDC
Operating Temperature Range: 0°C to 60°C

Communication module

Manufacturer: Triconex
Model: 7400195-210
Type: Communication Module
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Humidity Range: 5% to 95% RH

Terminal Board

P0916SA0A
DISCONTINUED BY MANUFACTURER
PLC MODULE WITH DIN MOUNT
8 SCREW TERMINALS
CABLE TYPE 4 INPUT
120 VAC
125 VDC

CABLE ASSEMBLY

P0916FH
DISCONTINUED BY MANUFACTURER
CABLE ASSEMBLY
TYPE 4
1 METER LENGTH
FBM2XX
TERMINAL CABLE
