Technical specifications for 6ES7223-1BH32-0XB0 VERSION 02
-
Product Model6ES7223-1BH32-0XB0 VERSION 02
-
Product ParametersSIMATIC S7-1200, DIGITAL I/O SM 1223
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4.4x7.4x9.9cm
-
ManufacturerSiemens
-
Weight0.16 kg
-
Module Configuration8 Digital Inputs / 8 Digital Outputs
-
Digital Inputs8 × 24 VDC
-
Input TypeSink/Source Compatible
-
Digital Outputs8 × 24 VDC Transistor Outputs
-
Output Current0.5 A per Output Channel
-
Rated Supply Voltage24 VDC
-
Supply Voltage Range20.4 to 28.8 VDC
-
Backplane Bus Current145 mA Max
-
Input Current4 mA per Channel (Typical)
-
Power Loss2.5 W Typical
Description

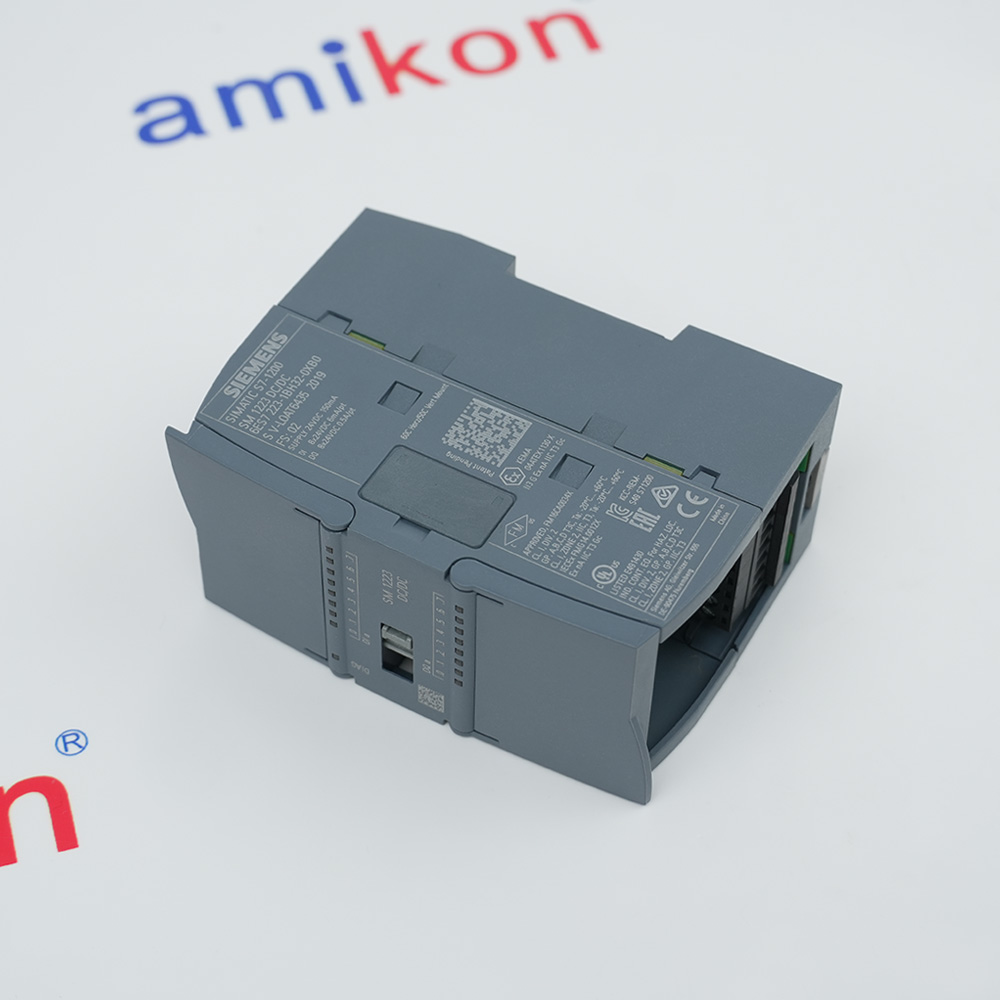

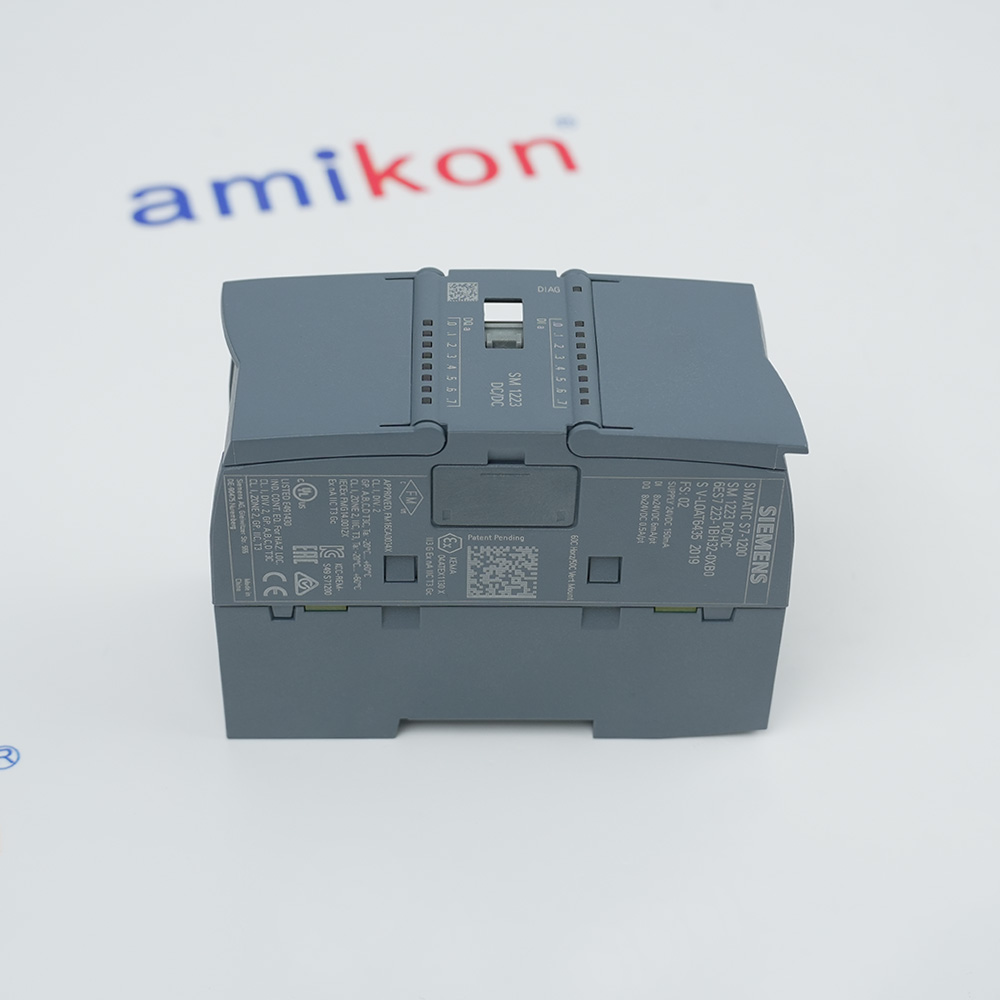

The Siemens 6ES7223-1BH32-0XB0 Version 02 is a SIMATIC S7-1200 SM 1223 Digital I/O expansion module designed to increase the digital input and output capacity of S7-1200 programmable logic controllers. The module combines eight 24 VDC digital inputs and eight 24 VDC transistor outputs within a single compact housing, providing a space-efficient solution for industrial automation applications.
The digital inputs support both sink and source wiring configurations, allowing connection to a wide range of field devices including pushbuttons, proximity sensors, limit switches, photoelectric sensors, and auxiliary contacts. The integrated transistor outputs can control relays, contactors, solenoid valves, indicator lamps, and other 24 VDC actuators with output currents up to 0.5 A per channel.
The digital inputs support both sink and source wiring configurations, allowing connection to a wide range of field devices including pushbuttons, proximity sensors, limit switches, photoelectric sensors, and auxiliary contacts. The integrated transistor outputs can control relays, contactors, solenoid valves, indicator lamps, and other 24 VDC actuators with output currents up to 0.5 A per channel.
Alternative Names
6ES7223-1BH32-0XB0 VERSION-02
6ES7 223-1BH32-0XB0
6ES7223 1BH32 OXBO
6ES7223-1BH32-0XB0
6ES7223-IBH32-0XB0
6ES7223 IBH32 0XB0
6ES7223-IBH32-OXBO
6ES7 223-IBH32-OXBO
Information
Overview
Manuals
Application Notes
Product Applications
Wiring and Pinout
Features:
- 8 digital inputs and 8 digital outputs in one module
- 24 VDC sink/source inputs
- Transistor outputs at 0.5 A per channel
- Parameterizable input delay
- Diagnostic alarm capability
The output section provides eight transistor-type digital outputs, each rated at 0.5 A. The outputs are arranged in groups of one. Short-circuit protection is not integrated and must be provided externally. Inductive shutdown voltage is internally limited to L+ (–48 V). The outputs are suitable for driving solenoid valves, DC contactors, indicator lights, and other low-voltage DC loads.
The 6ES7223-1BH32-0XB0 Siemens SIMATIC S7-1200, DIGITAL I/O SM 1223 may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7223-1BH32-0XB0 VERSION 02 SIMATIC S7-1200, DIGITAL I/O SM 1223 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Digital inputs support both sink and source wiring configurations, allowing connection to a wide range of field devices including pushbuttons, proximity sensors, limit switches, photoelectric sensors, and auxiliary contacts. The integrated transistor outputs can control relays, contactors, solenoid valves, indicator lamps, and other 24 VDC actuators with output currents up to 0.5 A per channel.
- Manufacturing & Assembly:Deterministic timing for complex lines/discrete processes
- Automotive Industry:Conveyors, robots & testing stations
- Energy & Power Distribution:High-availability substations & power mgmt
- Process Control (Chemical/Water):PCS 7 interfaces: safe continuous processes
- Packaging and Material Handling:High-speed isochrone for packing/sorting/palletizing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The module features 8 digital inputs and 8 digital outputs.Input Connections: The module supports both sinking and sourcing inputs.
Sinking: Connect the negative lead (-) to the "M" terminal.Sourcing: Connect the positive lead (+) to the "M" terminal.
Output Connections: Connect the load to the respective DQ outputs and the return to the corresponding common or ground rail.
Technical notes
6ES7223-1BH32-0XB0 operates with rated supply voltage of 24 VDC (permissible range 20.4 V to 28.8 V), draws maximum 145 mA from the backplane bus 5 VDC, and maximum 4 mA per channel from load voltage L+ without load, with typical power loss of 2.5 W and IP20 degree of protection.
FAQs
-
What is the 6ES7223-1BH32-0XB0?
+The Siemens 6ES7223-1BH32-0XB0 is a SIMATIC S7-1200 Digital Input/Output Module (SM 1223). It features 8 digital inputs (24 V DC) and 8 digital outputs (24 V DC Transistor, 0.5 A). -
What is the rated supply voltage?
+The module operates on a rated value of 24 V DC, with a permissible lower limit of 20.4 V DC and an upper limit of 28.8 V DC. -
Are the digital inputs sink or source?
+The 8 digital inputs support both Sink and Source configurations -
What is the power loss/dissipation?
+The typical power dissipation during operation is 2.5 W.
