In Stock
Ships by Sunday, August 30
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6EP1333-4BA00
-
Product Model6EP1333-4BA00
-

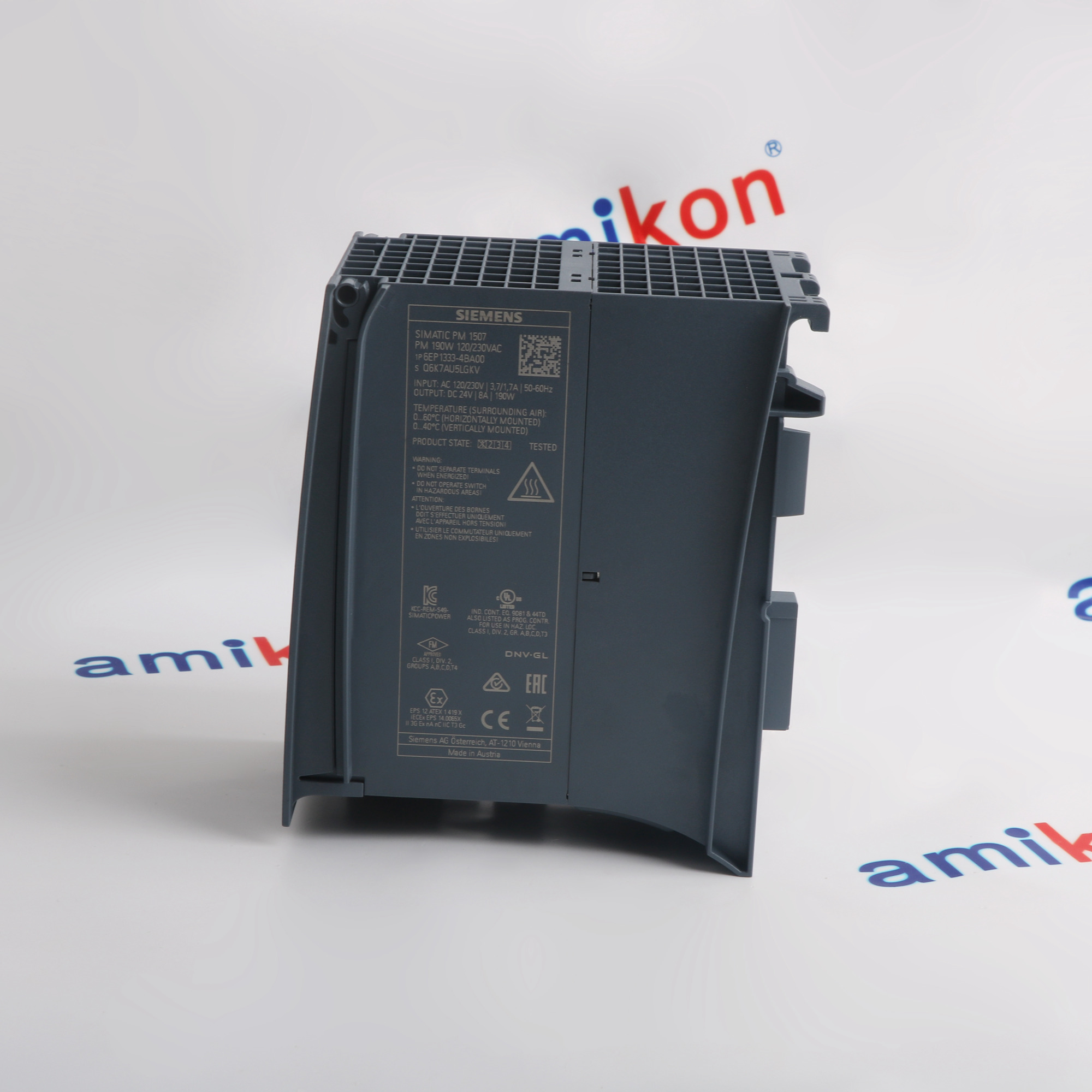

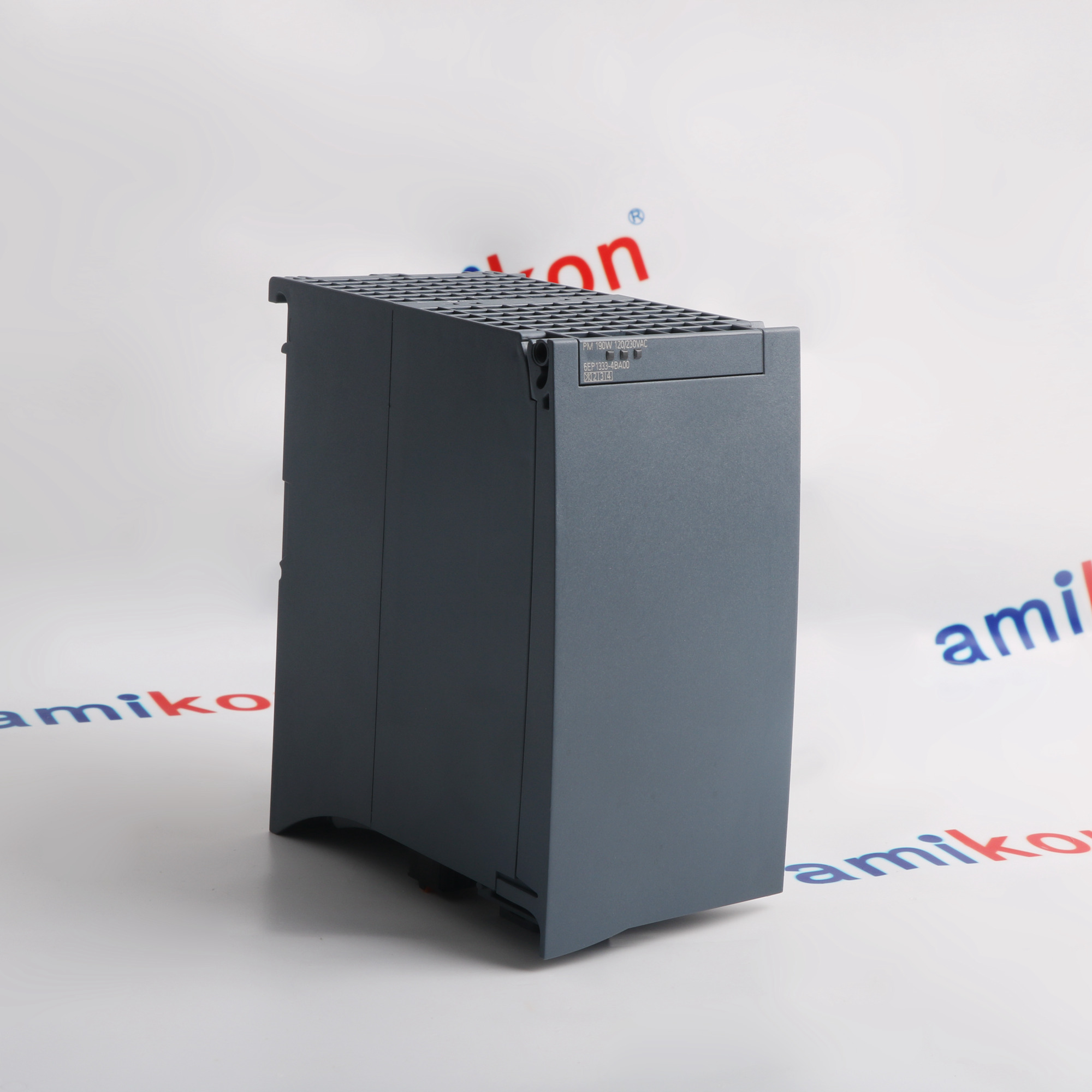

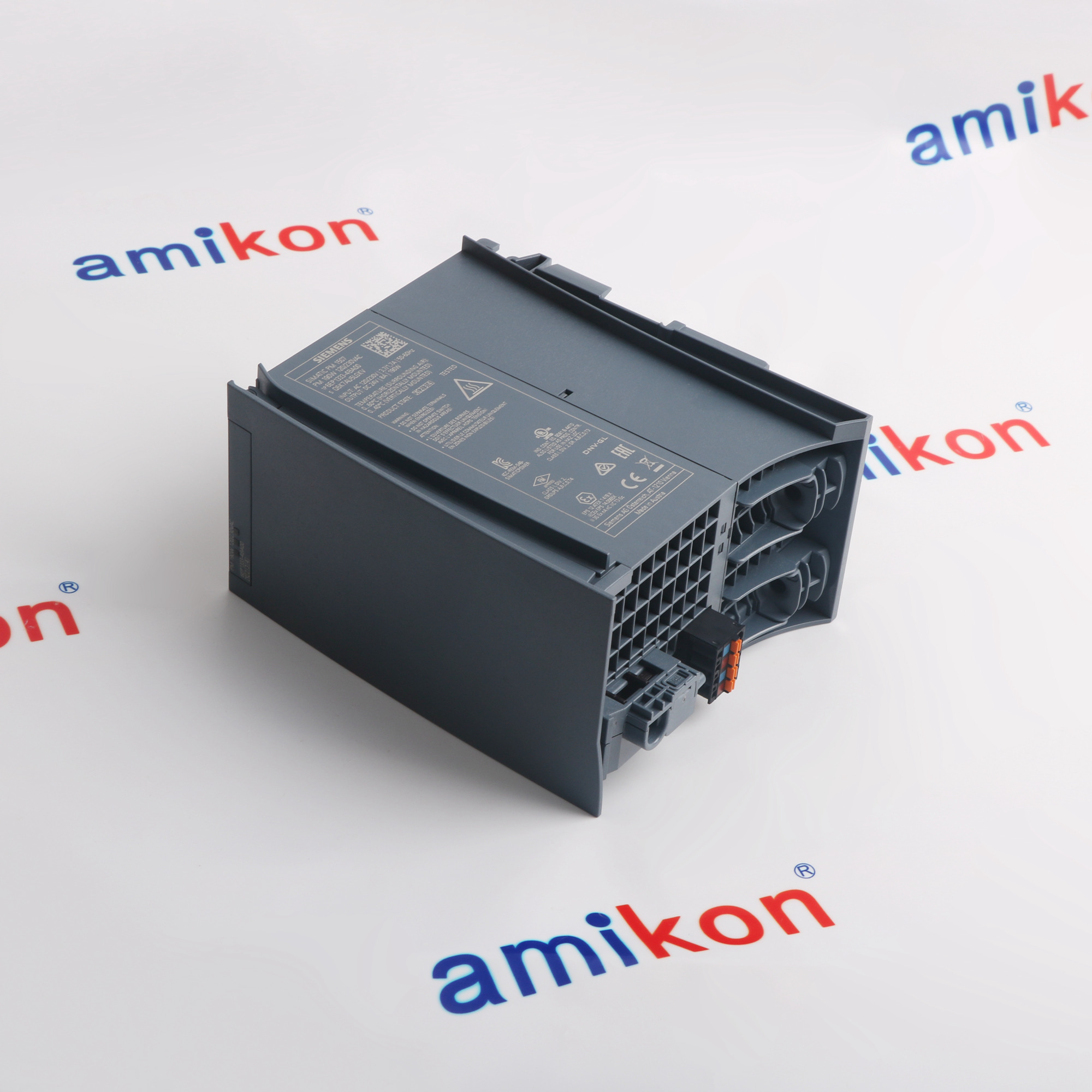

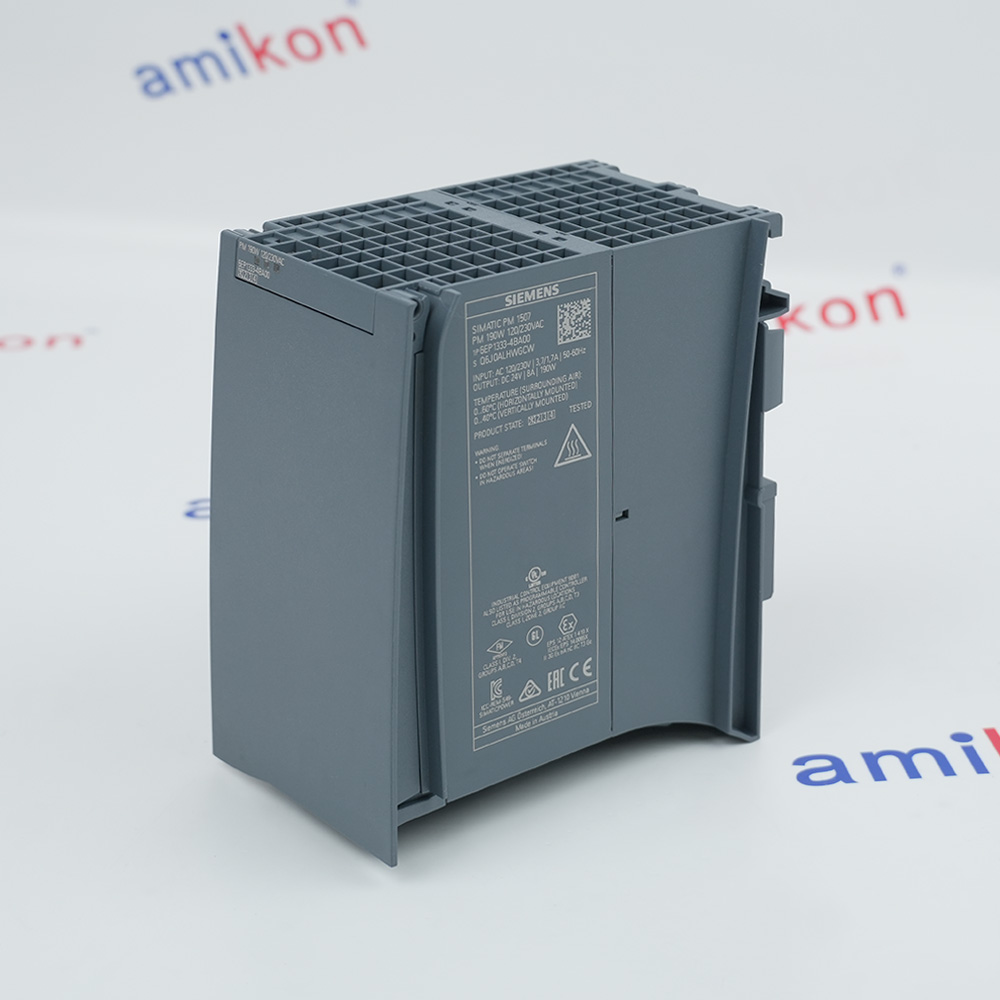

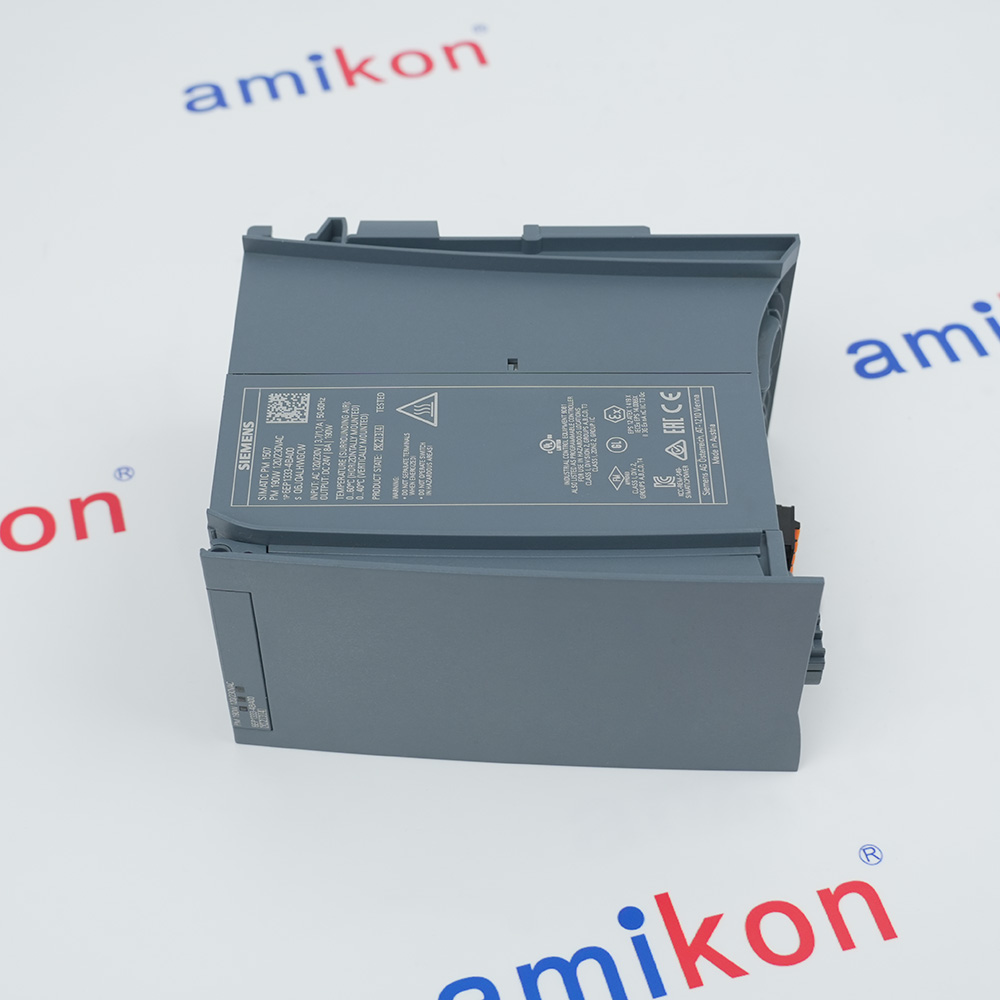

Product ParametersSIMATIC PM 1507 24 V/8 A Regulated power supply
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size7.5x12.5x14.6cm
-
ManufacturerSiemens
-
Weight0.7 kg
-
Type of the power supply network1-phase AC
-
supply voltage at ACAutomatic range selection
-
supply voltage120 V/230 V
-
input voltage 1 at AC85 ... 132 V
-
input voltage 2 at AC170 ... 264 V
-
overvoltage overload capability2.3 × Vin rated, 1.3 ms
-
output voltage at DC rated value24 V
-
I2t value maximum12 A²·s
-
fuse protection typeT 6.3 A/250 V
-
at rated input voltage120 V 3.7 A
-
at rated input voltage230 V 1.7 A
Description
The 6EP1333-4BA00 is a Siemens SIMATIC PM 1507 24 V/8 A Regulated Power Supply specifically for the SIMATIC S7-1500 automation platform. The 6EP1333-4BA00 is a single-phase load power supply (PM = power module) with automatic input voltage range selection that is optimally adapted to the SIMATIC S7-1500 controller in its design and functionality.
The 6EP1333-4BA00 supplies 24 VDC to the S7-1500 system components, such as the CPU, system power supply (PS), input/output circuits of the I/O modules, and, if applicable, sensors and actuators. The 6EP1333-4BA00 accepts 120/230 V AC input and provides 24 V DC/8 A output with a power output of 192W.
The 6EP1333-4BA00 features automatic range switching for the input voltage. The 6EP1333-4BA00 operates with AC 1 rated value of 85 to 132 V and AC 2 rated value of 170 to 264 V, enabling connection to all 1-phase 50/60 Hz networks (120/230 V AC) through automatic range switching. The 6EP1333-4BA00 includes short-term mains buffering for power stability during brief input voltage interruptions.
The 6EP1333-4BA00 supplies 24 VDC to the S7-1500 system components, such as the CPU, system power supply (PS), input/output circuits of the I/O modules, and, if applicable, sensors and actuators. The 6EP1333-4BA00 accepts 120/230 V AC input and provides 24 V DC/8 A output with a power output of 192W.
The 6EP1333-4BA00 features automatic range switching for the input voltage. The 6EP1333-4BA00 operates with AC 1 rated value of 85 to 132 V and AC 2 rated value of 170 to 264 V, enabling connection to all 1-phase 50/60 Hz networks (120/230 V AC) through automatic range switching. The 6EP1333-4BA00 includes short-term mains buffering for power stability during brief input voltage interruptions.
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Installation (Insertion)
Features:
- 24V DC / 8A Regulated Output for S7-1500 Systems
- Automatic 120/230V AC Input Voltage Range Selection
- Direct S7-1500 Mounting Rail Attachment
- Three-Color Diagnostic LED Status Indication
The SIEMENS 6EP1333-4BA00 supports automatic selection between nominal 120 V AC and 230 V AC input operation. The specified input ranges are 85 to 132 V AC and 170 to 264 V AC, with an operating frequency range of 45 to 65 Hz. The input current is approximately 3.7 A at 120 V AC and 1.7 A at 230 V AC.
The 6EP1333-4BA00 SIEMENS SIMATIC PM 1507 24 V/8 A Regulated power supply may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6EP1333-4BA00 SIMATIC PM 1507 24 V/8 A Regulated power supply Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The SIEMENS 6EP1333-4BA00 provides a controlled and electrically isolated 24 V DC output with a rated current of 8 A and a typical output power of 192 W. The static total output-voltage tolerance is specified at ±1%, while residual ripple is limited to a maximum of 50 mV peak-to-peak.
The SIEMENS 6EP1333-4BA00 incorporates protection and monitoring functions for reliable industrial operation. The power supply provides a minimum of 20 ms mains buffering at rated output current, and its status is indicated by LEDs: green for 24 V OK, red for fault, and yellow for standby. The product is specified without Ex approval.
- Chemical/Petrochemical: Monitors pipeline pressures, vessel levels via 4-20mA, and reactor temperatures
- Factory Automation: Interfaces with displacement sensors, weight transmitters, and speed controllers on assembly lines
- Thermal Treatment/Metallurgy: Accurate furnace/kiln/oven temperature profiles using TC or RTD sensors
- Water/Wastewater: Tracks flow rates, pH, dissolved oxygen, and tank levels across dispersed I/O stations
- Food/Beverage/Pharma: Supports hygienic temperature regulation for pasteurization, batching, and climate-controlled storage
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Snap the unit directly onto the standard S7-1500 mounting DIN rail.
Clearances: Maintain a minimum free space of 40 mm above and 40 mm below the module for airflow; 0 mm spacing is required on the left and right sides.
Orientation: Mount upright vertically, ensuring input terminals face downwards or upwards depending on cabinet layout while preserving label visibility.
Alternative Names
6EP1333-4BA0O
6EP1333-4BAO0
6EP1333-48A00
6EPI333-4BA00
6EP1333 4BA00
6EP1333 4BAOO
6EP1333 48A00
6EPI333 4BA00
6EP13334BA00
Technical notes
The 6EP1333-4BA00 operates over a temperature range of 0°C to +60°C, making it suitable for demanding industrial environments. The 6EP1333-4BA00 has an IP20 degree of protection, preventing dust and objects larger than 12 mm from entering the enclosure.
FAQs
-
Does it handle voltage switching automatically?
+Yes. The module features automatic input voltage range selection between 120 V and 230 V AC (50/60 Hz). -
Can it be used in hazardous locations?
+This base model is without Ex approval. For hazardous environments, the 6EP1333-4BA00-8AA0 variant with Ex approvals must be used instead. -
Which regulatory approvals does it carry?
+It features comprehensive certifications including CE, cULus, UKCA, EAC, RCM, BIS, CB, and marine certifications like ABS, BV, and DNV. -
Which automation systems does it fit?
+Designed specifically for the SIMATIC S7-1500 and ET 200MP systems.
