· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.

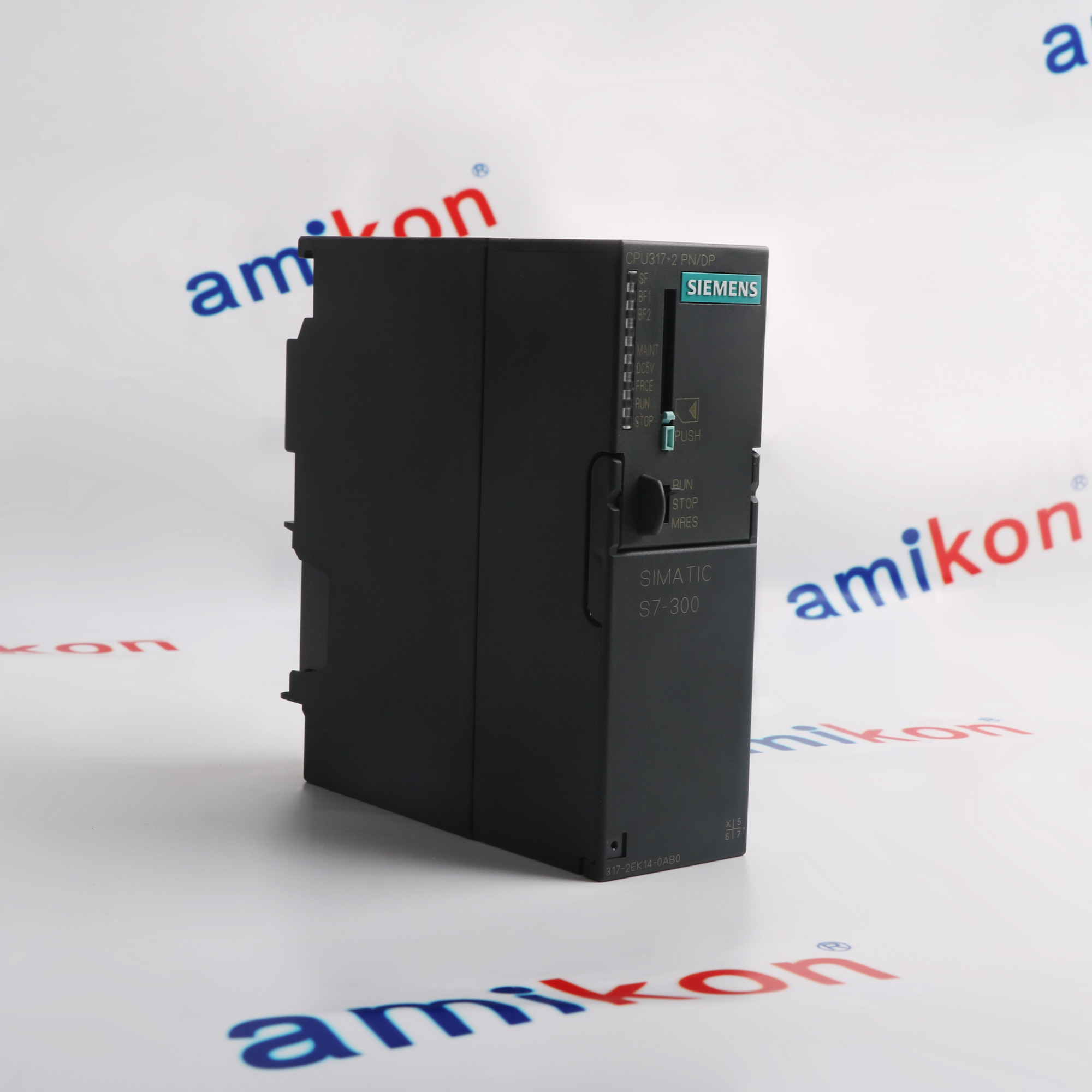

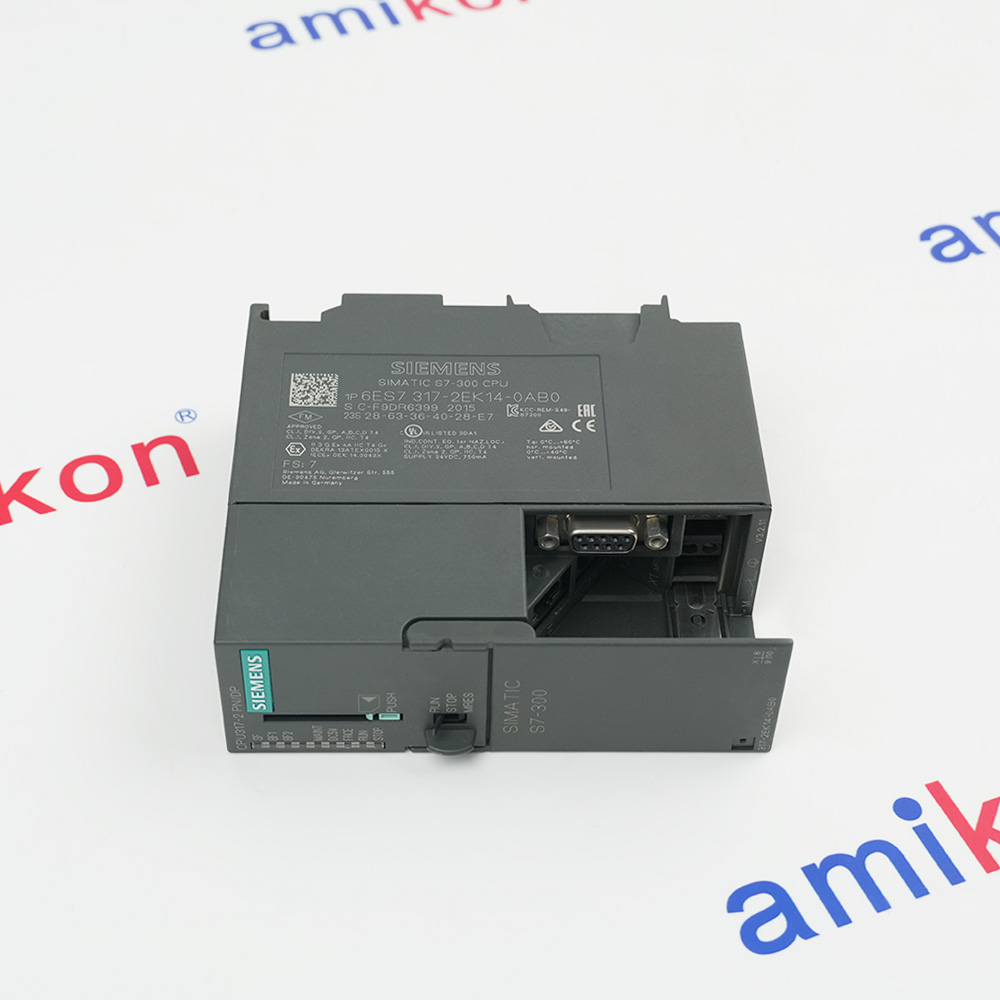

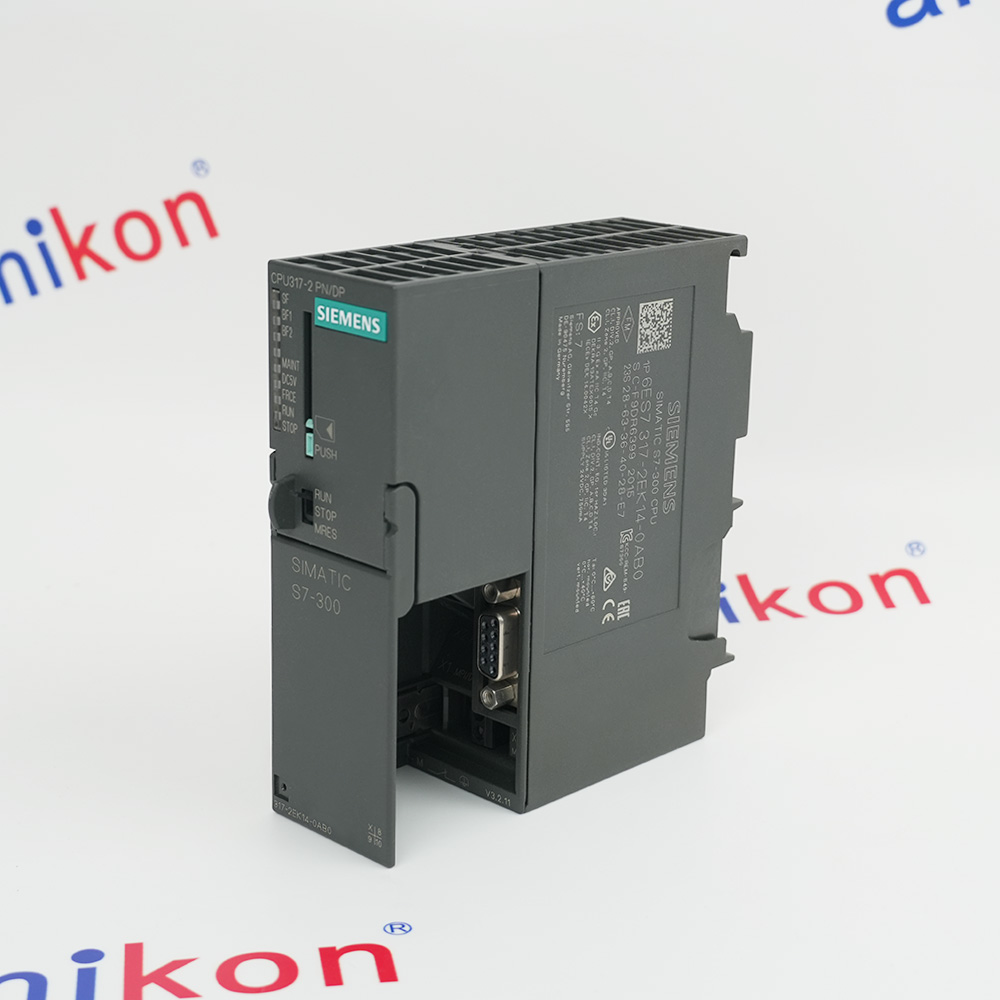

Technical specifications for 6ES7317-2EK14-0AB0
-
Product Model6ES7317-2EK14-0AB0
-
Product ParametersCentral processing unit
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x12.3x12.4cm
-
ManufacturerSiemens
-
Weight0.35 kg
-
HW functional status01
-
Firmware versionV3.2
-
Programming packageSTEP 7 V5.5 or higher
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
external protection for power supply lines (recommendation)2 A min
-
Current consumption (rated value)750 mA
-
Current consumption (in no-load operation), typ.150 mA
-
Power loss, typ.4.65 W
Description
IMATIC S7-300
CPU 317-2 PN/DP
Central processing unit
with 1 MB workmemory
1st interface MPI/DP 12 Mbit/s
2nd interface Ethernet PROFINET
with2-port switch
Micro Memory Card required
CPU 317-2 PN/DP
Central processing unit
with 1 MB workmemory
1st interface MPI/DP 12 Mbit/s
2nd interface Ethernet PROFINET
with2-port switch
Micro Memory Card required
Information
Overview
Manuals
Technical notes
Product Applications
Core Instruction Groups
Features:
- SIMATIC S7-300
- Central processing unit with 1 MB workmemory
- CPU 317-2 PN/DP
- 1st interface MPI/DP 12 Mbit/s
The 6ES7317-2EK14-0AB0 SIEMENS Central processing unit may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7317-2EK14-0AB0 Central processing unit Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Form Factor Change: The V3 version of this CPU is 40 mm wide, whereas older V2 equivalents were 80 mm wide. Replacing a V2 with a V3 may require adjusting the rack layout or adding spacers to fill the gap.Port 1 Configuration: When replacing a spare part, the Ethernet cable must be plugged into Port 1. If the previous configuration used a fixed transmission mode with autonegotiation disabled, Port 1 will act as a terminal device port rather than a standard switch port. Memory Management: A Micro Memory Card (MMC) is mandatory for operation. If the MMC is removed, the CPU cannot function as it has no internal load memory.
- Manufacturing & Production Lines:Central controller for extensive lines requiring stability & high processing power
- Automotive Industry:Body shop & assembly automation with reliability in harsh environments
- Machine Construction:Ideal for series machines with stringent speed & complex sequence requirements
- Process Control:Manages de-dusting, chemical batching & distributed automation structures
- Robotics & Motion Control:Closed-loop control & Easy Motion Control via STEP 7 blocks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Bit Logic: Standard NO/NC contacts, set/reset coils, and edge detection (FP/FN).
Comparison & Math: 16/32-bit integer and 32-bit floating-point (IEEE 754) math.
Timers & Counters: Supports both standard S7 timers (SIMATIC) and IEC 61131-3 compliant functional blocks (SFB/SFC).
Data Handling: Move, shift, rotate, and conversion instructions (e.g., BCD to Integer).
Program Control: Conditional/unconditional jumps, Master Control Relay (MCR), and block calls (UC/CC).
FAQs
-
What is the 6ES7317-2EK14-0AB0?
+It is a Central Processing Unit (CPU) for the Siemens SIMATIC S7-300 series, featuring 1 MB of work memory, an integrated MPI/DP interface, and an Ethernet/PROFINET interface with a 2-port switch. -
What communication protocols are supported?
+The CPU supports MPI, PROFIBUS DP (Master/Slave), and PROFINET (IO Controller/Device, Open IE communication). -
Is this product brand new?
+Yes, SIEMENS 6ES7317-2EK14-0AB0 is brand new, original, unused, and factory sealed -
Do you offer global delivery?
+Yes. We delivery the 6ES7317-2EK14-0AB0 to the worldwide. and we are able to quickly deliver parts globally to any corner of the world. Unless otherwise specified, we will ship your order via (Fedex). We can also ship through FedEx, UPS, and TNT, etc. We can also use your account. -
What is the operational temperature range?
+The CPU operates between 0°C and 60°C (32°F to 140°F).
