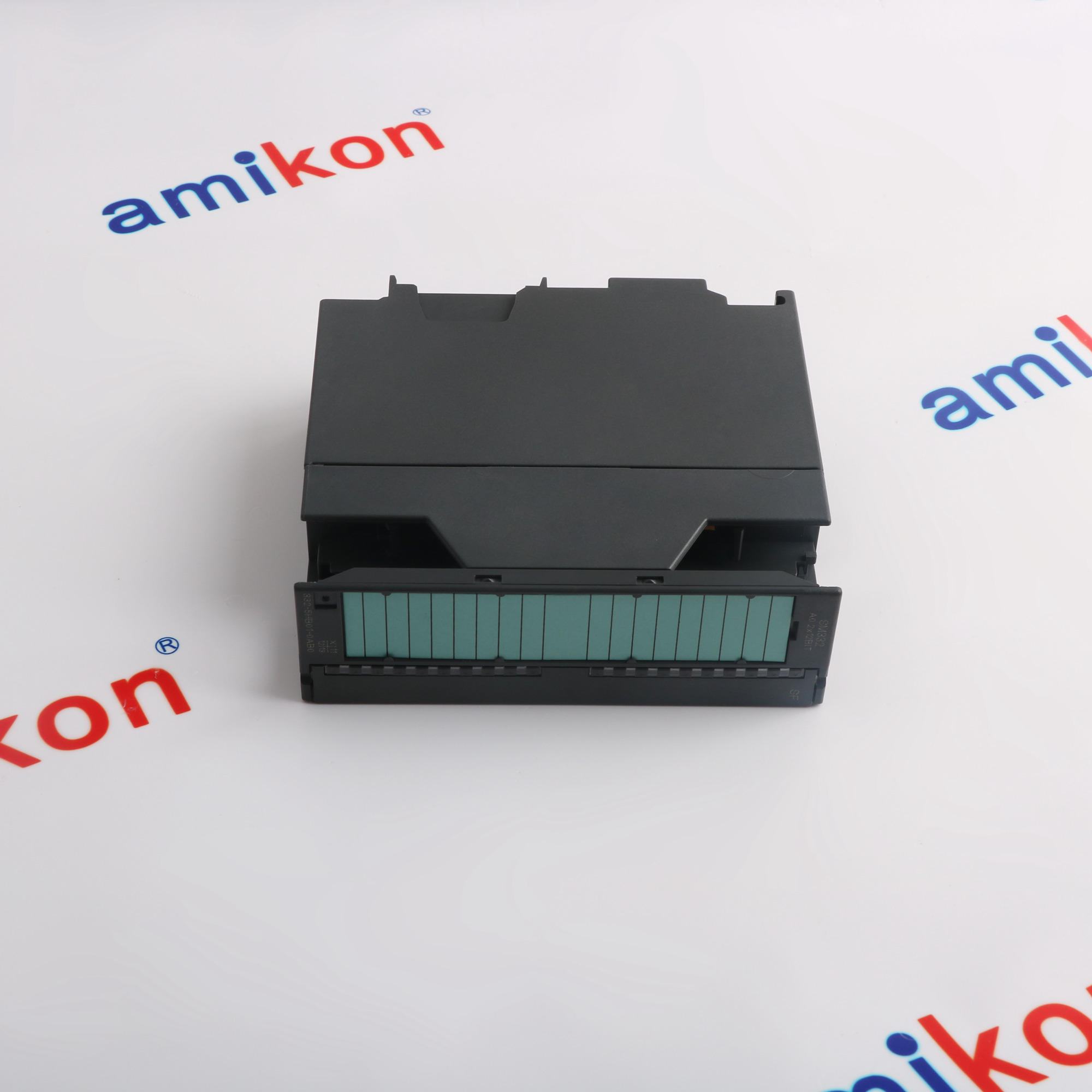

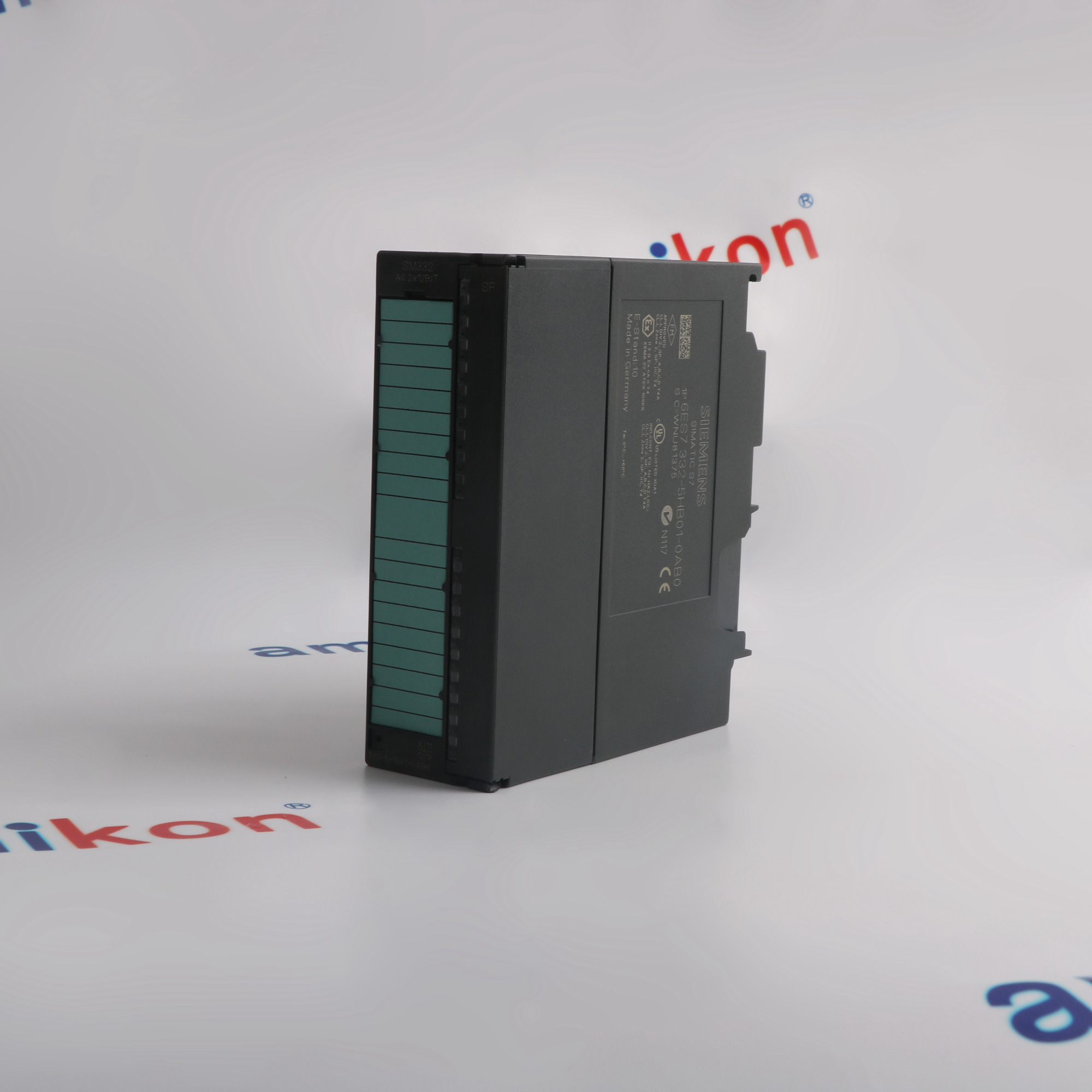

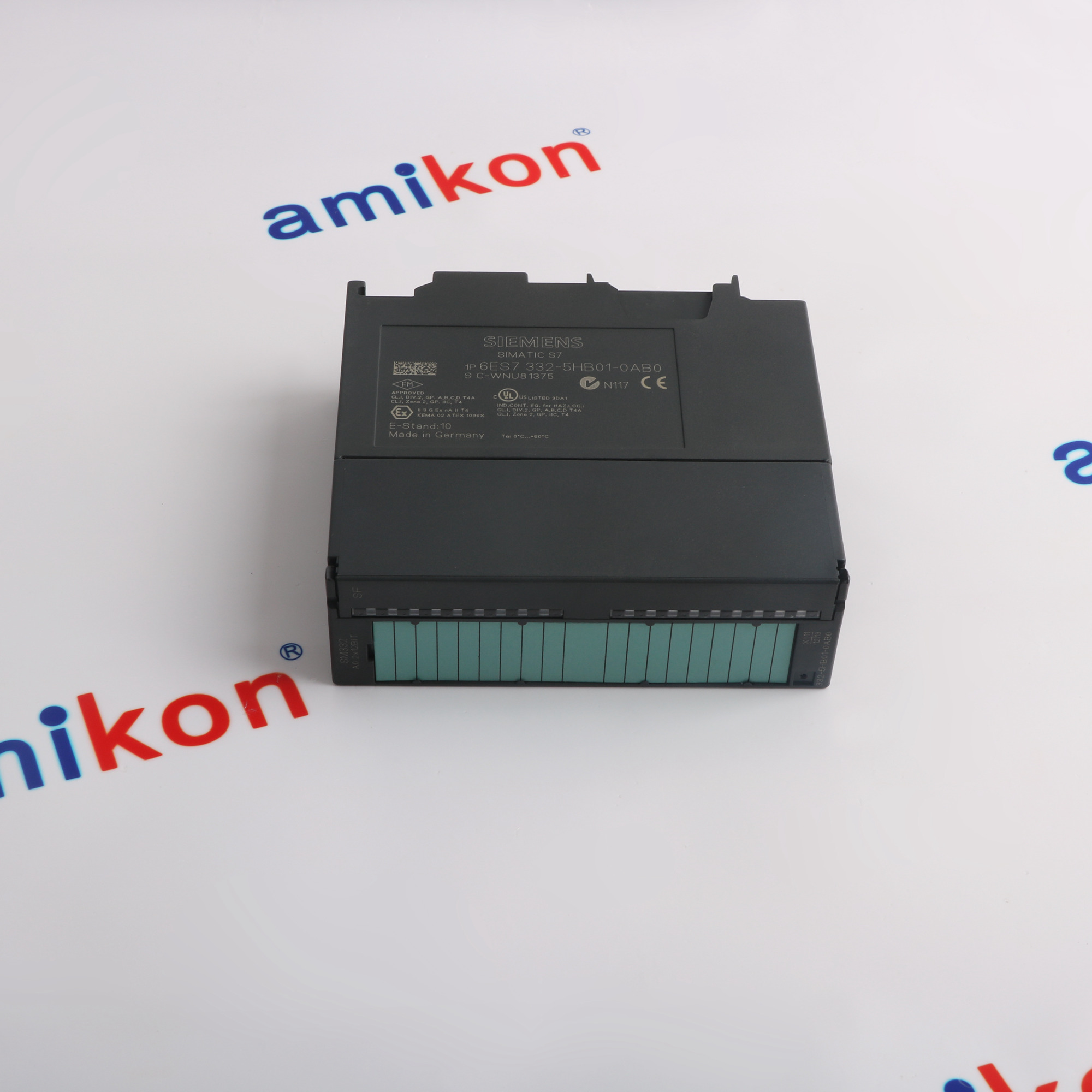

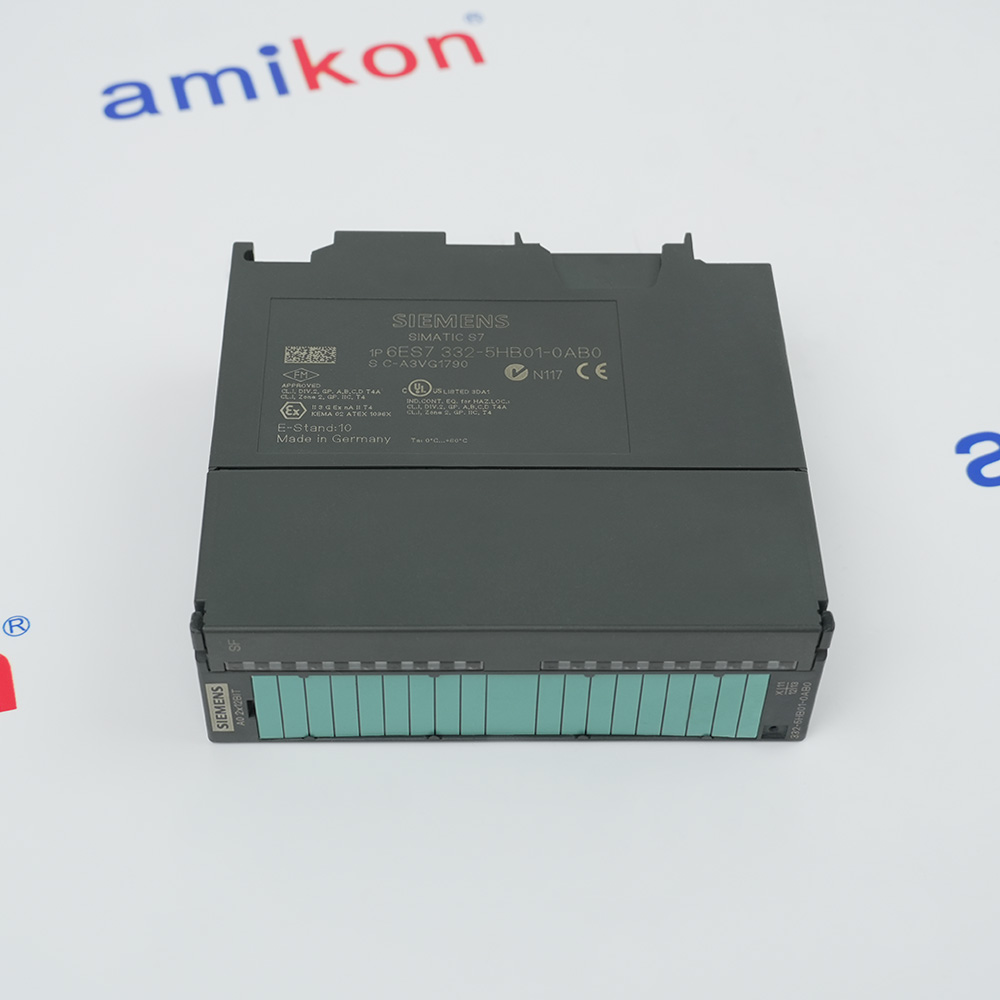

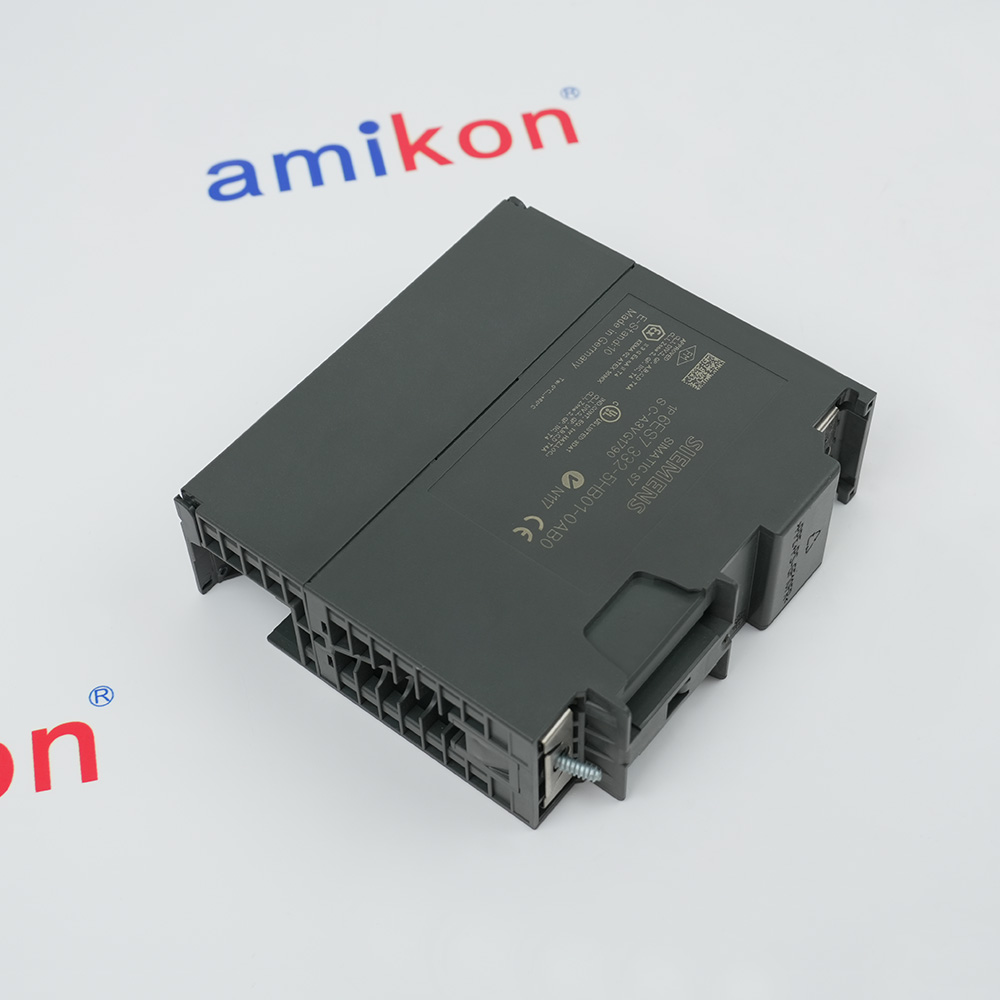

- 6ES7332-5HB01-0AB0
In Stock
Ships by Thursday, July 2
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7332-5HB01-0AB0
-
Product Model6ES7332-5HB01-0AB0
-
Product ParametersAnalog Output Module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size4x11.6x12.5cm
-
ManufacturerSiemens
-
Weight0.2 kg
-
Rated value (DC)24 V
-
from load voltage L+ (without load), maxC135 mA
-
from backplane bus 5 V DC, max.60 mA
-
Power loss, typ3 W
-
Voltage output, short-circuit current, max.25 mA
-
Current output, no-load voltage, max.18 V
Description
The 6ES7332-5HB01-0AB0 is a Siemens SIMATIC S7-300 analog output signal module (SM 332) designed for industrial automation applications requiring precise analog signal generation. The 6ES7332-5HB01-0AB0 provides 2 isolated analog outputs that can be individually configured as voltage or current outputs, supporting voltage ranges of 0 to 10 V, 1 V to 5 V, and -10 V to +10 V, as well as current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
The 6ES7332-5HB01-0AB0 delivers 12-bit resolution for unipolar ranges (0-10 V, 0-20 mA) and 11-bit + sign resolution for bipolar ranges (±10 V, ±20 mA, 4-20 mA, 1-5 V), ensuring high-precision analog signal output for process control applications. The 6ES7332-5HB01-0AB0 features galvanic isolation between the analog outputs, backplane bus, and load voltage L+, providing excellent noise immunity and electrical separation for reliable operation in harsh industrial environments.
The 6ES7332-5HB01-0AB0 delivers 12-bit resolution for unipolar ranges (0-10 V, 0-20 mA) and 11-bit + sign resolution for bipolar ranges (±10 V, ±20 mA, 4-20 mA, 1-5 V), ensuring high-precision analog signal output for process control applications. The 6ES7332-5HB01-0AB0 features galvanic isolation between the analog outputs, backplane bus, and load voltage L+, providing excellent noise immunity and electrical separation for reliable operation in harsh industrial environments.
Alternative Names
6ES7 332-5HB01-0AB0
6ES7332 5HB01 0AB0
6ES7 332 5HB01 0AB0
6ES7332-5HBOI-OABO
6ES7 332-5HBO1-OABO
6ES7332-5HBO1-OABO
6ES7 332 5HB0I 0AB0
6ES73325HB010AB0
Information
Overview
Manuals
Application Notes
Product Applications
Wiring Guidelines
Features:
- 2 Isolated Analog Outputs with Voltage/Current Ranges
- 11/12-Bit Resolution with Sign
- Galvanic Isolation for Noise Immunity
- Parameterizable Diagnostics and Substitute Value Output
The module is powered from the S7-300 backplane bus (5 V DC) and requires an external 24 V DC supply (L+) for the output circuits. It connects to field devices via a 20-pin front connector. The module carries CE, UL, cULus, and FM certifications.
The 6ES7332-5HB01-0AB0 SIEMENS SIMATIC S7-300, Analogausgabe SM 332 may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
SIEMENS 6ES7332-5HB01-0AB0 SIMATIC S7-300, Analogausgabe SM 332 Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The module incorporates 12-bit resolution for accurate signal generation and supports integrated diagnostics for wire-break detection, output monitoring, parameter validation, and fault reporting. Diagnostic information can be transmitted directly to the CPU, allowing rapid identification of field or module-related issues.
The SM 332 is electrically isolated from the S7-300 backplane bus, helping improve system reliability in environments subject to electrical noise and industrial interference. Configuration and parameterization are performed through STEP 7 engineering software, enabling seamless integration within existing SIMATIC automation systems.
- Packaging Machinery: Controls wrapping, filling, labeling, and sorting with precise timing and fast input registration
- Textile Equipment: Manages yarn tensioning, weaving, and dyeing using Pt100 tracking and analog control
- Special Machine Tools: Powers assembly lines, drilling, and cutting systems via PROFIBUS DP distributed I/O
- Medical/Pharmaceutical: Used in equipment manufacturing and sterilization plants requiring precise environmental control
- Distributed Control Systems: Operates as a smart gateway or standalone controller for decentralized SCADA networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Supply: Connect 24 V DC (L+) and Ground (M) to the appropriate terminals on the front connector. Ensure the external ground is properly connected to equipotential bonding for noise immunity.
Voltage Outputs: Can be wired as either a 2-wire setup (no line resistance compensation) or a 4-wire setup (uses sense lines to compensate for voltage drops over long cable runs).
Technical notes
The 6ES7332-5HB01-0AB0 supports removing and inserting the module with the active backplane bus energized, enabling hot-swapping for maintenance activities without interrupting system operation. The 6ES7332-5HB01-0AB0 includes parameterizable diagnostics alarm and substitute value output functionality, allowing fault detection and configurable fallback values for enhanced system reliability. The 6ES7332-5HB01-0AB0 provides short-circuit protection on voltage outputs with a maximum short-circuit current of 25 mA, safeguarding the module and connected field devices.
FAQs
-
What is the 6ES7332-5HB01-0AB0?
+The Siemens 6ES7332-5HB01-0AB0 is an Analog Output Module (SM 332) for the SIMATIC S7-300 PLC system. -
How are field devices wired to the module?
+Field devices must be connected using a 20-pin front connector. Ensure your wiring corresponds exactly to the hardware configuration for the respective Voltage or Current mode. Shielded cables are recommended to prevent electromagnetic interference. -
Can I configure a channel for voltage output using 4 wires?
+Yes, the module supports a 4-wire connection (Kelvin connection) for voltage outputs. This uses two additional sensor leads (S+ and S-) wired directly to the load to compensate for voltage drops across long distribution cables. -
What is the primary function of this module?
+It converts digital values from the CPU into continuous analog voltage or current signals to control field devices like variable frequency drives (VFDs), valves, and actuators.
