3500 System

Tachometer Module

InputImpedance:20 k Ω (standard)
MPU: 1 VAC to 50 VAC
Proximity Probe: -2 VDC to -18 VDC
Range: 0.1 RPM to 99,999 RPM
Accuracy: ±0.1% of reading
Power Supply: 15–30 VDC

Vibration Monitor

Radial Vibration
Thrust Position
Differential Expansion
Shaft Absolute
Eccentricity
Acceleration
Velocity

16-Channel Relay Output Module

14999201
RELAY OUTPUT MODULE
16-CHANNEL
SPARE

I/O MODULE

14766301
I/O MODULE
VGA DISPLAY OUTPUT

Proximitor Seismic Monitor I/O Module

Series: 3500
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Front Panel: USB-B
Product Type: Proximity Seismic Monitor I/O Module
Ethernet: 100Base-FX Fiber-Optic
Operating Temperature: -30°C to +65°C

Recip Cylinder Pressure Monitor

Series: 3500 Series
Standard: 0-5,000 psi (0-345 bar)
Sampling Rate: Up to 100 kHz per channel
ADC Resolution: 16-bit
Power Supply: 24 VDC (±10%)

Spare 16-Channel RelayOutput Module

149992-02
Spare 16-Channel Relay
Output Module
for 3500/33

DISPLAY INTERFACE I/O MODULE

13581301
DISPLAY INTERFACE I/O MODULE
FOR 3500/93

Display Interface Module

350093
DISCONTINUED BY MANUFACTURER
DISPLAY INTERFACE I/O MODULE
15.5 W MAX
-20C TO 65 DEGREE C W/ DISPLAY COMMUNICATIONS PORT
PWA 135799-01
Tariff Code: 8517620050
Country of Origin: United States

Overspeed Detection Module

Input Impedance:20 kΩ
OutputImpedance:550 Ω
TransducerPower Supply:-24 Vdc, 40 mA maximum.
EnvironmentalSealing:Epoxy sealed
ArcSuppressers:250 Vrms
Min switchedcurrent:100 mA @ 5 Vdc
Contact Life:100,000 @ 5 A, 24 Vdc or 120 Vac.

Proximitor I/O Module

12568001
Proximitor I/O Module
3500 SYSTEM
3500/40M
PWA 140734 01H
PROXIMITOR

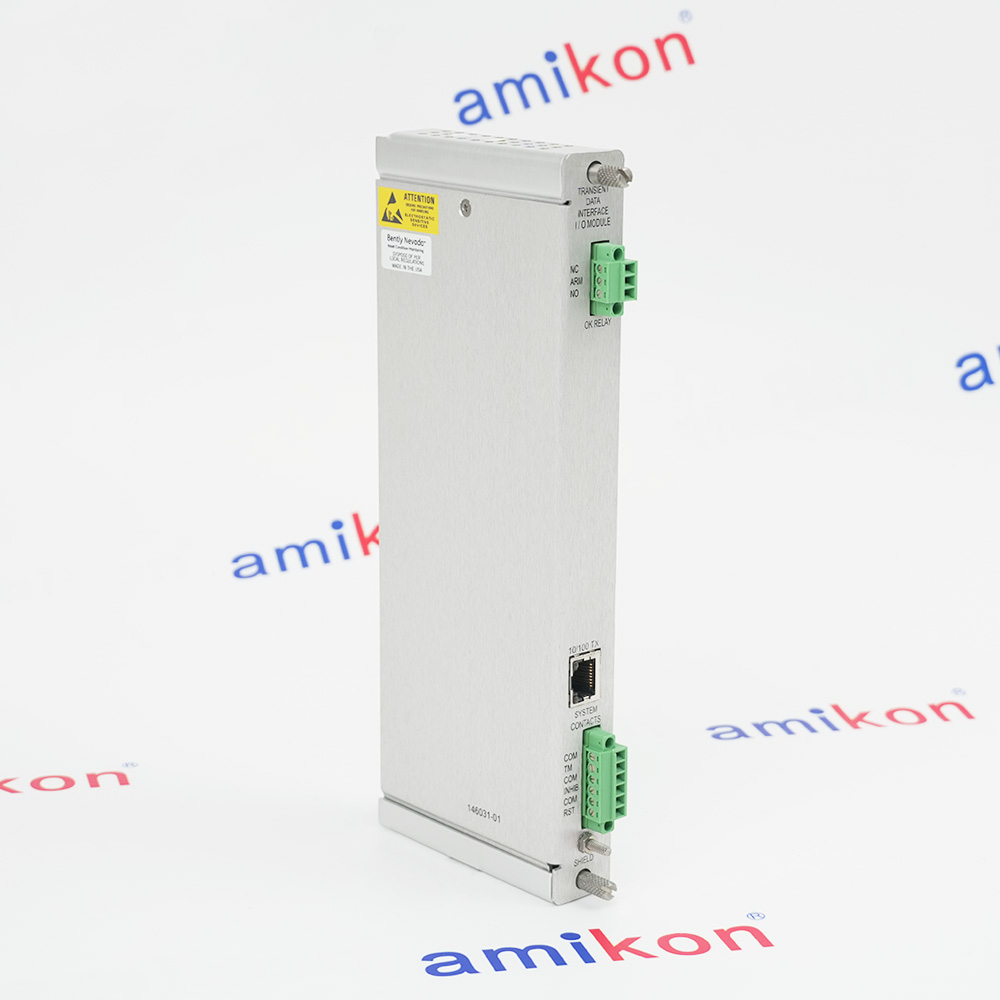

Transient Data Interface I/O Module

14603101
GENERAL ELECTRIC
BENTLY NEVADA
I/O MODULE
TRANSIENT DATA INTERFACE

Shaft Absolute I/O Module

(4) Channel Monitor
Accepts Input from Proximity and Seismic Transducers
Machinery Protection
Provides Essential Machine Information
 3500/42M Series Proximitor / Seismic Monitors

Ethernet/RS232 Modbus I/O Module

Accepts from 1 to 16 signals
Input impedance: Greater than 1 MΩ
Power consumption: 3 watts
Front panel LEDs: OK, TX/RX, Bypass
Type E, J, K, T thermocouples
100 Ω 3-wire and 4-wire platinum RTD

Position I/O Module

PLC TERMINAL MODULE
I/O MODULE POSITIONER
SCREW TERMINALS

Low Voltage dc Power Input Module

Description
Low Voltage DC Power Supplyand
the Low Voltage DC Power Supply Input
Module (PIM)
Inputvoltage 20 to 30 Vdc

Half-Height Future Expansion Faceplate

3500/25 Series
Half-height
(2) Channels
Input Signals:
Proximity Probes
or Magnetic Pickups

Blank Plate

13094401
BLANK MODULE
3500 SYSTEM

Proximitor I/O Module

12822901
PROX/SEISMEC I/O MODULE
INTERNAL TERMINATIONS
SEISMOPROBE

Keyphasor I/O Module

12580001
DISCONTINUED BY MANUFACTURER
I/O MODULE
KEYPHASOR
INTERNAL TERMINATION
FOR 3500/25 CONDITION MONITORING SYSTEM

Spare 4-Channel Relay Output Module for standard systems

12572002
3500/32 3500 4-CHANNEL RELAY
REPLACE 125720-01

Communication Gateway

350092
DISCONTINUED BY MANUFACTURER
COMMUNICATION MODULE
250 VAC
GATEWAY
SURPLUS
I/O MODULE

Position Monitor Module

350045
GENERAL ELECTRIC
BENTLY NEVADA
DIFFERENTIAL EXPANSION THRUST MONITOR
AVAILABLE
REBUILD SURPLUS
NEW
NEVER USED
REPAIR YOURS
24 HOUR RUSH REPAIR
5-10 DAY REPAIR
2 YEAR RADWELL WARRANTY

Proximity/Seismic Monitor Module

350042M
DISCONTINUED BY MANUFACTURER
PROXIMITOR / SEISMIC MONITOR MODULE
4 CHANNEL

4-Channel Relay Module

Power Consumption:5.8 Watts typical
EnvironmentalSealing:Epoxy-sealed
Arc Suppressor:250 Vrms, installed asstandard
Contact Life:100,000 cycles @ 5 A, 24 Vdcor 240 Vac
Maximum switchedcurrent :2 A @ 0V to 30 Vdc
Spare 4-Channel Relay ControlModule
