3500 System

Rack Interface I/O Module

RIM I/O Module with Modem Interface
Voltage: 24V DC (±10%)
Consumption: ≤15W
Analog Inputs:4–20mA
Digital Inputs:24V DC dry contact
RS-485:Modbus RTU @ 115.2kbps max

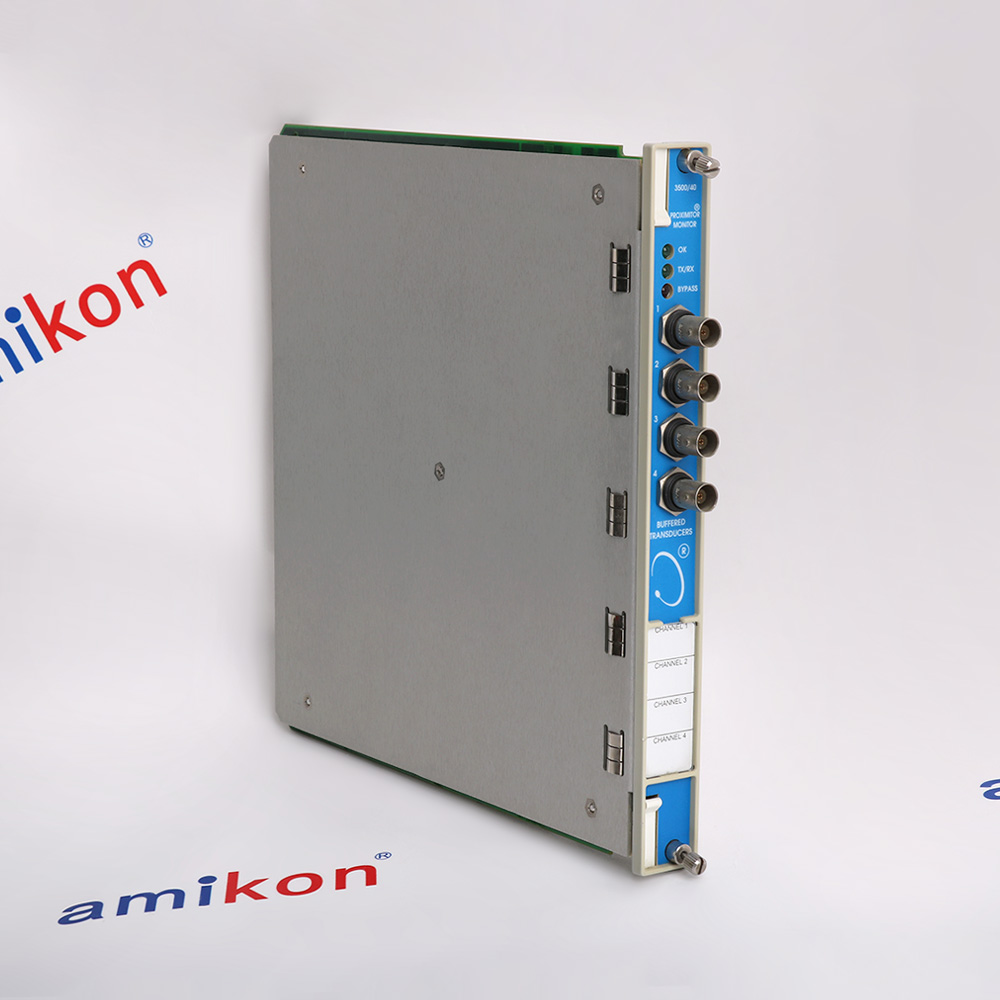

Proximitor Seismic Monitor

Signal Accepts from:1 to 4 proximity
velocity or accelerationtransducer signals
Power consumption:7.7 watts, typical
Standard:I/O 10 kΩ
Output Impedance:550 Ω
Transducer Power Supply:-24 Vdc
Voltage Compliance:0 to +12 Vdc range acrossload

Aero GT Vibration I/O Module

Supply Voltage: 24V DC (±10%)
Power Consumption: <15W (typical)
Input Channels:2 independent channels
Signal Range:±10V (IEPE), 4–20mA (Velocity)
Sampling Rate:Up to 100 kHz per channel
Frequency Response:0.5 Hz – 20 kHz (±3dB)
Dynamic Range:100 dB (typical)
ADC Resolution:24-bit
Analog Output:4–20mA

3500 SYSTEM CHASSIS RACK

02 12-inch Mini-Rack (7 module slots)
04 Panel Mount Option, Mini-Rack
00 None
00 None
01 CE
Mini-rack. 12-inch rack
with seven available module slots

Low Voltage DC PIM

114M5335-01 Low Voltage DC PIM
Input Voltage:10-30V DC
Input Signal:LVDT/RVDT (1-5V RMS, 2.5-10kHz)
Output Signal:4-20mA (fault = 3.8mA or 21mA)
Accuracy:±0.25% FS

Half-Height Future Expansion Faceplate

Half-Height Modules
3500 Series Rack Can Contain One or Two Power Supplies
(3) Versions Manufactured

19-inch Rack

01 19-inch Rack (14 module slots)
02 Rack Mount Option, Full-Size Rack
(mounts to19-inch EIA Rack)
01 CSA/NRTL/C (Class 1, Division 2)
00 None

Low Voltage DC PIM

Inputvoltage:20 to 30 Vdc
For all power supply options,
anunder-voltage does not harmthe supply or the PIM
An over-voltage causes the fuseto open on the PIM
14M5330-01 Low Voltage DC Power Supply

Hazardous Gas Sensor

DETECTION SENSOR
HAZARDOUS GAS
REVISED TO 350800-01-006-00
15 MV / % LEL SENSITIVITY
FLAMEPROOF AND IP66

Recip Rod Position Monitor

Signal :Accepts from 1 to 4 proximityprobe signals
InputImpedance:10 kΩ
Peak-Peak filter Fixed:1 Hz to 600 Hz
Gap filter: -3 dB at 0.09 Hz
Average pistonposition Fixed:1 Hz to 600 Hz
Average Gap:-3 dB at 0.09 Hz

System Rack

Full-size rack
01 19-inch Rack (14 module slots)
00 None
00 None
01 CE

Proximitor/Seismic I/O Module

Radial Vibration
Thrust Position
Differential Expansion
Shaft Absolute
Eccentricity
Acceleration
Velocity

Proximity/Seismic Monitor Module

Series: 3500
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Product Type: Proximitor Monitor Seismic I/O Module
Ethernet: 100Base-FX Fiber-Optic
Operating Temperature: -30°C to +65°C

Process Variable Monitor

+/-10 Vdc I/O : -10 Vdc to +10 Vdc
4-20 mA Barrier I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption:7.0 Watts, typical
Accuracy:Within ±0.33% of full-scaletypical, ±1% maximum

Velocity Monitor

Impulse Acceleration
Acceleration 2
Recip Velocity
Low Frequency Recip Velocity
Signal:Accepts from 1 to 4 proximityprobe signals.
Special inhibit:Contact closure5 Vdc @ 390μA typical
Powerconsumption: 7.7 watts, nominal

Hydro Monitor

Powerconsumption 7.7 watts, typical
Multimodepositive inputI/O 50 kΩ
Direct filter0.104 Hz to 500 Hz
Rotor speed is 25 to 1,500 cpm.
Gap filter -3 dB at 0.05 Hz
Direct filter -3dB at 1.2 Hz

Temperature Monitor

Accepts from 1 to 6 RTD or TC transducersignals
Greater than 3 MΩ for each lead input.
TC Option: Nominal consumption of 6.3watts.
RTD Option: Nominal consumption of 5.6watts

Temperature Module

Model: 3500/61
Part Number: 133811-02.
Description: 16-Channel Temperature Monitor Module
RTDs:2-wire, 3-wire, or 4-wire Pt100
RTD Excitation Current: 1 mA
ADC Resolution: 16-bit
Accuracy RTD: ±0.5°C (±0.9°F) typical
Programmable Alarms: Up to 4 per channel

VGA Display Unit

Powerconsumption:4.6 watts max
High-speednetwork:Monitor status, data andvalues
RS232 port:Touch controller data
Front Port:24 Vdc Power
Power +24Vdc ± 6%:4.7 watts max
Input range :22.5 to 25.5 Vdc input
VGA inputs:Video image
RS232 inputs:Touch screen control data

Proximitor ET BlockEuro Style Connectors

125808-01 Proximitor ET BlockEuro Style Connectors
Signal :Accepts from 1 to 4 proximitytransducer signals
Power consumption :7.7 Watts, typical
Standard I/O: 10 kΩ
Output Impedance:550 Ω
Transducer Power Supply:-24 Vdc
Gap filter:-3 dB at 0.09 Hz
Smax : 0.125 to 15.8 times runningspeed

RACK

01 19-inch Rack (14 module slots)
01 Panel Mount Option, Full-Size Rack
01 CSA/NRTL/C (Class 1, Division 2)
00 None
01 CE

Universal AC Power SupplyModule

350015
DISCONTINUED BY MANUFACTURER
POWER SUPPLY MODULE
1.9/7.5 AMP
95-125 VAC
190-250 VAC
47/63 HZ

Enhanced Keyphasor Module

3.2 Watts typical
21.8 kΩ minimum
Specified at +25°C (+77°F).
Proximity: -2V to -18V
MPU: 5 mV to 50 V peak
Range: 1 RPM to 99,999 RPM
Accuracy: ±0.1% of reading

OVERSPEED DETECTION SYSTEM

OVERSPEED DETECTION SYSTEM
FOR THE 3500 SERIES MACHINERY DETECTION SYSTEM
ELECTRONIC
INPUT IMPEDANCE: 20 K
8.0 WATTS
OUTPUT IMPEDANCE: 550
24VDC
40MA MAX.

Tachometer Module

350050M
TACHOMETER MODULE
5.8 WATT
3 LED
550 OHM
2 INPUT
