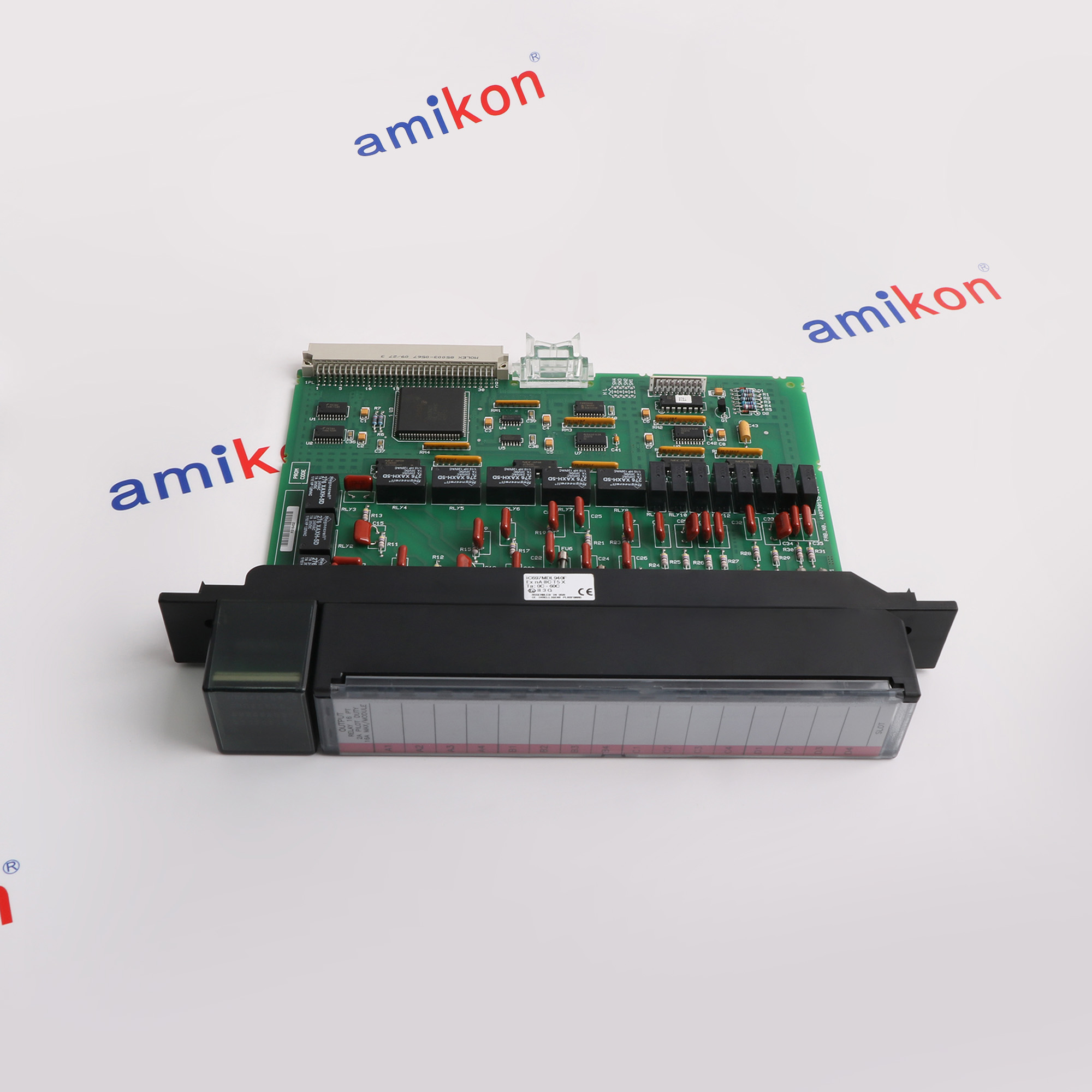

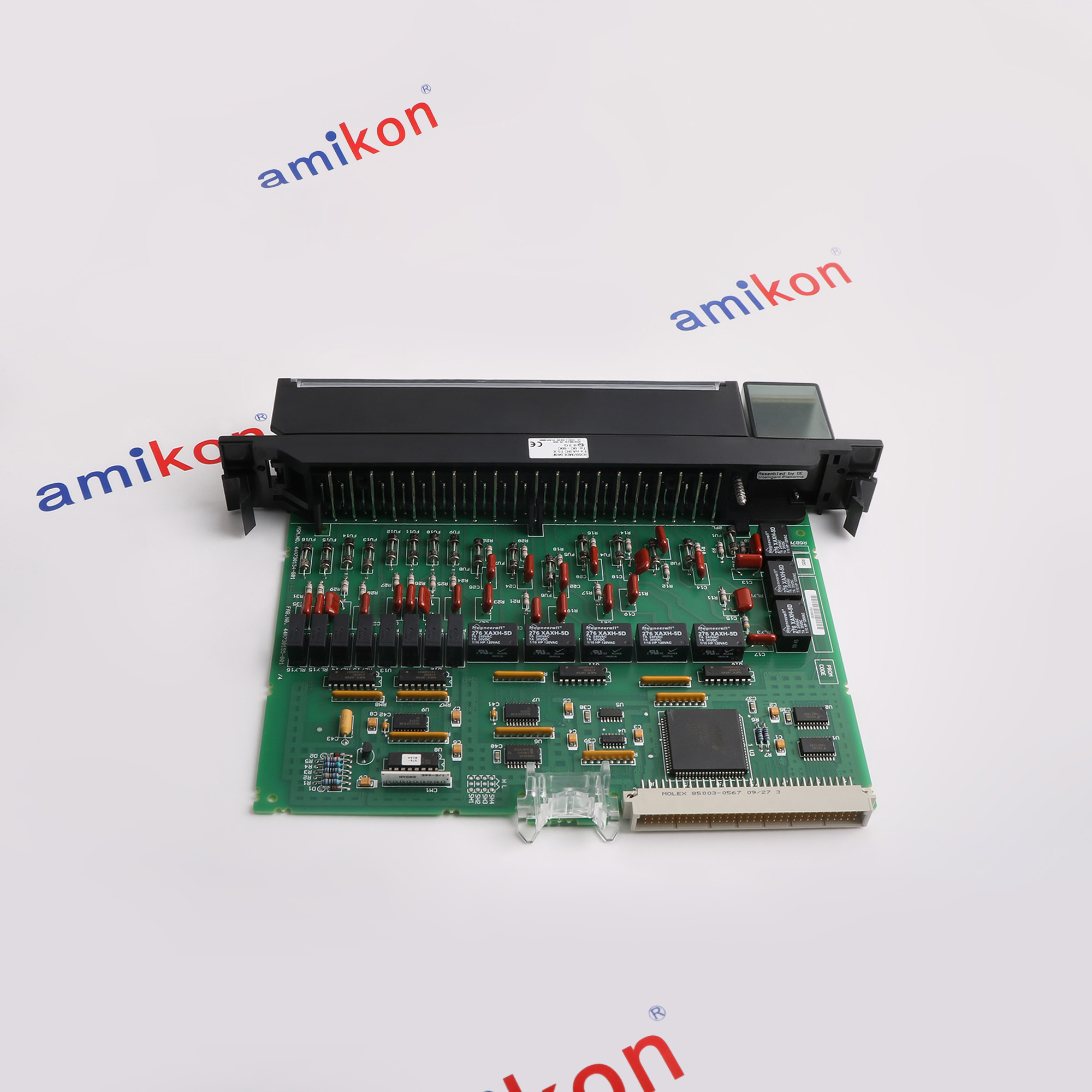

      General Electric IC697MDL940
      i
      This image is for reference only product style, specific date of manufacture and product version, please refer to the actual product delivery!

      Product Information

      Product Describe
      Series:Series 90-70
      Manufacturer:GE Fanuc
      Part number:IC697MDL940
      Current draw:750 mA
      Switching frequency:20 Cycles per minute
      Response time:10 ms
      Number of outputs:16
      No. of groups:Two (2) Groups of Form A
      No of Channels:Sixteen (16) Relay outputs
      Required current:750 milliAmps
      Minimum load:10 mA
      Isolation voltage:1500 Volts

      Specifications

      • Product Model
        IC697MDL940
      • Product Parameters
        Relay Output module
      • Tariff Code
        8537101190
      • Country of origin
        USA
      • Place of shipment
        Xiamen, China
      • Estimated Shipping Size
        4x22x29.1cm
      • Manufacturer
        General Electric
      • weight
        0.66 kg
      • No. of channels per group
        Four (4) per group
      • Output configuration
        Eight (8) Form C relay outputs; Eight (8) Form A outputs
      • Frequency
        47 to 63 Hertz (for AC voltage only)
      • Load current (maximum)
        16 Amps per module, 4 Amps per group
      • Output leakage (maximum)
        1 milliAmp at 120 Volts AC
      • Switching Frequency
        20 cycles/minute (inductive load)
      • Rated voltage
        120/240 Volts AC or 5/24/125 Volts DC
