Technical specifications for 05704-A-0145
-
Product Model05704-A-0145
-
Product Parameters4 Channel Control Card
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.5x17x12.8cm
-
ManufacturerHoneywell
-
Weight0.16 kg
-
Voltage24 V DC (±10%)
-
Analog4–20 mA, ±10 V DC
-
Digital24 V DC sinking/sourcing
-
Temperature-40°C to +70°C (-40°F to +158°F)
-
Humidity5–95% RH (non-condensing)
Description
05704A0145
CONTROL BOARD
4 CHANNEL
4-20MA
CONTROL BOARD
4 CHANNEL
4-20MA
Information
Overview
Manuals
Technical notes
Product Applications
Rack and Mounting Setup
Features:
- 5704 Control System
- Four Channel Control Card4 - 20mA
- Optional Analogue Output Module
The 05704-A-0145 Honeywell Four-Channel Control Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Honeywell 05704-A-0145 Four-Channel Control Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

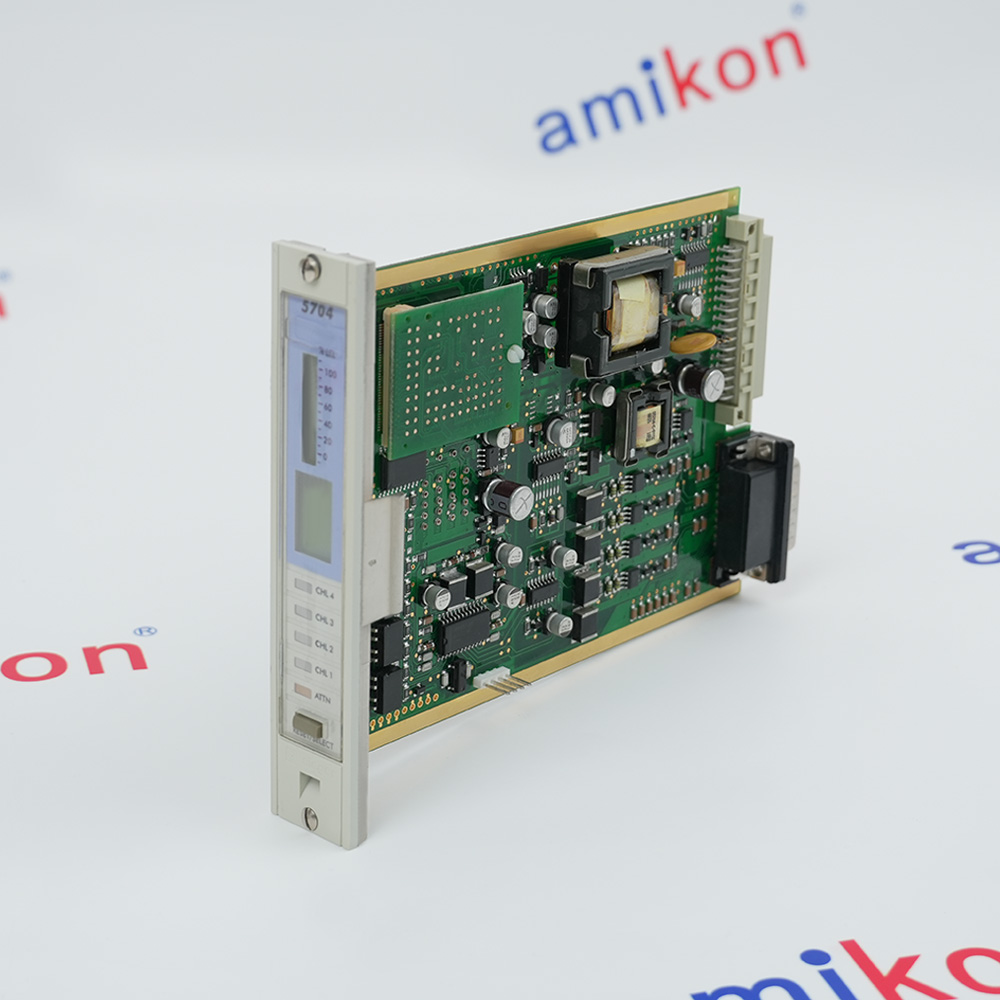

The Honeywell 05704-A-0145 is a 4-Channel Control Card designed for the System 57 series gas and monitoring system. It is used to manage up to four independent field-mounted gas detectors, providing data display, alarm monitoring, and control functions.Backlit LCD (Bar graph + peak reading, digital, alphanumeric).Analogue Output Module (Part Number 05701-A-0285) can be added for isolated 4-20mA monitoring per channel
- Industrial Gas Detection:Manages combustible, O2 & toxic gas detectors (H2S, CO, Cl2)
- Safety Monitoring:Field sensor interface for STEL/LTEL alarms in hazardous areas
- Industrial Automation/DCS:Integrates with DCS/PLC for plant operation monitoring
- Petroleum & Chemical Processing:Leak monitoring for refineries, storage tanks & pipelines
- Environmental Monitoring:Applied in sewage plants and landfills
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Sub-Rack Selection: Choose a full 19-inch rack (17 slots for up to 16 control cards) or a half 19-inch rack (9 slots for up to 8 control cards).
Slot Positioning: The Engineering Card must always be fitted in the far right-hand slot of the rack to provide power and communication to the backplane.
Interface Card Alignment: For systems with rear field wiring, the control card is inserted at the front, while its associated Quad Relay Interface Card is mounted directly behind it at the rear.
FAQs
-
What does the 05704-A-0145 card do?
+It provides control, display, and alarm facilities for up to four 4-20mA industrial gas detectors. -
What are the main features of the 05704-A-0145 display?
+It features a backlit LCD screen, a bar graph with peak readings, a numeric/alphanumeric display, and independent channel LEDs for alarms (A1, A2, A3), faults, and suppression. -
What is the power consumption of 05704-A-0145?
+Its maximum power consumption is 8.3W (typical value is 7.5W). -
What is the loop input and measurement range?
+It accepts a 4-20mA input and supports a measurement signal range of 0 to 25mA (linear).
