PRODUCT DESCRIPTION
Coated optical interface for the Trusted expander bus
ICS Triplex T8314C is the conformal-coated catalog option of the Trusted fibre transmitter and receiver. The manufacturer identifies the C suffix as a coating option; the unit connects the electrical expander-bus interface to the specified single-mode optical communication link.
The remote arrangement retains three independent optical paths, dual nominal power feeds and DIN rail installation. The coating suffix is not a firmware or hardware revision. Verify the actual label, cable selection, route timing and maintenance procedure against the complete installation documentation.
The remote arrangement retains three independent optical paths, dual nominal power feeds and DIN rail installation. The coating suffix is not a firmware or hardware revision. Verify the actual label, cable selection, route timing and maintenance procedure against the complete installation documentation.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8314C Fits in Industrial Process Facilities
Use covers hydrocarbon, chemical and water facilities where the installed equipment and engineered remote communication arrangement are suitable.
-
01 · OIL & GAS
Petroleum Refining, Gas Production and Distribution Facilities
Petroleum refining units and gas production facility process equipment.Natural gas transmission facilities and associated compressor station equipment. -
02 · CHEMICAL PROCESSING
Continuous Chemical Processing and Specialty Production Operations
Chemical reaction equipment and continuous industrial process production lines.Specialty chemical batch plants and associated material handling equipment. -
03 · WATER & WASTEWATER
Municipal Water Supply and Wastewater Treatment Facilities
Drinking water treatment works and municipal water distribution facilities.Wastewater collection stations and sewage treatment plant process equipment.
Technical specifications for T8314C
-

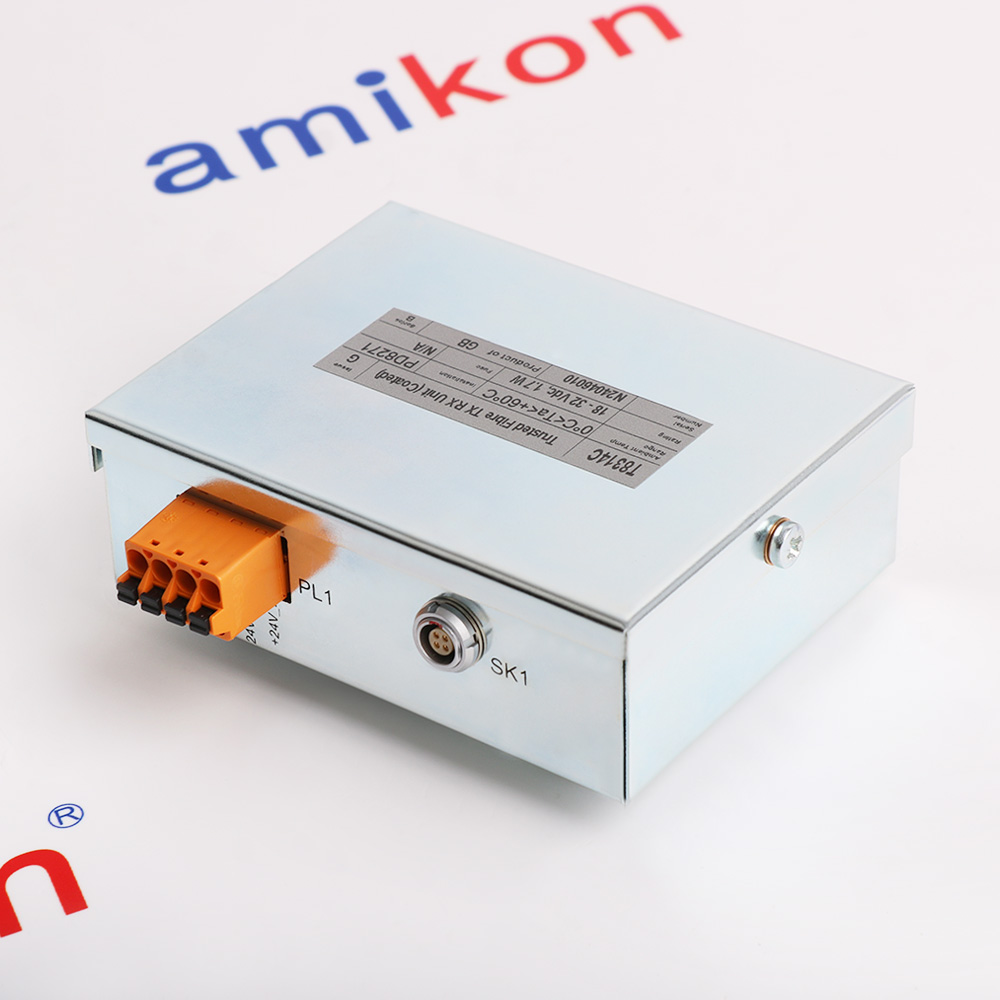

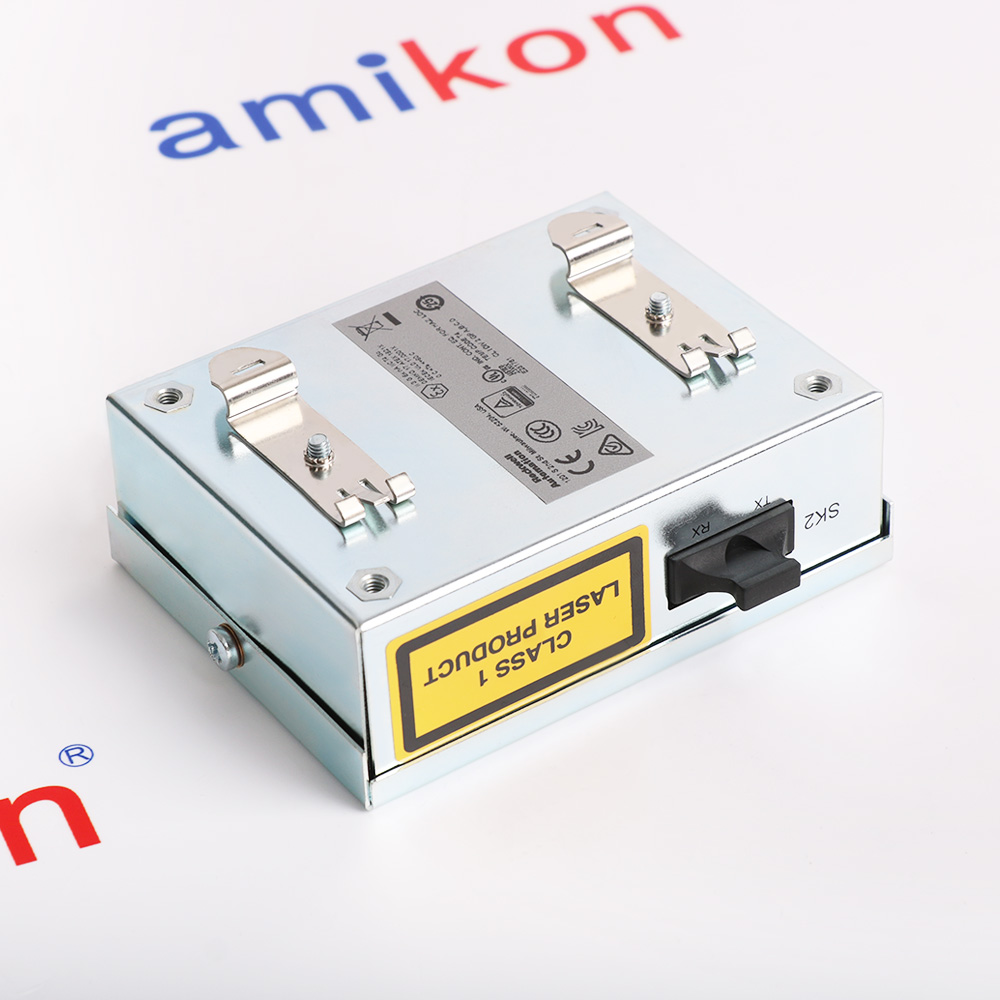

Product ModelT8314C
-
Product ParametersCoated fibre transmitter receiver
-
ManufacturerICS Triplex
-
Supply voltage18 to 32 V DC
-
Maximum power consumption1.7 W
-
Power feed arrangementTwo diode-ORed nominal 24 V DC inputs
-
Optical mediumSingle-mode fibre, 1300 nm specification
-
Optical connectorsSC; separate transmit and receive fibres
-
Link data rate250 Mb/s
-
Complete remote linkSix units; three independent pairs and six fibres
-
Maximum link skew80 ns propagation-time difference across the three links
-
Local configurationNo unit configuration required before installation
-
DiagnosticsVia expander interface and processor; no local unit diagnostics
-
DIN rail mountingTS32 or TS35; horizontal or vertical
-
Fibre routing clearanceAt least 200 mm on either side; confirm chosen cable bend radius
-
Optical transmitter power-15 dBm minimum
-
Receiver sensitivity-28 dBm
-
Operating temperature0 to +60 degrees C
View all additional
Alternative Names
T8314C Trusted fibre Tx/Rx unit
T8314C remote expander fibre interface
T8314C optical expander bus transceiver
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED SAFETY SYSTEM
Match T8314C to the documented Trusted configuration
T8314C connects the copper expander-bus path to the optical remote link. It is not an Ethernet switch, an I/O channel module or a safety-logic processor. The complete arrangement uses three independent pairs of units.
Match TC-302-01 on the controller side and TC-303-01 on the remote expander side to the approved hardware. Use the specified single-mode fibre and SC connectors; each unit has separate transmit and receive optical connections.
Install on TS32 or TS35 DIN rail and preserve the required fibre-routing clearance. Verify supply feeds, optical-path quality and propagation timing before commissioning. The expander interface and processor provide communication diagnostics; the unit has no local diagnostic service.
Features:
- Three independent optical paths
- Verify cable type and link timing
- Check the remote expander diagnostics
The ICS Triplex T8314C coated fibre transmitter receiver requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Replacement must match T8314C, the supplied revision and the approved remote-link design. A similar fibre connector or enclosure is not enough to establish compatibility with another optical converter.
Record the outgoing and incoming cable assignments, optical transmit/receive paths and power-feed arrangement before exchange. Follow the controlled maintenance and hazardous-area procedures; standalone operation does not waive isolation or safety precautions.
After fitting, check link quality through the expander interface and processor diagnostics. Retain the approved propagation-delay limits and fibre routing. No change to the safety program, certification scope or alternate-model interchangeability is implied by this summary.
Features:
- Match catalog suffix and hardware revision
- Retain all three independent link paths
- Validate communication before return to service
The ICS Triplex T8314C coated fibre transmitter receiver requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8314C coated fibre transmitter receiver must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8517622990
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8314C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does the C suffix mean on T8314C?
Rockwell documents C as the conformal-coating option for this catalog family. It is part of the complete order code, not a substitute for the separate hardware revision. -
Which manufacturer documents cover the coated version?
The T8314 manual describes the fibre-unit function and installation. The current Trusted product information and conformity declaration establish the C-suffix option; verify the supplied revision separately. -
Does coating establish unrestricted outdoor or hazardous-area use?
No. Coating alone does not establish enclosure protection or approval for a particular location. Check the actual unit marking and the complete installation and certification conditions. -
What power arrangement is documented?
The unit accepts an 18-32 V DC supply range and uses diode-ORed nominal 24 V DC feeds. Maximum unit consumption is 1.7 W; use the original connection table for wiring. -
Can the optical ports be connected to a normal Ethernet switch?
That is not the documented use. These ports carry the Trusted remote-expander connection over the specified optical medium, not a general Ethernet network. -
Which electrical cables belong on each side?
The manual lists TC-302-01 for the controller-side outgoing path and TC-303-01 for the remote-expander incoming path. Confirm the exact cable assembly and approved system design. -
How is the complete redundant optical connection arranged?
It uses three independent unit pairs and six fibres. Preserve the separate transmit and receive paths and check the permitted timing difference across all three links. -
Can the coated and uncoated units be exchanged without review?
No unconditional interchangeability is asserted. Match the full catalog code, actual revision, environmental requirements and approved link arrangement before any substitution.
READY TO VERIFY YOUR PART?
