- 6ES7314-6CH04-0AB0
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7314-6CH04-0AB0
-
Product Model6ES7314-6CH04-0AB0
-
Product ParametersSIMATIC S7-300,CPU 314C-2 DP
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12x12.1x12.4cm
-
ManufacturerSiemens
-
Weight0.5 kg
-
HW functional status01
-
Firmware versionV3.3
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Mains/voltage failure stored energy time5 ms
-
from load voltage L+ (without load), max80 mA
-
from load voltage L+, max.50 mA
-
Power loss, typ13 W
-
integrated192 kbyte
Description

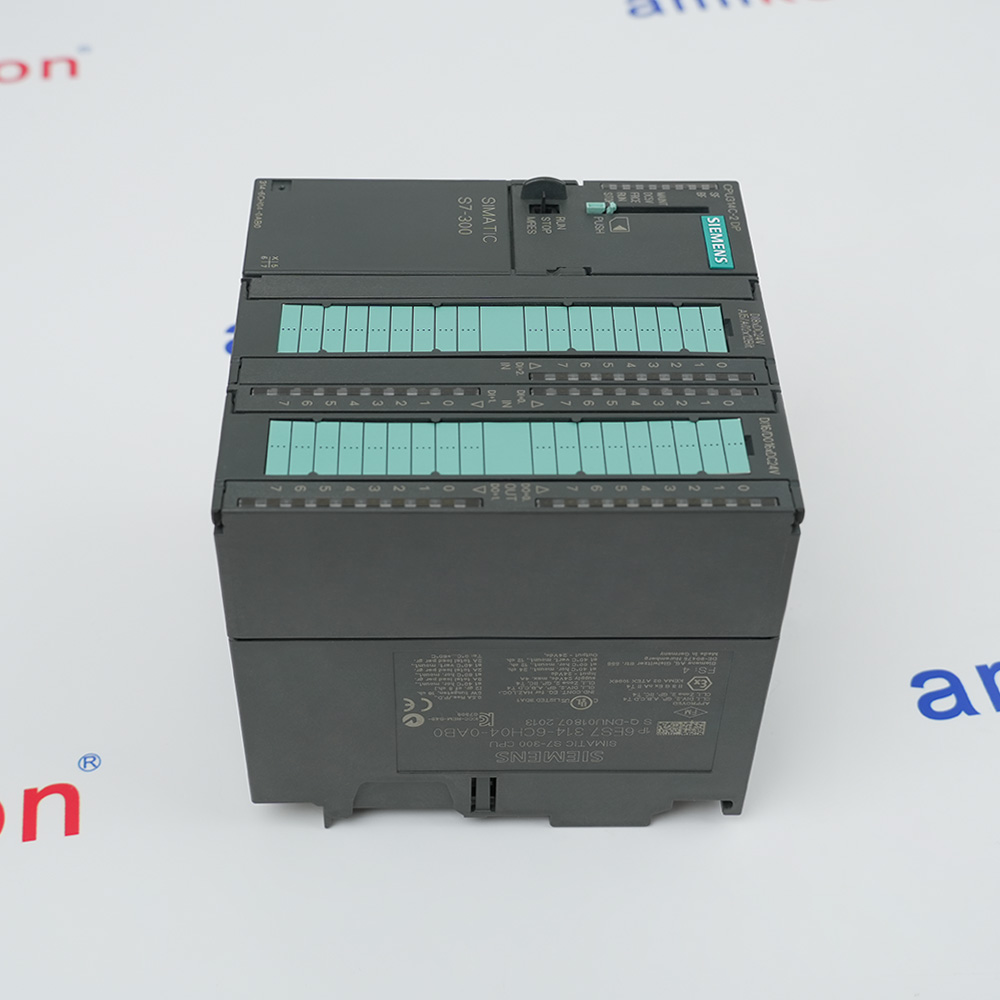

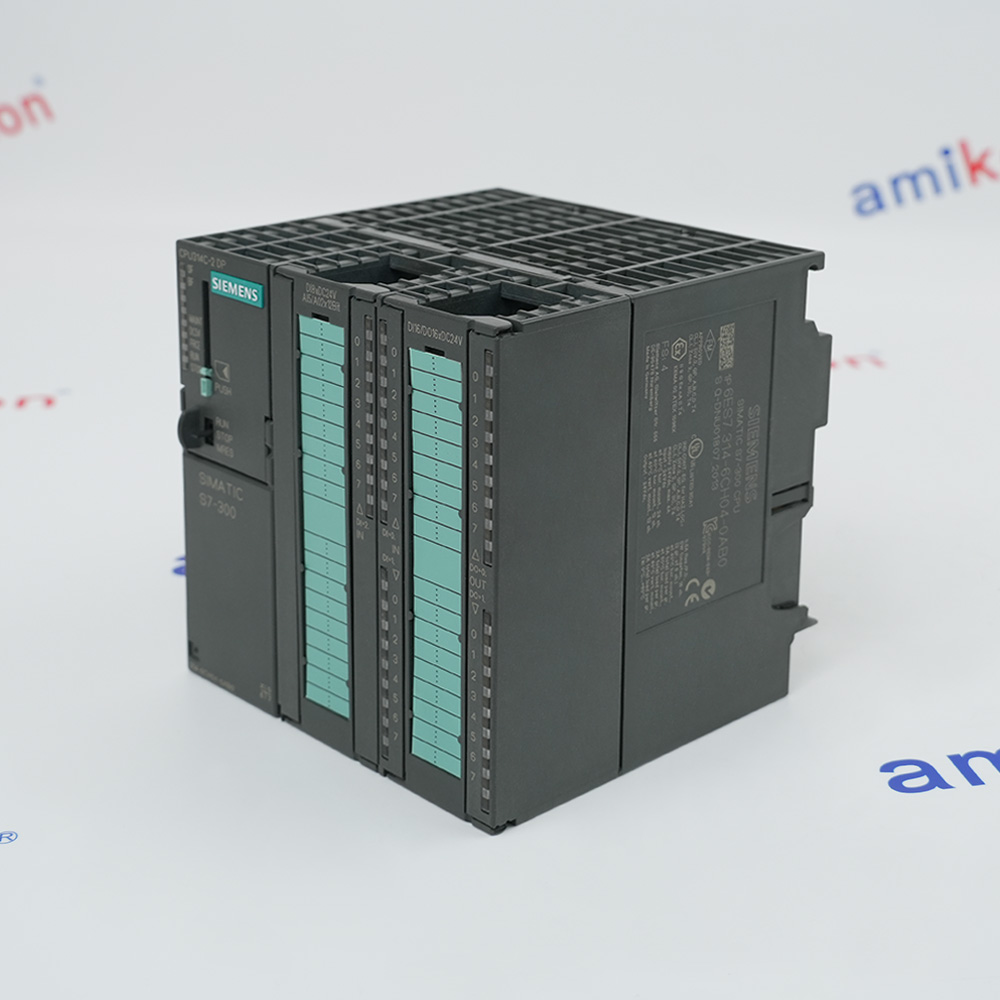

The 6ES7314-6CH04-0AB0 is a Siemens SIMATIC S7-300 compact CPU designed for industrial automation applications requiring integrated I/O and distributed communication capabilities. The 6ES7314-6CH04-0AB0 features 24 digital inputs and 16 digital outputs, along with 4 analog inputs and 2 analog outputs, plus 1 Pt100 input for temperature measurement, providing comprehensive on-board I/O functionality.
The 6ES7314-6CH04-0AB0 integrates 192 KB of work memory for program execution and data storage, with the capability to expand load memory up to 8 MB using a SIMATIC Micro Memory Card (MMC). The 6ES7314-6CH04-0AB0 includes an integrated PROFIBUS DP interface that supports both DP master and DP slave operating modes, enabling seamless connection to distributed I/O devices and other PROFIBUS networks. The 6ES7314-6CH04-0AB0 also features an MPI (Multi-Point Interface) for communication with programming devices, operator panels, and other SIMATIC S7 controllers within a multi-point network.
The 6ES7314-6CH04-0AB0 integrates 192 KB of work memory for program execution and data storage, with the capability to expand load memory up to 8 MB using a SIMATIC Micro Memory Card (MMC). The 6ES7314-6CH04-0AB0 includes an integrated PROFIBUS DP interface that supports both DP master and DP slave operating modes, enabling seamless connection to distributed I/O devices and other PROFIBUS networks. The 6ES7314-6CH04-0AB0 also features an MPI (Multi-Point Interface) for communication with programming devices, operator panels, and other SIMATIC S7 controllers within a multi-point network.
Alternative Names
6ES7 314-6CH04-0AB0
6ES7314 6CH04 0AB0
6ES7 314 6CH04 0AB0
6ES7 314-6CHO4-OABO
6ES7 3I4-6CH04-0AB0
6ES73I4 6CHO4 OABO
6ES73146CH040AB0
Information
Overview
Manuals
Application Notes
Product Applications
Wiring and Power Supply
Features:
- SIMATIC S7-300 CPU 314C-2 DP
- SIMATIC S7-300
- Integrated DP interface
- Front connector (2x 40-pole) andMicro Memory Card required
The 6ES7314-6CH04-0AB0 Siemens Compact CPU may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7314-6CH04-0AB0 Compact CPU Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Siemens 6ES7314-6CH04-0AB0 is a SIMATIC S7-300 CPU 314C-2 DP, a compact PLC designed for medium-sized applications requiring integrated technological functions and distributed I/O capabilities. It features 192 KB of work memory and integrated digital and analog I/O points, eliminating the need for separate modules in smaller setups.
SIMATIC S7-300, CPU 314C-2 DP Compact CPU with MPI, 24 DI/16 DO, 4 AI, 2AO, 1 Pt100, 4 high-speed counters (60 kHz), integrated DP interface, Integr.power supply 24 V DC, work memory 192 KB, Front connector (2x 40-pole) andMicro Memory Card required
- Packaging Machinery: Controls wrapping, filling, labeling, and sorting with precise timing and fast input registration
- Textile Equipment: Manages yarn tensioning, weaving, and dyeing using Pt100 tracking and analog control
- Special Machine Tools: Powers assembly lines, drilling, and cutting systems via PROFIBUS DP distributed I/O
- Medical/Pharmaceutical: Used in equipment manufacturing and sterilization plants requiring precise environmental control
- Distributed Control Systems: Operates as a smart gateway or standalone controller for decentralized SCADA networks
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Power Requirements: The CPU requires a regulated 24 V DC power supply (permissible range: 19.2 V to 28.8 V).
Front Connectors: Uses two 40-pole front connectors. Strip wires to 6 mm and ensure a secure, seated connection.
Shielding: Ground all shielded cables (especially for analog and high-speed I/O) properly using shield connection elements to prevent electromagnetic interference.
Technical notes
The integrated PROFIBUS DP interface supports transmission rates from 9.6 kbps to 12 Mbps and can operate as a DP master controlling up to 124 DP slaves or as a DP slave. The MPI interface supports data exchange with programming devices, operator panels, and other SIMATIC S7 CPUs.
FAQs
-
What is the 6ES7314-6CH04-0AB0？
+The Siemens SIMATIC S7-300 CPU 314C-2 DP (6ES7314-6CH04-0AB0) is a compact CPU with 192 KB memory, 24 DI/16 DO, 4 AI/2 AO, 1 PT100, 4 fast counters (60 kHz), and integrated MPI/PROFIBUS DP. -
Does the integrated analog I/O require external supply voltage?
+Yes, you must provide a 24V DC supply to the module for the internal analog inputs (AI) and outputs (AO) to function. -
What software is needed to configure this CPU?
+It requires STEP 7 V5.5 + SP1 or higher, or TIA Portal V11 with the corresponding Hardware Support Package (HSP). -
Is the 6ES7314-6CH04-0AB0 compatible with older S7-300 systems?
+Yes, the 6ES7314-6CH04-0AB0 is backward compatible with earlier SIMATIC systems. -
What are the 6ES7314-6CH04-0AB0 key technical specifications?
+The 6ES7314-6CH04-0AB0 is a compact CPU with 192 KB of work memory. It features integrated I/O: 24 Digital Inputs, 16 Digital Outputs, 4 Analog Inputs, 2 Analog Outputs, and 1 Pt100 input.
