Technical specifications for 6ES7331-7KF02-0AB0
-
Product Model6ES7331-7KF02-0AB0
-
Product ParametersSM331 Analog Input Module
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
Estimated Shipping Size4x11.6x12.5cm
-
ManufacturerSiemens
-
Weight0.25 kg
-
Rated value (DC)24 V
-
from load voltage L+ (without load), max30 mA
-
from backplane bus 5 V DC, max.50 mA
-
Isolation tested with500 V DC
-
required front connector20-pin
Description
SIMATIC S7-300
Analog input SM 331
isolated, 8 AI
Resolution 9/12/14 bits
U/I/thermocouple/resistor
alarm, diagnostics
1x 20-pole Removing/inserting
withactive backplane bus
Analog input SM 331
isolated, 8 AI
Resolution 9/12/14 bits
U/I/thermocouple/resistor
alarm, diagnostics
1x 20-pole Removing/inserting
withactive backplane bus
Information
Overview
Manuals
Technical notes
Product Applications
Physical Installation
Features:
- Versatile 8-Channel Design
- Multi-Signal Support
- High-Resolution Precision
- Flexible Measurement Ranges
The 6ES7331-7KF02-0AB0 Siemens Analog Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7331-7KF02-0AB0 Analog Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.

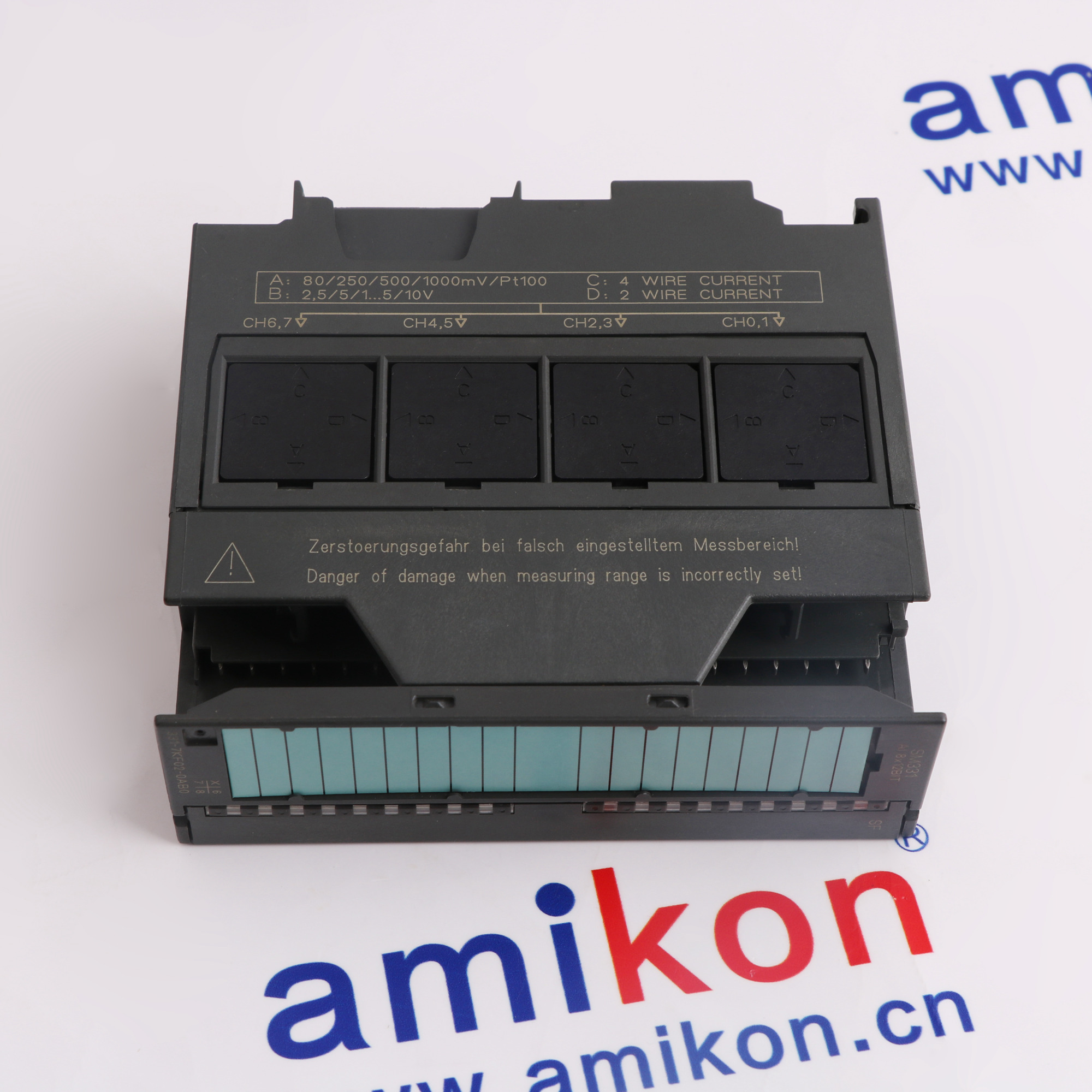

The module’s standout feature is its adaptability to different sensor types through the use of range cards (measuring range modules) located on the side of the unit. These cards, combined with software parameterization in STEP 7, allow each pair of channels to be set independently—for example, two channels could monitor 4 to 20mA pressure transmitters while another pair monitors Type K thermocouples.
- Variable Frequency Drives (VFDs):Signal source for VFD speed control on conveyors, pumps & fans
- Proportional Control Valves:Drives SMC ITV valves for pneumatic/hydraulic pressure in machinery
- Robotic & Assembly Arms:Analog setpoints for multi-axis automotive assembly robots
- HVAC & Environmental Chambers:Regulates heaters/dampers for precise temp/humidity gradients
- Dosing & Mixing Systems:Controls liquid/chemical pump output in food/pharma processing
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: Hang the module on the top of the S7-300 DIN rail and swing it down. Tighten the fixing screw to secure it.
Bus Connector: Connect the bus connector (provided with the module) to the adjacent module on the left (usually the CPU or another I/O module).
Front Connector: Plug in a 20-pin front connector (6ES7392-1AJ00-0AA0 or similar). Note that once a front connector is keyed to a module type, it cannot be accidentally plugged into a different module type
FAQs
-
What is the 6ES7331-7KF02-0AB0？
+The Siemens 6ES7331-7KF02-0AB0 is a SIMATIC S7-300 Analog Input Module (SM 331) with 8 isolated channels for voltage, current (2/4-wire), thermocouples, and resistors, featuring 9/12/14-bit resolution -
Is this product brand new?
+Yes,SIEMENS 6ES7331-7KF02-0AB0 is brand new, original, unused, and factory sealed -
Do you have it in stock?
+Yes, right now we have SIEMENS 6ES7331-7KF02-0AB0 in stock ready for shipment, we can support video inspection.
