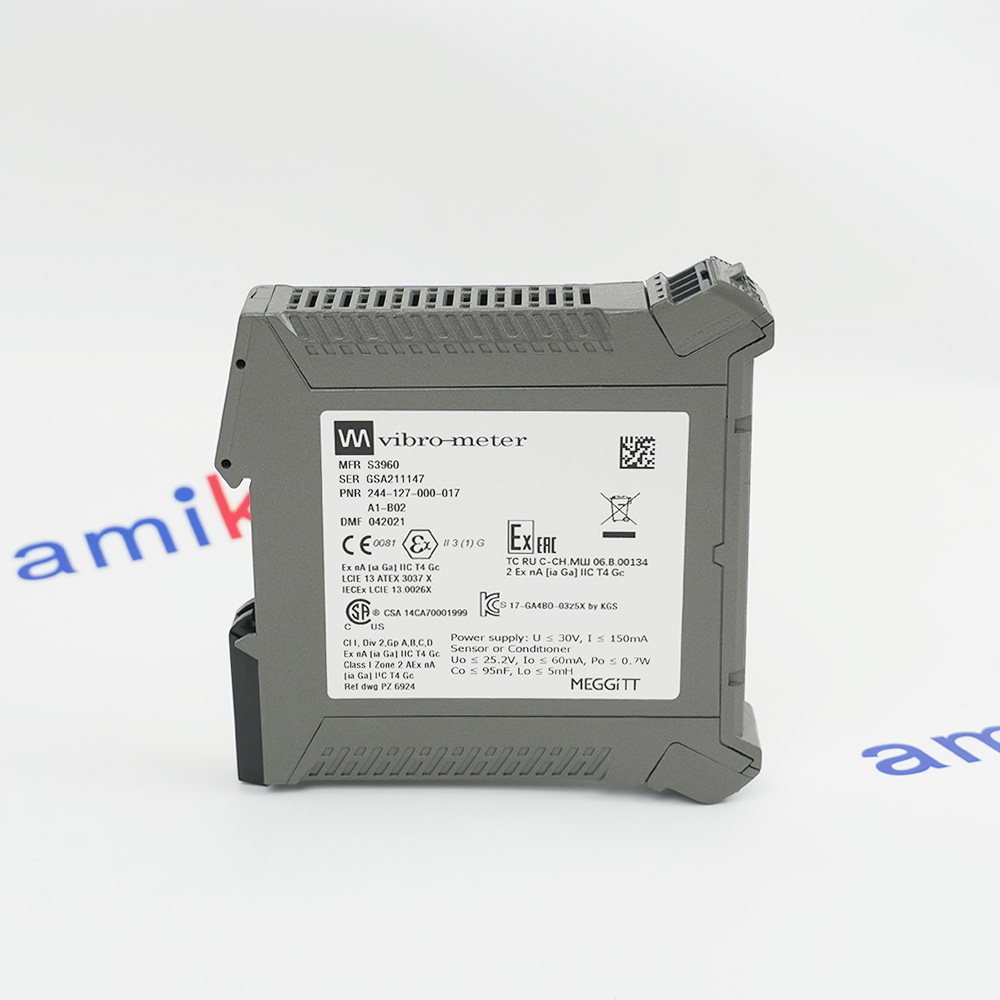

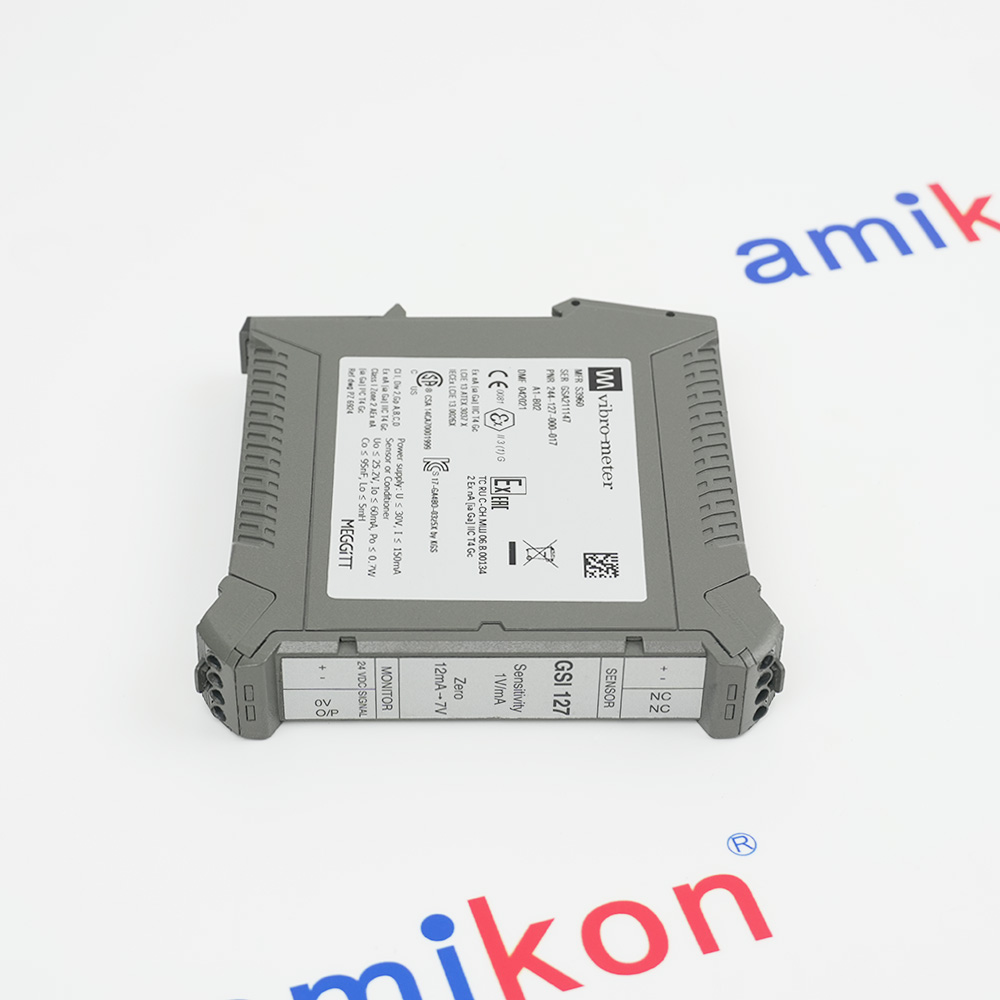

GSI127 244-127-000-017 A1-B02
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
244127000017A1B02
DISCONTINUED BY MANUFACTURER
GALVANIC SEPARATION UNIT
GSI127
2-WIRE CURRENT OR 3-WIRE VOLTAGE TRANSMISSION
4 KVRMS I/O ISOLATION
1 V/MA SENSITIVITY
ZERO: 12MA-7V
24 VDC
SCREW-TERMINAL
DIN-RAIL MOUNT
DISCONTINUED BY MANUFACTURER
GALVANIC SEPARATION UNIT
GSI127
2-WIRE CURRENT OR 3-WIRE VOLTAGE TRANSMISSION
4 KVRMS I/O ISOLATION
1 V/MA SENSITIVITY
ZERO: 12MA-7V
24 VDC
SCREW-TERMINAL
DIN-RAIL MOUNT
Specifications
-
Product ModelGSI127 244-127-000-017 A1-B02
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size2.2x11.5x11.8cm
-
ManufacturerVibro-Meter
-
weight0.15 kg
-
Operating0 to 70°C (32 to 158°F)
-
Storage−40 to 85°C (−40 to 185°F)
-
Input voltage range18 to 30 VDC
-
No load on sensor side≤80 mA
-
20 mA load on sensor side≤120 mA
-
Output voltage dynamic range2 to 20 VDC
-
10 Hz to 400 Hz≥60 dB
-
400 Hz to 100 kHz≥30 dB
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is the GSI127 244-127-000-017 A1-B02?+The Meggitt Vibro-Meter GSI127 (PNR 244-127-000-017 A1-B02) is a DIN-rail mounted, galvanic separation unit designed for industrial vibration monitoring
-
What is the primary function of the GSI127?+It provides galvanic isolation, signal conditioning, and safety barrier functionality for sensor measurement chains, allowing high-frequency AC signals to be transmitted over long distances.
-
How should the unit be powered?+It requires a low-voltage DC power supply (typically 24 VDC), such as an APFxxx, which should be limited to 60 VDC in safety-related applications.
-
Do you have it in stock?+Yes, right now we have Vibro-Meter GSI127 in stock ready for shipment, we can support video inspection.
