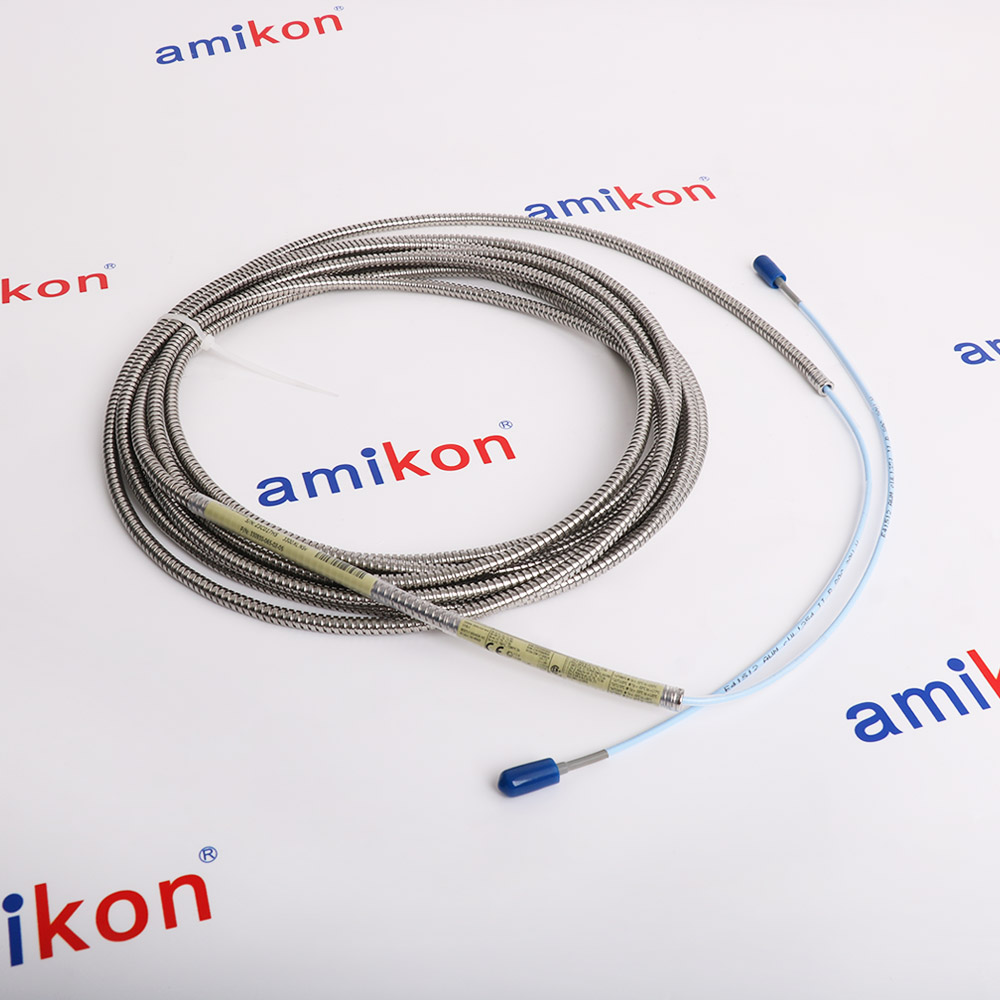

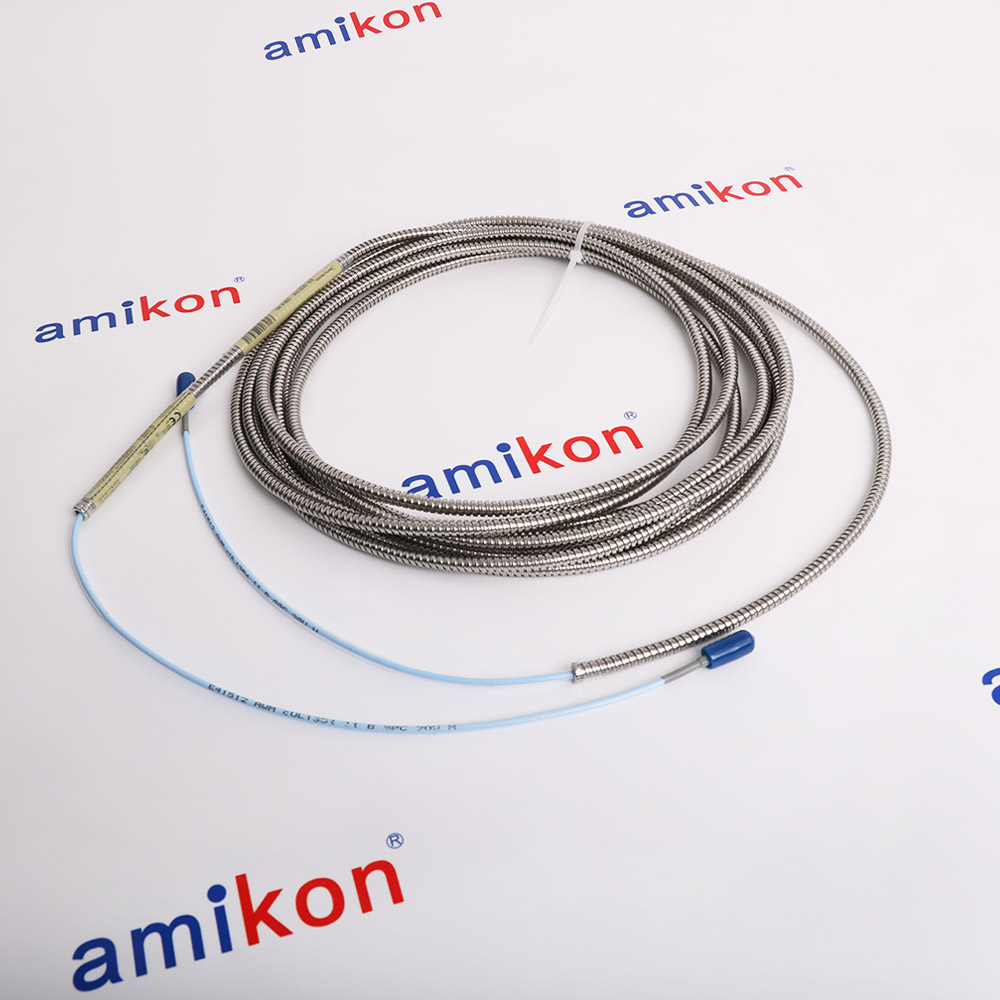

Technical specifications for 330930-065-02-05
-
Product Model330930-065-02-05
-
Product Parameters3300 NSv Extension Cable
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size26x26x3cm
-
ManufacturerBently Nevada
-
Weight0.45 kg
-
Cable Length Option6.5 meters (21.3 feet)
-
Connector and Cable OptionWith stainless steel armor without FEP jacket
-
Agency Approval OptionMultiple Approvals
-
Output resistance50 Ω
-
Extension Cable Material75 Ω coaxial, fluoroethylenepropylene (FEP) insulated
Description
The 330930-065-02-05 is a 3300NSv Extension Cable designed as an integral component of the Bently Nevada 3300XL NSv Proximity Transducer System. The 330930 works in conjunction with a 3300 NSv probe and a 3300XL NSv Proximitor Sensor to provide an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface, enabling both static (position) and dynamic (vibration) measurements in applications with tight installation requirements.
The 330930-065-02-05 extension cable is mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300RAM proximity probe and extension cable. This backward compatibility allows the 330930-065-02-05 to be used in system upgrades from the 3300RAM system to the 3300XL NSv system, where the existing extension cable can be retained with a new 3300XL NSv Proximitor Sensor. All components of the transducer system, including the 330930-065-02-05 , feature gold-plated brass ClickLoc connectors that lock into place and prevent the connection from loosening, ensuring reliable electrical connections without special tools.
The 330930-065-02-05 extension cable is mechanically and electrically compatible and interchangeable with Bently Nevada's previous 3300RAM proximity probe and extension cable. This backward compatibility allows the 330930-065-02-05 to be used in system upgrades from the 3300RAM system to the 3300XL NSv system, where the existing extension cable can be retained with a new 3300XL NSv Proximitor Sensor. All components of the transducer system, including the 330930-065-02-05 , feature gold-plated brass ClickLoc connectors that lock into place and prevent the connection from loosening, ensuring reliable electrical connections without special tools.
Alternative Names
330930-065-02-O5
330930-065-O2-05
330930-O65-02-05
33093O-065-02-05
33O930-065-02-05
330930 065 02 05
330930 065 02 O5
330930 065 O2 05
330930 O65 02 05
33093O 065 02 05
33O930 065 02 05
330930-065-02-00
330930-065-02-CN
Information
Overview
Manuals
Application Notes
Product Applications
Extension Cable Connection
Features:
- Mechanically and Electrically Compatible with 3300RAM
- Gold-Plated Brass ClickLoc Connectors
- Connector Protectors Recommended for Environmental Protection
- Silicone Tape Included as Alternative Protection
- Supports Complete System Interchangeability
Electrical characteristics include 0.220 Ω/m center conductor DC resistance, 0.066 Ω/m shield resistance, and 69.9 pF/m typical capacitance. The unit operates and stores over a temperature range of -52°C to +177°C (-62°F to +351°F) and withstands 100% relative humidity in condensing, non-submerged conditions.
The 330930-065-02-05 Bently Nevada 3300 NSv Extension Cable may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 330930-065-02-05 3300 NSv Extension Cable Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The 330930-065-02-05 is mechanically and electrically compatible with Bently Nevada's previous 3300 RAM proximity probe and extension cable, allowing direct upgrades from 3300 RAM or 3000/7000-series 190 transducer systems. The cable is suitable for small target applications including radial vibration measurement on shafts smaller than 51 mm (2 in) and axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used on fluid-film bearing machines in centrifugal air compressors, refrigeration compressors, and process gas compressors where reduced side view or small shaft size is present.
- Centrifugal Air Compressors: Used on small, high-speed plant compressors with tight clearances
- Refrigeration Compressors: Employed in large industrial chilling and cooling compressor units
- Process Gas Compressors: Deployed in chemical/petrochemical/refining facilities with space constraints
- Small Steam/Gas Turbines: Ideal for auxiliary turbomachinery with smaller diameter shafts
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Connector Type: Employs ClickLoc gold-plated brass connectors that lock into place to prevent loosening.
Connection Steps: No specialized crimping or torque tools are required. Simply align the connectors, push them together, and tighten them completely finger-tight until you hear them "click".
Environment: If routing through a restrictive conduit, ensure you are utilizing male/female connector protectors before threading.
Technical notes
The 330930-065-02-05 supports complete interchangeability within the 3300XL NSv transducer system, eliminating the need to match or bench calibrate individual components when used with 3300XL NSv Proximitor Sensors and 3300NSv probes. The 330930-065-02-05 is part of a system that delivers an Average Scale Factor of 7.87V/mm (200mV/mil), providing accurate and reliable measurements for small target applications such as measuring radial vibration on shafts smaller than 51mm (2in) or axial position on flat targets smaller than 15mm (0.6in).
FAQs
-
What is the 330930-065-02-05?
+The Bently Nevada 330930-065-02-05 is a 3300 XL NSv (Narrow Side View) proximity extension cable. -
What is the purpose of the 330930-065-02-05 cable?
+It acts as an extension between the proximity probe and the Proximitor sensor. It is crucial for transmitting radio frequency (RF) signals between the two without degrading signal accuracy. -
Can I use this cable on standard shafts?
+Yes, but the 3300 XL NSv system is specifically engineered for confined spaces, chemically aggressive environments (like process/refrigeration compressors), and small targets like shafts smaller than 51 mm in diameter. -
Are the connectors waterproof or oilproof?
+The connectors themselves are not sealed against complete submersion in aggressive liquids, although they have environmental protection. The FEP jacket is omitted on this specific variant (
