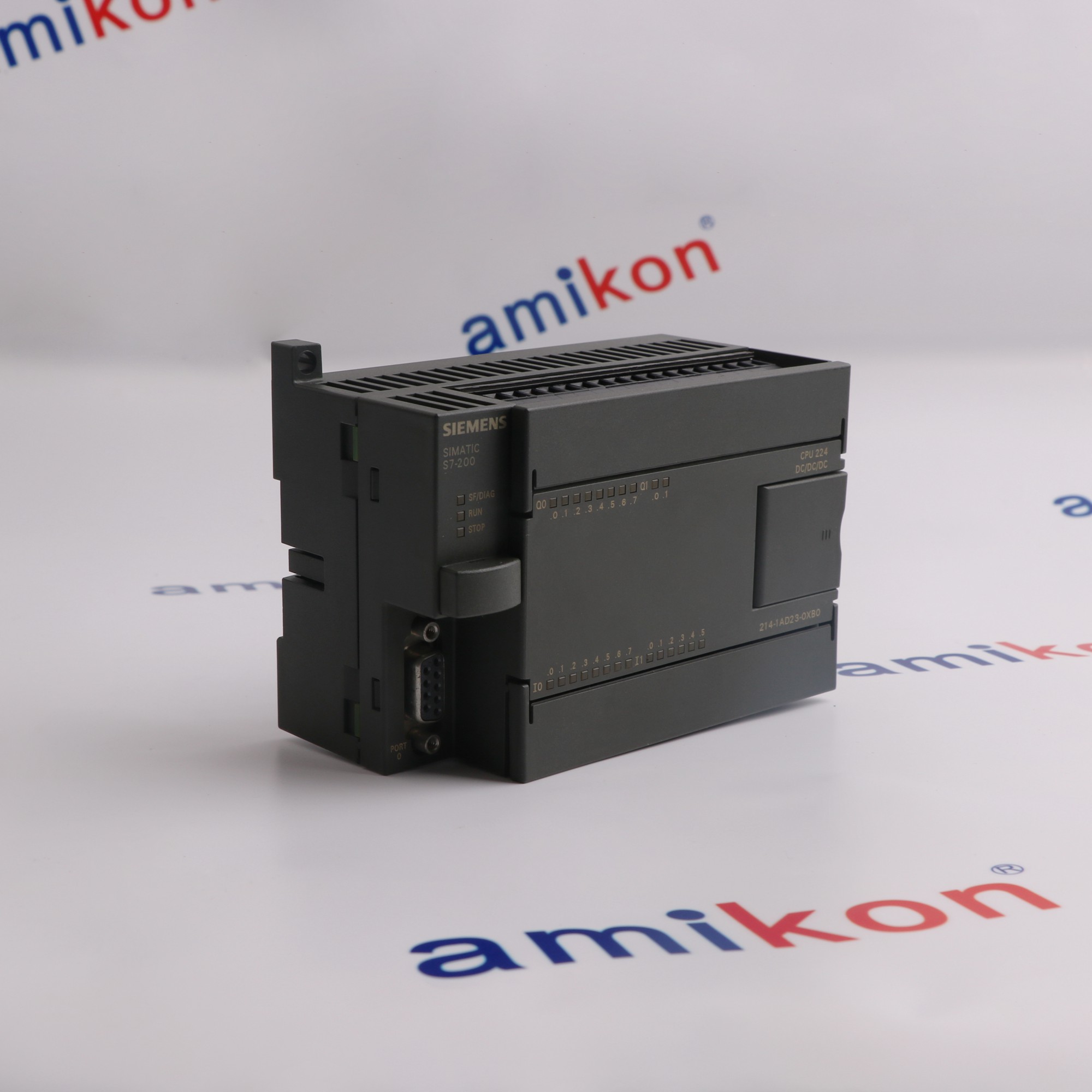

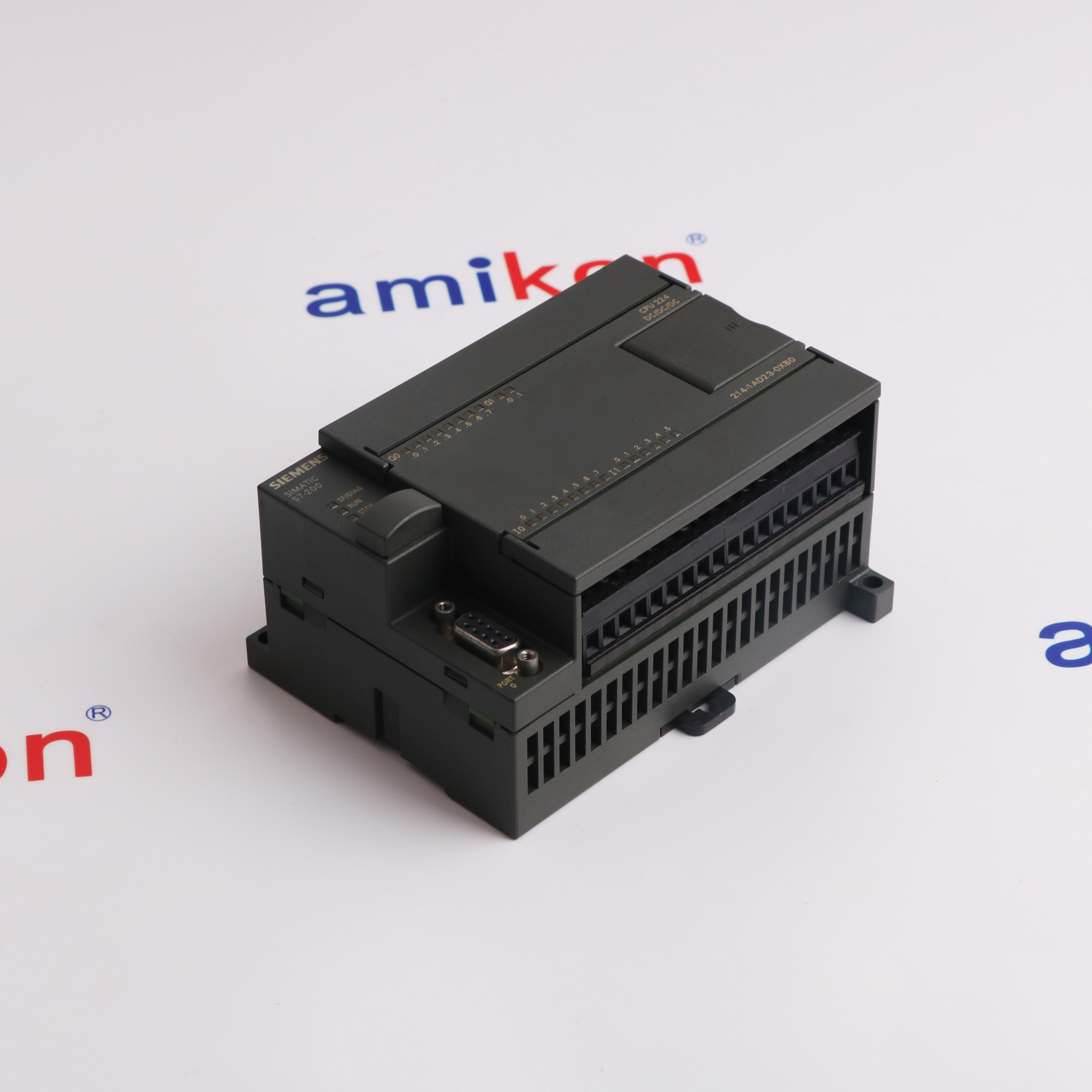

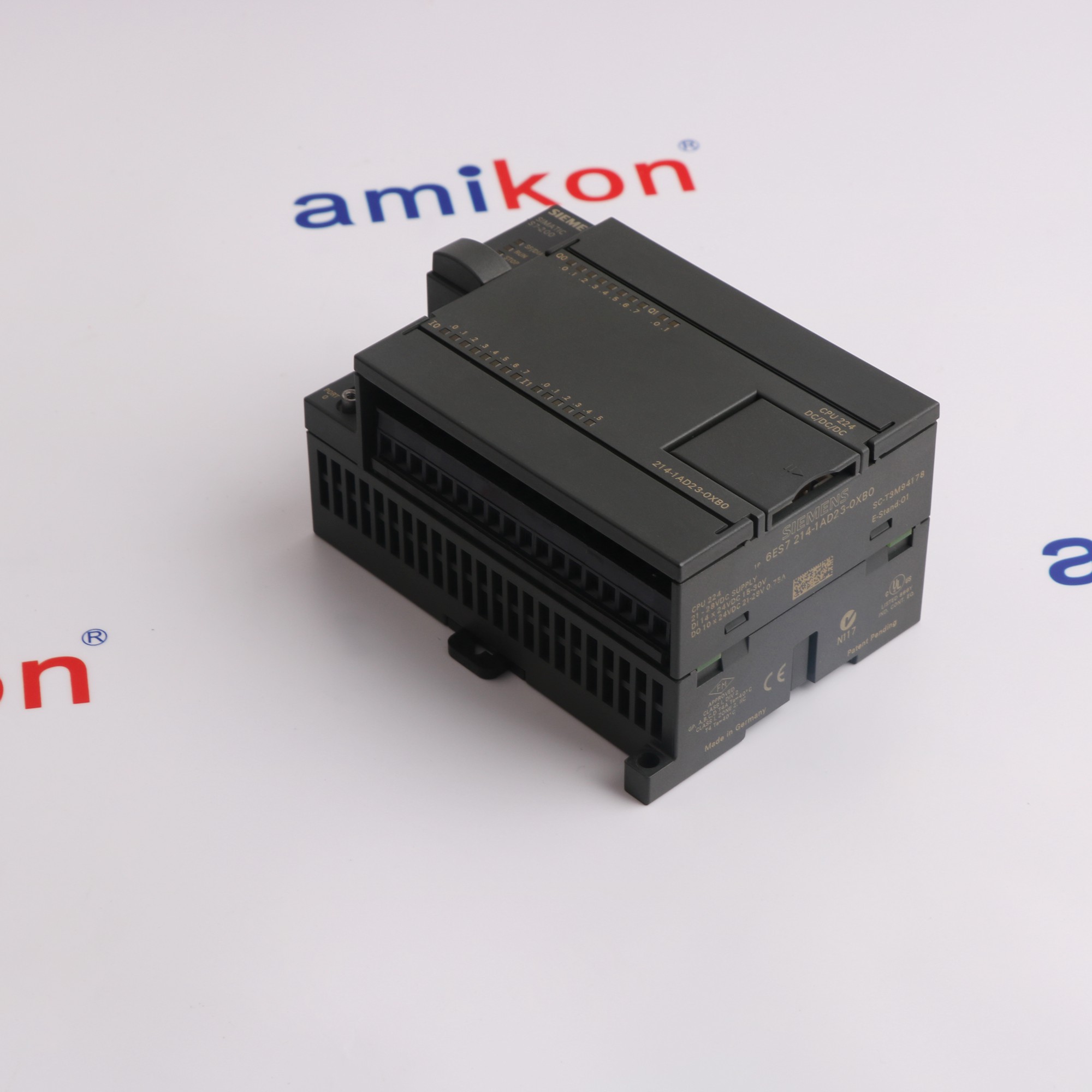

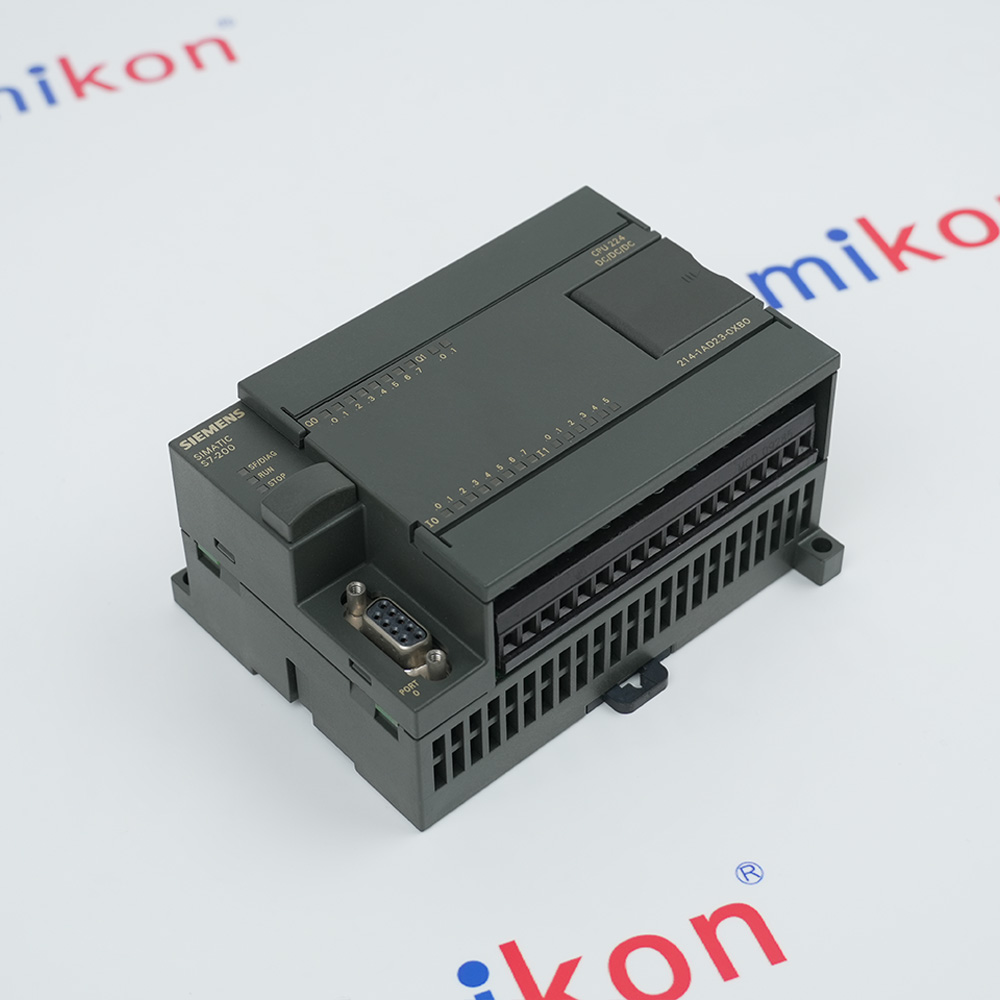

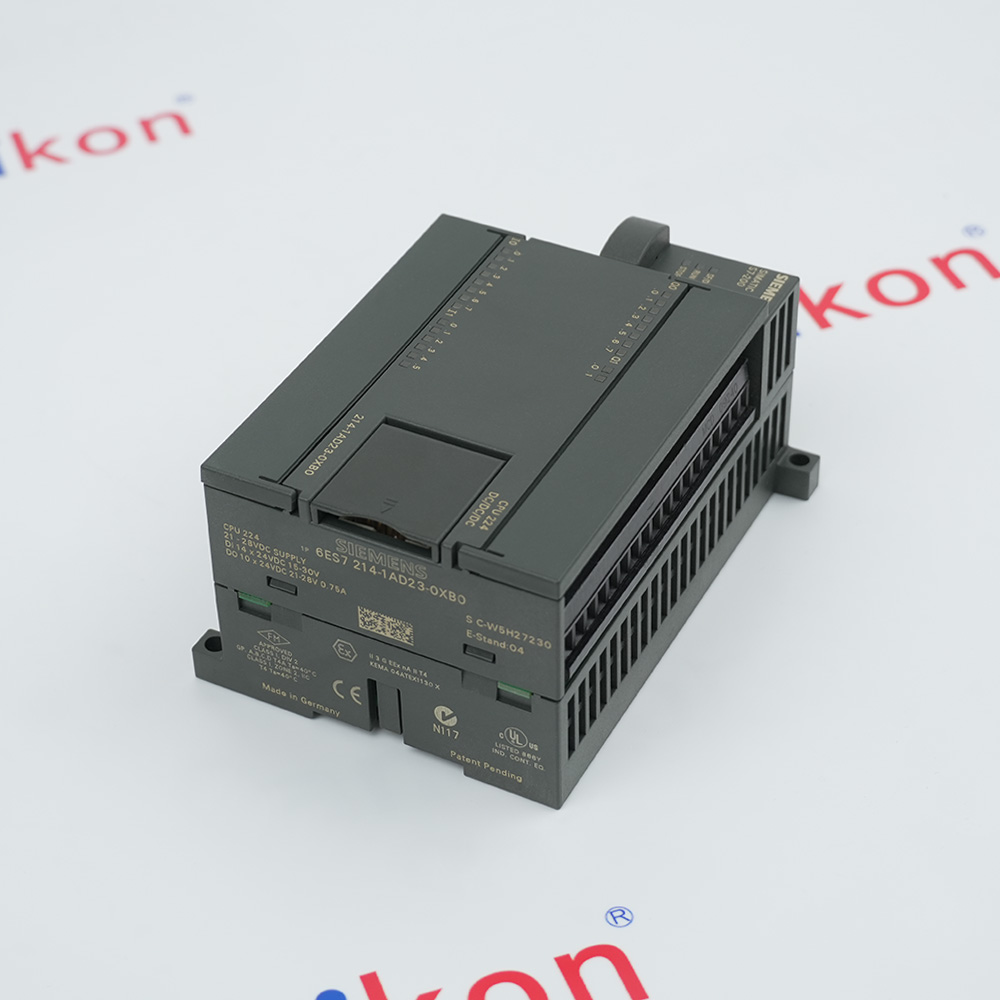

- 6ES7214-1AD23-0XB0
In Stock
Ships by Thursday, July 16
Fast Shipping Available
· Product image is representative; revision or series may vary. Contact us to request a specific version.
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7214-1AD23-0XB0
-
Product Model6ES7214-1AD23-0XB0
-
Product ParametersSIMATIC S7-200, CPU 224, COMPACT UNIT
-
Tariff Code8537101190
-
Country of originGermany
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size12x9.5x6.5cm
-
ManufacturerSiemens
-
Weight0.3 kg
-
Rated value (DC)24 V DC
-
permissible range, lower limit (DC)20.4 V
-
permissible range, upper limit (DC)28.8 V
-
Inrush current, max12 A; at 28.8 V
-
from supply voltage L+, max700 mA
-
Output current, max280 mA
-
integrated (for program)12 kbyte; 8 KB with active run-time edit
-
integrated (for data)8 kbyte
-
for bit operations, max0.22 µs
-
Backup time, max100 h
-
Number, max.32 byte
-
for signal "1", typ2.5 mA
-
Interface type IntegratedRS 485 interface
-
PhysicsRS 485
Description
The SIEMENS 6ES7214-1AD23-0XB0 SIMATIC S7-200, CPU 224, COMPACT UNIT is a compact programmable logic controller for small to medium-scale industrial automation applications. 6ES7214-1AD23-0XB0 serves as the central processing unit within the SIMATIC S7-200 family, executing control logic while managing integrated and expansion I/O modules in real-time.
6ES7214-1AD23-0XB0 is configured as a DC/DC/DC unit, meaning it operates with a 24 V DC power supply, accepts 24 V DC digital inputs, and delivers 24 V DC transistor outputs. The onboard I/O of 6ES7214-1AD23-0XB0 includes 14 digital inputs with sink/source capability per IEC 61131-2 type 1, and 10 digital transistor outputs rated at 0.75 A per channel. The power supply of 6ES7214-1AD23-0XB0 accepts 24 V DC with permissible range of 20.4 V to 28.8 V DC, with a maximum inrush current of 12 A at 28.8 V.
The memory architecture of 6ES7214-1AD23-0XB0 consists of 8 KB or 12 KB of code/program memory and 8 KB of data memory. This memory capacity of 6ES7214-1AD23-0XB0 is suitable for a wide range of automation tasks including sequence control, process monitoring, and data logging. The program memory of 6ES7214-1AD23-0XB0 is stored in non-volatile EEPROM, ensuring retention during power cycles. The data memory of 6ES7214-1AD23-0XB0 includes retentive areas for timers, counters, and flags backed by a supercapacitor or optional battery cartridge.
6ES7214-1AD23-0XB0 is configured as a DC/DC/DC unit, meaning it operates with a 24 V DC power supply, accepts 24 V DC digital inputs, and delivers 24 V DC transistor outputs. The onboard I/O of 6ES7214-1AD23-0XB0 includes 14 digital inputs with sink/source capability per IEC 61131-2 type 1, and 10 digital transistor outputs rated at 0.75 A per channel. The power supply of 6ES7214-1AD23-0XB0 accepts 24 V DC with permissible range of 20.4 V to 28.8 V DC, with a maximum inrush current of 12 A at 28.8 V.
The memory architecture of 6ES7214-1AD23-0XB0 consists of 8 KB or 12 KB of code/program memory and 8 KB of data memory. This memory capacity of 6ES7214-1AD23-0XB0 is suitable for a wide range of automation tasks including sequence control, process monitoring, and data logging. The program memory of 6ES7214-1AD23-0XB0 is stored in non-volatile EEPROM, ensuring retention during power cycles. The data memory of 6ES7214-1AD23-0XB0 includes retentive areas for timers, counters, and flags backed by a supercapacitor or optional battery cartridge.
Alternative Names
6ES7214-1AD23-0XBO
6ES7214-1AD23-0X80
6ES7214-1AD23-OXB0
6ES7214-1ADZ3-0XB0
6ES7214-IAD23-0XB0
6ES72I4-1AD23-0XB0
6ES7Z14-1AD23-0XB0
6ES 7214-1AD23-0XB0
6ES 7214-1AD23-0XBO
6ES 7214-1AD23-OXB0
6ES 7214-1AD23-0X80
6ES 7214-1ADZ3-0XB0
6ES 7214-IAD23-0XB0
6ES 72I4-1AD23-0XB0
6ES 7Z14-1AD23-0XB0
6ES72141AD230XB0
Information
Overview
Manuals
Application Notes
Product Applications
Physical Insertion & Mounting
Features:
- DC Power Supply with 14 Digital Inputs and 10 Digital Outputs
- 8/12 KB Program Memory and 8 KB Data Memory
- PROFIBUS DP Extendable Architecture
- 24 V DC Encoder Supply with Short-Circuit Protection
For communication, 6ES7214-1AD23-0XB0 integrates an RS-485 interface supporting PPI (Point-to-Point Interface), MPI (Multi-Point Interface) slave, and Freeport protocols. The PPI protocol of 6ES7214-1AD23-0XB0 enables communication with programming devices, operator panels, and other S7-200 CPUs. The Freeport mode of 6ES7214-1AD23-0XB0 allows custom serial communication with third-party devices. Additionally, 6ES7214-1AD23-0XB0 is PROFIBUS DP extendable, meaning it can connect to PROFIBUS DP networks via the EM 277 PROFIBUS DP module for distributed I/O and master-slave communication.
The 6ES7214-1AD23-0XB0 Siemens SIMATIC S7-200, CPU 224, COMPACT UNIT may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7214-1AD23-0XB0 SIMATIC S7-200, CPU 224, COMPACT UNIT Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Processing performance is characterized by a 0.22 µs bit execution time, making it suitable for fast logic operations. The CPU includes 6 high-speed counters capable of 30 kHz operation and 2 pulse outputs at 20 kHz for stepper motor control and pulse-width modulation applications. Up to 8 independent PID control loops are supported.
Communication is handled by a single RS-485 serial port supporting PPI (Point-to-Point Interface), MPI (Multi-Point Interface) slave mode, Freeport (user-configurable ASCII protocol), and Modbus Master/Slave protocols. Maximum baud rates are 187.5 kbaud for PPI/MPI and 115.2 kbaud for Freeport. PROFIBUS DP connectivity is extendable via the EM 277 DP module.
The CPU supports up to 7 expansion modules from the S7-22x series, enabling expansion to 168 total digital I/O points (94 inputs + 74 outputs) or 35 analog I/O points (28 inputs + 7 outputs). AS-Interface networks can be integrated via the CP 243-2 module for up to 62 I/O points.
- Automotive Manufacturing: Keeps robotic lines, welding controls, and conveyors operational to prevent stoppages
- Process/Chemical Plants: Secures PCS 7 systems, field sensors, and emergency valves for continuous safety
- Water/Wastewater: Supplies fail-safe power to telemetry units, dosing controllers, and pumping stations
- Food/Beverage: Safeguards packaging equipment and mixing controls to avoid product spoilage
- Building Automation: Integrates into cabinets managing ventilation, security, and monitoring hardware
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
DIN Rail Mounting: Snap the CPU onto a standard 35mm DIN rail. Ensure the plastic DIN clip on the back of the unit clicks firmly into place.
Panel Mounting: Pull the integrated DIN rail clips outward to reveal the mounting screw holes. Secure the unit directly to the backplate using M4 screws.
Orientation: Mount the unit horizontally. Vertical mounting reduces the ambient temperature limit due to compromised airflow.
Clearance: Maintain at least 50mm of open space above and below the module for natural convection cooling.
Expansion Modules: To insert expansion modules, open the side door on the right of the CPU and plug the ribbon cable into the expansion bus. Up to 7 expansion units can be added.
Technical notes
6ES7214-1AD23-0XB0 includes a hardware real-time clock with typical backup time of 100 hours using the supercapacitor, extendable with an optional battery cartridge. The operating temperature range of 6ES7214-1AD23-0XB0 is -25°C to +60°C, with all inputs simultaneously controllable up to +55°C. The storage and transport temperature range is -40°C to +70°C. 6ES7214-1AD23-0XB0 carries IP20 degree of protection, making it suitable for installation in enclosed control cabinets.
FAQs
-
What is the 6ES7214-1AD23-0XB0?
+The Siemens 6ES7214-1AD23-0XB0 is a discontinued SIMATIC S7-200 CPU 224 compact PLC featuring a DC power supply, 14 DC digital inputs, and 10 DC digital outputs. -
What software is required to program this CPU?
+Programming this legacy PLC requires STEP 7-Micro/WIN, typically version 4.0 or higher. Note that modern TIA Portal software does not natively support the older S7-200 series. -
What software is used to program this CPU?
+You must use STEP 7-Micro/WIN (typically version 4.0 or later). Modern TIA Portal does not natively support the legacy S7-200 lineup. -
What are the basic IO and power specifications?
+It operates on a 24 V DC power supply (permissible range: 20.4V to 28.8V) and features 14 DC digital inputs alongside 10 DC digital outputs.
