- 6ES7193-4CC20-0AA0
In Stock
Ships by Sunday, June 28
Fast Shipping Available
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7193-4CC20-0AA0
-
Product Model6ES7193-4CC20-0AA0
-
Product ParametersSIMATIC DP, Terminal module
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size15.6x3.6x4.4cm
-
ManufacturerSiemens
-
Weight0.16 kg
-
Product FamilySIMATIC DP
-
Product TypeTerminal Module
-
Compatible SystemET 200S Distributed I/O System
-
Connection TypeScrew Terminals
-
Terminal Configuration2 × 3 Terminal Connections
-
Auxiliary ConnectionAUX1 Terminal Access
Description

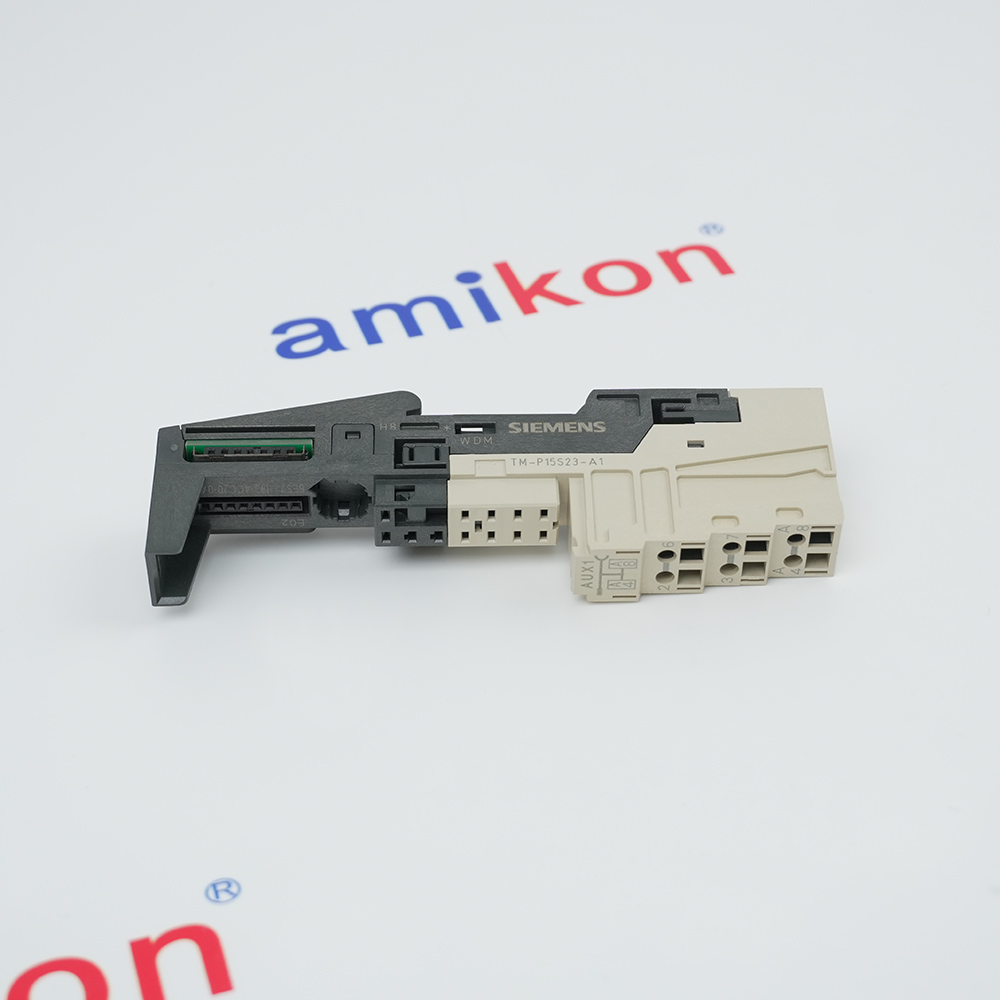

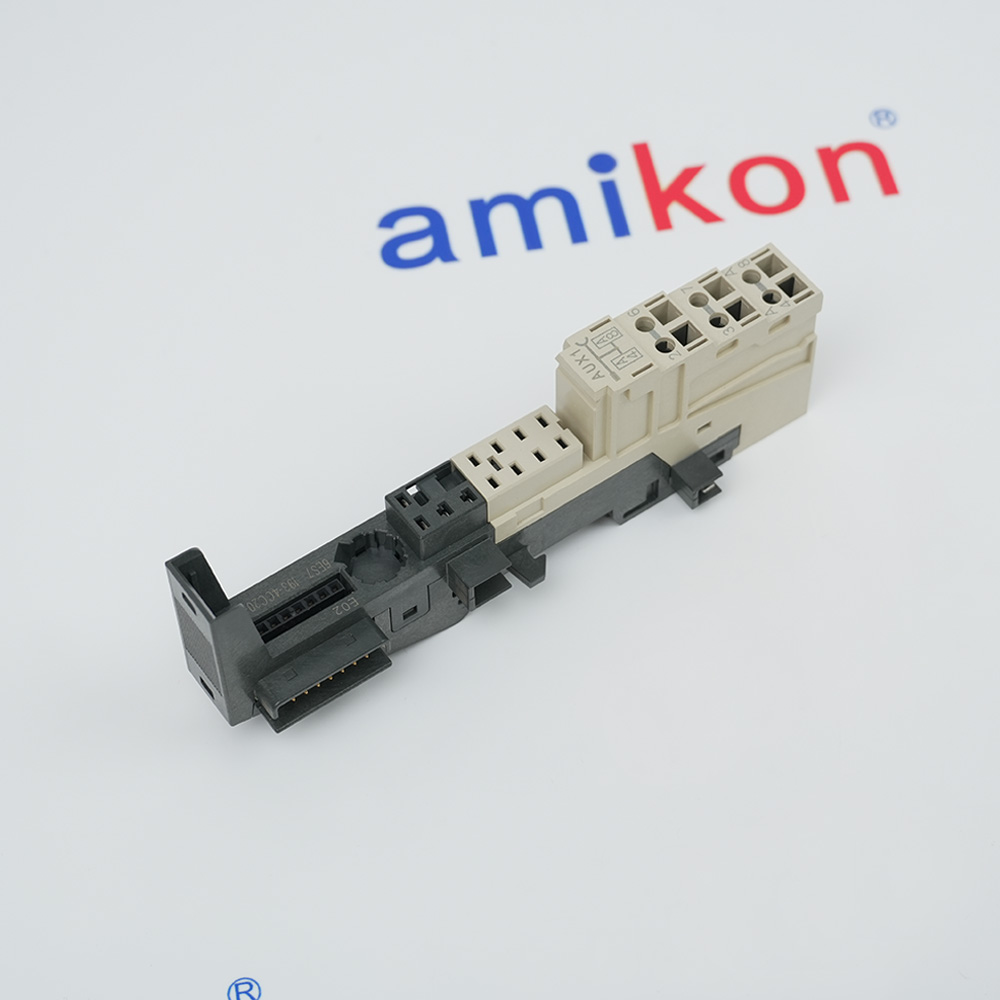

The Siemens 6ES7193-4CC20-0AA0 is a SIMATIC DP terminal module designed for use within the ET 200S distributed I/O platform. Designated as TM-P15S23-A1, the module serves as the wiring and mounting base for ET 200S power modules, providing secure field wiring connections and reliable power distribution throughout the station.
A key characteristic of the 6ES7193-4CC20-0AA0 is its integrated AUX1 continuous connection. The AUX1 bus is passed through the terminal module, allowing auxiliary power distribution to continue across adjacent ET 200S modules without interruption. This simplifies panel wiring and supports organized power distribution within distributed I/O stations.
A key characteristic of the 6ES7193-4CC20-0AA0 is its integrated AUX1 continuous connection. The AUX1 bus is passed through the terminal module, allowing auxiliary power distribution to continue across adjacent ET 200S modules without interruption. This simplifies panel wiring and supports organized power distribution within distributed I/O stations.
Alternative Names
6ES7193 4CC20 0AA0
6ES7193-4CC2O-OAAO
6ES7193 4CC2O OAAO
6ES7I93-4CC20-0AA0
6ES7I93 4CC20 0AA0
6ES7 193-4CC20-0AA0
6ES7 I93-4CC20-0AA0
6ES7 193-4CC2O-OAAO
6ES7 I93 4CC2O OAAO
Information
Overview
Manuals
Application Notes
Product Applications
Mechanical Mounting Steps
Features:
- Terminal module for ET 200S power modules
- 15mm compact width
- Screw-type terminals (2×3 terminal connections)
- Compatible with ET 200S power modules
- Continuous AUX1 power distribution
The module is designated TM-P15S23-A1, indicating a terminal module for power modules with 15 mm width, screw terminals, 2 × 3 terminal connections, and A1 keying position. The terminal arrangement provides two rows of three screw terminals each, with integrated terminal access to the AUX1 auxiliary potential bus. The AUX1 bus maintains electrical continuity across the module, allowing uninterrupted distribution of auxiliary potential to adjacent modules in the ET 200S station.
The 6ES7193-4CC20-0AA0 Siemens SIMATIC DP, Terminal module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7193-4CC20-0AA0 SIMATIC DP, Terminal module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
Environmental specifications comply with SIMATIC industrial standards. The module operates from 0°C to +60°C in horizontal mounting orientation and 0°C to +40°C in vertical mounting orientation. Storage temperature ranges from –40°C to +70°C. Relative humidity tolerance is 5% to 95% in non-condensing conditions. The IP20 protection rating designates it for indoor control cabinet installation. Vibration and shock resistance comply with IEC 61131-2.
- Automotive Production Lines:Conveyors, robot feedback & pneumatic islands
- Factory Automation & Machine Tools:CNC, sorting & assembly: localized I/O hub
- Process Control & Logistics:Water/chemical/baggage: distributed sensory
- Marine & Maritime Equipment:DNV/ClassNK/RINA: ship & offshore terminal boxes
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mount on standard rail: Hang the module onto a 35mm x 7.5mm or 15mm DIN rail.Snap into place: Pivot the module downward until the slide latch securely clicks onto the rail.
Slide into sequence: Push the terminal module horizontally to the left until it firmly clicks into the preceding module.
Side-by-side spacing: No clearance is required between ET 200S modules. Maintain a 20mm clearance above and below the entire rail configuration for airflow.
Technical notes
Environmental specifications comply with SIMATIC industrial standards. The module operates from 0°C to +60°C in horizontal mounting orientation and 0°C to +40°C in vertical mounting orientation. Storage temperature ranges from –40°C to +70°C. Relative humidity tolerance is 5% to 95% in non-condensing conditions. The IP20 protection rating designates it for indoor control cabinet installation. Vibration and shock resistance comply with IEC 61131-2.
FAQs
-
What is the 6ES7193-4CC20-0AA0?
+The Siemens 6ES7193-4CC20-0AA0 is a SIMATIC DP Terminal Module (TM-P15S23-A1) for the ET 200S distributed I/O system. -
What is the function of this terminal module?
+The 6ES7193-4CC20-0AA0 serves as a mechanical and electrical base/carrier for ET 200S power modules. It provides 2 × 3 terminal connections and allows for routing and continuous access to the AUX1 potential bus. -
What is the difference between 6ES7193-4CC20-0AA0 and 6ES7193-4CC20-1AA0?
+These two part numbers designate the exact same core product (TM-P15S23-A1). The variation typically comes down to the packaging standard or the specific vendor/distributor logistics unit (e.g., whether it is packaged individually or in a larger box). -
What is the AUX1 connection used for on this terminal module?
+The AUX1 rail or busbar runs continuously along the mounting rail and is typically used to distribute a common potential (such as a 24V DC ground or another voltage supply) across multiple ET 200S modules without requiring repeated external wiring.
