- 6ES7513-1AL02-0AB0

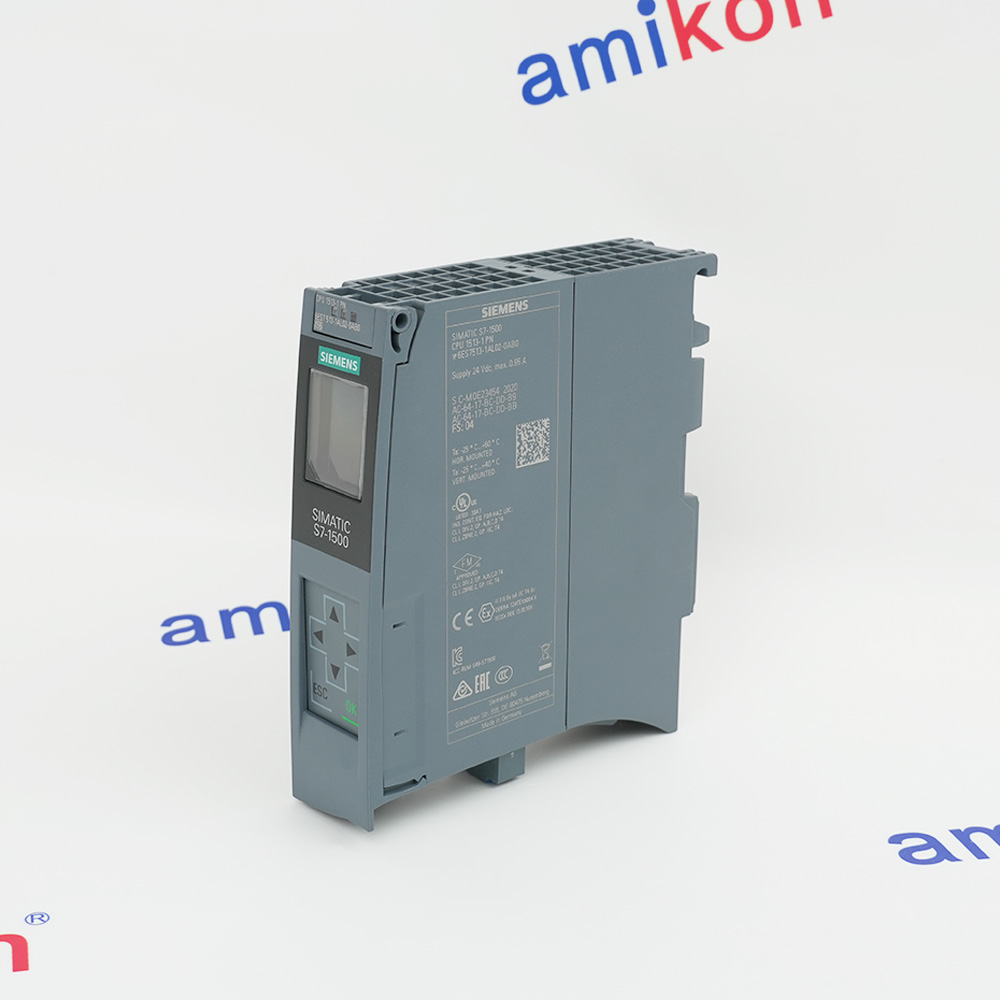

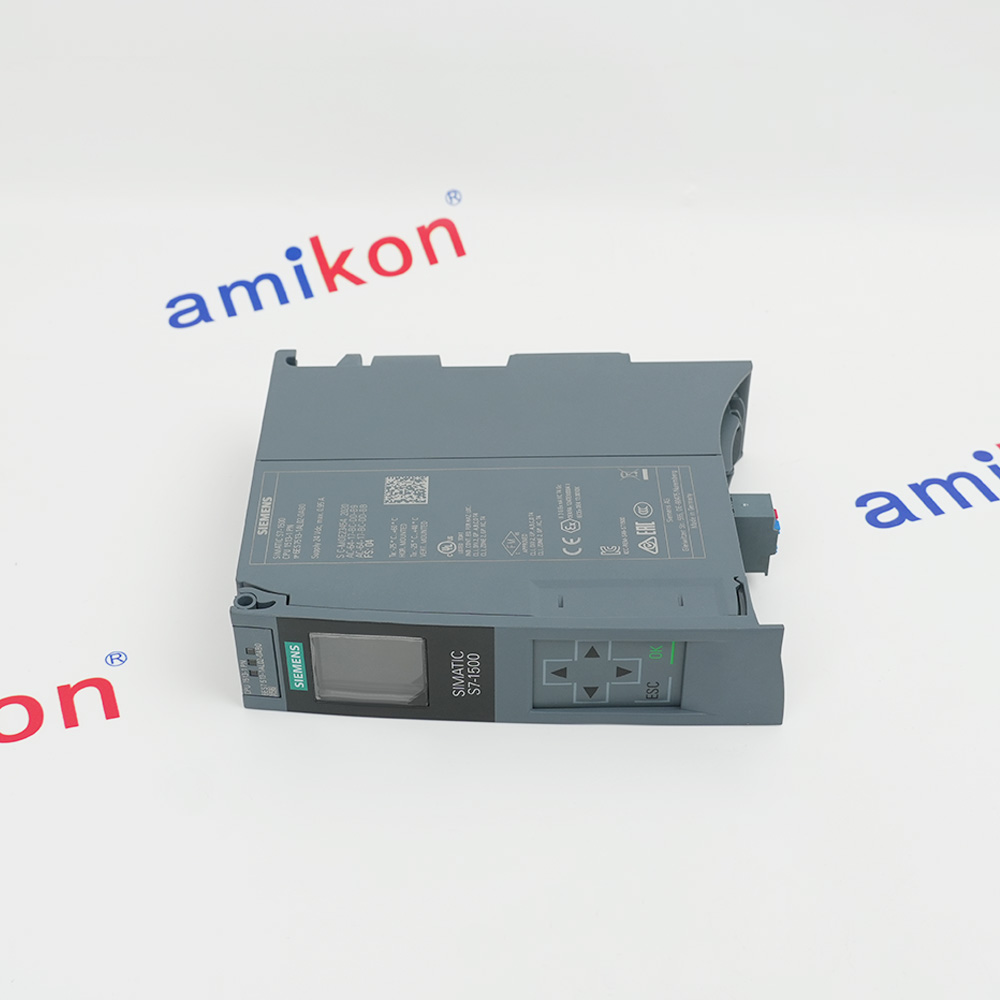

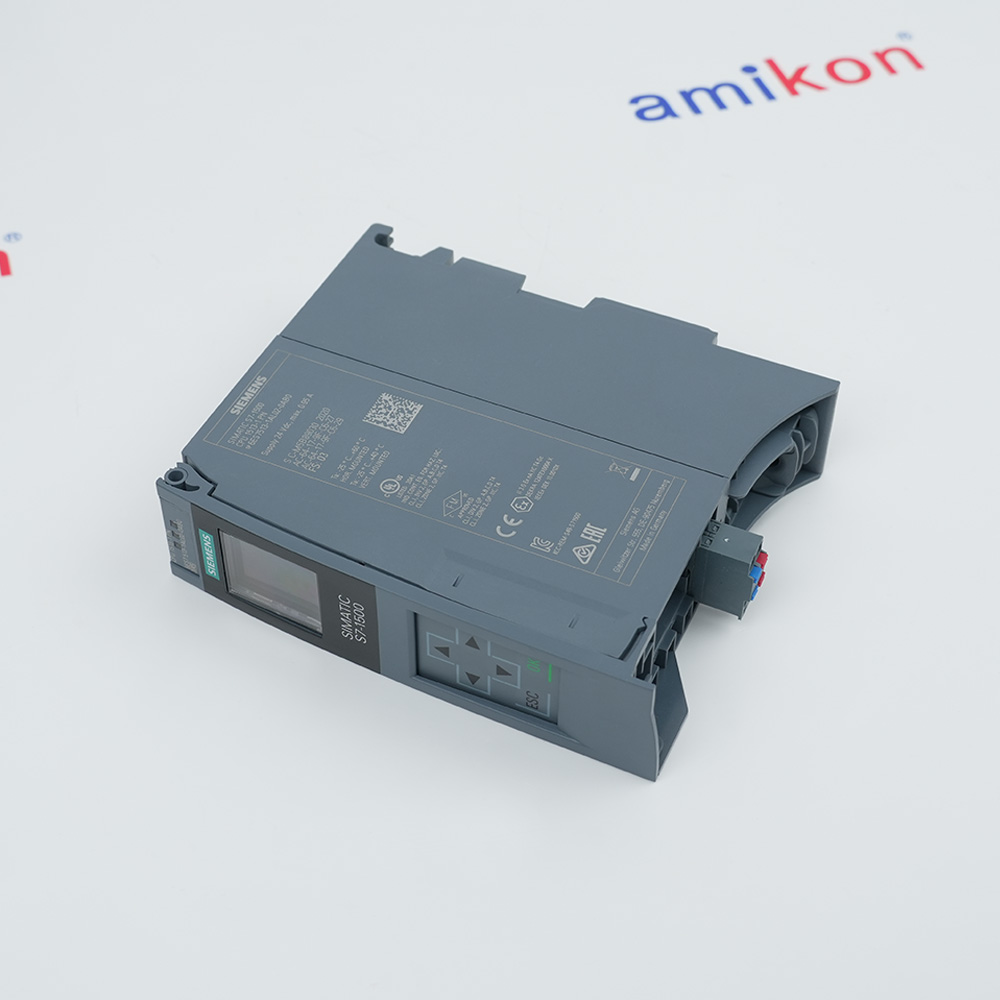

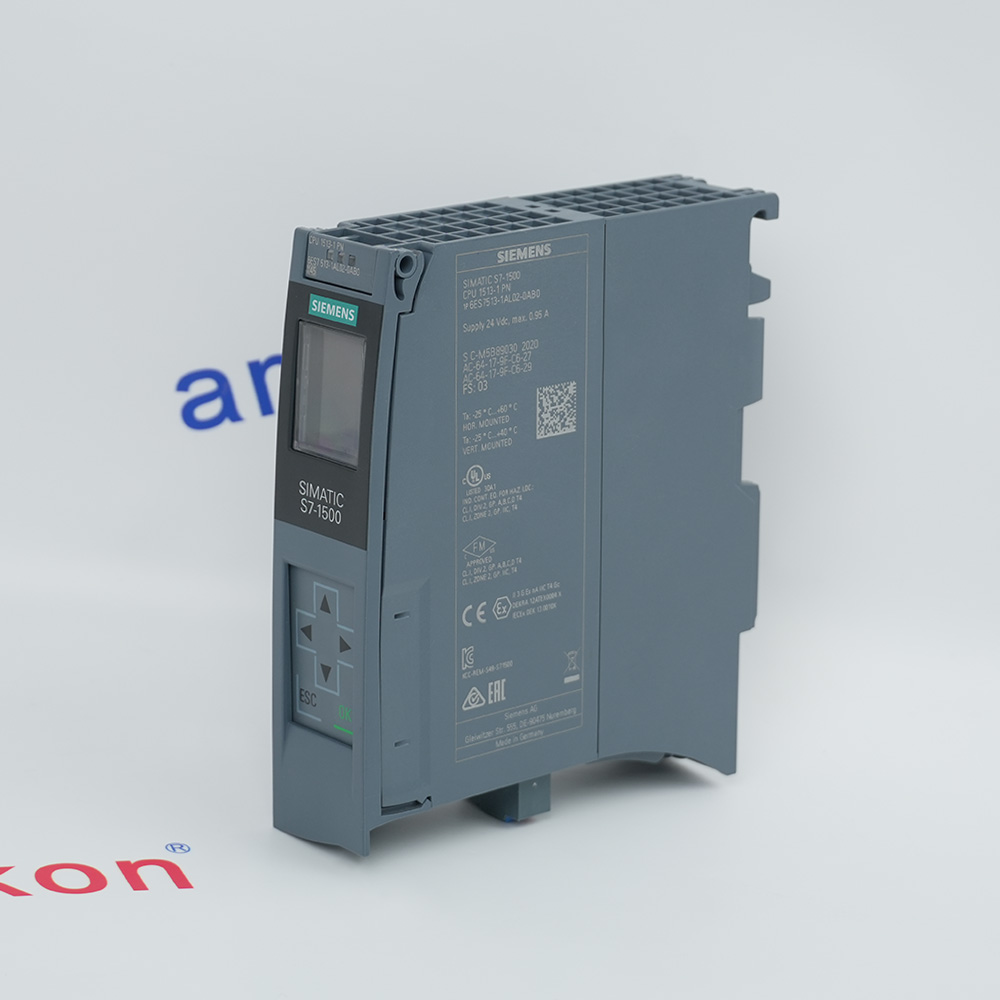

· Product image is representative; revision or series may vary. Contact us to request a specific version.
Require for Quote:
Need more help? You may also find the answer in our FAQ section
We provide 1 year warranty for all remaining parts.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
The warranty period is one year from the date of shipment, unless otherwise stated in the parts description. We guarantee that the project will not exhibit functional defects that may occur under normal operating conditions during the warranty period.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
In the event of a defect, we will send new equipment, repair equipment or refund the purchase price based on our availability. You must contact us to obtain a return authorization and return the defective device to us within 14 days of reporting the defect.
We have been working hard to update our inventory. If we have stock or parts available for new factory purchases, you can contact the order online.
If we do not currently have an inventory, the displayed quantity will show "Ask". Please create an online quote or contact us by phone, fax or email to check availability.
Amikon offers a wide range of components, products and services related to industrial automation. We have a large surplus of stocks and are also distributors of new products from a variety of quality manufacturers.
Technical specifications for 6ES7513-1AL02-0AB0
-
Product Model6ES7513-1AL02-0AB0
-
Spare Model6ES7 513-1AL02-0AB0
-
Product ParametersCPU UNIT
-
Tariff Code8537101190
-
Country of originGERMANY
-
Place of shipmentXiamen, China
-
Estimated Shipping Size3.5x12.8x14.6cm
-
ManufacturerSiemens
-
Weight0.4 kg
-
Product type designationCPU 1513-1 PN
-
HW functional statusFS03
-
Firmware versionV2.9
-
Rated value (DC)24 V
-
permissible range, lower limit (DC)19.2 V
-
permissible range, upper limit (DC)28.8 V
-
Current consumption (rated value)0.7 A
-
Current consumption, max.0.95 A
-
Inrush current, max.1.9 A; Rated value
-
Power loss, typ5.7 W
Description
CPU UNIT
1513-1 PN
SIMATIC S7-1500
1.9 AMP
24 VDC
300 KB
1.5 MB
PROFINET IRT W/ 2 PORT SWITCH
40 NS BIT-PERFORMANCE
-40 TO +70 DEGREES C
IPV4
1513-1 PN
SIMATIC S7-1500
1.9 AMP
24 VDC
300 KB
1.5 MB
PROFINET IRT W/ 2 PORT SWITCH
40 NS BIT-PERFORMANCE
-40 TO +70 DEGREES C
IPV4
Information
Overview
Manuals
Technical notes
Product Applications
Mechanical Installation
Features:
- Integrated PROFINET Interface
- Optimized Memory Capacity
- Integrated Display for Diagnostics
- Advanced Motion Control
The 6ES7513-1AL02-0AB0 Siemens CPU MODULE may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Siemens 6ES7513-1AL02-0AB0 CPU MODULE Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
A standout characteristic of the CPU 1513-1 PN is its native support for advanced networking and diagnostic capabilities. The integrated PROFINET interface acts as a 2-port switch, allowing for flexible linear or ring network topologies without the need for additional hardware. Furthermore, the unit’s integrated display provides a unique hardware-level interface for field technicians, enabling them to perform basic configuration and error analysis directly on the module.
- Automotive Engineering:Sub-assembly, powertrain & body-in-white lines
- Food & Beverage Plants:Syrup/dosing/mixing: hygienic control for soft drinks
- Textile and Fashion Manufacturing:High-speed spinning, weaving & knitting machines
- Electrical and Electronics Factories:Testing benches & high-speed consumer electronics assembly
- Water & Wastewater Treatment:Filtration skids & chemical dosing in industrial treatment
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Mounting: The CPU is designed to mount onto a 35mm DIN rail (or a standard S7-1500 mounting rail).Position: Install on the rail with the power supply module to the left and I/O modules to the right, maintaining minimum clearance for ventilation.Assembly: Lock the module in place using the screws on the bottom of the module.
FAQs
-
What is the 6ES7513-1AL02-0AB0?
+The Siemens SIMATIC S7-1500 CPU 1513-1 PN (6ES7513-1AL02-0AB0) is a central processing unit for mid-range automation applications, featuring integrated PROFINET interface and robust memory. -
Can I use this to replace a S7-300 PLC?
+Yes, it is a common upgrade for S7-300 systems, but it is not a direct drop-in replacement. It requires engineering changes in TIA Portal and new wiring. -
What is the memory capacity of 6ES7513-1AL02-0AB0?
+It has 300 KB of program working memory and 1.5 MB of data memory. -
What is the maximum expansion capability of 6ES7513-1AL02-0AB0?
+It supports up to 64 modules (digital/analog I/O, communication, etc.) via the backplane bus.
