ICS Triplex

Analog Input Module

System Supply Voltage Range : 20 to 32V dc
Number of Inputs : 40 Channels
User Defined Thresholds : 4-off
Input Current Range : 0-22mA
Input Voltage Range : 0-6 Vdc
Sample Update Time : 0.5ms
Resolution : 3.9uA (1/256mA)
Event Resolution : 1ms
Time-stamp Accuracy : ±0.5 ms
Field Common Isolation
Sustained Working : ±250V dc

Analogue output module, 8 channel, isolated

Module Type: Analog Output Module
Input Voltage: 24 V DC
Channels: 8 Channels
Output Signal Range:0–10 V or 4–20 mA

Analogue output TA, 8 channel, simplex isolated

Digital output TA, 24Vdc, 8 channel, simplex, commoned

Backplane expansion cable, 2 metre

Analogue input TA, 16 channel, dual, isolated

T9832 9000 Series
Redundant I/O 16-Channel
Analog Input Module
Termination Assembly
18-32V DC, Dual, Version E

Analogue input module, 16 channel, isolated

T9432
DISCONTINUED BY MANUFACTURER
MODULE ANALOG INPUT 16CH ISOLATED

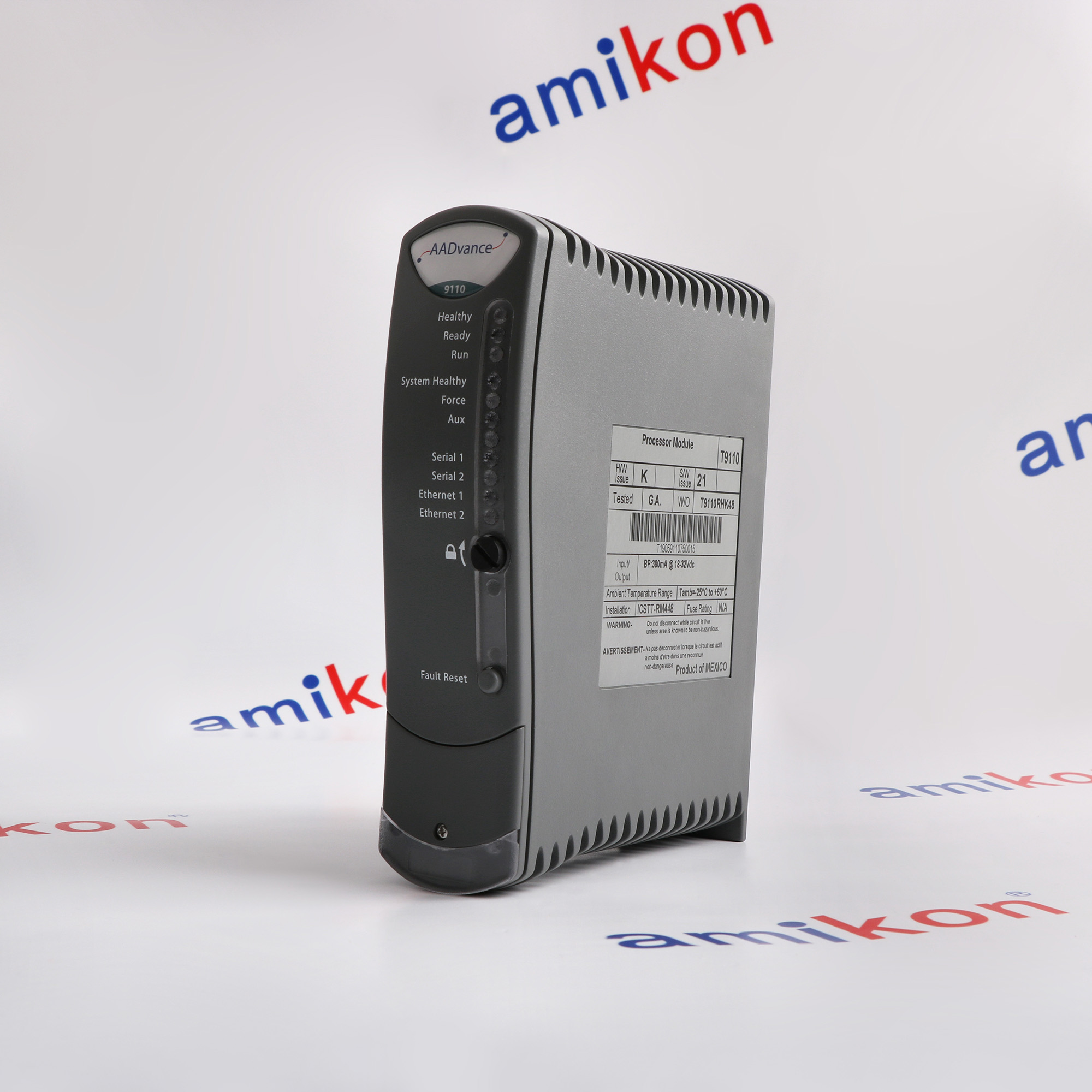

Processor module

Operating Voltage: 24 VDC
Typical: 6 W
Maximum: 6 W
Operating Temperature Range: -20°C to +70°C
Storage Temperature Range: -40°C to +85°C
Humidity: 5% to 95% non-condensing

Trusted TMR Expander Interface

Voltage Range : 20 to 32V dc
Heat Dissipation : 40W
Use with Chassis : T8300
Maximum Load : 40W
Module Clocks : 50MHz
Expander Bus Data Rate : 250Mbps
Manufacturer : ICS Triplex
I/O Interface : Expander Chassis backplane
Operating Temperature : -5°C to 60ºC (13°F to 140°F)
Non-operating Temperature : -25°C to 70ºC (-25°F to 158°F)
Operating Humidity : 5 to 95% RH

Trusted TMR Analogue Output Module

Channels:4 channels
Output Signal:4–20 mA DC
Voltage Option: 0–10V DC
Resolution:16-bit
Accuracy:±0.1% of full scale
Load Compliance:0–750 Ω
Update Rate:100 ms per channel
Isolation:1500V AC
Power Supply:5V DC

Digital output TA, 24Vdc, 8 channel, dual, commoned

T9852
DIGITAL OUTPUT 24VDC 24VDC 8CH DUAL

Digital input TA, 16 channel, dual, isolated

T9802
ALLEN BRADLEY
OIT REPLACEMENT
DIGITAL INPUT TA 16

Digital input module, 24Vdc, 16 channel, isolated
