ICS Triplex

Analog Input Module

Product Type:Analog Input Module
Number of Inputs:8
Input Isolation:Supported
Voltage Type:DC
Input Voltage:0 to 32 Volts DC
Maximum Pollution Degree:Pollution Degree 2
Maximum Operating Temperature:60 degrees Celsius

INPUT MODULE DIGITAL

T9401
INPUT MODULE DIGITAL
24VDC 8-CHANNEL ISOLATED

AADvance Processor Backplane

Modular and scalable system backplane
Supports mixed I/O configurations
Hot-swappable modules
High integrity and availability architecture
Designed for SIL3 safety-critical systems
Robust build for industrial reliability

Trusted CCoat TMR Processor Module

Backplane (IMB) Supply:20 Vdc to 32 Vdc
Power Dissipation:30 W
Maximum Application Size:960 KB
SOE Buffer:1000 events
Operating Temperature:0 °C to 60 °C (+32 °F to +140 °F)
Storage Temperature: -25 °C to 70 °C (-13 °F to +158 °F)

Analog Input Module

System Supply Voltage Range : 20 to 32V dc
Number of Inputs : 40 Channels
User Defined Thresholds : 4-off
Input Current Range : 0-22mA
Input Voltage Range : 0-6 Vdc
Sample Update Time : 0.5ms
Resolution : 3.9uA (1/256mA)
Event Resolution : 1ms
Time-stamp Accuracy : ±0.5 ms
Field Common Isolation
Sustained Working : ±250V dc

Speed Monitor Module

Sensor Supply:24 V DC
Compatible Sensors:3-wire NAMUR
Frequency Range:0.1 Hz … 2 kHz
Speed Range:0 … 6 000 RPM
Resolution:0.01 % ± 2 counts
Accuracy:± 0.2 % of full scale @ 25 °C

Analogue output module, 8 channel, isolated

Module Type: Analog Output Module
Input Voltage: 24 V DC
Channels: 8 Channels
Output Signal Range:0–10 V or 4–20 mA

Analogue output TA, 8 channel, simplex isolated

Digital input TA, 16 channel, simplex, commoned

Digital output TA, 24Vdc, 8 channel, simplex, commoned

Trusted Communication Interface Adapter

Allows easy access for external systems
to communicate with a Trusted System
Easy installation i.e. connects directly to the back of the Trusted Communication Interface.
Two 10/100BaseT connections.
Four RS422/485 connections.
Two RS232 connections

Backplane expansion cable, 2 metre

INPUT MODULE

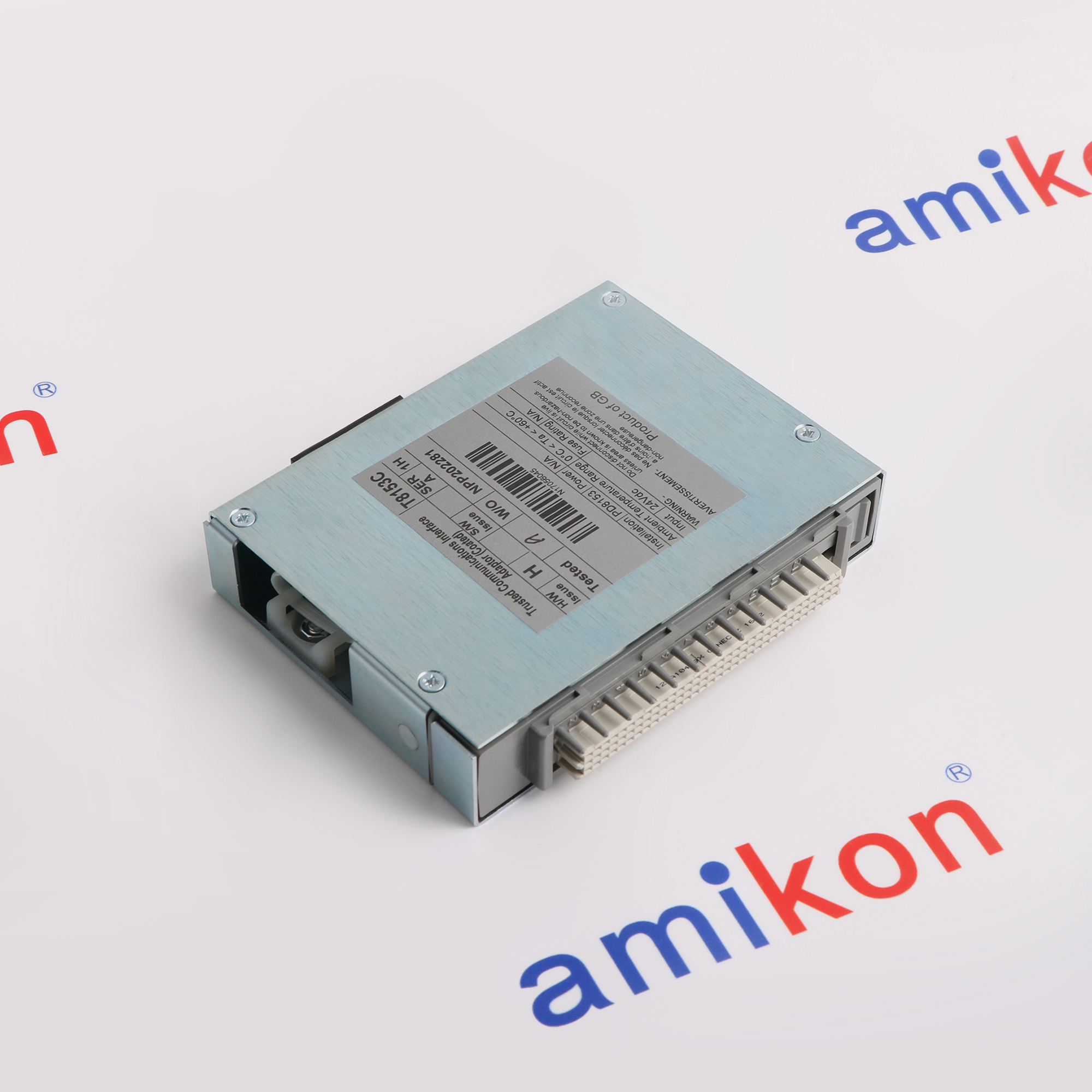

Trusted CCoat TMR 24V 40Ch DI Module
INPUT MODULE
24 VDC
40 CHANNEL
DIGITAL

Power Pack

Voltage: 100–240V AC (auto-ranging), 50/60 Hz.
Current: 10A (max at 100V AC)
Efficiency: ≥90%
Operating Temperature: -20°C to +70°C
Humidity: 5–95% non-condensing

Trusted Expander Processor

Input Voltage: 24 VDC (Nominal)
Current Consumption: Typically 1.5 A
CPU Type: 32-bit microprocessor based
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)

Trusted Expander Module

Input Voltage: 24 VDC
Operating Temperature: Typically 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Humidity: 5% to 95% relative humidity

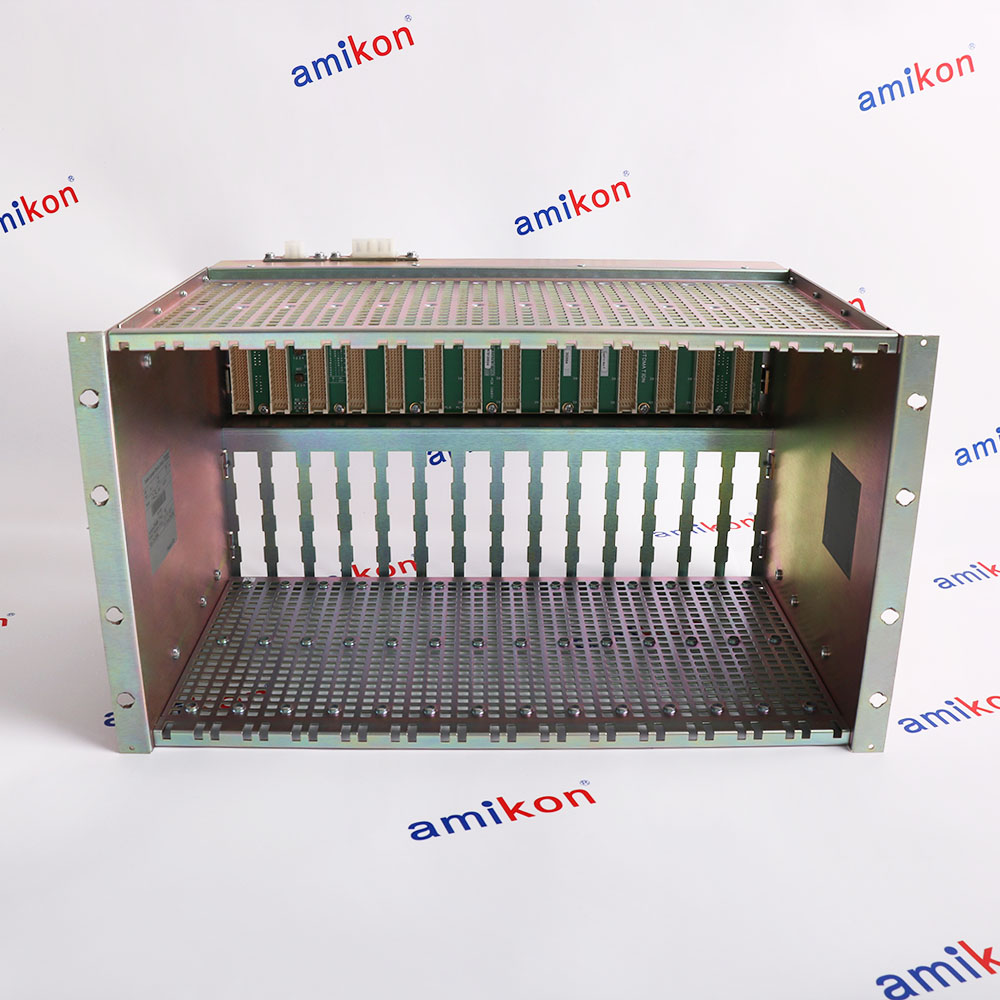

I/O base unit
