ICS Triplex

I/O Transceiver

Analog Input/Output: 4–20 mA
Digital I/O: 24 V DC
Safety Integrity Level (SIL): Certified for SIL 2/SIL 3 per
Environmental Protection: -40°C to +70°C operational
Supply Voltage: 24 V DC (typical)
Isolation: 1500 V isolation

Trusted TMR Analogue Output Module

Current: 4–20 mA
Voltage: 0–10 V, ±10 V
current: 750 ohms
voltage: 10 kΩ
Operating Voltage: 24 V DC (nominal)
Power Consumption: Approximately 4 W per module
Nominal Supply Voltage Range: 20.4 V to 27.6 V DC
Current Consumption: Typically 200 mA

TrustedTM TMR 24/48V dc Digital Output

OUTPUT MODULE 40CHANNEL
DIGITAL 24/48VDC TRUSTED
Output Channels: 16
Output Voltage Range: 5-60V DC
On-State Resistance: <0.5Ω
Off-State Leakage: <10μA
Backplane Power: +5V DC
Field Power: 24V DC nominal

Trusted TMR 24Vdc Analogue Input Module-40 Channel

T8431
ROCKWELL INTL CORP
INPUT MODULE
40CHANNEL
ANALOG
TRUSTED

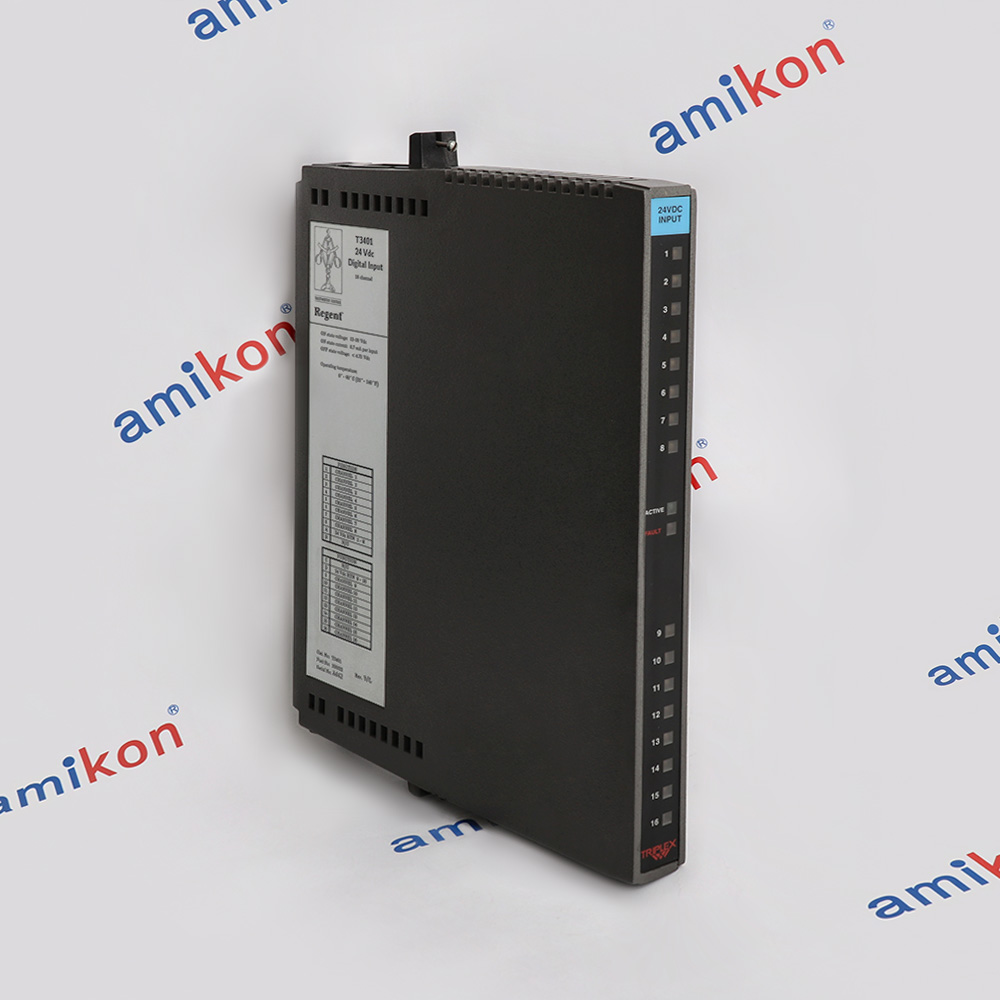

Digital input module, 24Vdc, 16 channel, isolated

Monitored Guarded Output Module

T7481A
DISCONTINUED BY MANUFACTURER
MONITORED GUARDED OUTPUT
