2 or 4 mm measurement range
−40 to 180 °C operating temperature
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition
8 mV/µm or 2.5 µA/µm (2 mm range)
4 mV/µm or 1.25 µA/µm (4 mm range)
−40 to 180 °C, Ø8.2 mm tip, reverse-mount
Voltage at min. GAP : −1.6 V
Voltage at max. GAP : −17.6 V
Dynamic range : 16 V
Output impedance : 500 Ω
Short-circuit current : 45 mA
Output capacitance : 1 nF
Output inductance : 100 µH
Operating : −35 to +85°C
Storage : −40 to +85°C
VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
Operation : −30 to +85 °C
Storage : −40 to +85 °C
Voltage : 18 to 30 VDC
Current : 25 mA (max.)
Transfer without integrator :
0.1 to 10 mV/pC or 0.1 to 10 µA/pC
Transfer with integrator :
981 to 98 100 mV/(pC.s)

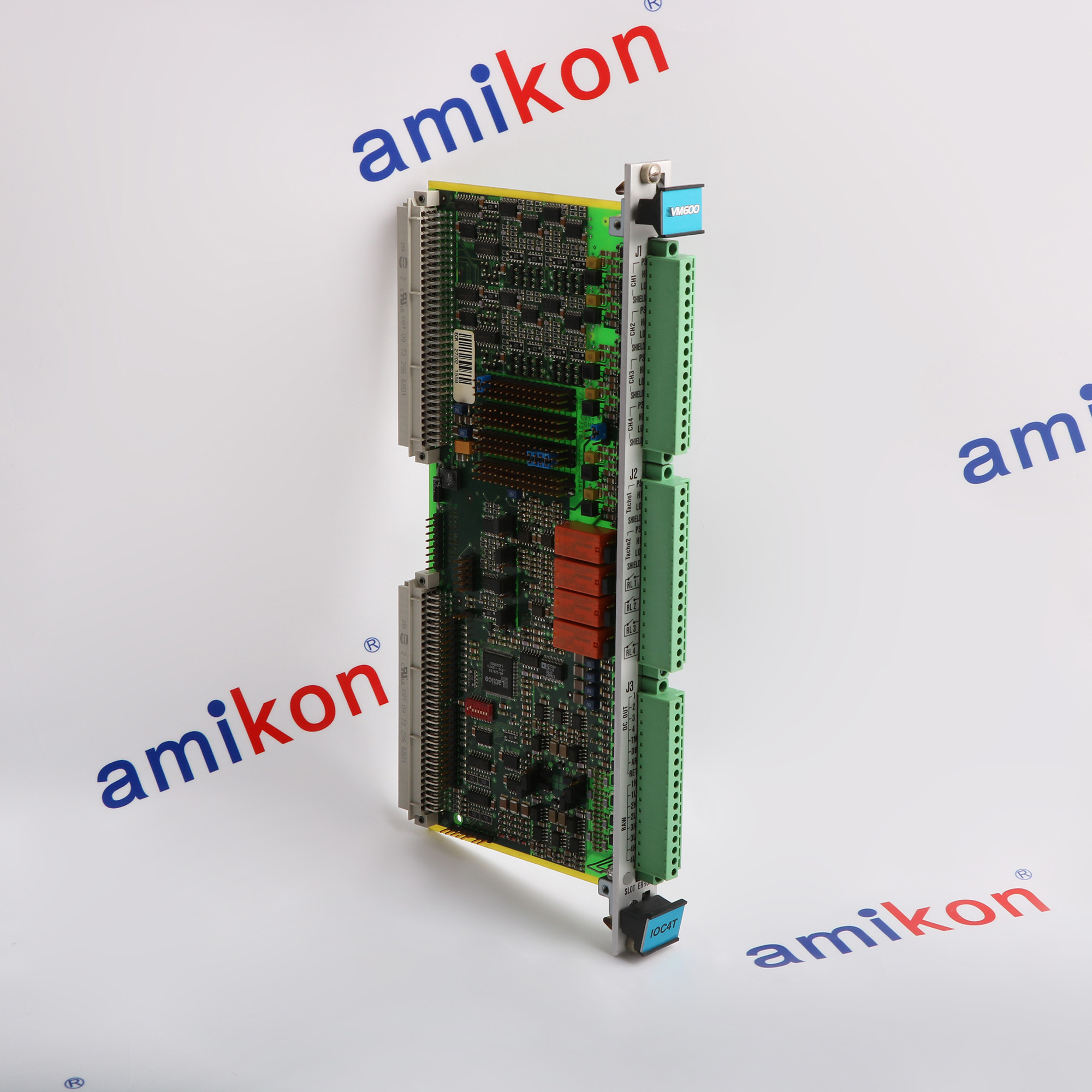

Number of inputs : 4 per MPC4 card
DC range : 0 to +20 V or 0 to −20 V
AC range : ±10 V max.
Common mode voltage range : −50 to +50 V
CMRR : >60 dB at 50 Hz
Crosstalk : −72 dB
Input impedance : 200 kΩ
Current input range
DC signals : 0 to 25 mA
AC signals : ±8 mA max.
Analog frequency range : DC to 60 kHz (−3 dB)
Accuracy: ≤±1.5%
Linear error: ≤±0.5%
Output allowable load: >100 kΩ voltage output.< 325Ω current output.
Characteristics of relay
Trunk name: RL1 to RL4
Rated voltage: 250 VAC
Rated current: 5 AAC
Maximum breaking capacity (no contact protection) : 1250 VA
