02 ¼-28 to M8 x 1.25 Stainless Steel
00 No Approvals
Broadband ElectricalNoise:350 µg
Output Bias Voltage: 8 to 12 VDC
Excitation Voltage:18 to 28 VDC
Constant CurrentExcitation: 2 to 20 mA
Output Type: Analog (Voltage or Current)
Output Range: 0-20 mA,
Channels: 4 channels of output .
Resolution: Typically 16-bit .
Output Accuracy: ±0.1% of full scale
Power Supply: 24 V DC
Current Draw: 200-400 mA .
Operating Temperature: Typically from -20°C to +60°C
+/-10 Vdc I/O : -10 Vdc to +10 Vdc
4-20 mA Barrier I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption:7.0 Watts, typical
Accuracy:Within ±0.33% of full-scaletypical, ±1% maximum
Powerconsumption 7.7 watts, typical
Multimodepositive inputI/O 50 kΩ
Direct filter0.104 Hz to 500 Hz
Rotor speed is 25 to 1,500 cpm.
Gap filter -3 dB at 0.05 Hz
Direct filter -3dB at 1.2 Hz
Local Bus Power:12.6 VDC at 15 A
AmbientTemperature:-40°C to +70°C
Shock :10g ½ Sinewave for 11msec
Vibration:1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing
DIN-Rail mount
Configurable (USB)
Sensor type configurable
System cable length configurable
Measurement range configurable
Configurable sensor target material
Local Bus Power +5 VDC at 1.4 A
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing

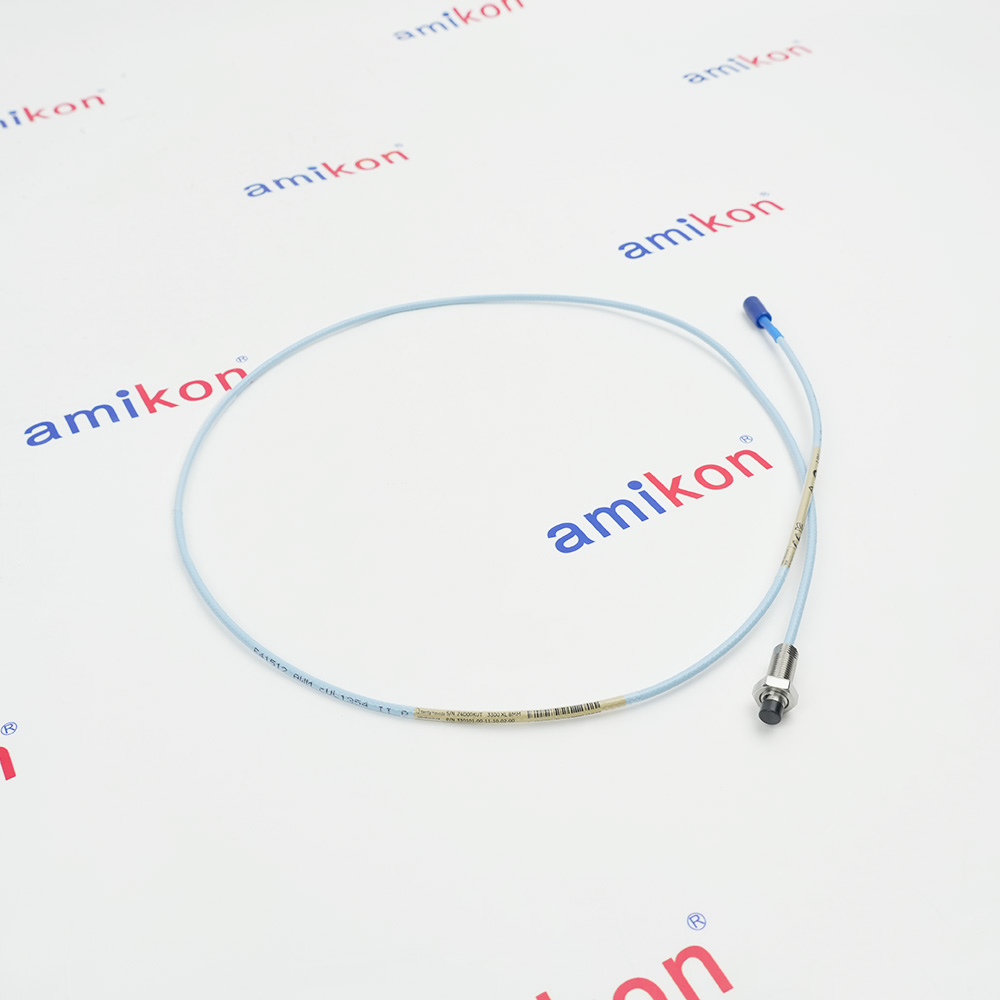

330103 3300 XL 8 mm Probe
M10 x 1 thread,without armor
Minimum unthreaded length: 0 mm
Minimum case length: 100 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
Voltage Rating: Typically 300V AC/DC
Impedance: 50Ω or 100Ω for coaxial cables
Insulation: High-temperature thermoplastic
Temperature Range:
Operating: -40°C to +85°C (-40°F to +185°F).
Storage: -50°C to +105°C.
Systems: Designed for Bently Nevada 3500 Series
