330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum case length: 2.0 in
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
05 CSA, ATEX, IECEx Approvals
330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length:150 mm
Maximum case length: 250 mm
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required
0 2 M8 X 1 integral stud
Sensitivity:10.2 mV/m/s2 (100 mV/g) ±5%.
AmplitudeLinearity:±1% to 490 m/ s2 (50 g) peak
FrequencyResponse:10 Hz to 15 kHz
Amplitude ofResonantPeak:20 dB maximum
0 2 M8 X 1 integral stud
Sensitivity:10.2 mV/m/s2 (100 mV/g) ±5%.
AmplitudeLinearity:±1% to 490 m/ s2 (50 g) peak
FrequencyResponse:10 Hz to 15 kHz
Amplitude ofResonantPeak:20 dB maximum
Stainless steel armor overshielded
0.382 mm2 (22 AWG)cable
with a moistureresistant female
connector atthe transducer end
and ringlugs at the monitor end
Temperature range -29 to121°C (-20 to 250°F)

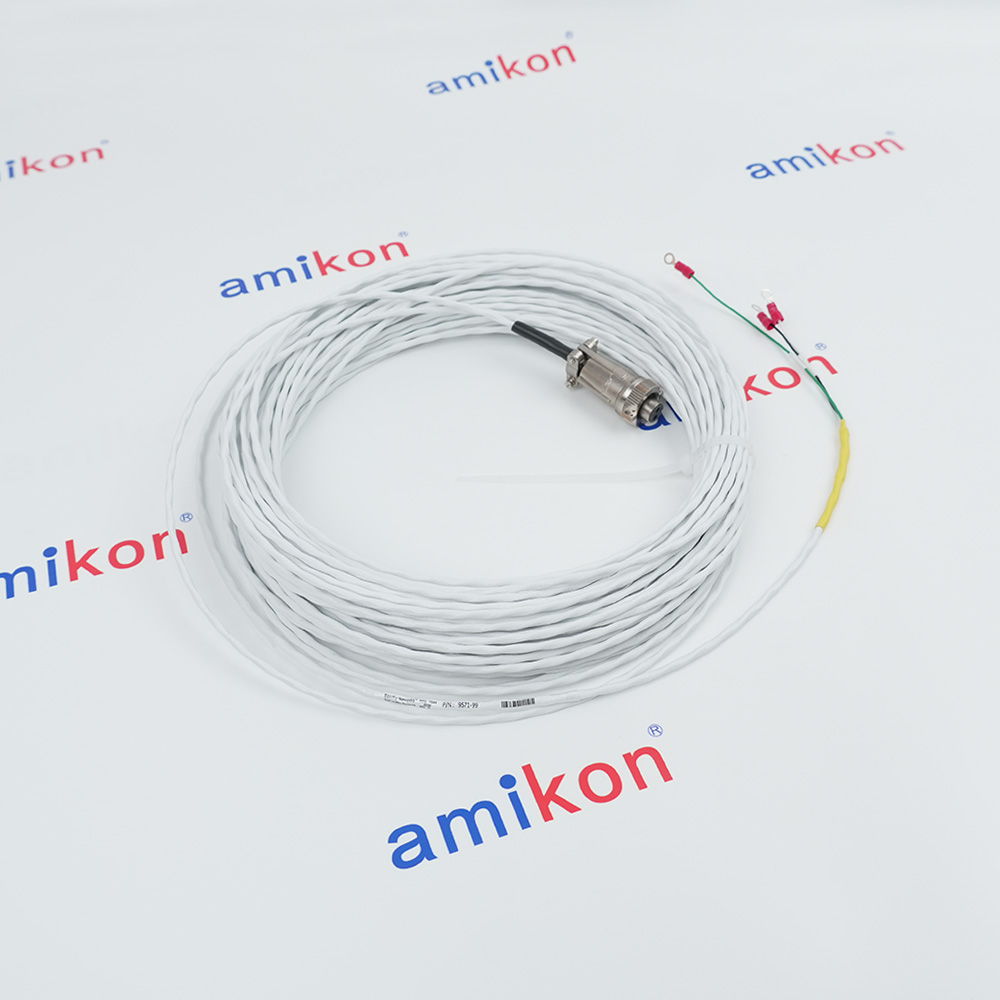

2-conductor twisted,
22AWG (0.5 mm2) cable
with 2-socket moisture-resistant
femaleconnector at one end,
terminallugs at the other end
(used withmonitors or vibration datacollectors)
Cable operating temperature is-50˚C to 120˚C
Minimum length of 2.0 ft (0.6 m)
maximum length of 99 ft (30 m)
330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 20 mm
Minimum case length: 240 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
00 Not required
330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 20 mm
Minimum case length: 180 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
00 Not required
330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 20 mm
Minimum case length: 120 mm
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector
with connectorprotector, standard cable
00 Not required
