ICS Triplex

Trusted CCoat 4-20mA 40Ch AI Non-RoHS

System Supply Voltage Range : 20 to 32V dc
Number of Inputs : 40 Channels
User Defined Thresholds : 4-off
Input Current Range : 0-22mA
Input Voltage Range : 0-6 Vdc
Resolution : 3.9uA (1/256mA)
Safety Accuracy : +/- 1% of full scale
Time-stamp Accuracy : ±0.5 ms
Sustained Working : ±250V dc
Maximum Withstanding : ±2.5kV dc
Channel to Channel Crosstalk : -40 to –60 dB
Power Consumption : 15 – 18W

I/O Power Supply Chassis

19 inch x 1U chassis for up to 3 Power Packs.
Chassis Type:Main Chassis
Input Voltage:120V AC
Output Power:Distributes +5V DC

Power Distribution Module

Input Voltage:120V AC
Power Rating:120W
Motor Speed:3600 RPM
Airflow Capacity:20 CFM
Noise Level:35 dB

Trusted TMR Controller Chassis

CHASSIS TRUSTED CONTROLLER
Architecture:3-channel TMR
Safety Certification:SIL 3 (IEC 61508/61511)
Slots:12 slots
Backplane Bandwidth:100 Mbps dual-redundant TMR bus
Input: 24V DC (18–32V range)
Redundancy: N+1 hot-swap PSUs
Per PSU: 250W @ 24V DC

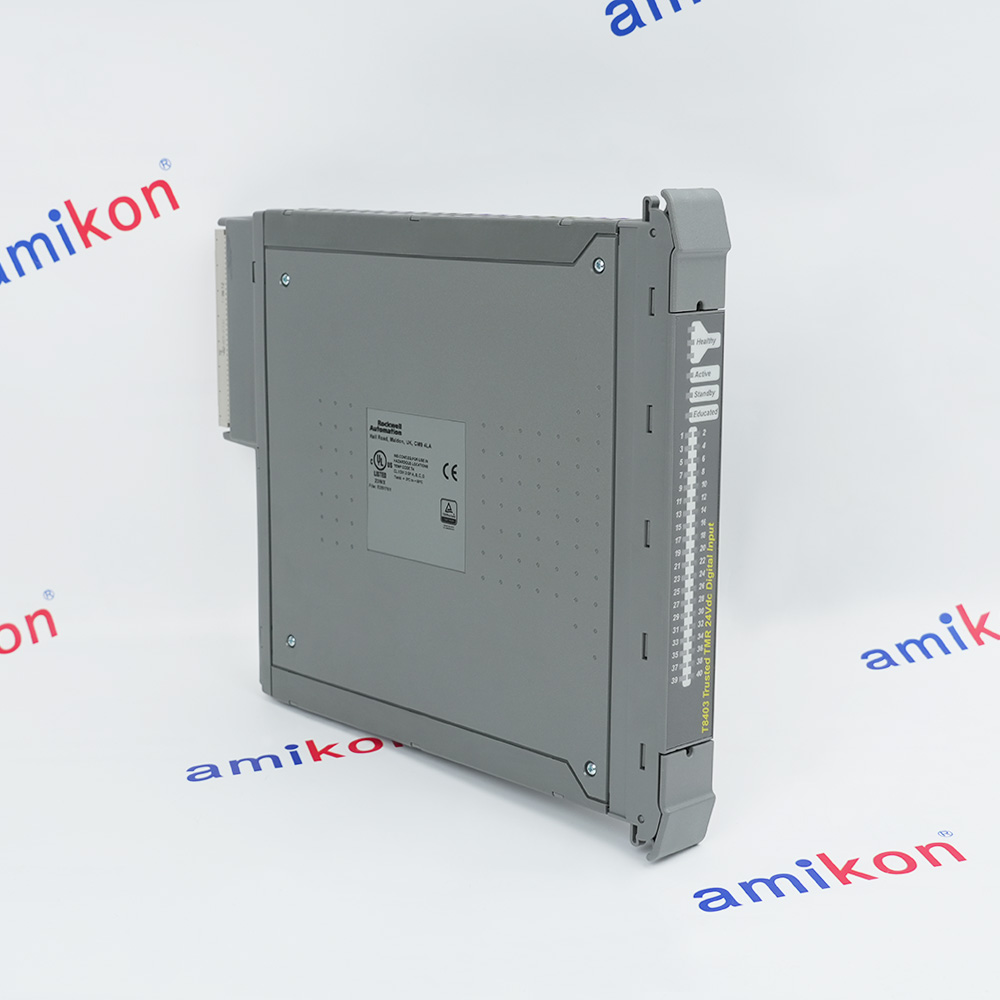

Digital Input Module

Type: Digital Input Module
Channels: 40 isolated input channels
Input Voltage: Nominal 24 VDC (range: 18–32 VDC)
Input Current: 6 mA per channel typical
Input Impedance: Approx. 4 kΩ
Logic Thresholds:
Logic '1': ≥15 V
Logic '0': ≤5 V

Trusted I/O and Communication Module

SHIELD FOR I/O AND
COMMUNICATION MODULE 1SLOT
Trusted Shield Single Slot Width
Input Voltage:24V DC
Power Consumption: 8W
Digital Inputs: 16–32 channels

Remote Expansion Cable

Full Trusted Controller Capability
100-240 Vac Input
Portable wheeled flight case
Simulation of 60 Field Signals
Pre-wired Dual Ethernet (point to point and hub)
Serial Comms wired to terminals
Configured for Companion Slot DI, AI and DO Modules

Trusted I/O SmartSlot Cable

Model Number: TC-501-02-6M5
Type: I/O SmartSlot Cable
Configuration: Typically used for internal connections
Channels: Supports 40 channels
Termination: Connects Trusted® I/O modules
to FTAs or VFTAs

Multiplexed I/O Module

Occupies one slot in the I/O chassis
Two isolated RS-422 serial
ports for remote multiplexed I/O
Analog Input: 4–20 mA, 0–10 V DC, RTD (Pt100)
Analog Output: 4–20 mA, 0–10 V DC
Channels: 16–32 multiplexed channels
Scan Rate: <10 ms per channel
Analog: 16-bit ADC/DAC
Channel-to-channel: 250 V AC
Input Voltage: 24 V DC ±10%

Monitored Digital Input Module

Sixteen input points
Hot-replaceable
Complete, automatic testing of all input circuits
Automatic line monitoring detects
open and short field wiringfaults
2500 volt minimum electrical
isolation between field and logiccircuits

Trusted CCoat 4 Way Expander Intfc

Voltage Range: 18 Vdc to 32 Vdc
Power Consumption: Maximum 1.7 W
Transmitter Power: Minimum -15 dBm
Receiver Sensitivity: -28 dBm
Maximum Propagation Time Difference: 80 ns
Maximum Fiber Length Difference: 15 m
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Non-Operating Temperature: -25°C to 70°C (-13°F to 158°F)
Relative Humidity: 10% to 95% non-condensing

Trusted CCoat Fiber Tx Rx Unit

Voltage Range: 18 Vdc to 32 Vdc
Power Consumption: Maximum 1.7 W
Transmitter Power: Minimum -15 dBm
Receiver Sensitivity: -28 dBm
Maximum Propagation Time Difference: 80 ns
Maximum Fiber Length Difference: 15 m

Trusted 24V DC Roof Mounted Fan Tray

Simple installation and connection
Capable of moving 69 m3/h (40.6 ft3/min)
24 Vdc operation
Low noise (32 db per fan)
Meets IP20 with roof cowl fitted

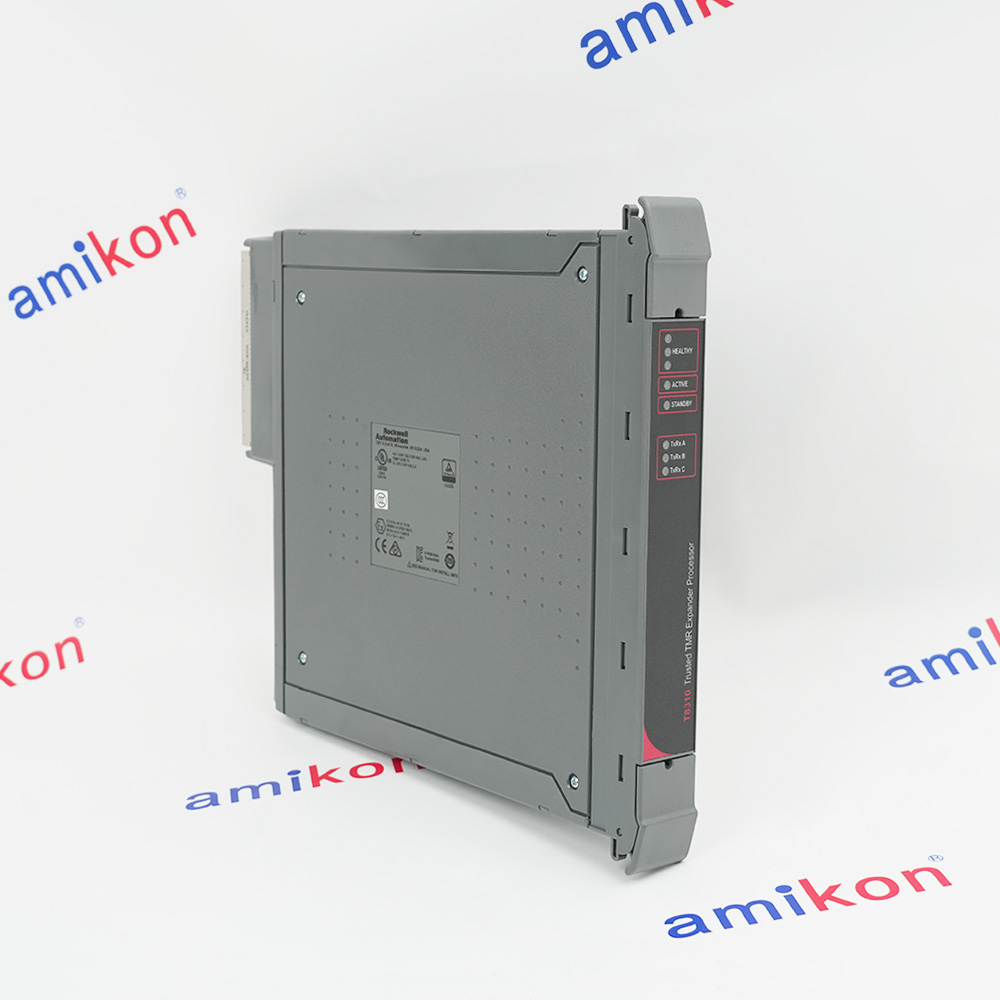

Trusted CCoat Expan Proc Module

Supply Ratings:20 - 32 Vdc, 45 W
Backplane (IMB) Supply:20 Vdc to 32 Vdc
Power Dissipation:45 W Backplane Supply
Module Location:T8300 Expander Processor Slot
Fusing Not User Serviceable
Operating Temperature :0 °C to +60 °C (+32 °F to +140 °F)
Storage Temperature: -25 °C to +70 °C (-13 °F to +158 °F)
Relative Humidity :10 % – 95 %, non-condensing

Trusted Power Distribution Unit

Visual indications of input power supply status.
Visual indication of individual fuse status.
Common alarm of fuse status via volt-free contact.
Link selectable supply voltage options

Trusted Power Distribution Unit

Voltage Range 22 Vdc to 28 Vdc
Input Current 60 A max
Conductor Clamping Range (LU10.16) 0.5 mm2 to 16 mm2
Max Switching Voltage 60 Vdc or 125 Vac
Operating Temperature 0 °C to +60 °C (+32 °F to +140 °F)
Non-operating Temperature -25 °C to +70 °C (-13 °F to +158 °F)

Trusted Output Power Distribution Unit

Supports up to three Trusted Sourcing Output Modules.
Dual stud power connection for either single or dual feed.
0 V module reference via BLZ 2-part connectors.

Power Shelf

POWER SHELF 4U MOUNTING KIT POWER PORT MAINS PLUGS
19 inch x 1U chassis
for up to 3 Power Packs.
Includes 4U fixing kit,
Power Port (with push fit BLZF3.5/10 connector),
mains plugs and retaining clips

Trusted TMR I/O SmartSlot Slot Cables

Cable Type: Multi-core shielded cable
Length: 2 meters
Voltage Rating: Typically rated for 300 V AC/DC
Current Capacity:4–20 mA analog
Operating Temperature: -40°C to +85°C

Trusted TMR I/O SmartSlot Slot Cable

Cable Type: Multi-core shielded cable
Length: 2 meters
Voltage Rating: Typically rated for 300 V AC/DC
Current Capacity:4–20 mA analog
Operating Temperature: -40°C to +85°C

Communications Cable

Communications Cable Assembly
From Communication Interface (T8151) to flying leads
Impedance: 100–120 Ω (for twisted-pair cables).
Voltage Rating: 300 V AC/DC (typical).
Data Rate: Up to 1 Gbps
Operating Temperature: -40°C to +85°C

EXPANDED MODULE TRUSTED FIBRE TX RX UNIT

Voltage: 100–240V AC (auto-ranging), 50/60 Hz.
Current: 10A (max at 100V AC)
Efficiency: ≥90%
Operating Temperature: -20°C to +70°C
Humidity: 5–95% non-condensing

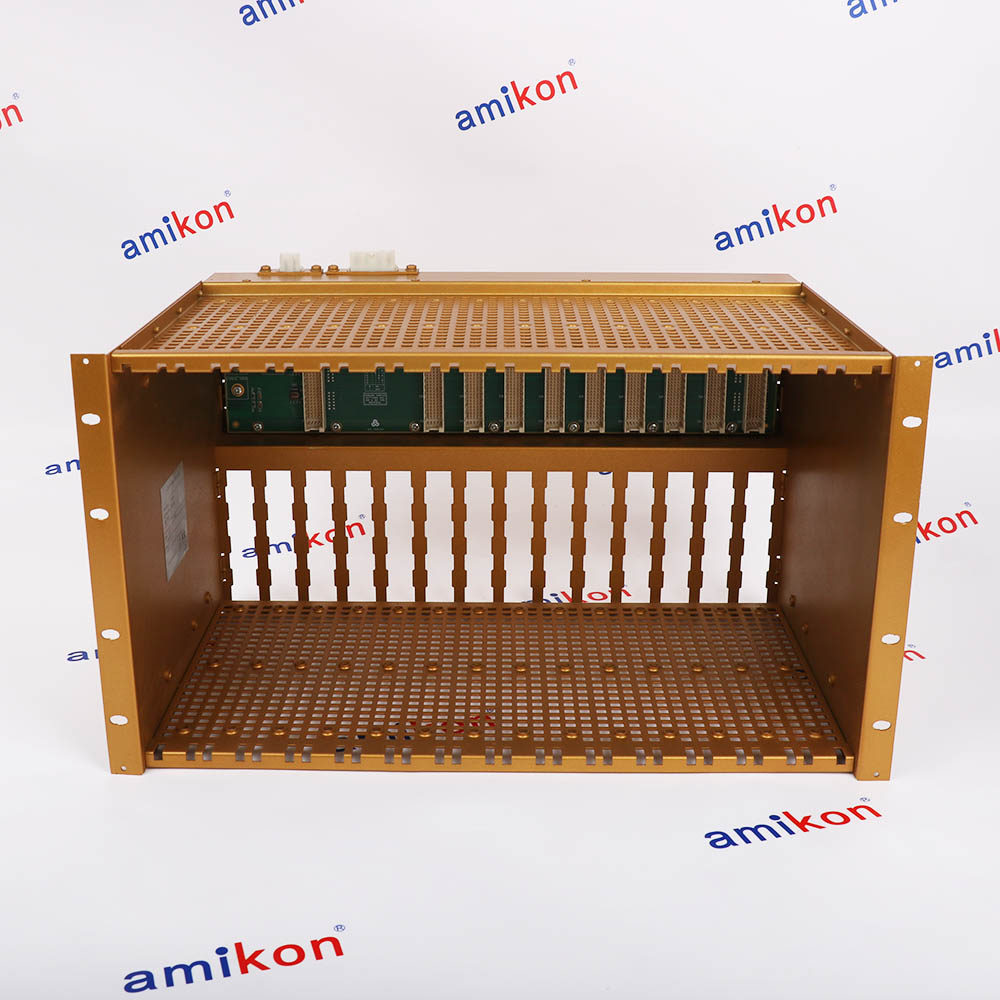

Expander Processor

2 x 30 mm (1.2 in) Trusted Expander Processor Slots
12 x 30 mm (1.2 in) single width Trusted I/O Module Slots.
No user-serviceable parts inside.
Fast assembly.
Minimum tooling/parts.
32, 48, 64 and 96-way
DIN 41612 I/O port connector capability
Cable entry options.
Convection cooling of modules through the Chassis

Monitored Digital Input Module

Safetybus Power 0.85 load units
Number of Inputs 16, common power return
Vibration10 to 55 Hz: ±0.15mm
Turn-On Voltage (default) > 12 Vdc
Voltage: 15 to 80 VDC
Current:450 mA, maximum

COMMUNICATION INTERFACE

COMMUNICATION INTERFACE
TRUSTED
40 CHANNEL
24 VDC
